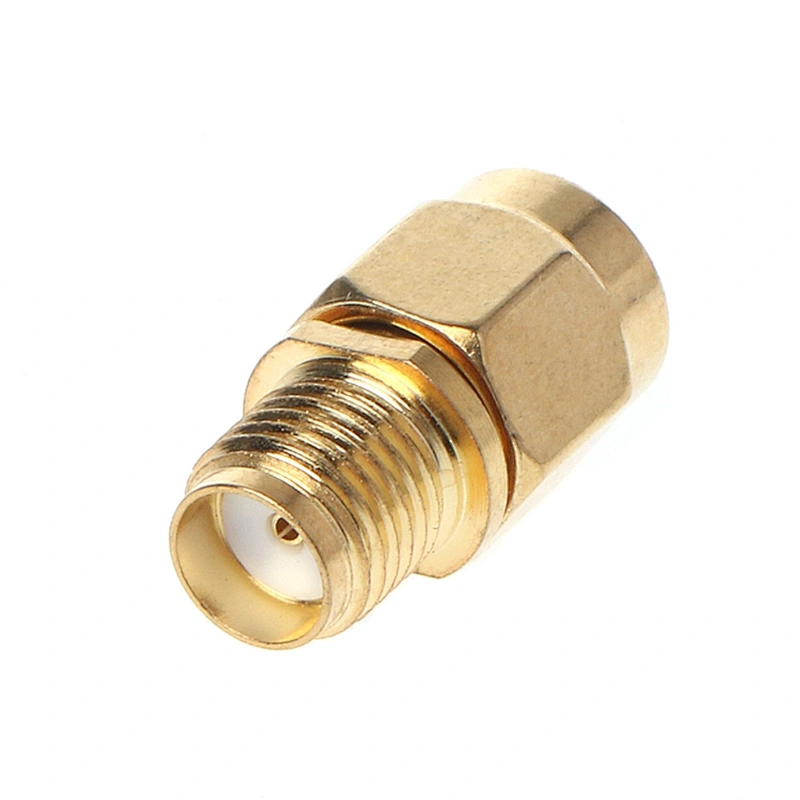

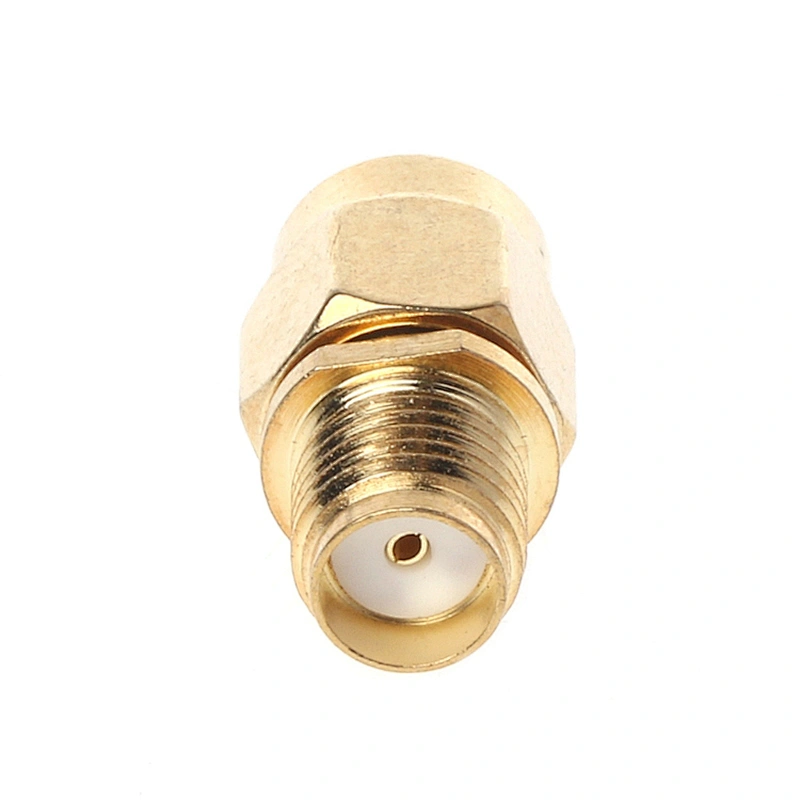

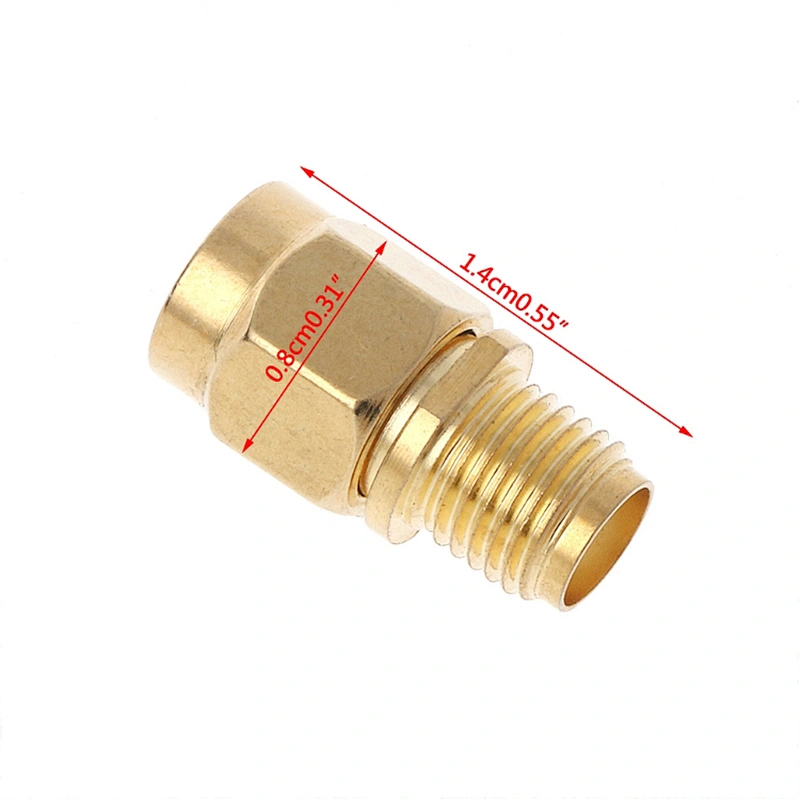

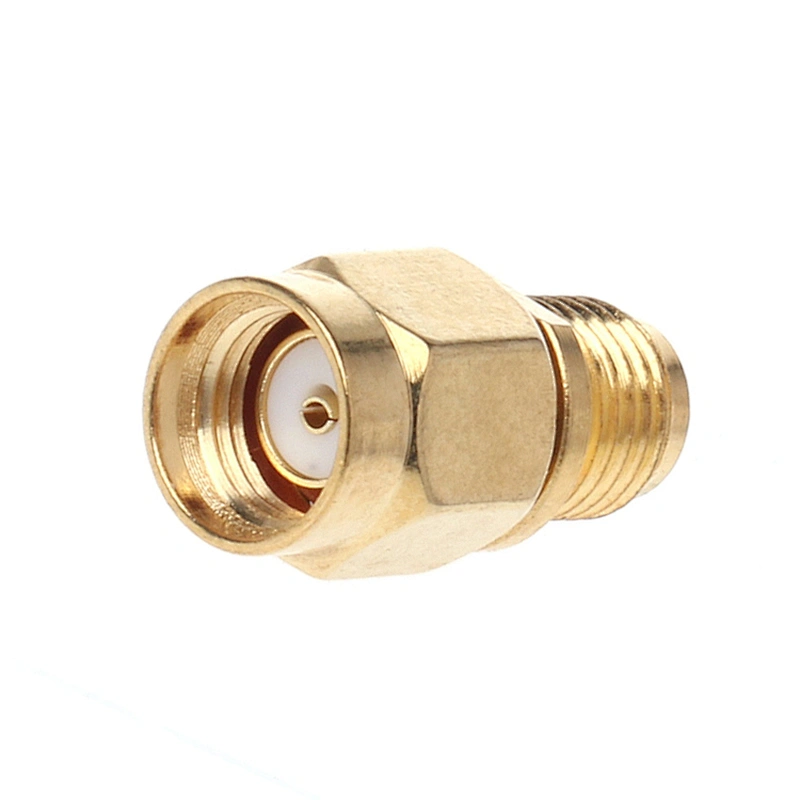

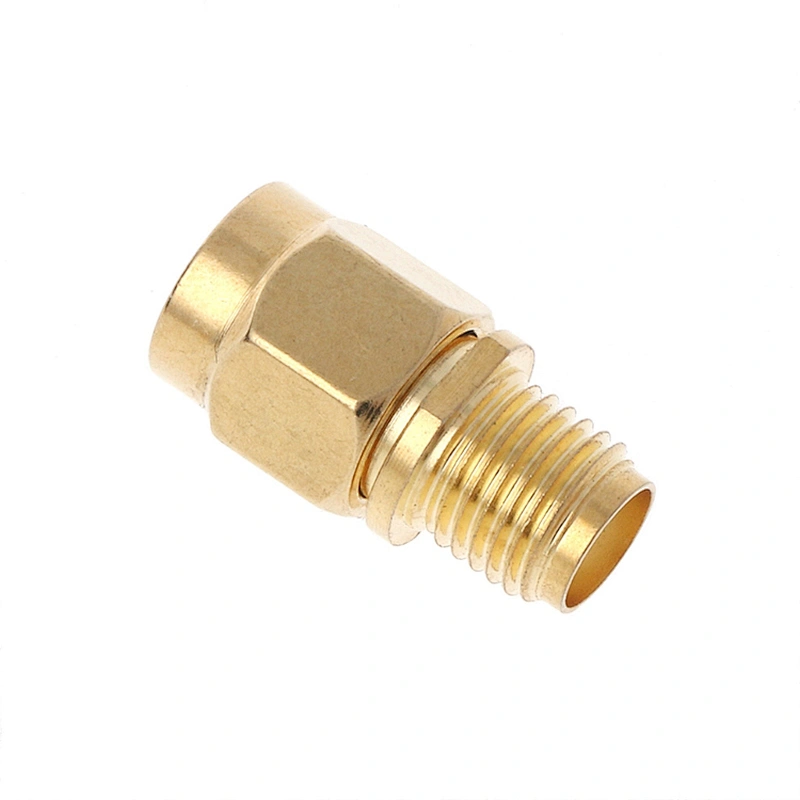

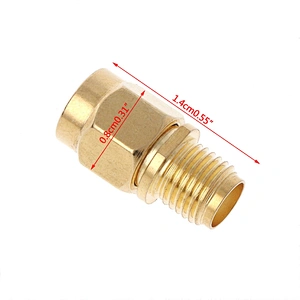

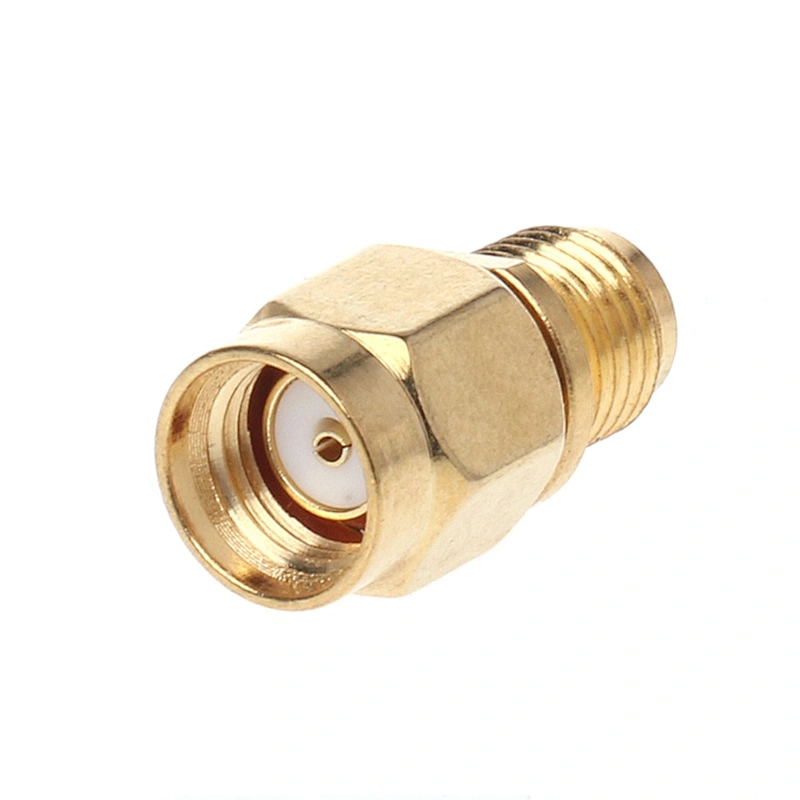

RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter
RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter

RF SMA adapter SMA Female to RP SMA Male Plug Connector Adapter Gold Plated Straight Coaxial RF Adapter

Model NO.:
SMA-50JK
Quantity:
  • Product name:RP-SMA male to SMA female
  • Connector type:SMA connector
  • Gender:male
  • Type:RP-SMA male to SMA female
  • Application:Router, Camera
  • Impedance:50 Ohm
  • Temperature Range:-65-+165℃
  • working voltage:335V max
  • Withstand Voltage:1000V R.m.s
  • Insulation resistance:5000 M-Ohm
  • Type:ADAPTER
  • Application:RF
  • Gender:Male
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:SMA-50JK
Product Description
Specification
Technical Specifications
Temperature range
-65~+165°C
Vibration
ML-STD-202, Method 213
Impedance
50 ohm
Frequency Range
DC – 12.4Ghz
Working Voltage
335V max
Break-down Voltage
2500V rms @ sea level
Contact resistance
≤1 m ohm @ center contact
≤1 m ohm @ outer contact
Average power
3KW max
Insulation resistance
≥10000M ohm
VSWR
Straight≤1.15
Right angle≤ 1.25
Durability (mating)
≥500 (cycles)
Material&Plating
Shell
Brass
Gold plated
Contact pin
Brass
Gold plated
Socket
Beryllium
Gold plated
Elastic contact
Beryllium
Gold plated
Insulator
PTFE
Crimping suite
Copper alloy
Nickel or gold plated
O-ring sealing
6146 silastic
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
