Model NO.
BNC/SMA-JK
Price:
USD 0.74-0.85 / pieces
Minimum order quantity:
50 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
Shenzhen
Quantity:
  • Interface Type:BNC to SMA
  • Color:Gold and Silver
  • Description:BNC to SMA series
  • Way:2
  • Pin or Socket:Pin/Socket
  • Connector Usage:Telecom
  • Impedance:50Ohm
  • Mounting Type:Screw
  • Adapter End 1:BNC Male/BNC Female
  • Adapter End 2:SMA Male/SMA Female
  • Type:ADAPTER
  • Application:RF
  • Gender:Male/Female
  • Pins:1P
  • Pins:2P
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:BNC/SMA-JK
Specification
Technical Specifications
Temperature range
-55~+85°C
Vibration
ML-STD-202, Method 213
Impedance
50/75 ohm
Frequency Range
DC – 11G
Working Voltage
1000V max
Break-down Voltage
2500V rms @ sea level
Contact resistance
≤1 m ohm @ center contact
≤1 m ohm @ outer contact

Average power
3KW max
Insulation resistance
≥10000M ohm
VSWR
Straight≤1.15
Right angle≤ 1.25

Durability (mating)
≥500 (cycles)
Material&Plating
RG174
Shell
Brass
Nickel or gold plated
Contact pin
Brass
Gold plated
Socket
Beryllium
Gold plated
Elastic contact
Beryllium or tin brass
Gold plated
Insulator
PTFE
Crimping suite
Copper alloy
Nickel or gold plated
O-ring sealing
6146 silastic
Product Description

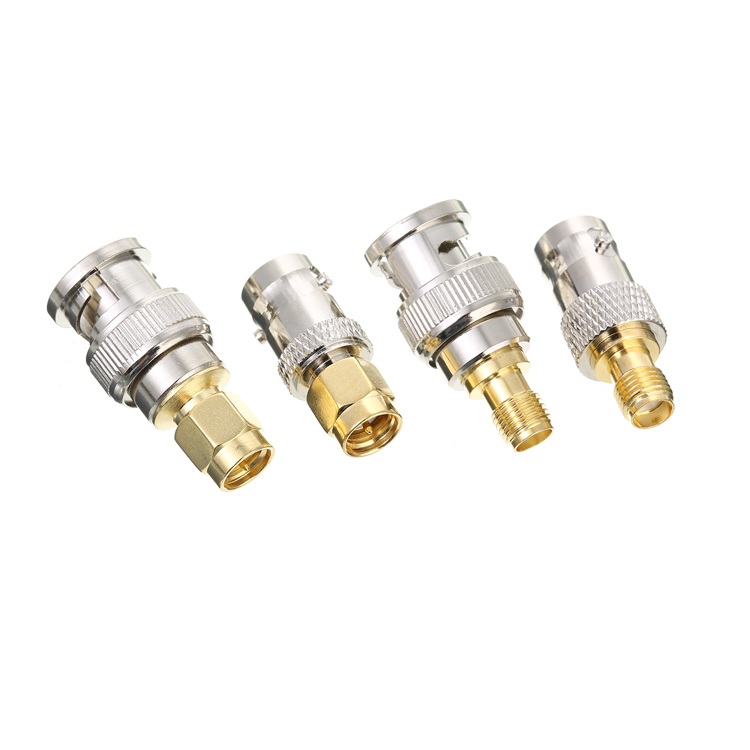

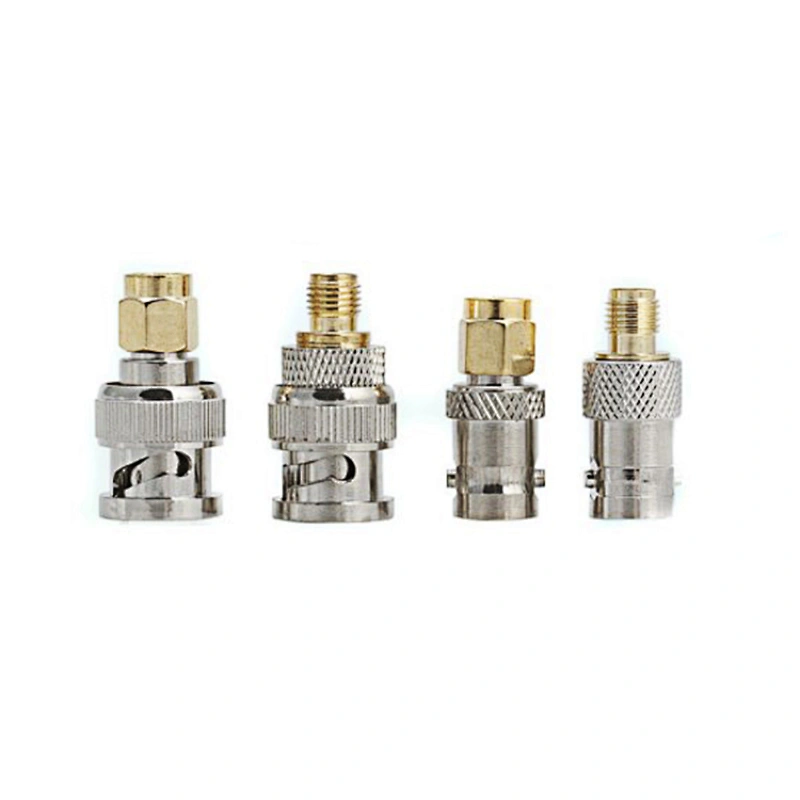

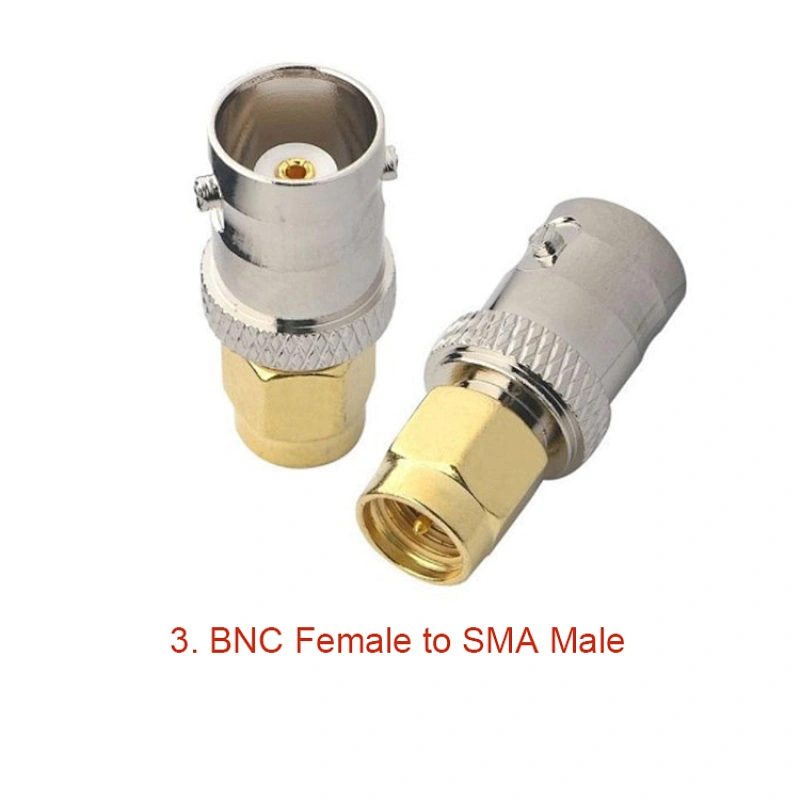

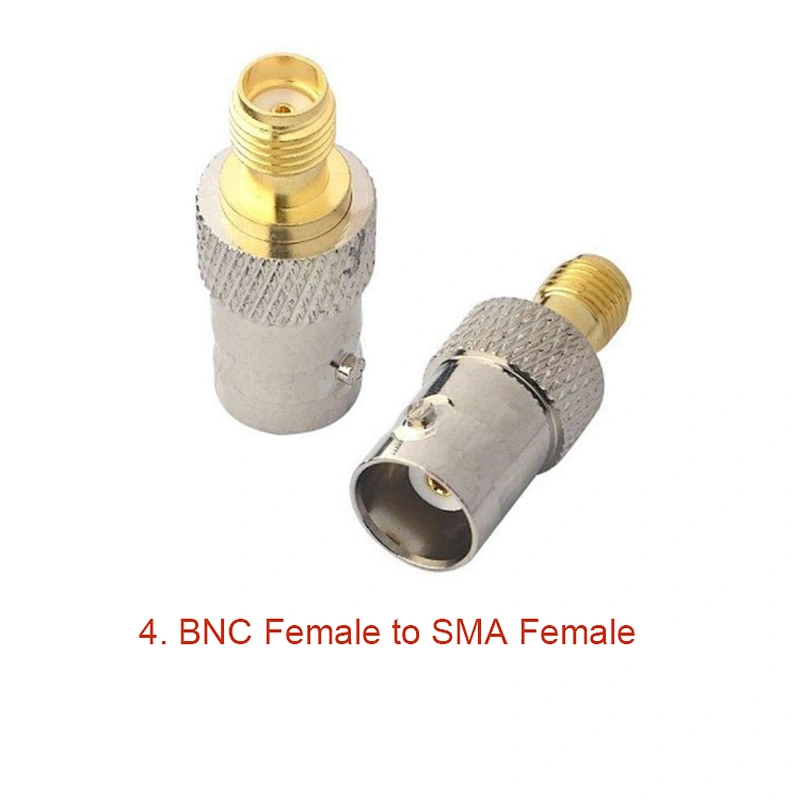

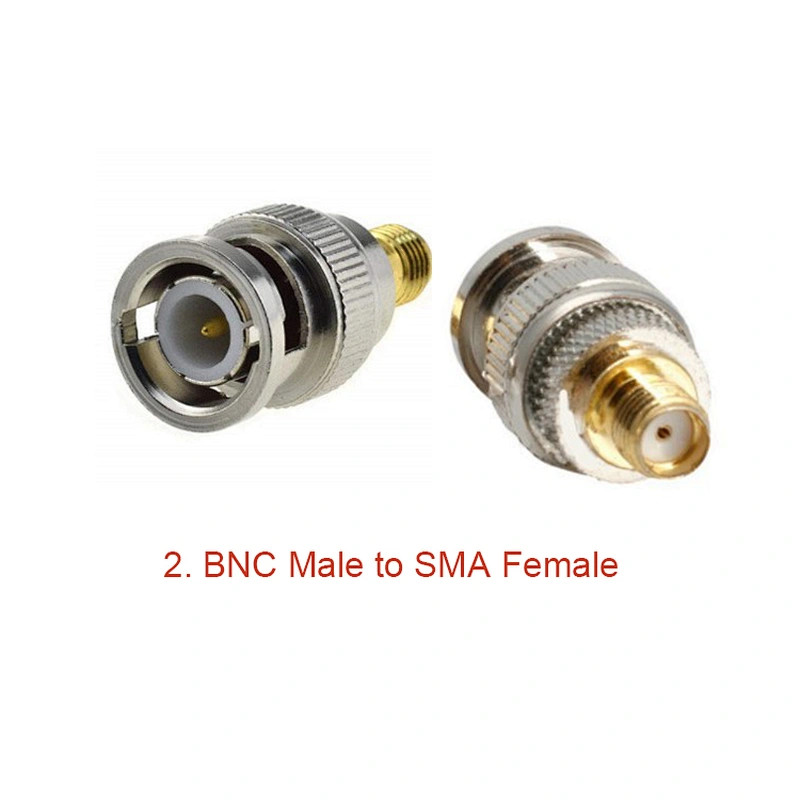

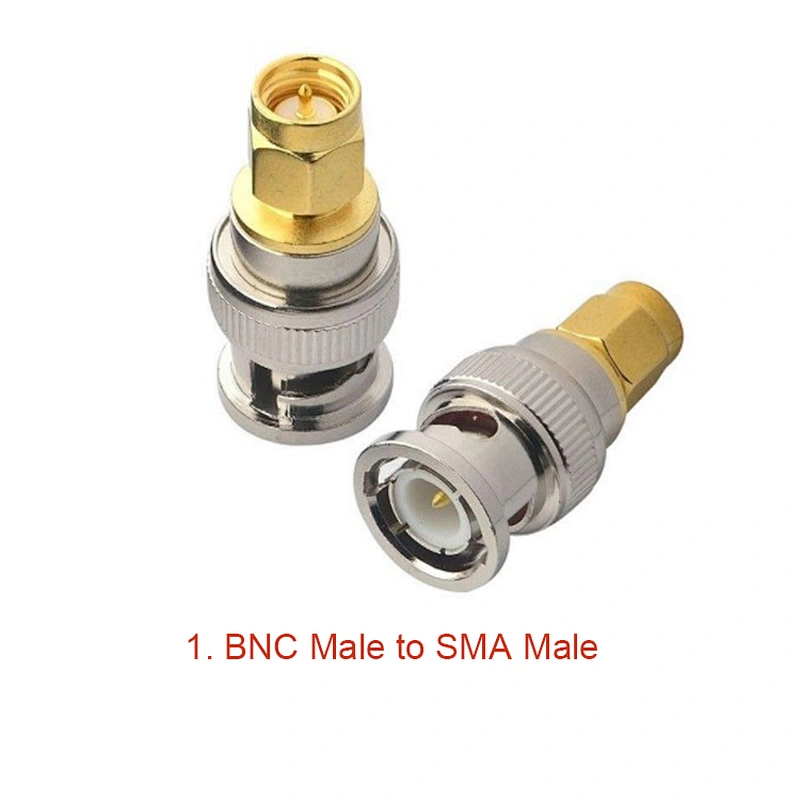

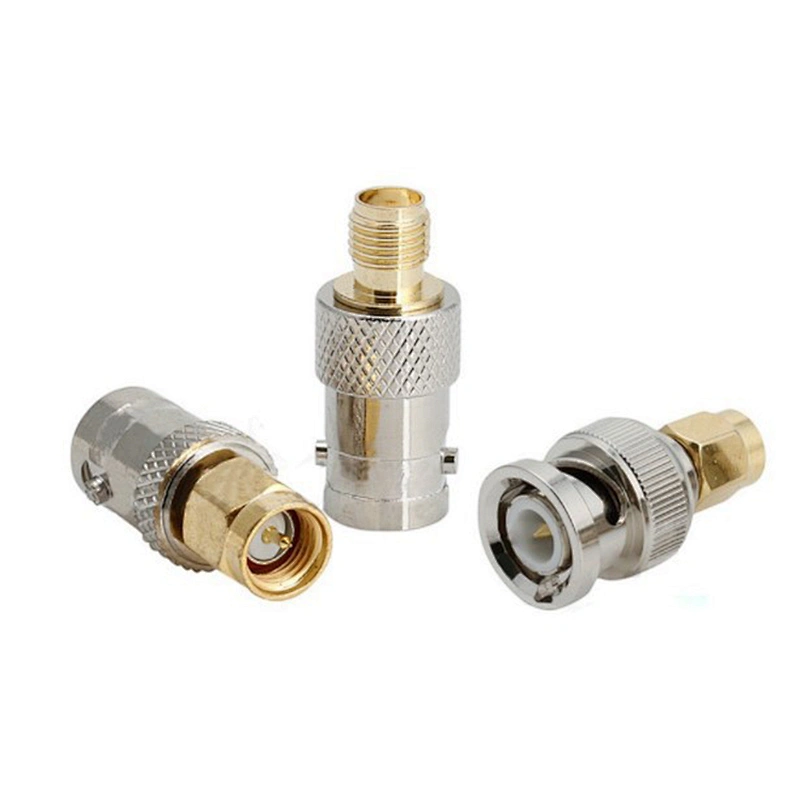

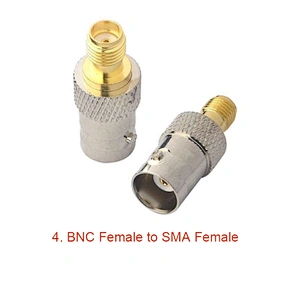

Types:1. BNC Male to SMA Male2. BNC Male to SMA Female3. BNC Female to SMA Male4. BNC Female to SMA Female
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose Us
FAQ
Q: What type of antenna your company have?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?
A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?
A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?
A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?
A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?
A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
