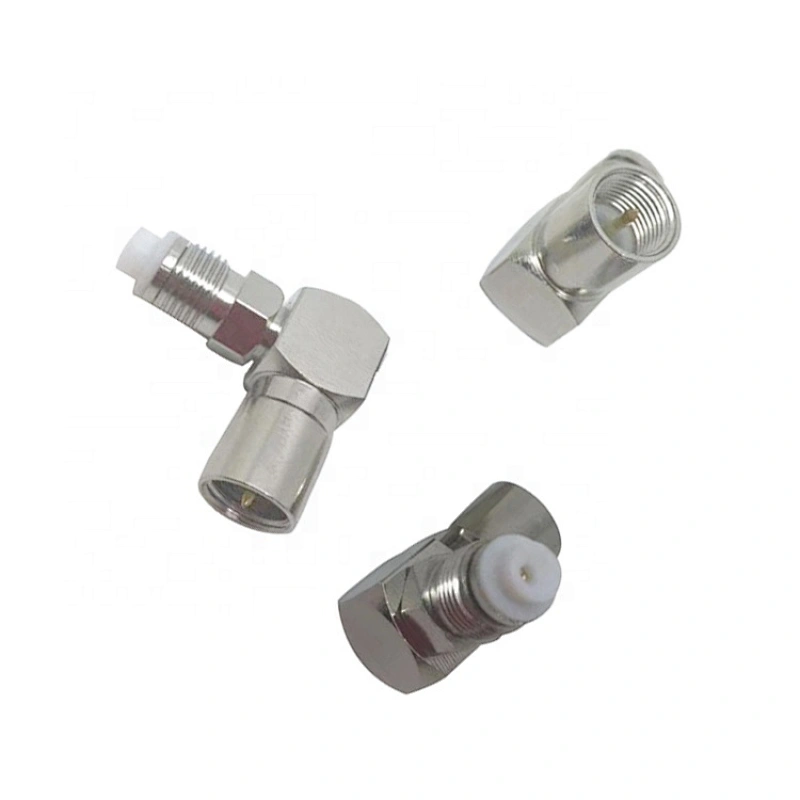

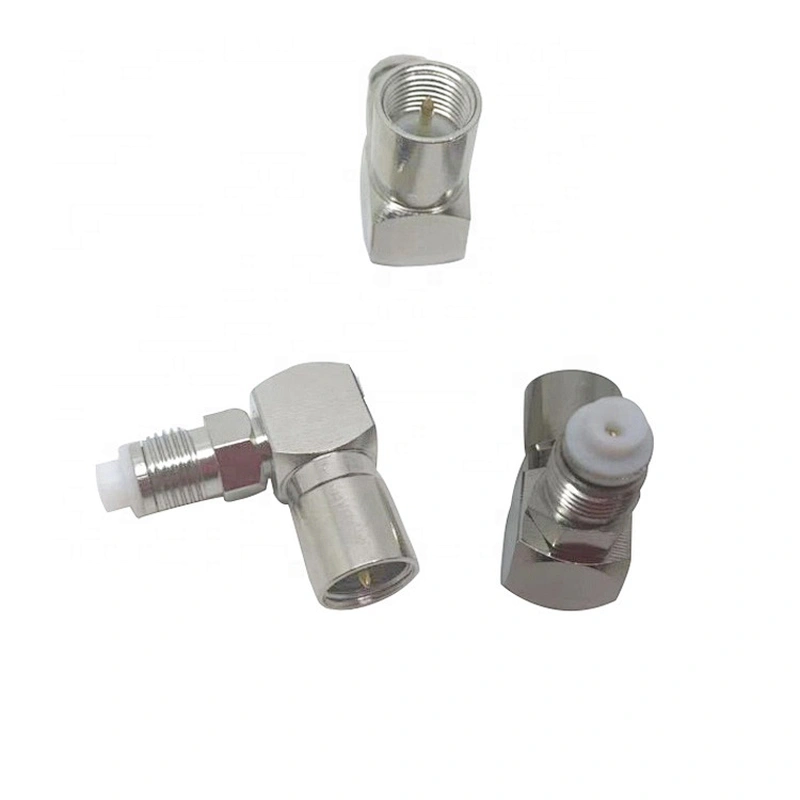

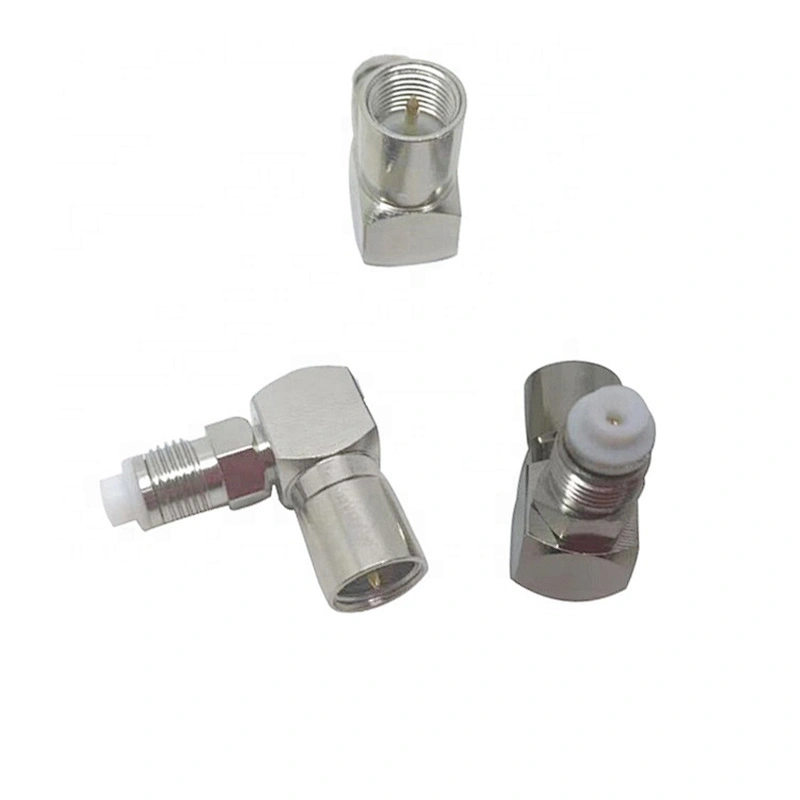

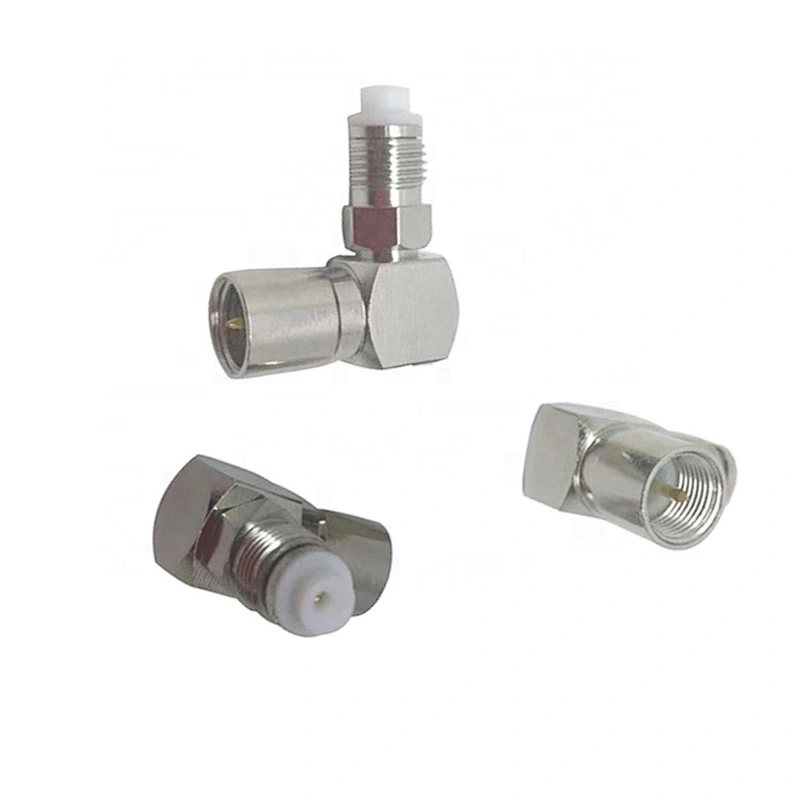

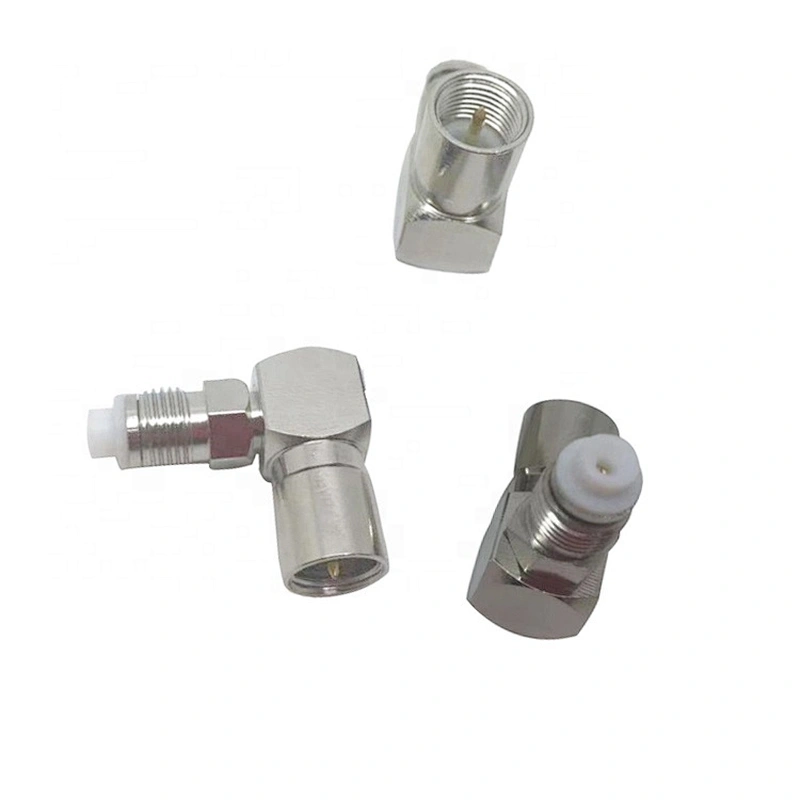

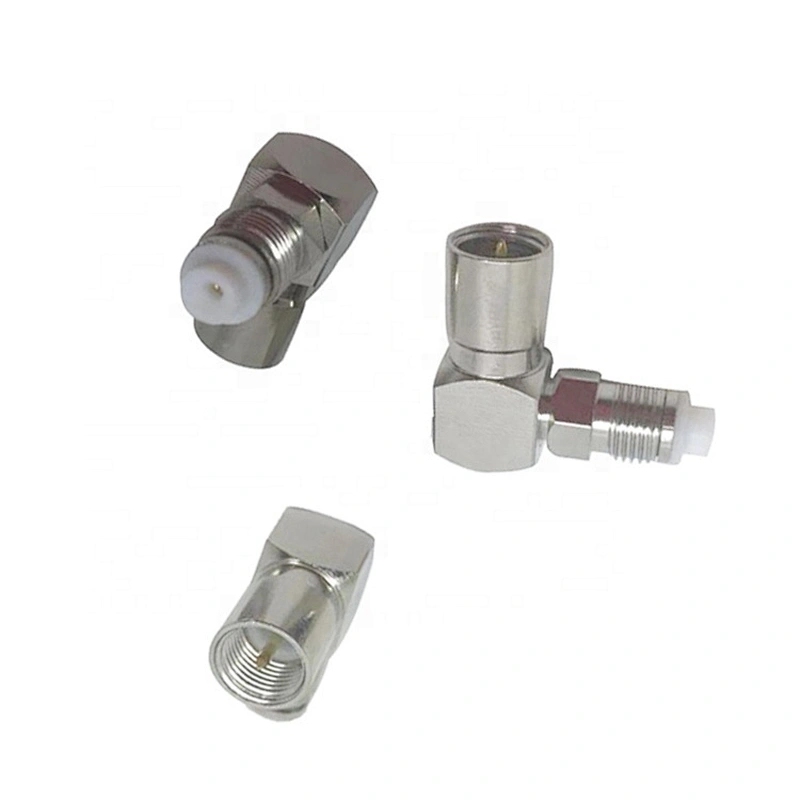

- Product name:FME male to FME female
- Connector type:FME-50JK
- Gender:male
- Type:adapter
- Temperature Range:-40-+85
- Application:Router, Camera
- Impedance:50 Ohm
- working voltage:750V max
- Withstand Voltage:2000V R.m.s
- Insulation resistance:5000 M-Ohm
- Type:ADAPTER
- Application:RF
- Gender:Male
- Pins:1P
- Place of Origin:CN;GUA
- Brand Name:Hongsense
- Model Number:FME-50JK
Product Description
Specification
Technical Specifications | ||
Temperature range | -65~+155°C | |
Impedance | 50 ohm | |
Frequency Range | DC – 3G | |
Working Voltage | 500V max | |
Break-down Voltage | 2500V rms @ sea level | |
Contact resistance | ≤10 m ohm @ center contact ≤5 m ohm @ outer contact | |
Insulation resistance | ≥5000M ohm | |
VSWR | Straight≤1.2 Right angle≤ 1.25 | |
Durability (mating) | ≥500 (cycles) | |
Material&Plating | ||||
Shell | Brass | Nickel or gold plated | ||
Contact pin | Brass | Gold plated | ||
Socket | Beryllium | Gold plated | ||
Insulator | PTFE | |||
Crimping suite | Copper alloy | Nickel or gold plated | ||
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.
Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.
Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.
Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.
Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
Send Message
Related Products
Model NO. N/SMA-JK

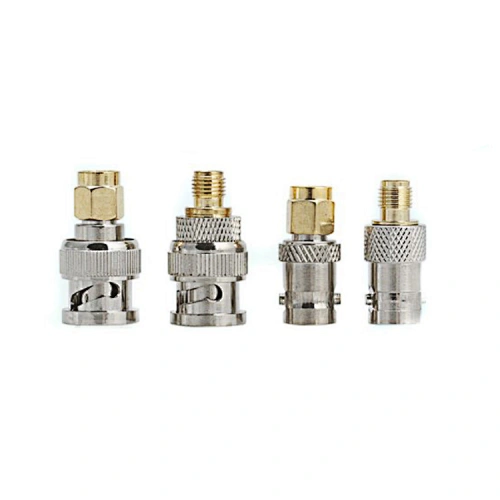

Model NO. HSC-BNCJ-SMAJ

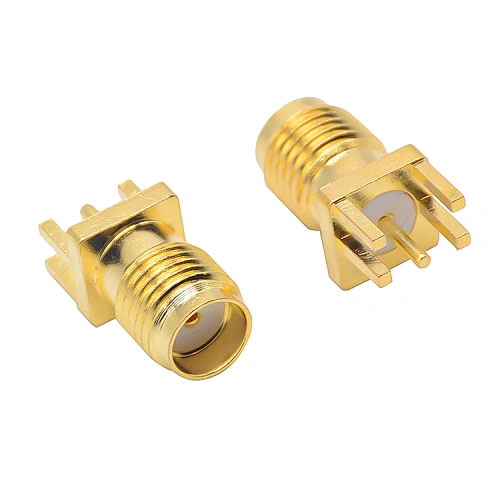

Model NO. HSC-SMAF-PCBS
