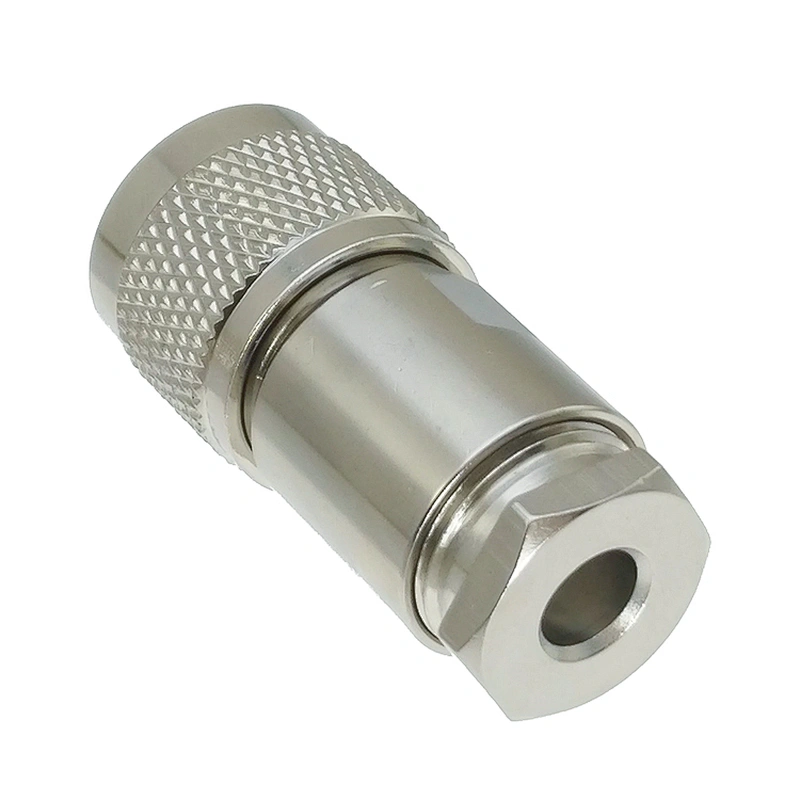

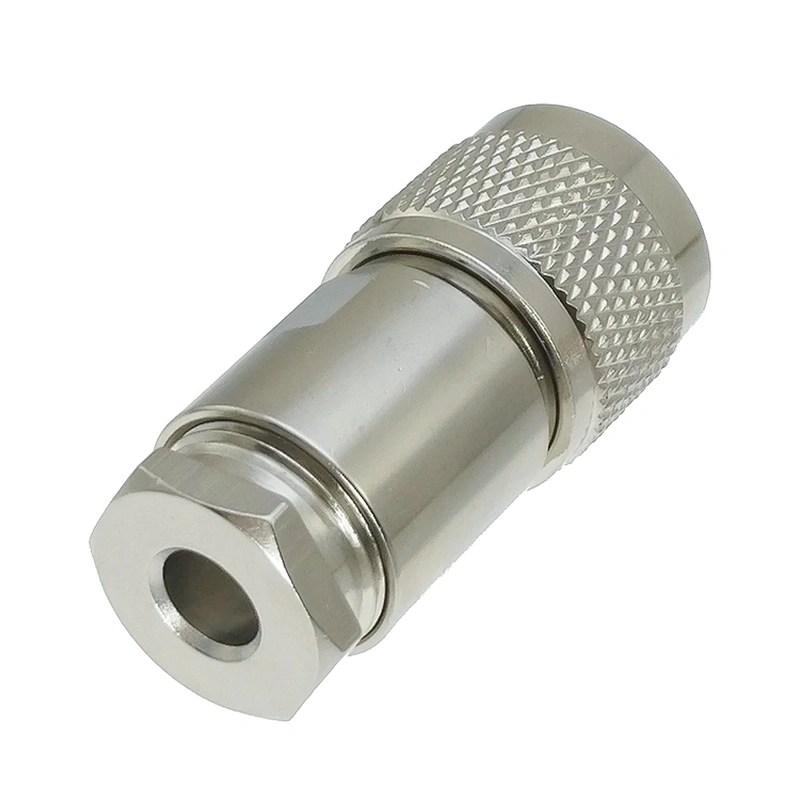

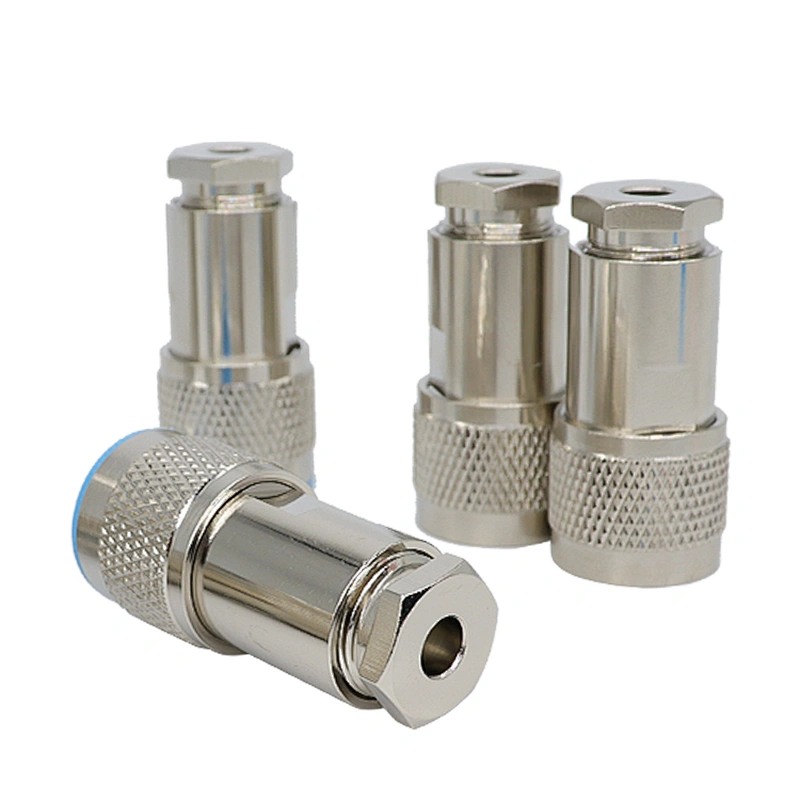

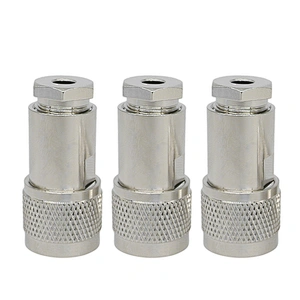

N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters
N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters

N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters

Model NO.
HSA-N-J-3D
Price:
USD 0.80-0.95 / pieces
Minimum order quantity:
100 pieces
Supply Ability:
5000.0 pieces / Day
Country of Origin:
SHENZHEN
Quantity:
  • Connector type:N-J-3D
  • Gender:male
  • Type:SMA Female
  • Place of origin:China
  • Temperature Range:65-+165
  • Impedance:50 Ohm
  • Withstand Voltage::2500V R.m.s
  • Shipment:DHL/EMS/TNT/FEDEX/ARAMEX etc
  • Frequency:DC-11GHz
  • Type:ADAPTER
  • Application:RF
  • Gender:Male
  • Pins:1P
  • Place of Origin:CN;GUA
  • Brand Name:hongsense
  • Model Number:HSA-N-J-3D
Specification

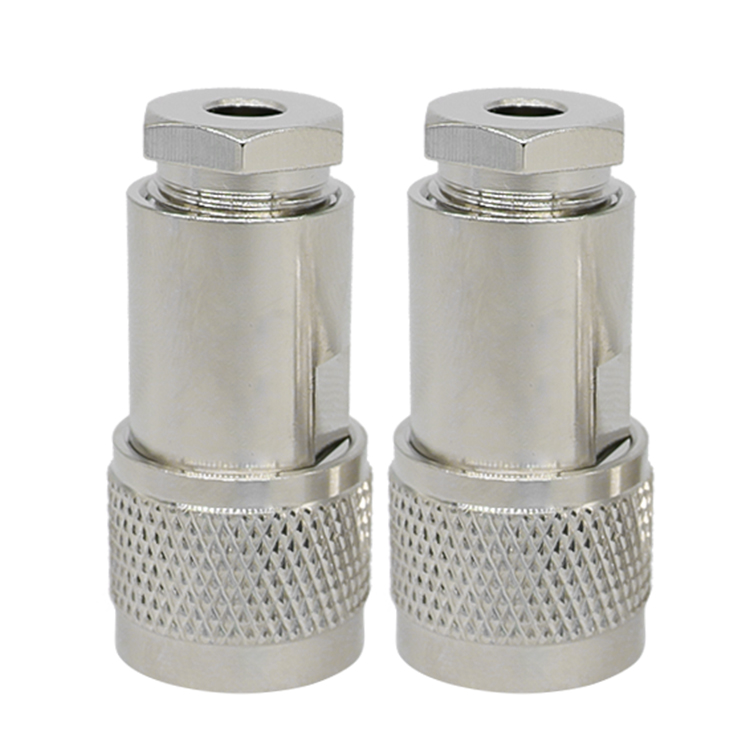

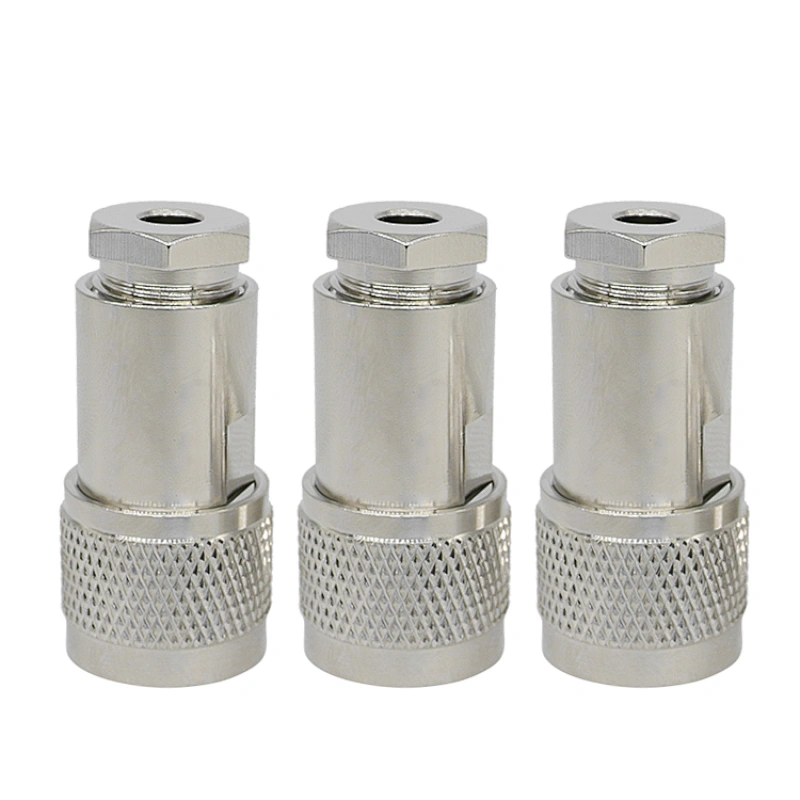

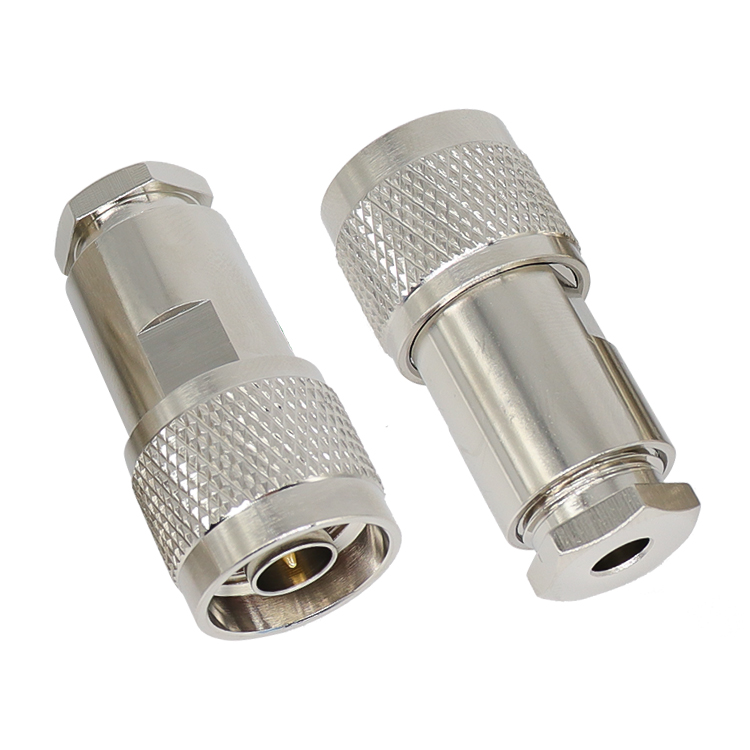

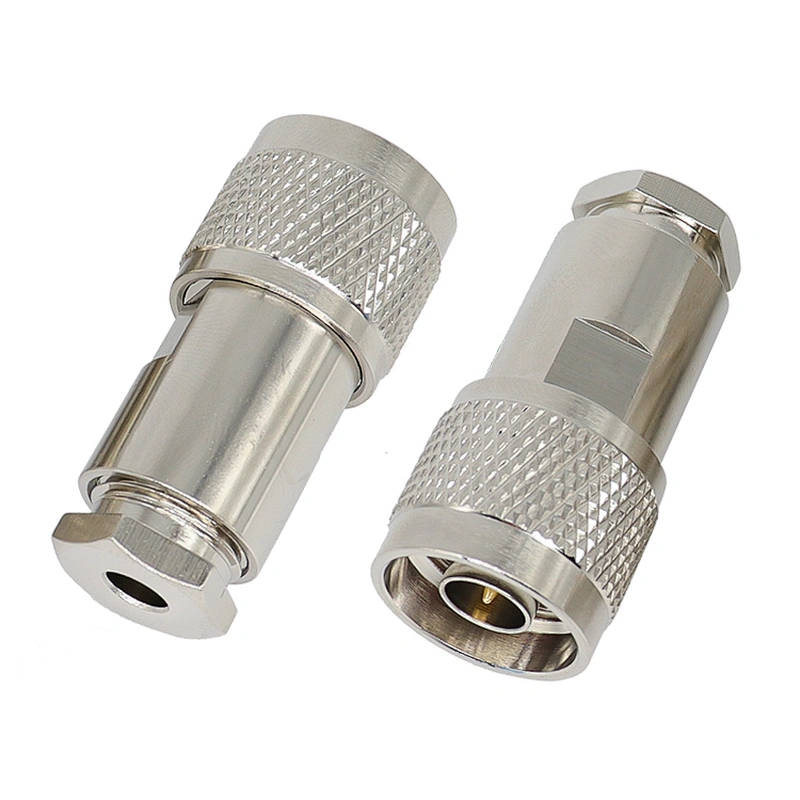

N Male Clamp connector for RG5 RG6 LMR300 5DFB 5D-FB Cable Copper Straight Coaxial RF Adapters

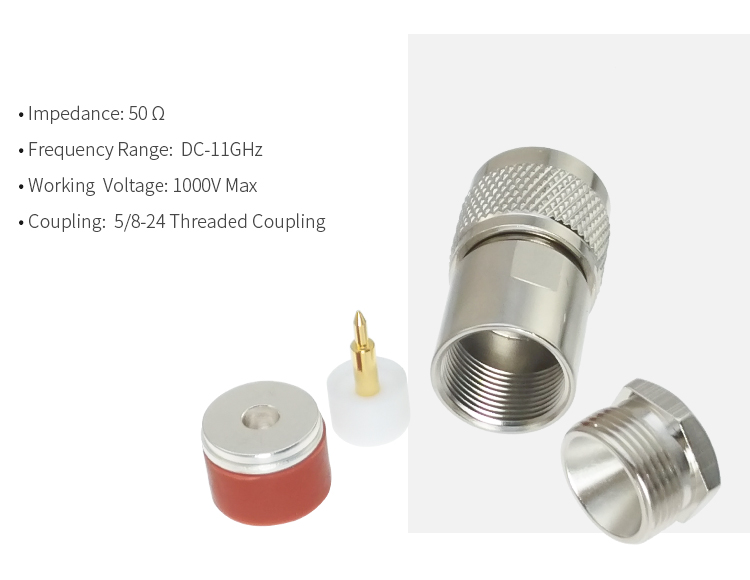

Electrical Performance
Impedance
50 Ohms
Frequency Range
DC-11GHz
Voltage Rating
500V
Dielectric Withstanding Voltage
1500V
VSW
Straight:
Right-Angle:

1.25@6GHz Max.
1.3@6GHz Max.
Contact Resistance
Center contact:
Outer contact:

1.50m Ohms Max.
1.00m Ohms Max.
Insulation Resistance
5000Mohms
Insertion Loss
0.24dB @ 3GHz Max.

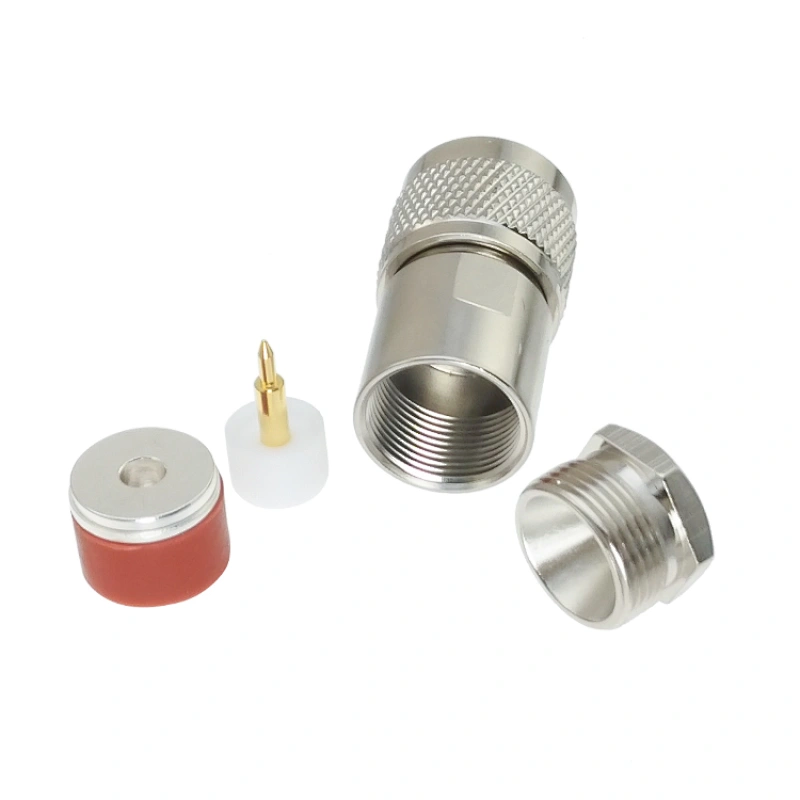

Material Specifications
Bodies
Nickel-plated Brass
Pin Contact
Gold-plated Brass
Socket Contact
Gold-plated Beryllium copper
Insulator
PTFE(Telfon)
gasket
Silicone Rubber
Crimp Ferrule
Copper alloy
Durability
500matings
Environmental Date
Temperature Range
-65~+165
Thermal Shock
MIL-STD-202 methord
Vibration
100m/s, 10g
Water Proof
Heat shrink tube or Silicone Rubber Gasket
Corrosion
5% salt-solution 48Hours Min.
IP
67
Product Description
Packing & Delivery
Package:
1.Each antenna has single PP bag.
2.20Pcs antenna in one carton.
3.Customize package for gps antenna available.

Delivery:
1.Sample order will be send in 1-3days after payment.
2.2-1000pcs, Lead time is 5-7 working days.
3.1000-5000pcs,Lead time is 10-15 working days.
4.Over 5000pcs,lead time is 15-25 working days.
Parcel will be sent by DHL/UPS/Fedex/EMS or customers own shipping agent
