Model NO.
XC-A001
Price:
USD 0.39-59.00
Delivery:
FOB
Minimum order quantity:
100
Quantity:
  • Type:Sma
  • Application:RF
  • Gender:Male
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:XC-A001

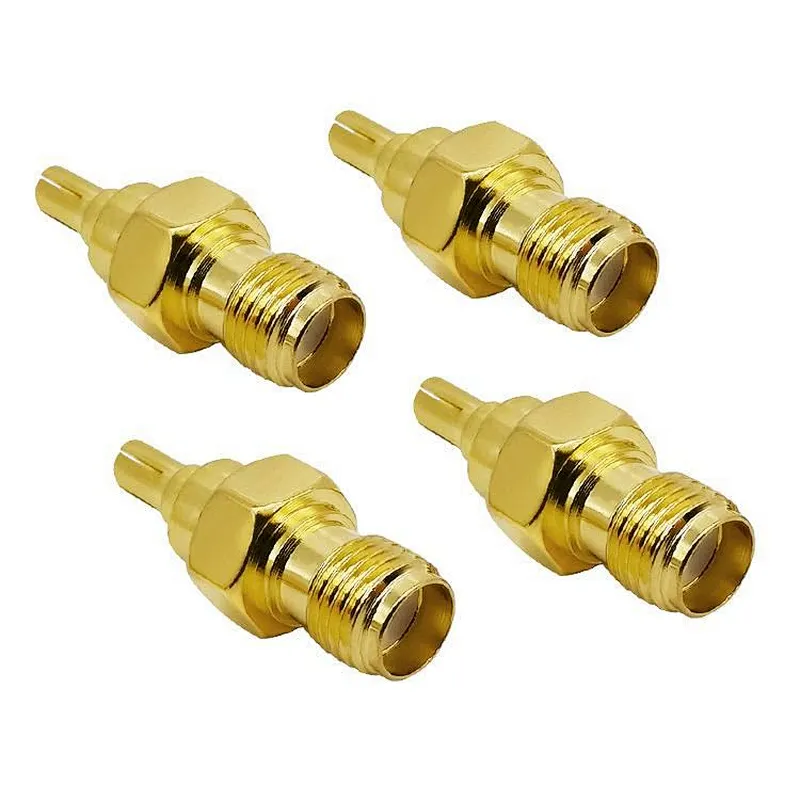

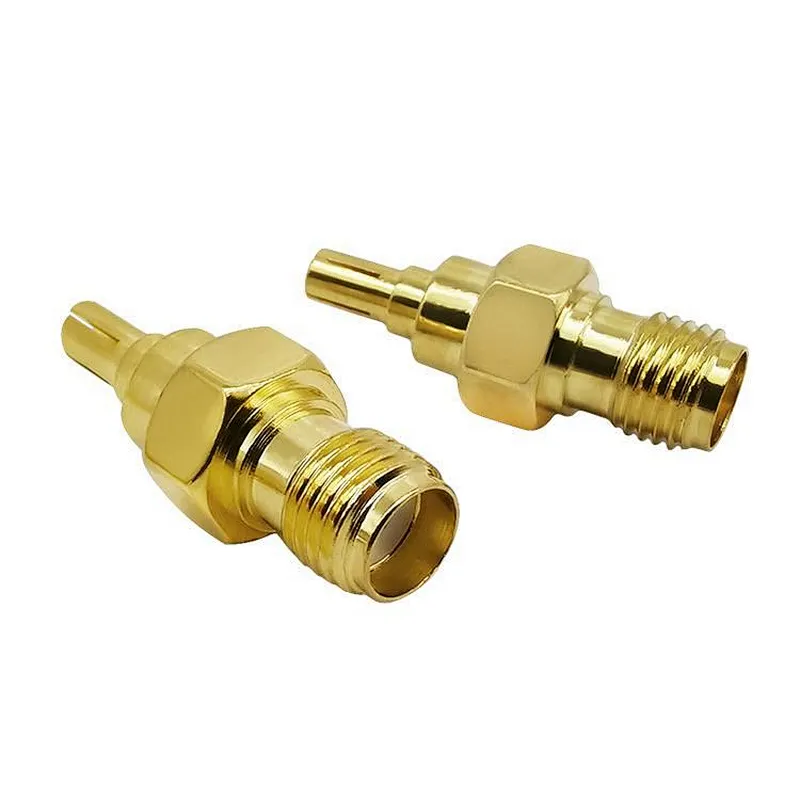

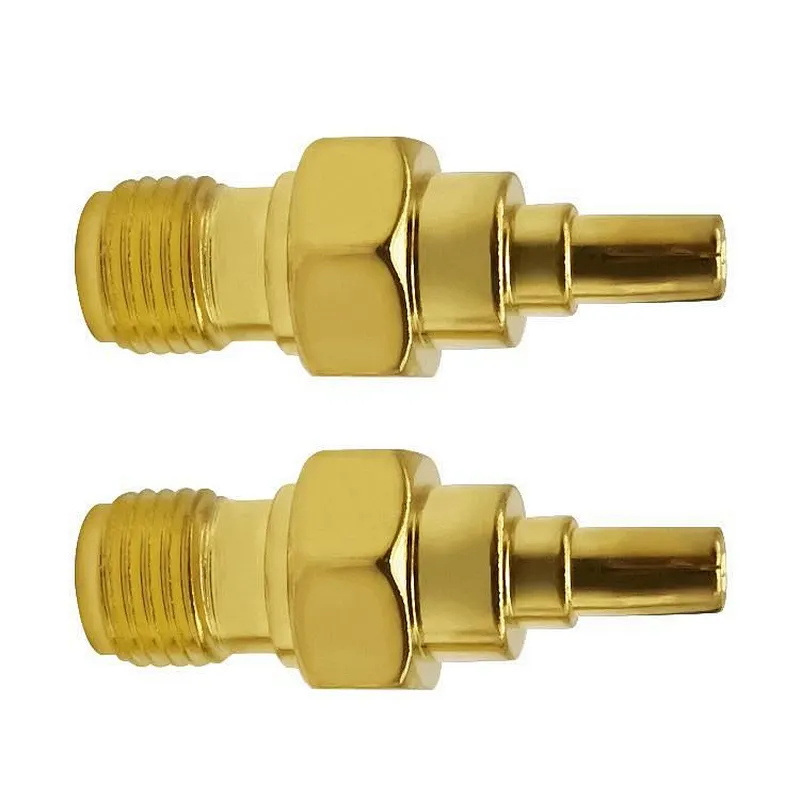

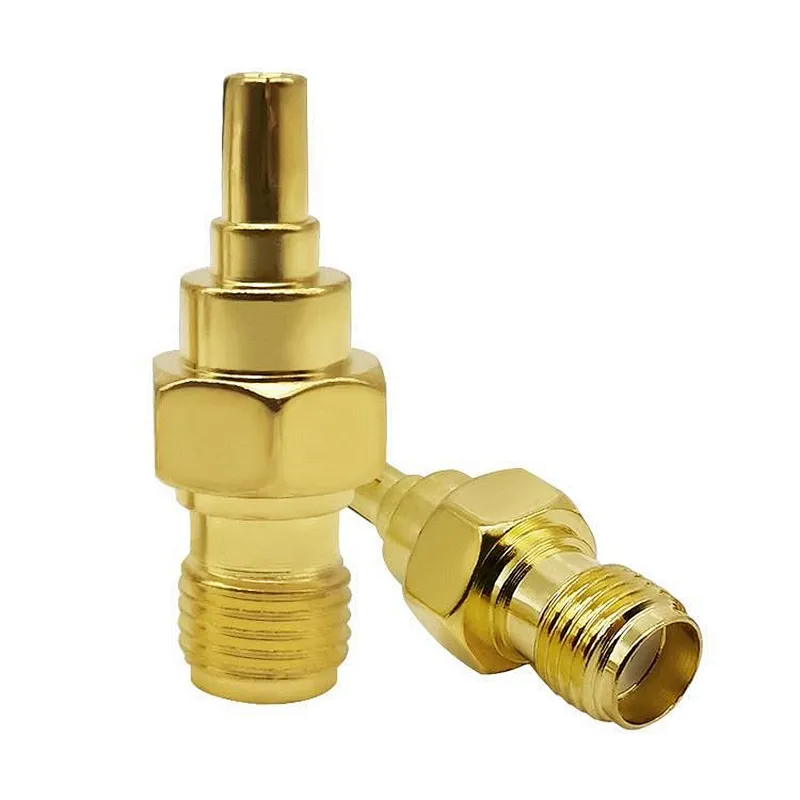

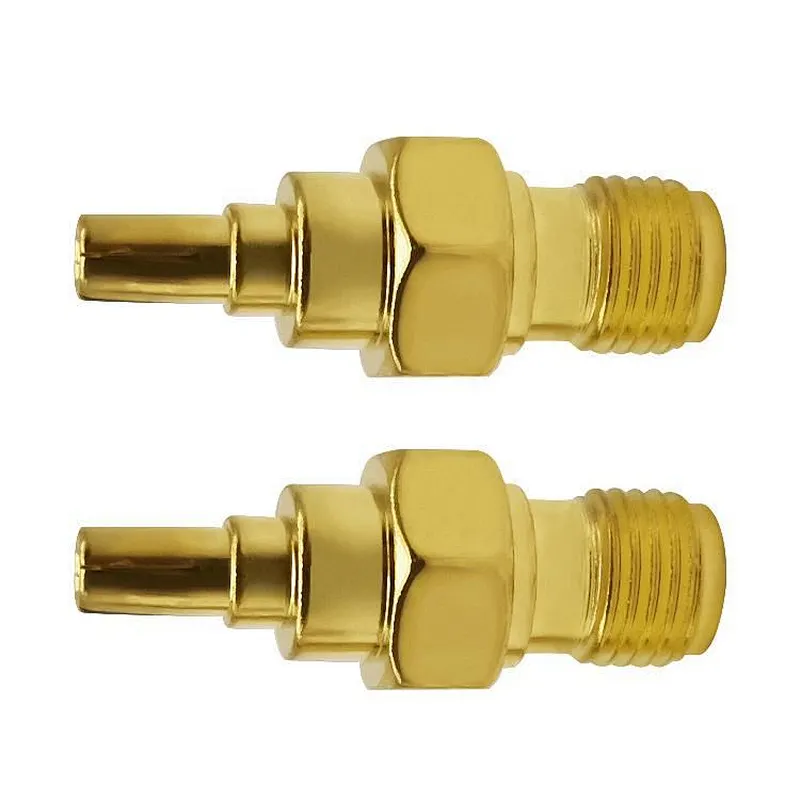

RF Coaxial Adapter SMA to CRC9 Coax Jack Connector SMA Female to CRC9

Product Description

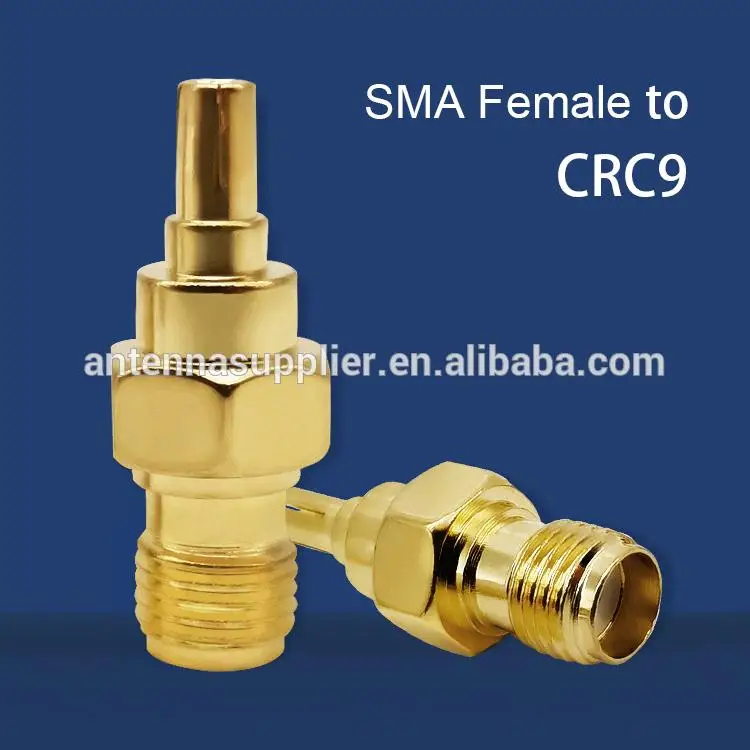

SMA Female to  CRC9 Male  Adapter
NameSMA Female to  CRC9 Male  Adapter
Frequency Range (MHz)DC~12.4GHz
Max Voltage335V max
Input Impendence (ohm)50
V.S.W.R≤1.20+0.003f
Withstand Voltage1000V rms
Insulation resistance≥5000mΩ
Max Input Power (w)50
Contact resistanceCenter Contact ≤3mΩ
MaterialBrass/Gold Plated



Applications:

  • Type: Coaxial, RF Adapter.
  • Connect SMA to CRC9 Gold Type Device, Compatible with SMA to CRC9 Gold Connectors, Used for Connecting a SMA Female to CRC9 Gold jack.
  • Connectors: SMA (Female ) and CRC9 Gold Plug, one side is SMA Type Female, and the other side is CRC9.
  • Great for many projects which involves SMA to CRC9 Gold Type connector, Widely used for Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial cable, LMR, Wireless LAN Devices, CCTV, Microwave Applications and Digital Communication System.



4132




Application


Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.sma connector/stainless sma/7/16 din connector/1.6/5.6 connector/n connector/sma connector/smb connector/smc connector/mcx connector/mmcx connector.

Certifications

omni 2.4ghz antenna

Packaging & Shipping

 SMA to SMA male Connector
1 piece in one plastic bag
2 100 pieces in one paper carton
3 Clear Plastic Bag/ Standard Export Carton
4 According to customers requirement
5 Other packing available according to client's request


photobank (2)
photobank

Company Information

4

Hongsense Technology Co.,Ltd is a company devotes to the GPS Navigation Antenna, Mobile Digital TV Antenna, Car Antenna, Terminal Antenna ,3G Antenna , 2,4GHz Wlan& WiFi Antenna, 5.8GHz Antenna, Internal Antenna Series ,Interface Cable Series and technology development in one of the high-tech enterprise.

The company has a perennial engaged in the field of telecommunication high-tech product development of high-quality professional and technical R & D team, strong technical force, has a number of experienced hardware engineers, professional product development designer.

Mian products: RF antenna RF/ microwave coaxial connectors RF cable assmblies.(Such as SMA, SMB, TNC, BNC, MCX, MIMCX, N, FME, adapters)

Our advantage: with very professional technology, strictly QC and QA, as our best service to our customers in time, we will provide our customers with the most effective, competitive product.

Factory scale:Our factory covers an area of 2,000 square meters with 200 employees and 10 large machines.





FAQ

omni 2.4ghz antenna

   What type of antenna your company have ?

    Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G,

   We want the 1m cable, can you do that?

    It is no problem for us, the cable length can be customized, they can be 1M, 2M, 3M or even longer.

   Can the connector make with another type connector?

    Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9 and so on.

   We want to have several samples for test first,could you offer?

    Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

   How is the cost?

   We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
