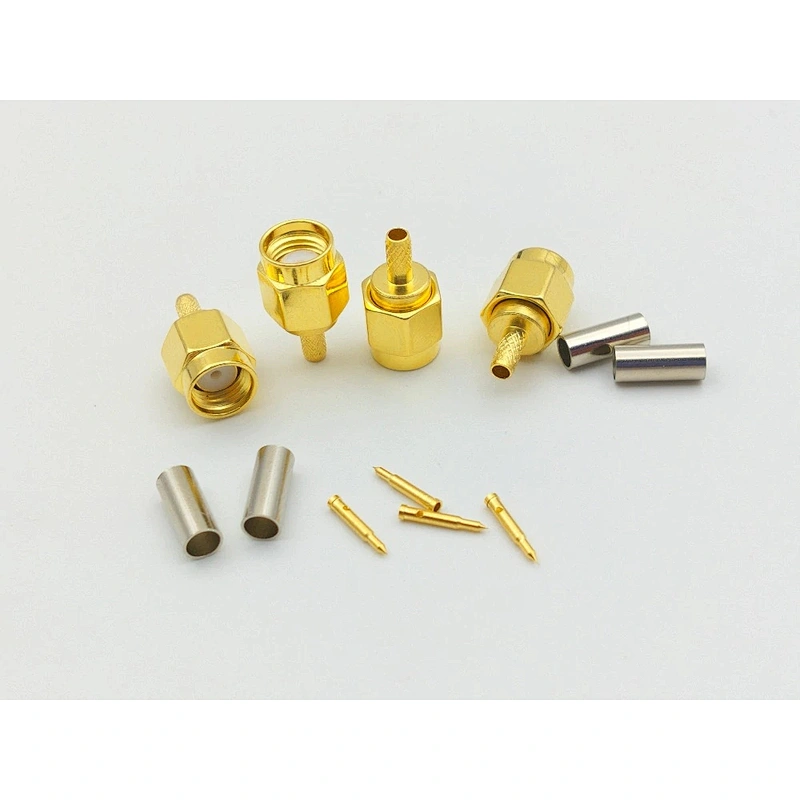

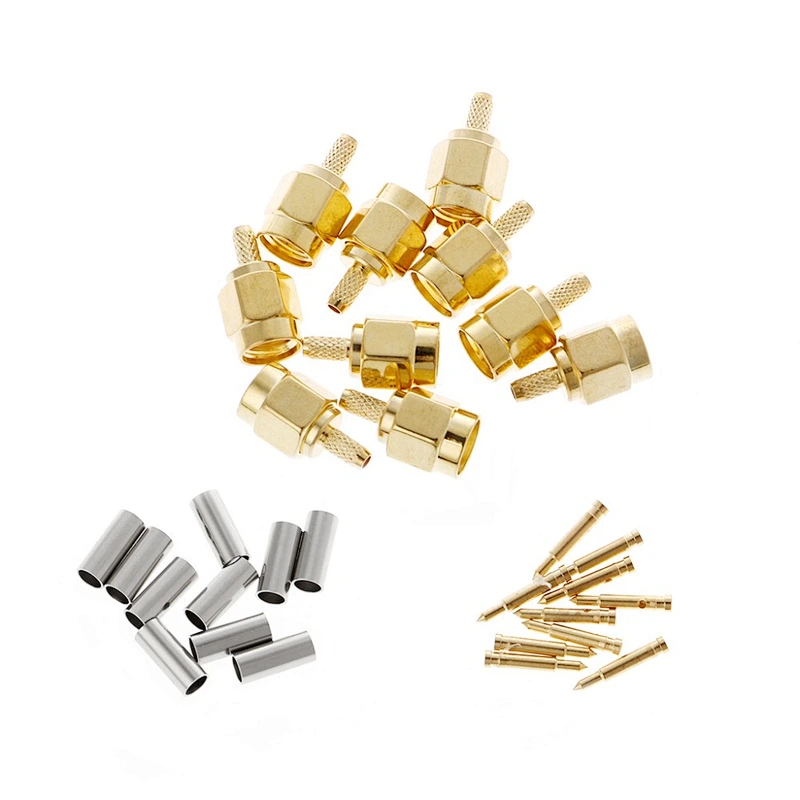

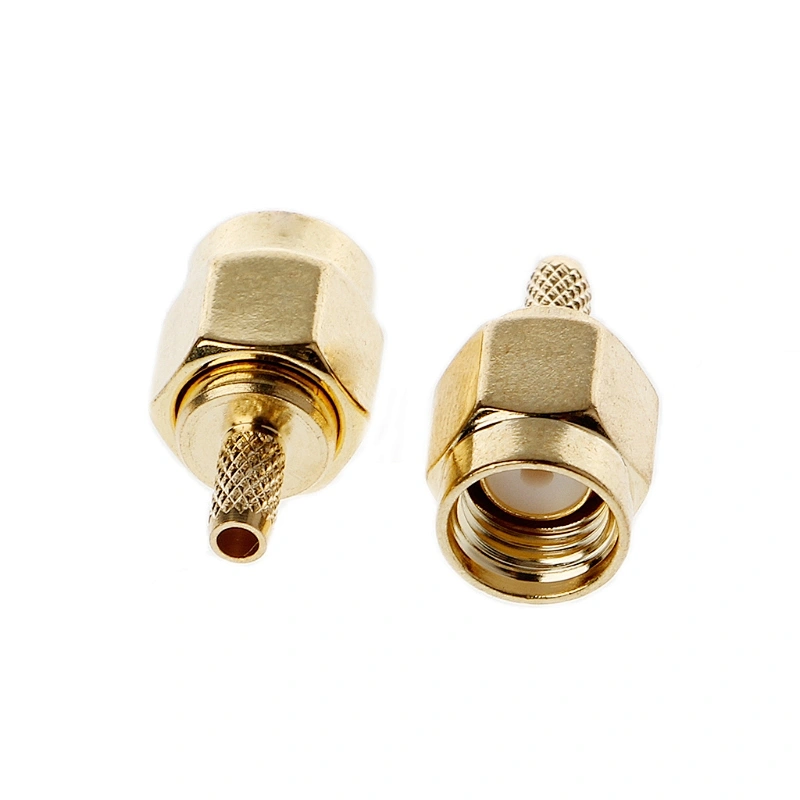

SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable
SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable

SMA-Male Connector BRASS gold-plated Jack crimp RG174 RG316 LMR100 LMR200 LMR240 cable

Model NO.
HSC-SMAM-C
Quantity:
  • Name:SMA-Male Crimp connector
  • Application:RF
  • Plating:Goldplated
  • Material:Brass
  • Frequency rang:DC-12.4GHz
  • Temp.range:-65°C~+165°C
  • Insulator:PTFE
  • Impedance:50 ohm
  • Durability:500 cycles
  • Working Voltage:335V Max
  • Type:Sma
  • Application:RF
  • Gender:Male
  • Pins:16p
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSC-SMAM-C
Product Details
Product Description
Place of Origin
Shenzhen China (Mainland)
Frequency Range -MHz
DC-12.4GHz
Connector Type
SMA Male to RG174 RG178 LMR100 LMR200 RG58 Etc
Shell
Gold plated
Withstand Voltage
1000V rms
VSWR
≤1.1+0.002F
Contact pin
Brass+gold plated
Elastic Contact
Beryllium+gold plated
BerMax. Power-W
50
Insulation resistance
≥5000M Ω
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...


Q: What's your company MOQ?
A: The MOQ is 50PCS.

Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q:We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
