Model NO.
N-J-3D
Quantity:

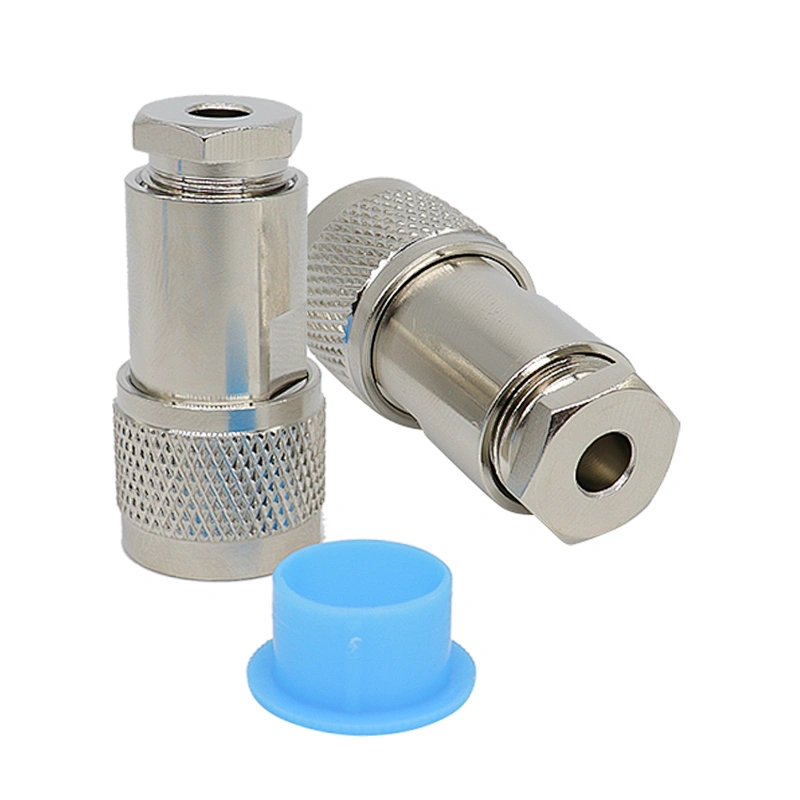

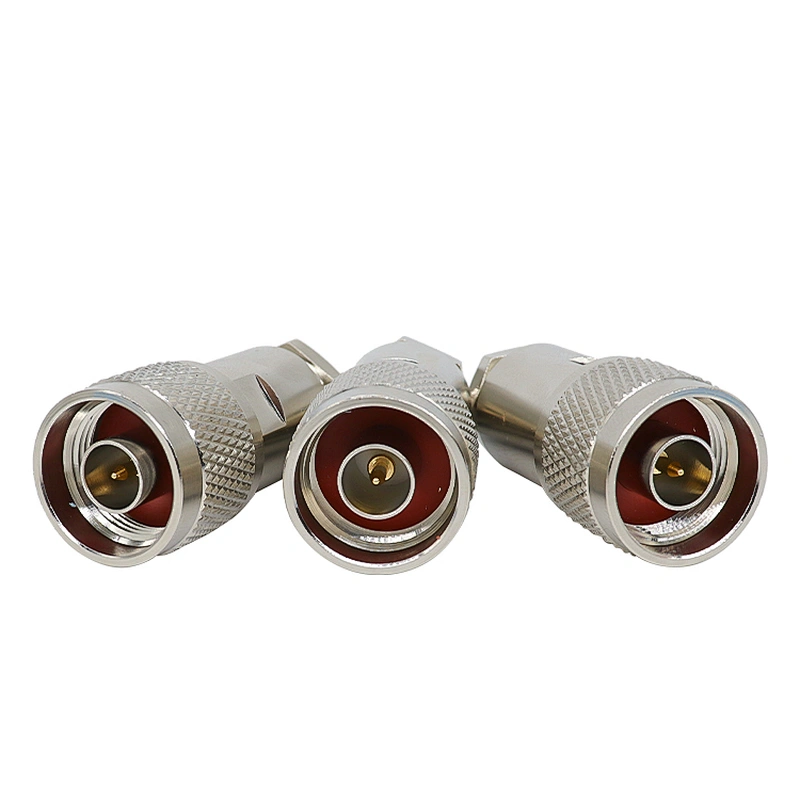

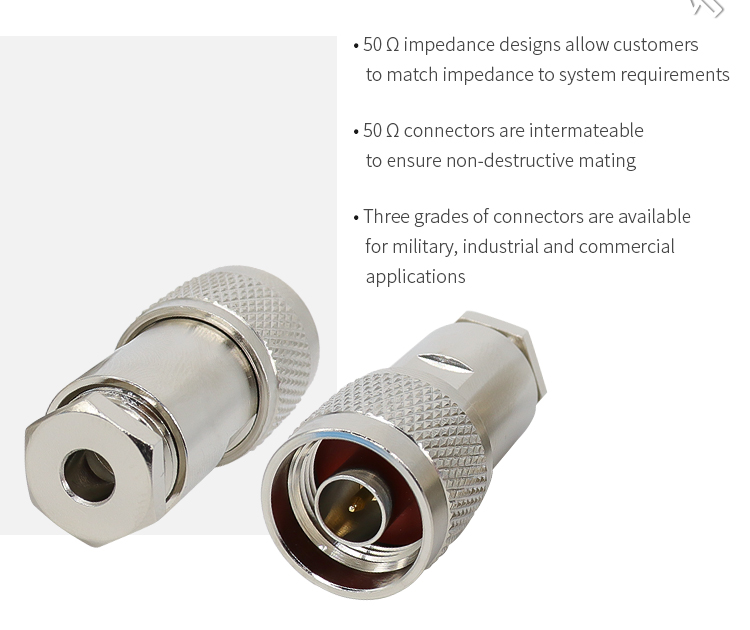

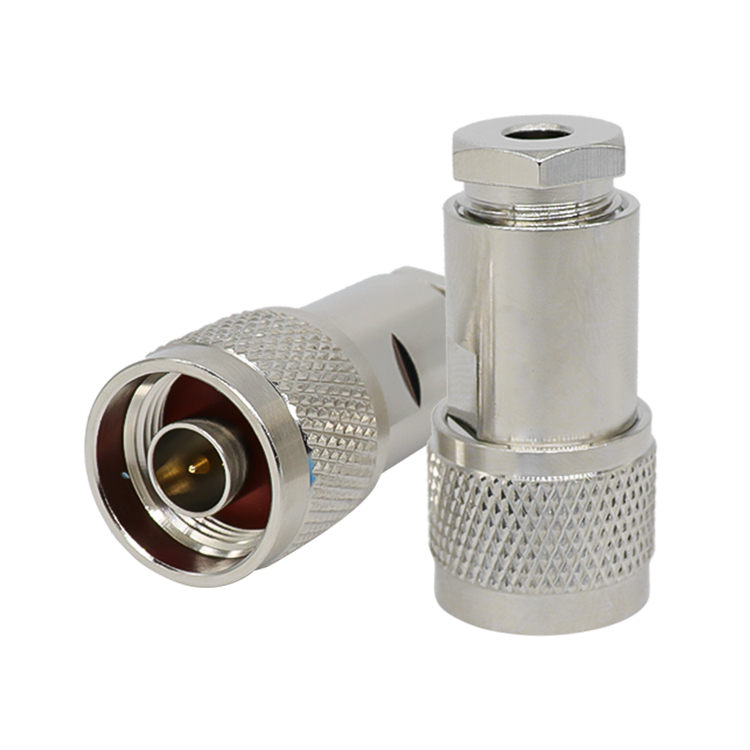

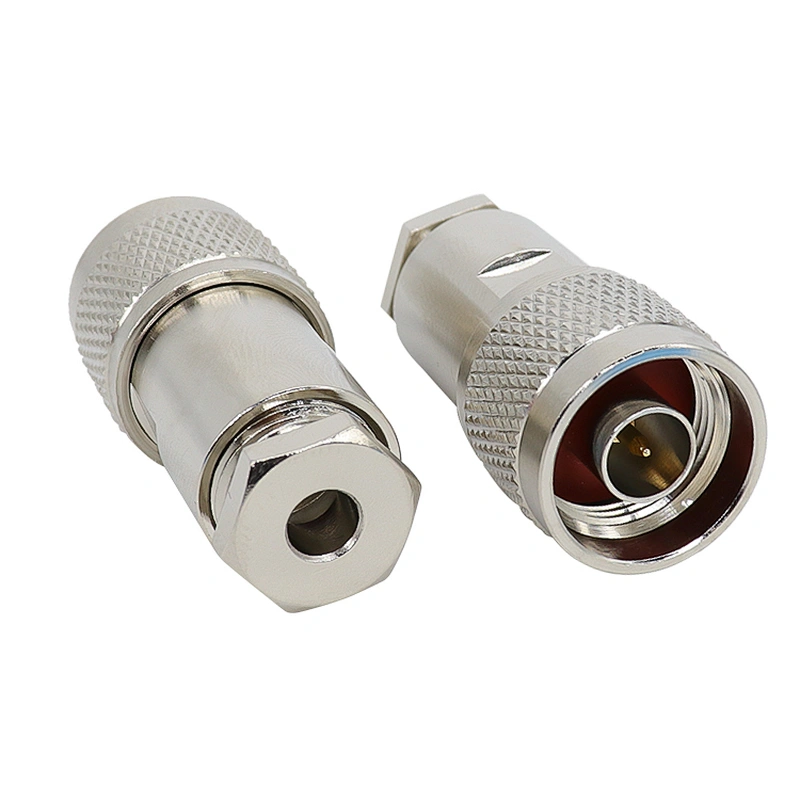

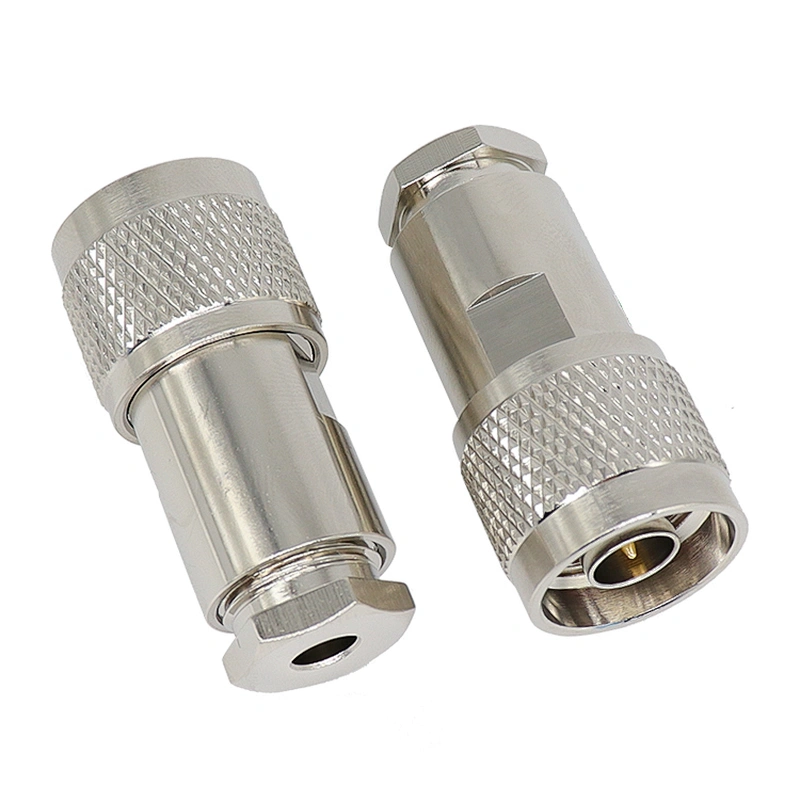

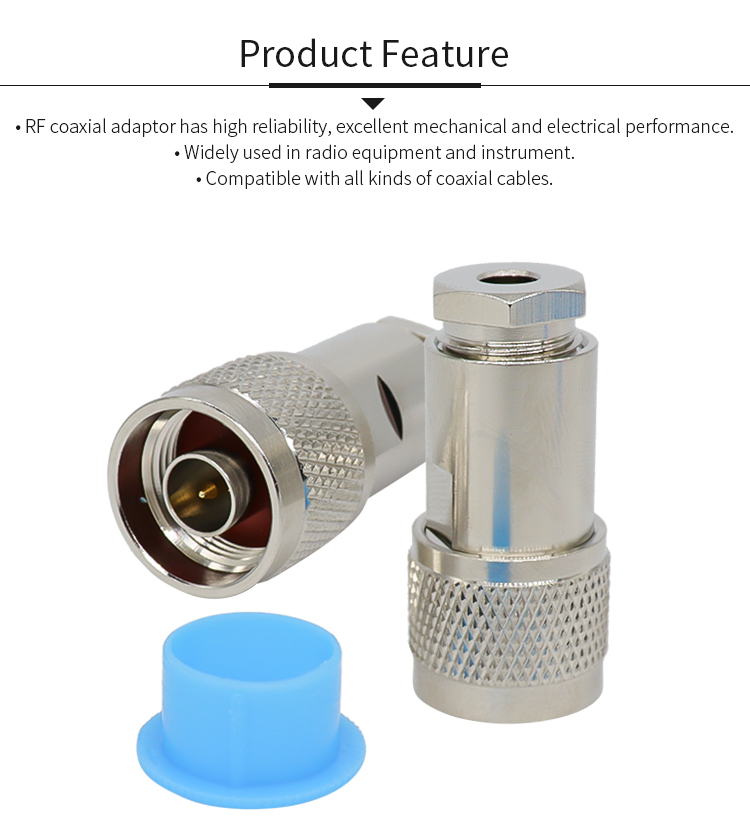

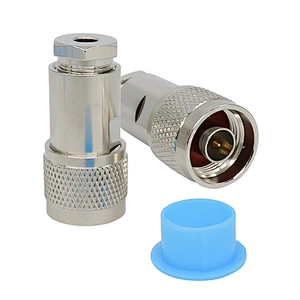

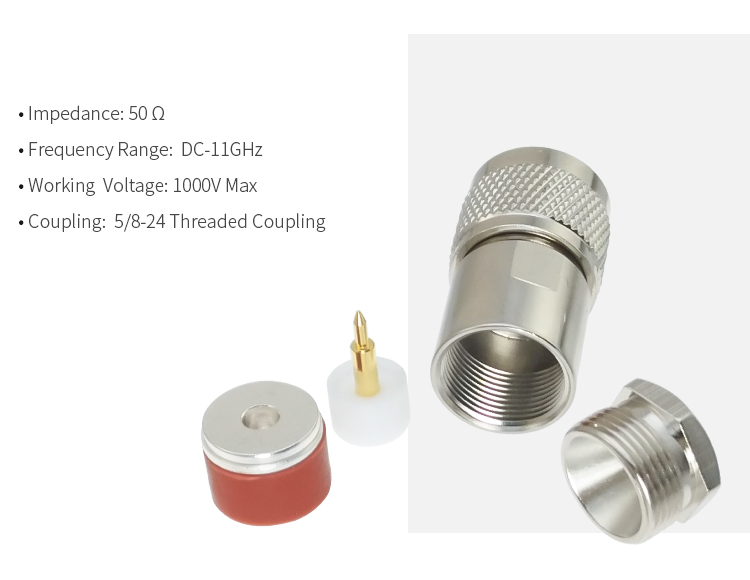

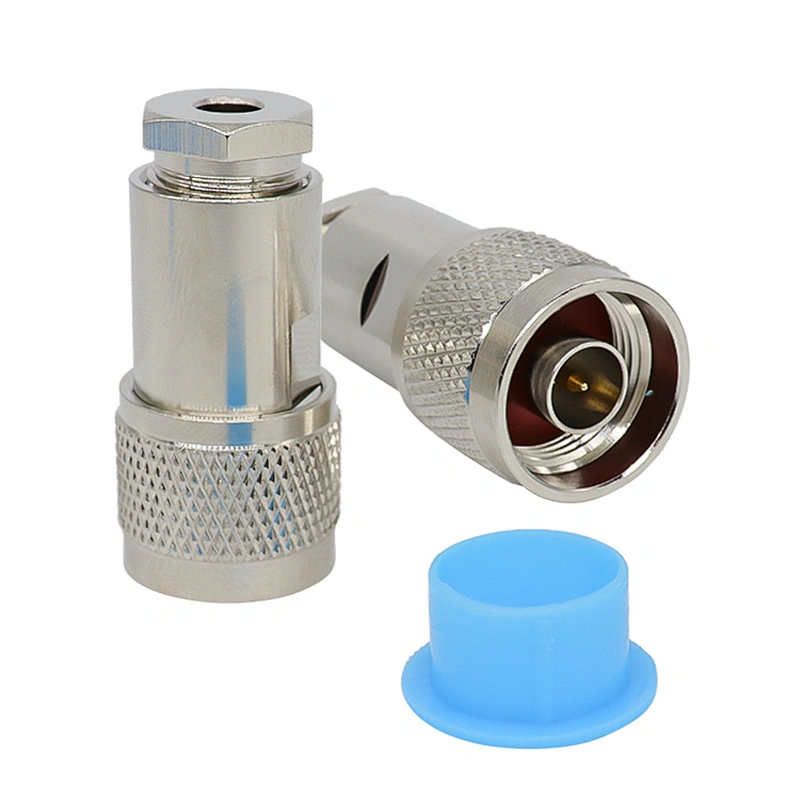

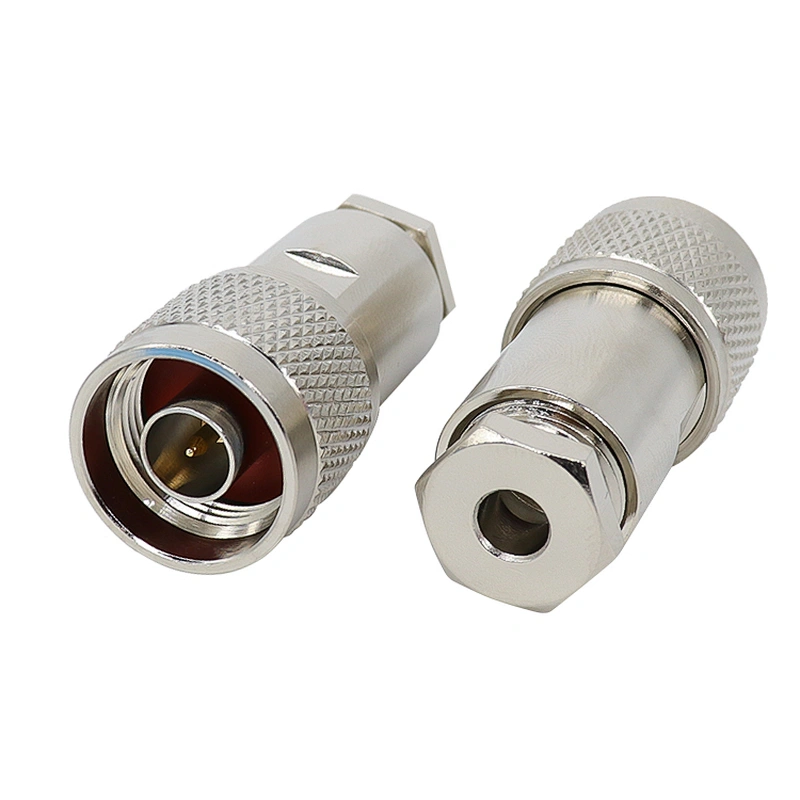

  • Product name:N Male Plug Crimp RG58
  • Connector type:N-J-3D
  • Type:N Male Plug Crimp RG58
  • Gender:male
  • Temperature Range:-65-+165
  • Impedance:50 Ohm
  • working voltage:1000V max
  • Withstand Voltage:2500V R.m.s
  • Insulation resistance:5000 M-Ohm
  • Frequency:DC-11GHz
  • Type:ADAPTER
  • Application:RF
  • Gender:Male
  • Pins:1P
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:N-J-3D
Product Description
Specification
Electrical Performance
Impedance
50 Ohms
Frequency Range
DC-11GHz
Voltage Rating
500V
Dielectric Withstanding Voltage
1500V
VSW
Straight:
Right-Angle:

1.25@6GHz Max.
1.3@6GHz Max.
Contact Resistance
Center contact:
Outer contact:

1.50m Ohms Max.
1.00m Ohms Max.
Insulation Resistance
5000Mohms
Insertion Loss
0.24dB @ 3GHz Max.
Material Specifications
Bodies
Nickel-plated Brass
Pin Contact
Gold-plated Brass
Socket Contact
Gold-plated Beryllium copper
Insulator
PTFE(Telfon)
gasket
Silicone Rubber
Crimp Ferrule
Copper alloy
Durability
500matings
Environmental Date
Temperature Range
-65~+165
Thermal Shock
MIL-STD-202 methord
Vibration
100m/s, 10g
Water Proof
Heat shrink tube or Silicone Rubber Gasket
Corrosion
5% salt-solution 48Hours Min.
IP
67
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
