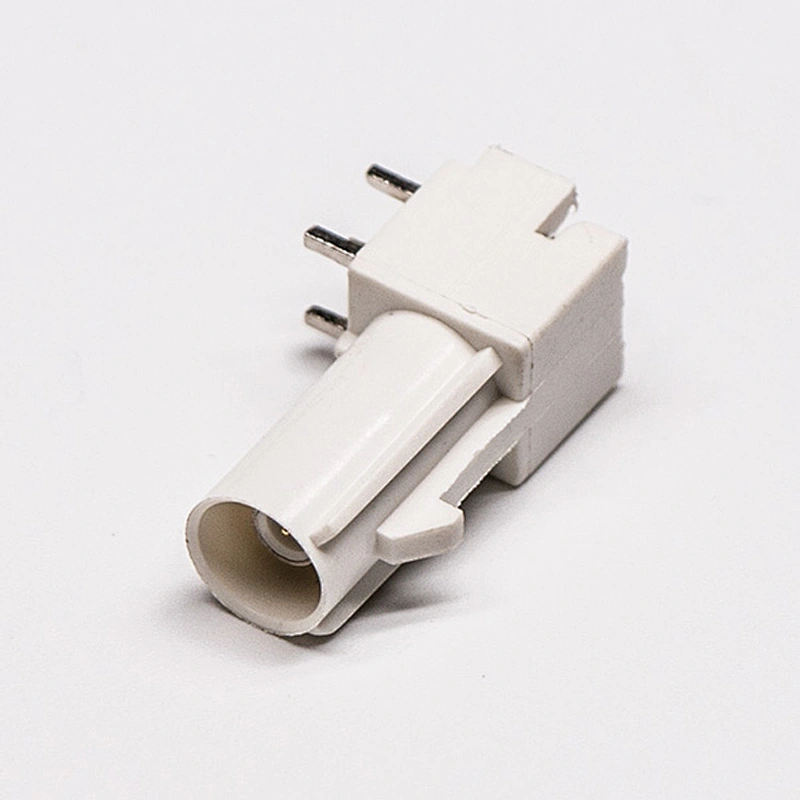

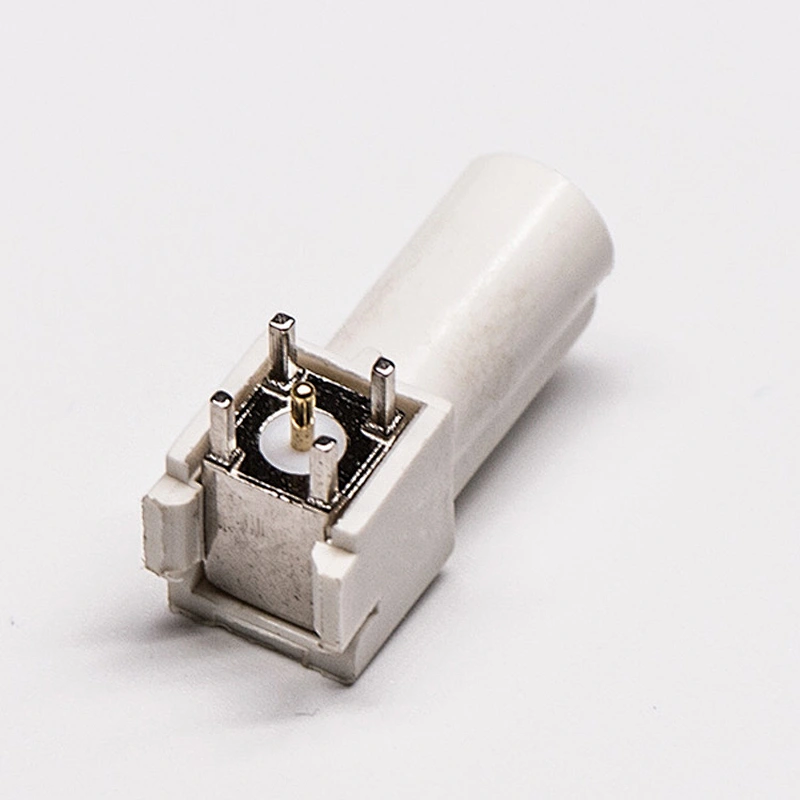

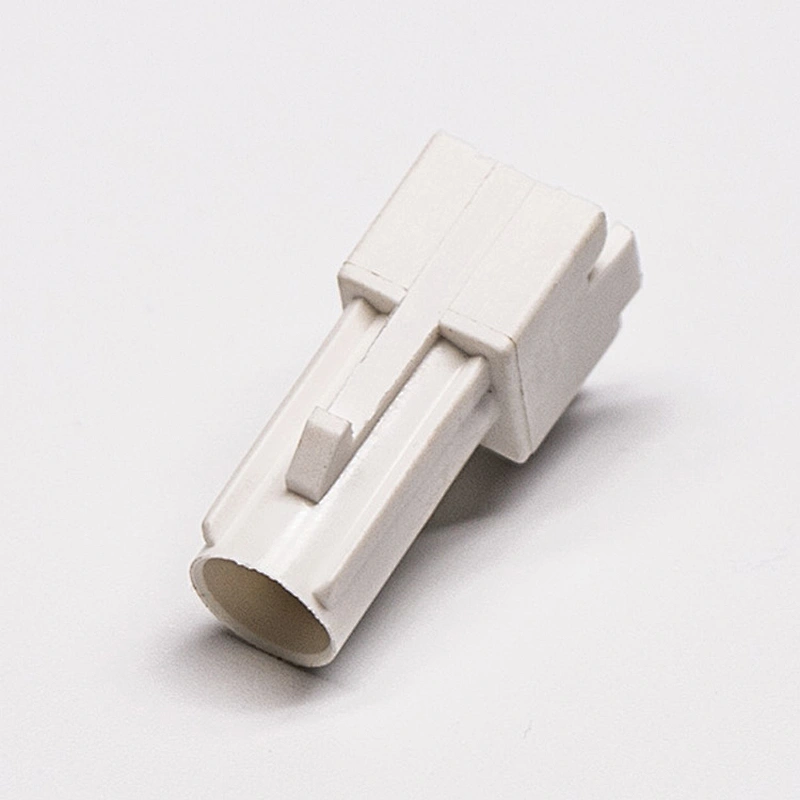

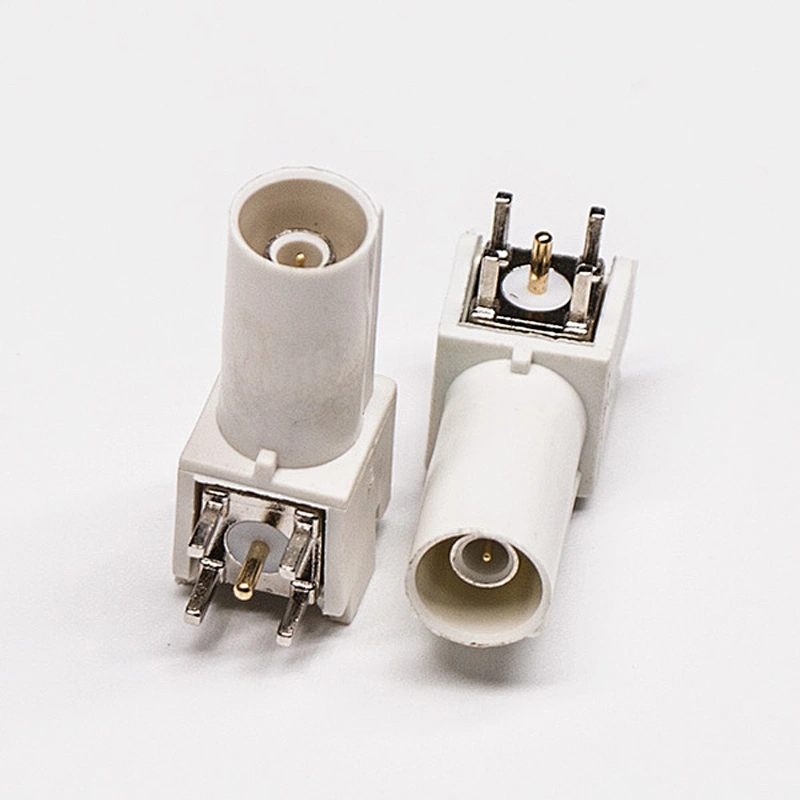

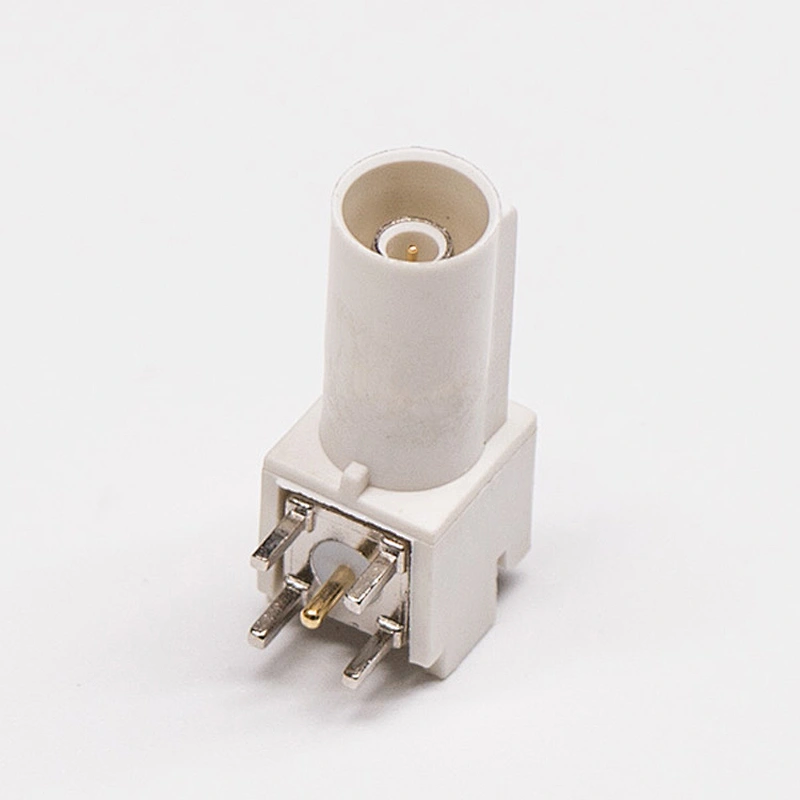

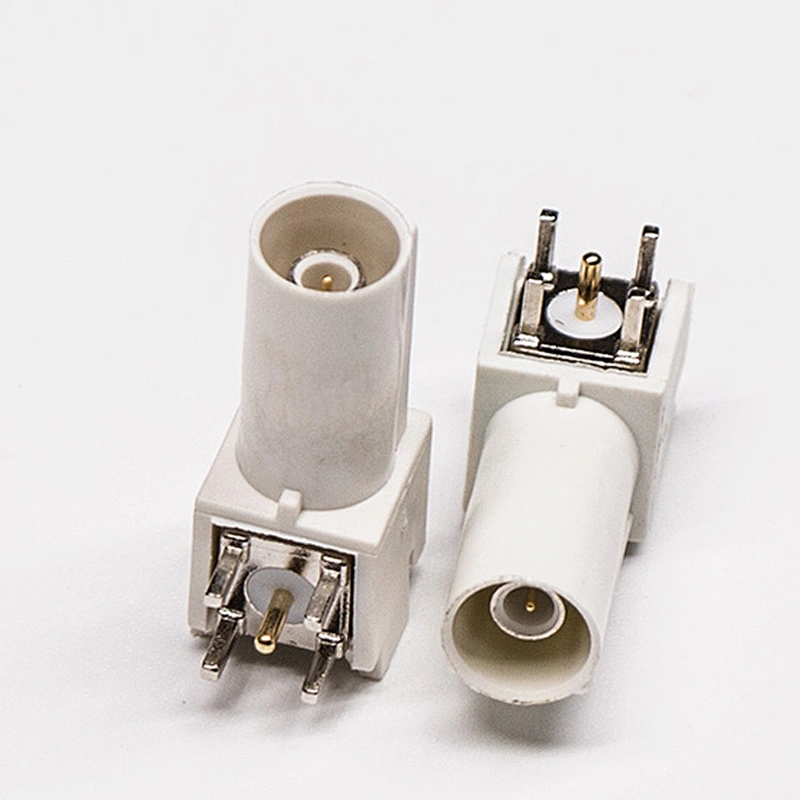

Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount
Fakra Connector Type B Right Angle White Through hole for PCB Mount

Fakra Connector Type B Right Angle White Through hole for PCB Mount

Model NO.
Fakra B to PCB mount
Quantity:
  • Max Voltage:335V max
  • VSWR:≤1.20+0.003f
  • Impedance-Ω::50
  • Withstand Voltage:1000V rms
  • Polarization::Vertical
  • Material:Brass/Gold Plated
  • Insertion loss:≤0.15db/6GHz
  • Insulator:PTFE
  • Contact resistance:Center Contact ≤3mΩ
  • Keywords:Fakra B type to PCB mount
  • Type:Fakra
  • Application:PCB
  • Gender:Male
  • Pins:1P
  • Place of Origin:CN
  • Brand Name:Hongsense
  • Model Number:Fakra B to PCB mount
Product Description
Specification
Name
Fakra B to PCB Mount
Frequency Range (MHz)
DC~12.4GHz
Max Voltage
335V max
Input Impendence (ohm)
50
V.S.W.R
≤1.20+0.003f
Withstand Voltage
1000V rms
Insulation resistance
≥5000mΩ
Max Input Power (w)
50
Contact resistance
Center Contact ≤3mΩ
Material
Brass/Gold Plated
Product Keywords
antenna connector, car antenna connector
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
