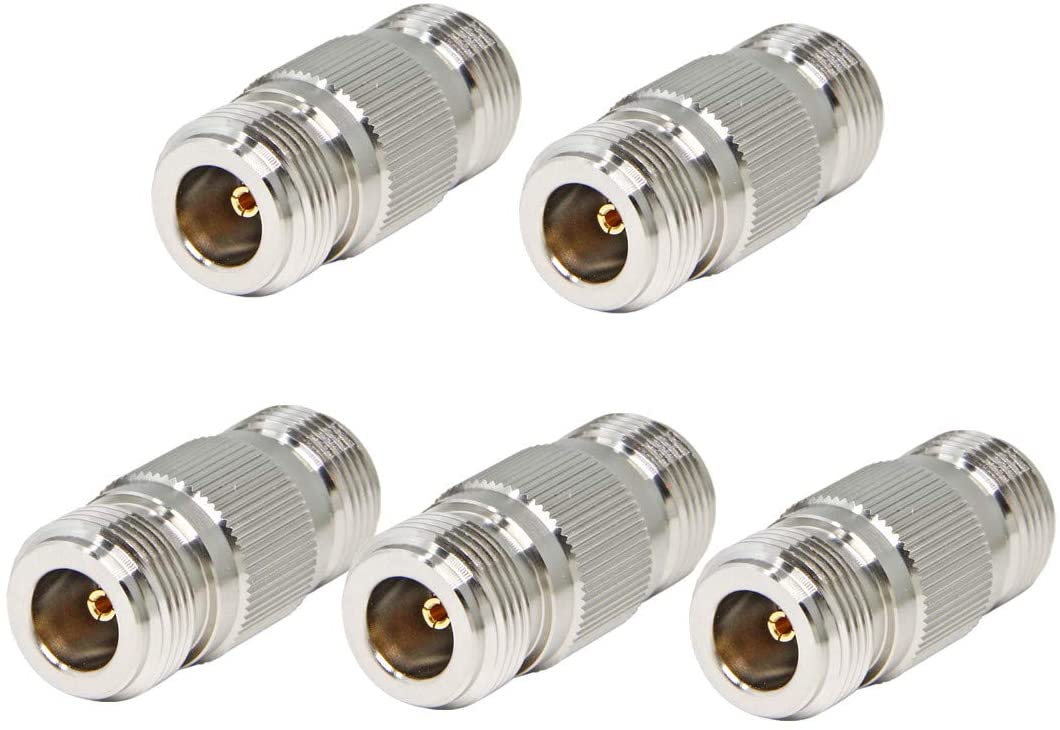

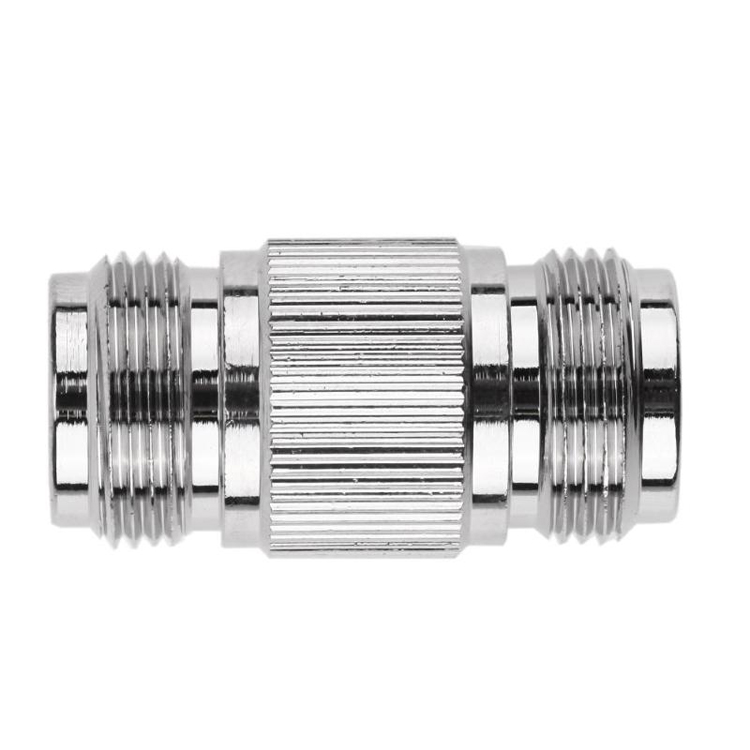

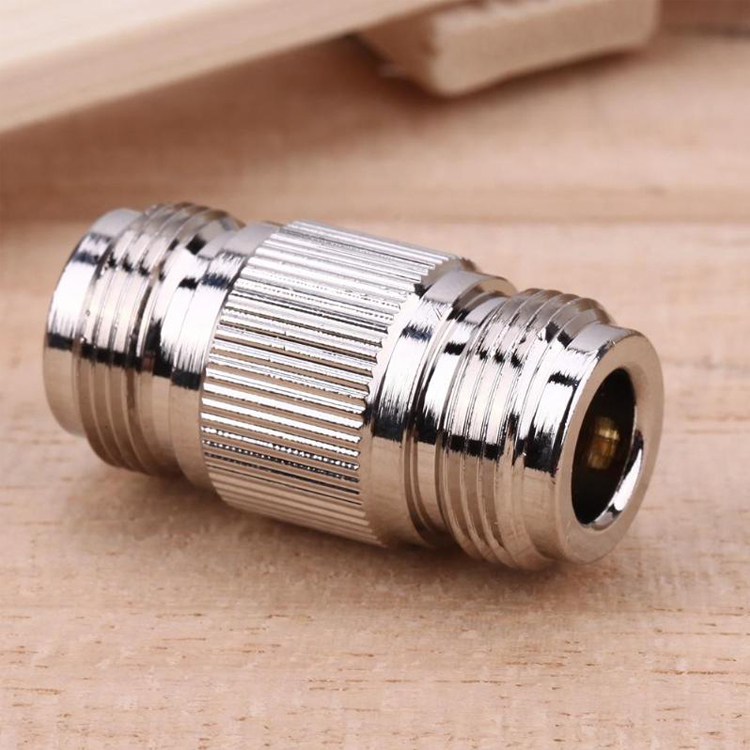

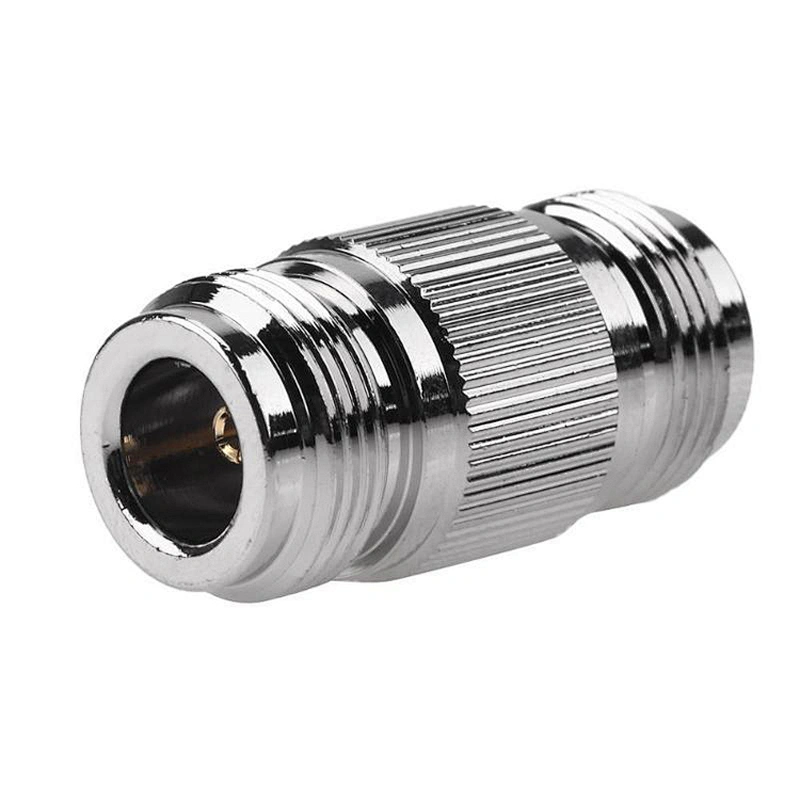

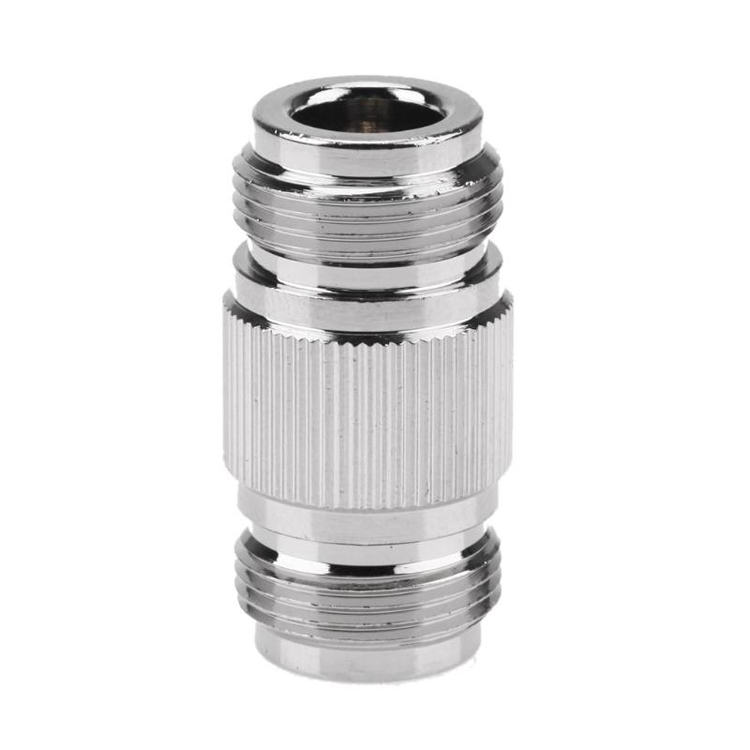

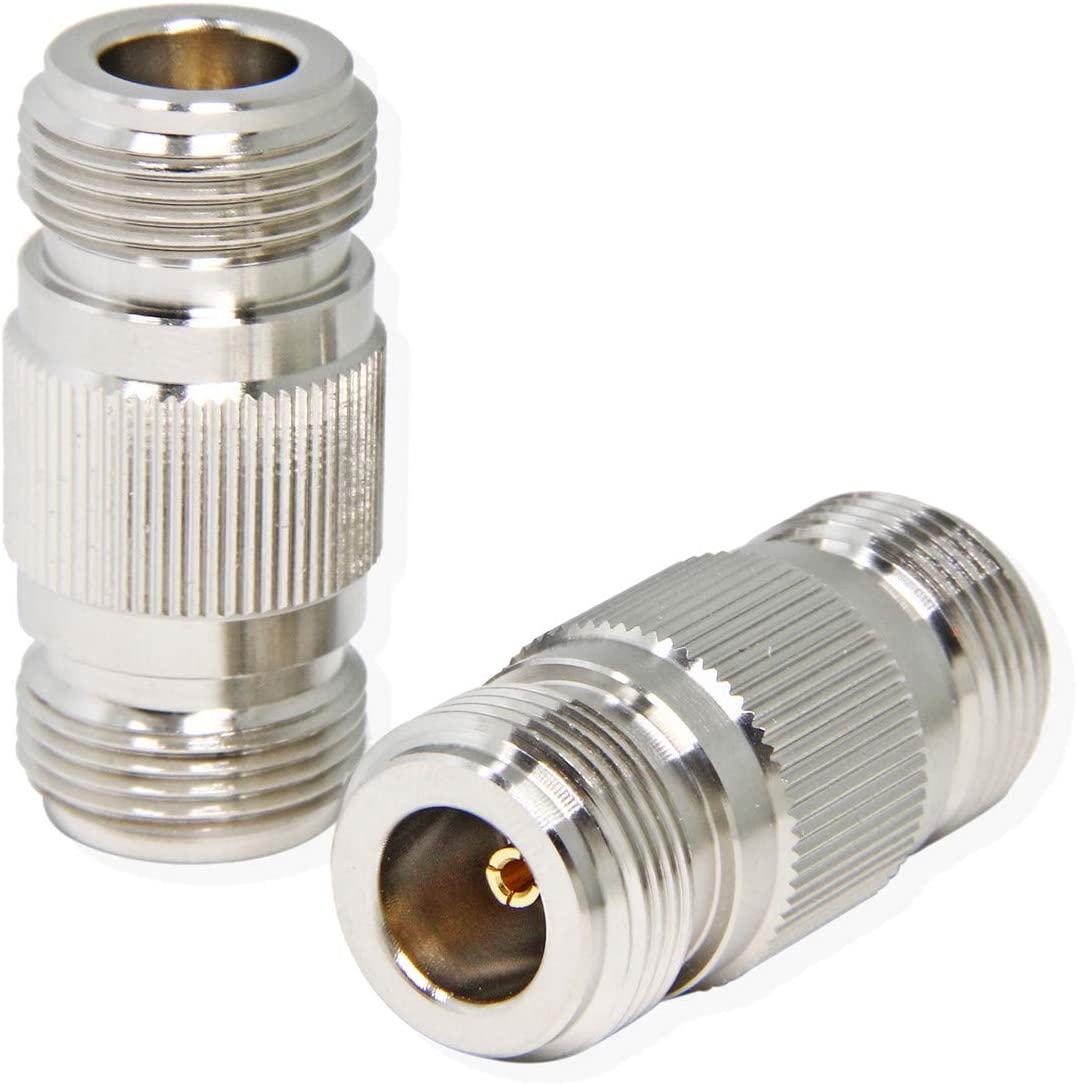

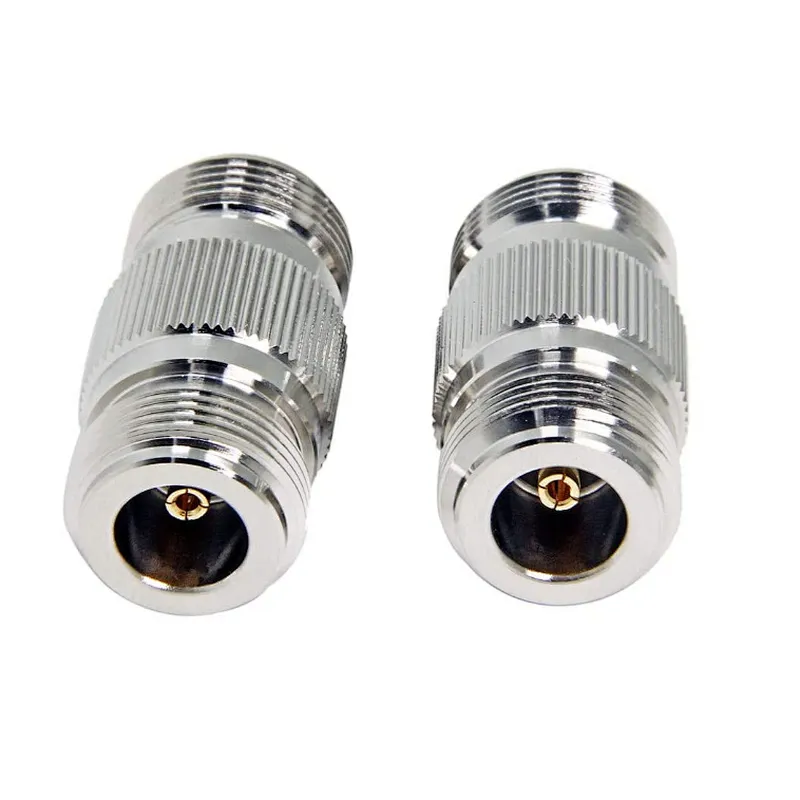

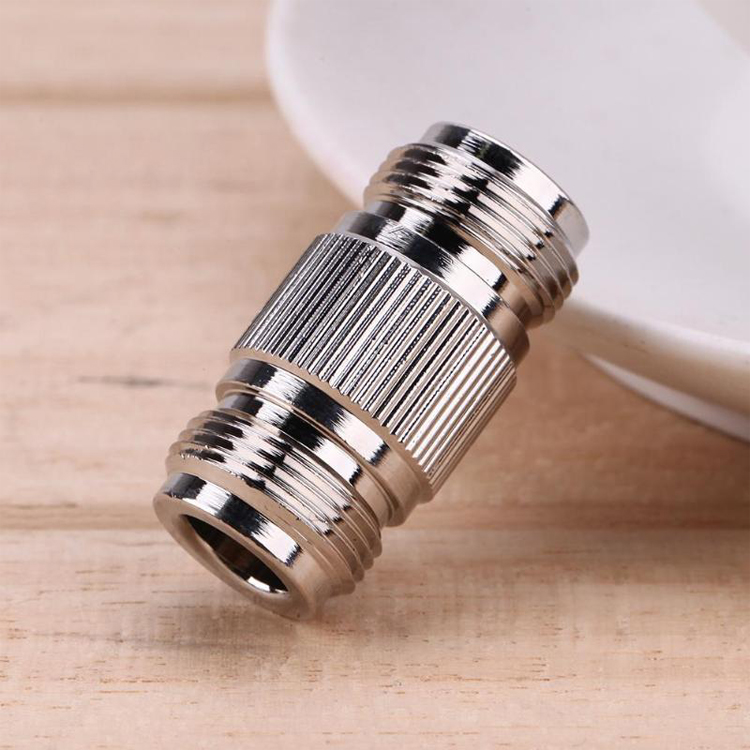

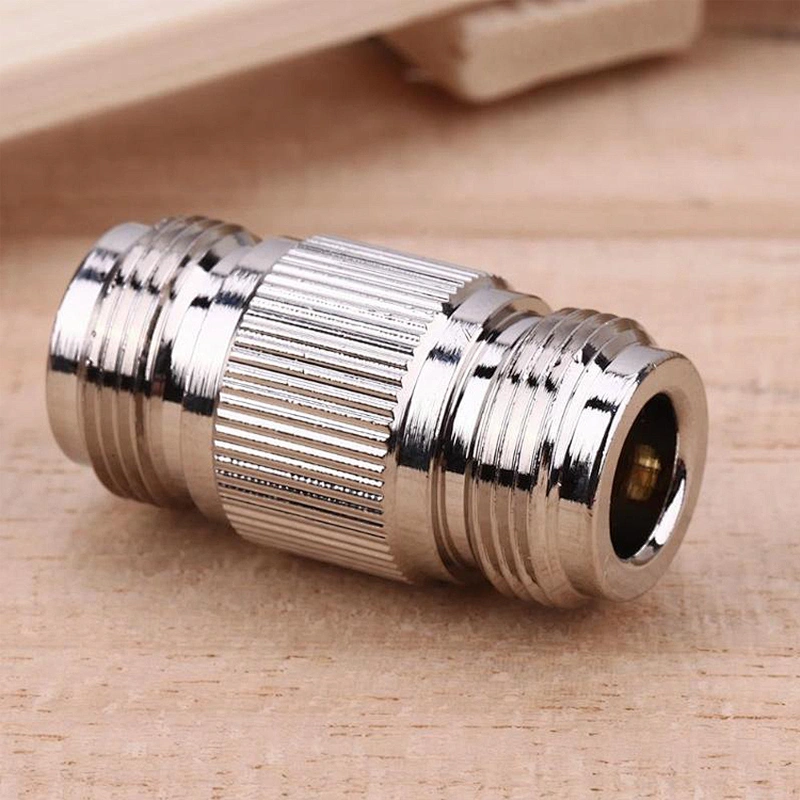

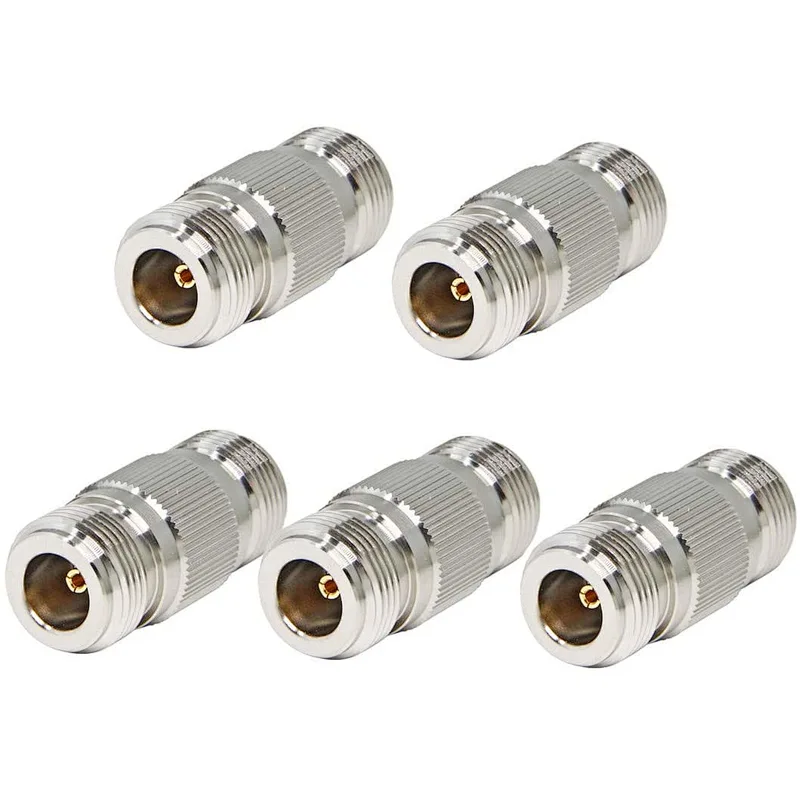

50 Ohm N Female to N Female Connector for RF Coax Cable Antenna Adapter

Model NO.
HSC-N002
Price:
USD 0.80-1.20 / pieces
Minimum order quantity:
100 pieces
Supply Ability:
5000.0 pieces / Day
Country of Origin:
SHENZHEN
Quantity:
  • Product name:N female to N female adapter
  • Application:RF
  • Material:Copper
  • Temp.range:-65°C~+165°C
  • Plating:Nickel/gold
  • Insulator:Plastic
  • Impedance:50 ohm
  • Inner needle:brass gold plated
  • Outer shell:copper nickel plated
  • Type:N
  • Application:RF
  • Gender:Female
  • Pins:1P
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSC-N002
Specification
50 Ohm N Female to N Female Connector for RF Coax Cable Antenna Adapter

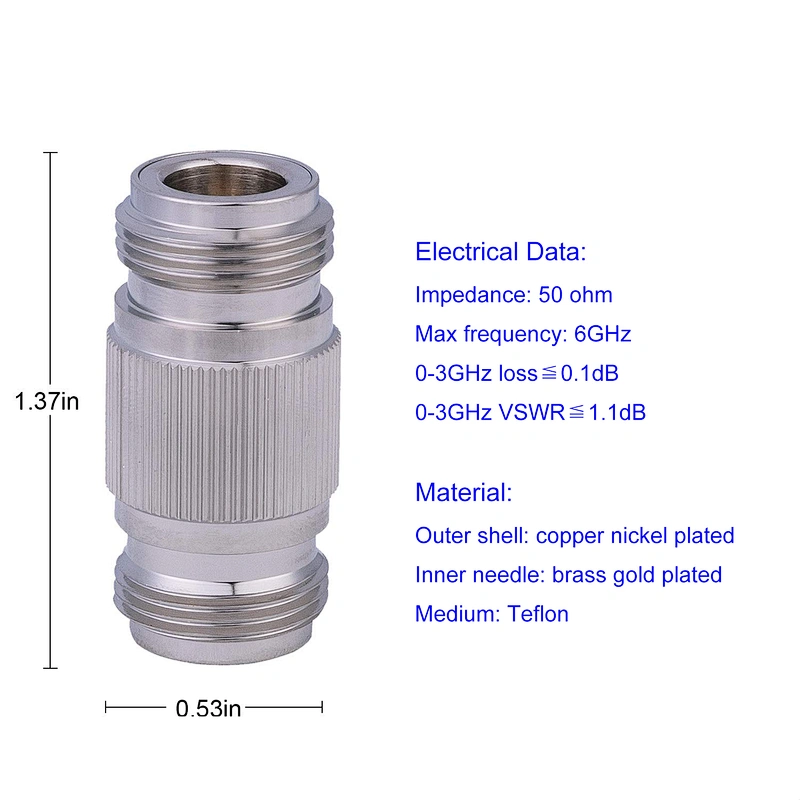

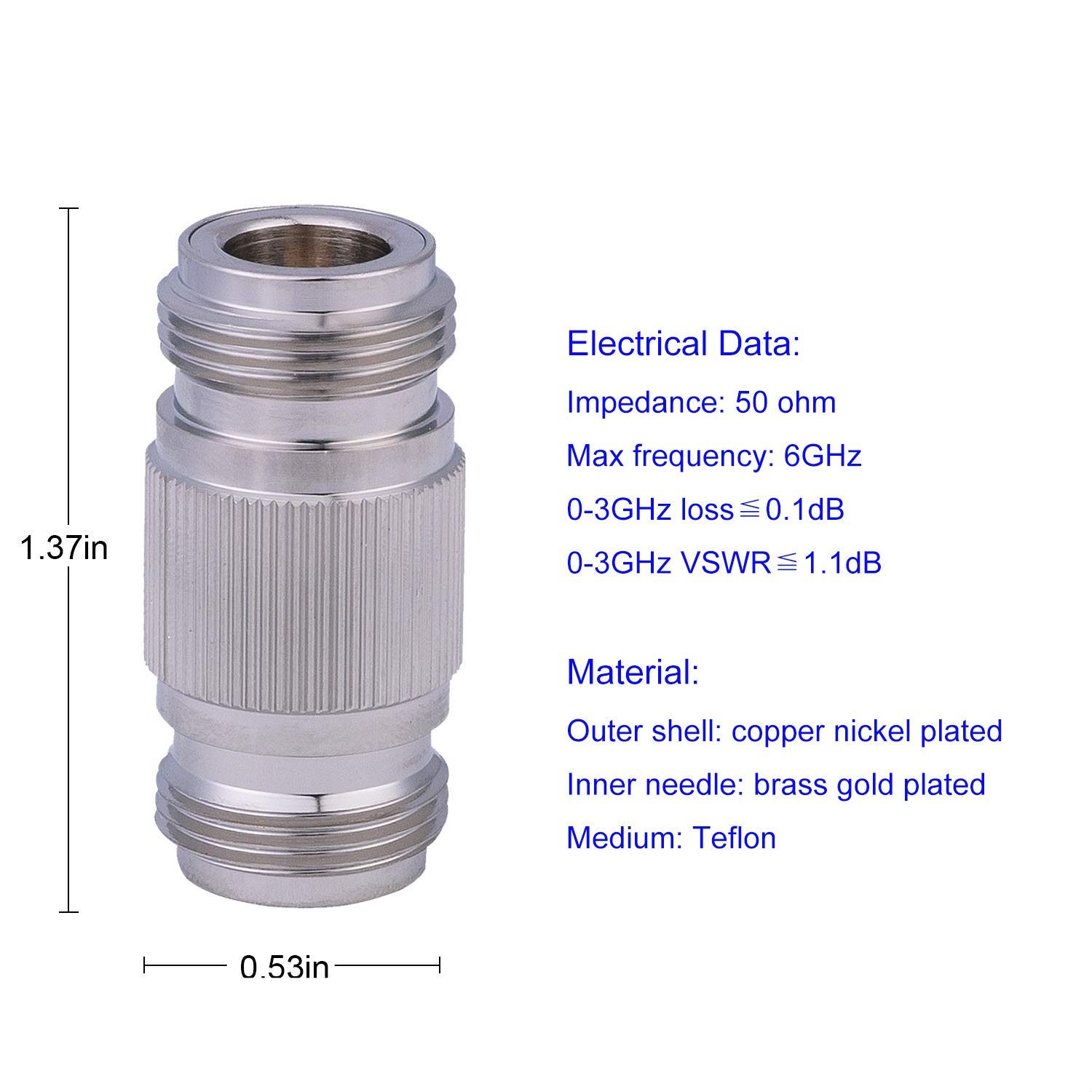

Technical Specifications
Temperature range
-65 ~ + 165 ° C (PE Cable-55 ~ + 85 ° C )
Vibration
100m / s2 (10 ~ 500Hz) 10g
Impedance
50Ω
Frequency Range
DC~11GHz
Working Voltage
1000V max
Withstand Voltage
2500V rms
Contact resistance
Center Contact
≦1m Ω
Outer Contact
≦1m Ω
Insulation resistance
VSWR
≦1.15
Durability(mating)
≥500 cycles
Material&Plating
Shell
brass
nickel plated
Contact Pin
brass
gold plated
Elastic contact
beryllium
gold plated
Socket
beryllium or tin brass
gold plated
Insulator
PTFE
Crimping suite
copper alloy
nickel or gold plated
O-ring sealing
6146 silastic
Product Description
Packing & Delivery
Package:
1.Each antenna has single PP bag.
2.20Pcs antenna in one carton.
3.Customize package for gps antenna available.

Delivery:
1.Sample order will be send in 1-3days after payment.
2.2-1000pcs, Lead time is 5-7 working days.
3.1000-5000pcs,Lead time is 10-15 working days.
4.Over 5000pcs,lead time is 15-25 working days.
Parcel will be sent by DHL/UPS/Fedex/EMS or customers own shipping agent
Company Profile
Shenzhen Hongsense Technology Co., Ltd. is a company engaged in the communications antenna research and development, production, sales, professional services in one of the professional high-tech enterprises, Company Hongsense (Hong Kong) Co., Ltd. is a branch in the overseas markets. The company has the full import of the ISO9001:2000 international quality system certification, mainly products are GPS navigation antennas,Security Series antennas,3G mobile communications antennas, microwave antennas, wireless antennas, car antennas, digital television antennas
Why Choose us?
1) .We accept OEM ODM OBM service,We are Antenna manufacture more than 7 years experience

2) .We can customized connector and cable length for you

3). We test every product before we send it to our customer.

4). We have different frequencies and gains according to different types of antenna.

5).Hongsense has been qualify by third party and awarded"Gold Supplier"in Alibaba Group company.

6 ) Hongsense is an officially registered company in China.

7). Special team for after-sales service and technical support

8). Hongsense accept Payment by TT, PAYPAL and Western Union etc.( protect your benefits ).

9). Customer satisfaction is our pursuit.
FAQ
1: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Indoor Antenna,Outdoor Antenna,GPS,RF Cable,RF Connector

4. why should you buy from us not from other suppliers?
"pragmatic integrity, Best service", all the hongsense staff will wholeheartedly provide you with the most high-quality products and excellent service, and sincerely hope to cooperate with clients for a better future.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Korean
