Model NO.:
HS-B3101CO
Quantity:
  • Product name:Triband GSM DCS WCDMA 2G 3G 4G Repeater
  • Frequency:900/1800/2100 (b8, b3, b1)
  • Gain:70±3DB
  • Power:≥ 20dBm

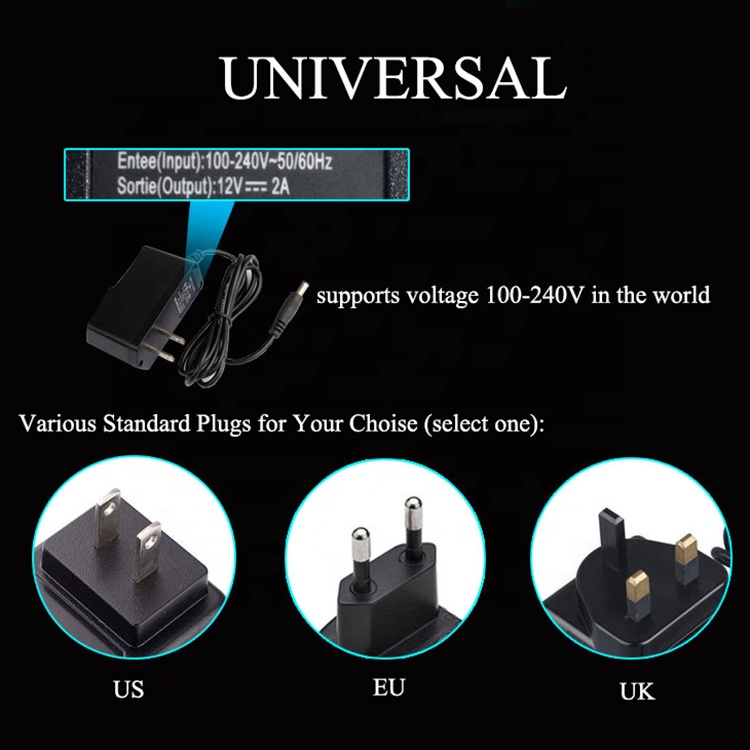

  • Power Supply:AC 110-240V; DC 12V/2A
  • Connector:N-Female Connector
  • Coverage:500-1000m2
  • Network:GSM DCS WCDMA 2G 3G 4G
  • Product Size:165mm*108mm*22mm
  • Plug Type:US/EU/UK/AU(select one)
  • Type:4G signal booster
  • Place of Origin:CN;GUA
  • Model Number:HS-B3101CO
  • Brand Name:Hongsense
Specification
900/1800/2100 Triband Mobile Phone GSM WCDMA DCS Signal Booster 2G 3G 4G Repeater
Model
HS-B3101CO
Product Name
Triband GSM DCS WCDMA 2G 3G 4G Repeater
Frequency Range
GSM900(2G): Uplink: 890-915MHz/Downlink: 935-960MHz
DCS1800(4G): Uplink: 1710-1785MHz/Downlink: 1805-1880MHz
WCDMA2100(3G): Uplink: 1920-1980MHz/Downlink: 2110-2170MHz

Network
GSM DCS WCDMA 2G 3G 4G (b8, b3, b1)
Gain
70±3DB
Impedance
50Ω
Power
≥ 20dBm
Max Output Power
+20dBm/±3DBM Total power
Connector
N-Female Connector
Power Supply
AC 110-240V; DC 12V/2A
Coverage
500-1000m2
Seclusion
<70dB
Compact Design
Indoor Use
Operating Temperature
-10℃-60℃

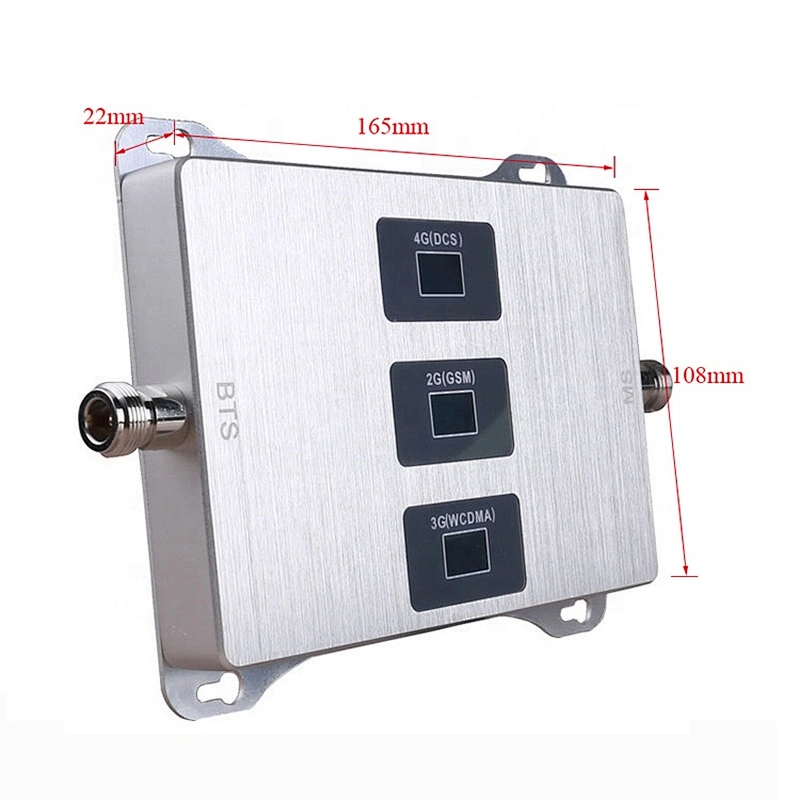

Dimension(repeater host)
166mmx107mmx22mm
Package size
360mmx260mmx240mm
Package weight
4.5kg

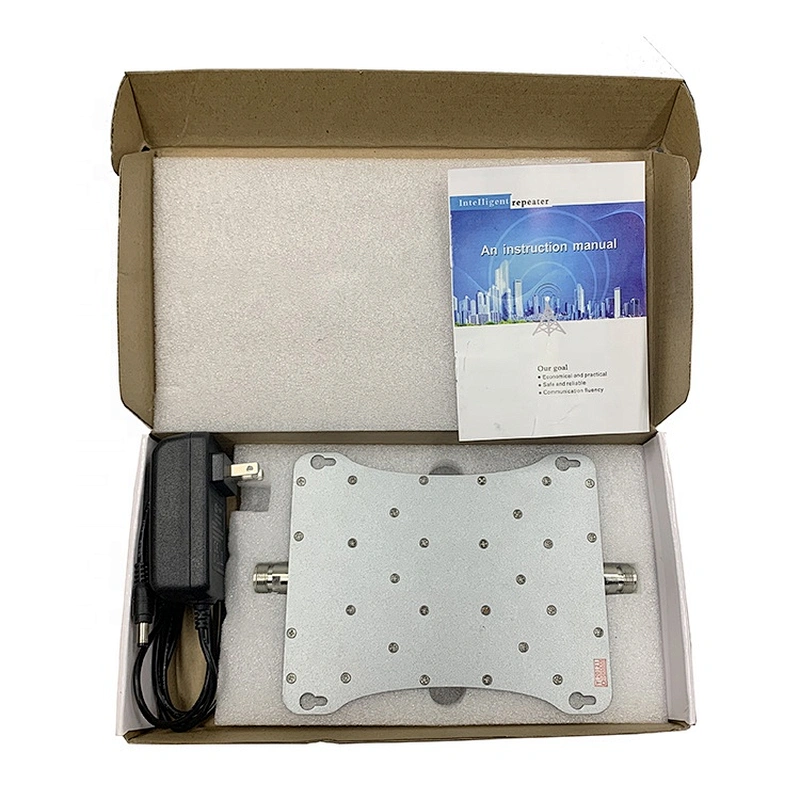

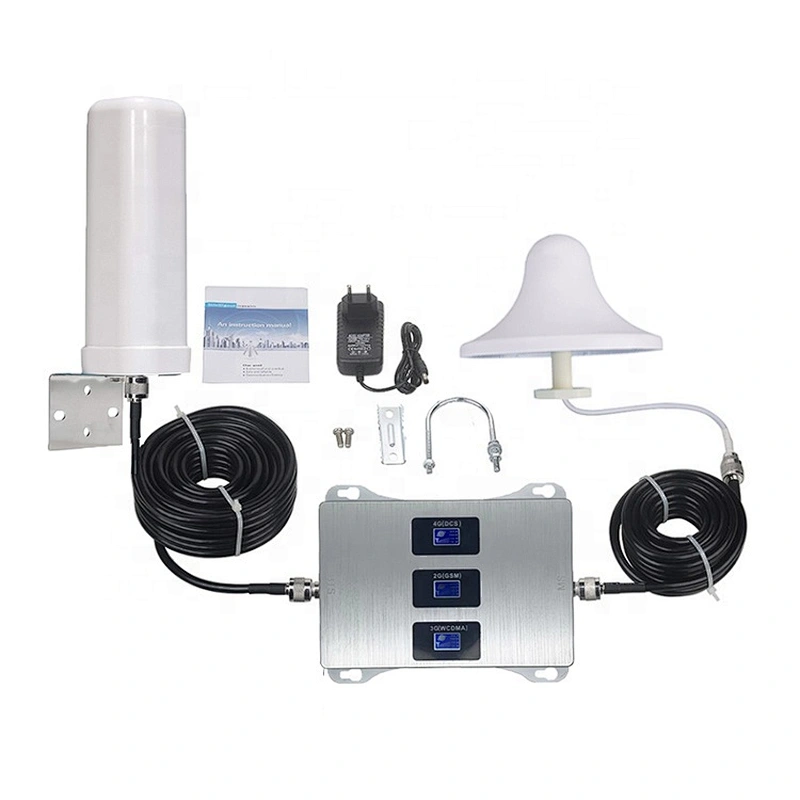

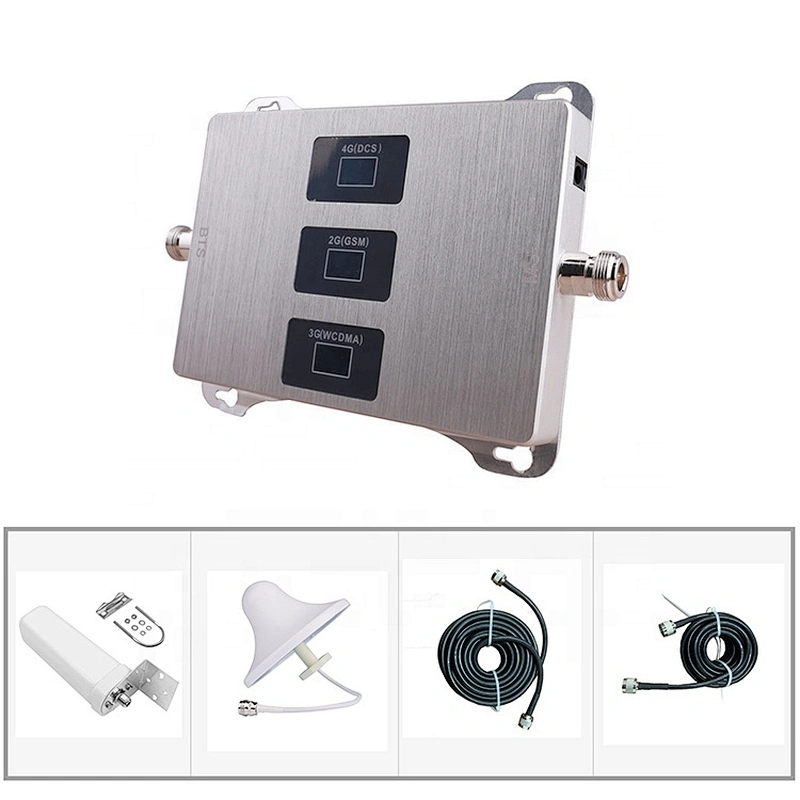

Package Contents
1*Signal Repeater, 1*AC adapter(US, UK, EU, AU four types choose one), 1*ourdoor omnidiretional antenna, 1*indoor ceiling antenna, 1*10m
cable, 1*5m cable, 1*User Manual

Product Description

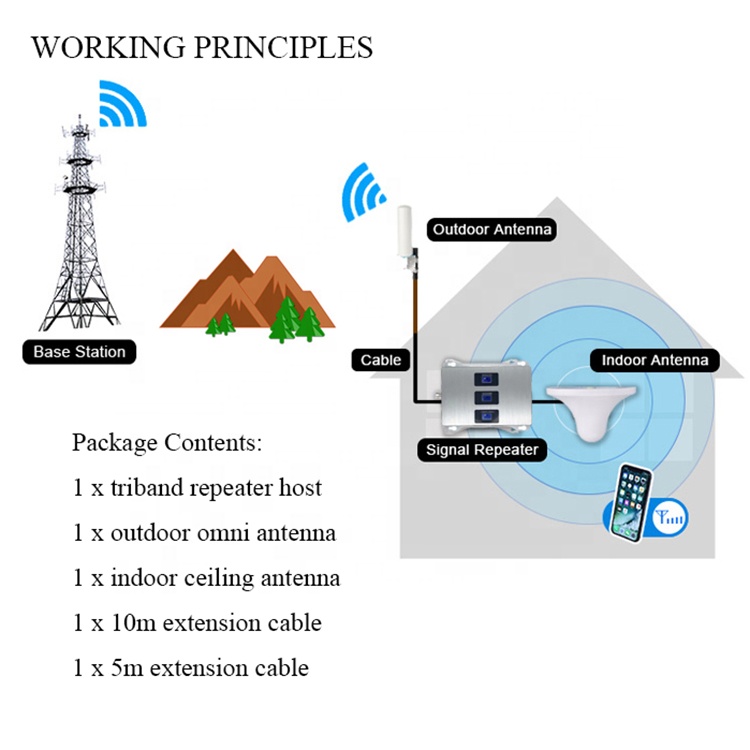

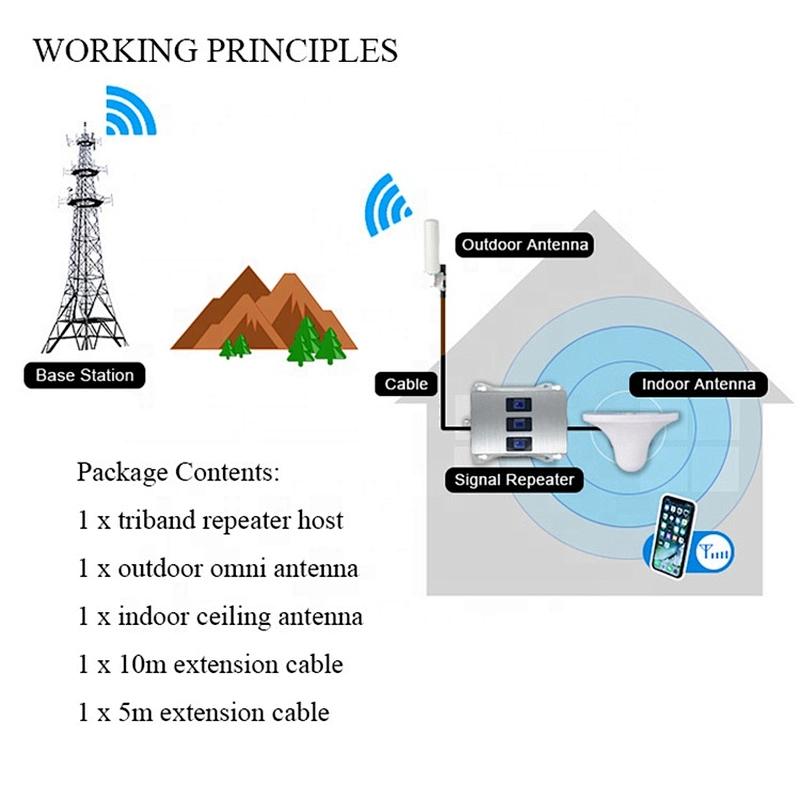

A cell phone signal booster (also known as cellular repeater or amplifier) is a device that boosts cell phone signals to and from your mobile phone whether at home or office or in any vehicle.It does this by taking the existing cellular signal, amplifying it, and then broadcasting to an area in need of better reception.If you're experiencing dropped calls, slow or lost internet connection, stuck text messages, poor voice quality, weak coverage, low bars, and other cell phone reception problems, a cell phone signal booster is the best solution that produces definite results.

Characteristics:1. All-aluminium fuselage, good shielding, super heat dissipation, ensure stable operation of equipment.
2. Multiple LCD screens: one signal format and one screen, the signal strength is intuitively displayed, and the standard voltage stabilized DC power is equipped, so the voltage is stable.3. The fuselage is made of pure aluminium, which radiates less than the plastic case, making you more comfortable to use.

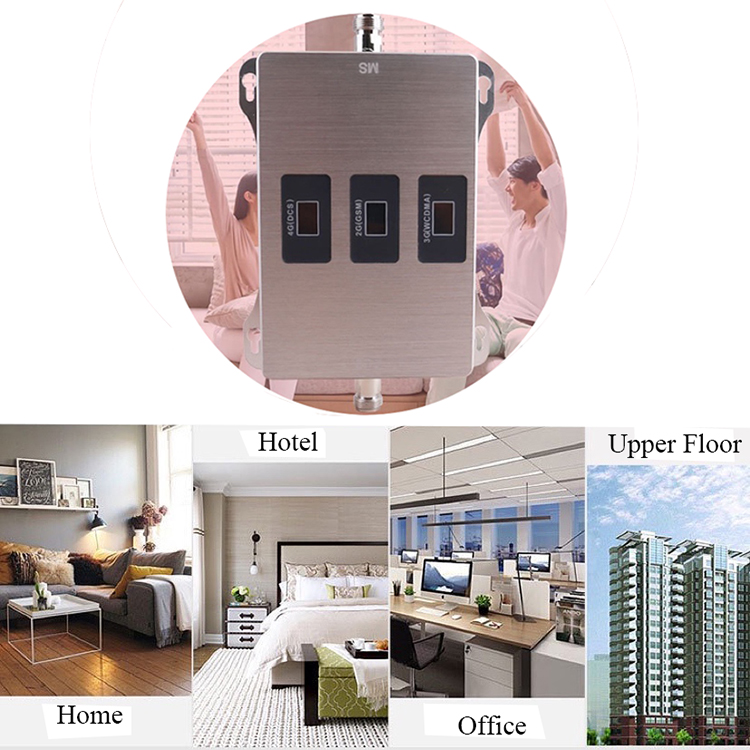

Application:To expand signal coverage or fill signal blind area where signal is weak or unavailable.Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
FAQ
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?
This model is suitable for Asia, Europe, The Middle East, and Brazil, Africa, etc.
*For more details please contact us directly.

Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.

Q4. Can I choose another type of antennas?
Sure, various outdoor and indoor antenna are available, please contact us directly with your requirements.

Q5. The cable length is not good, can I get a longer extension cable?
Yes. We have cable of 5m, 10m, 20m, 30m... also we can customize other length for you. Welcome to contact us for details.

Q6. What payment method is available?
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most
favor, and security method.
*Other methods please contact us with more details.

Q7. How is the cost?
We would quote you the EXW price without shipping. If you don't have any shipping agent in China, we can ship to your country via DHL/FEDEX/UPS/TNT... You may need to share us your shipping details and we will check the shipping cost to your reference.

Q8. Leading time.
Sample 1-3 business days
<50 pcs 3-7 days
50-100 pcs 7-15 days
>100pcs Negotiate
