- Product name:Triband GSM DCS WCDMA 2G 3G 4G Repeater
- Frequency:900/1800/2100 (b8, b3, b1)
- Gain:60±3DB
- Power:≥ 27dBm
- Power Supply:AC 110/220V; DC 12V/2A
- Connector:N-Female Connector
- Coverage:500-1000m2
- Network:GSM DCS WCDMA 2G 3G 4G
- Product Size:29cm*19cm*5cm
- Plug Type:US/EU/UK/AU(select one)
- Type:4G signal booster
- Place of Origin:CN;GUA
- Model Number:HS-B3102PL
- Brand Name:Hongsense
Specification

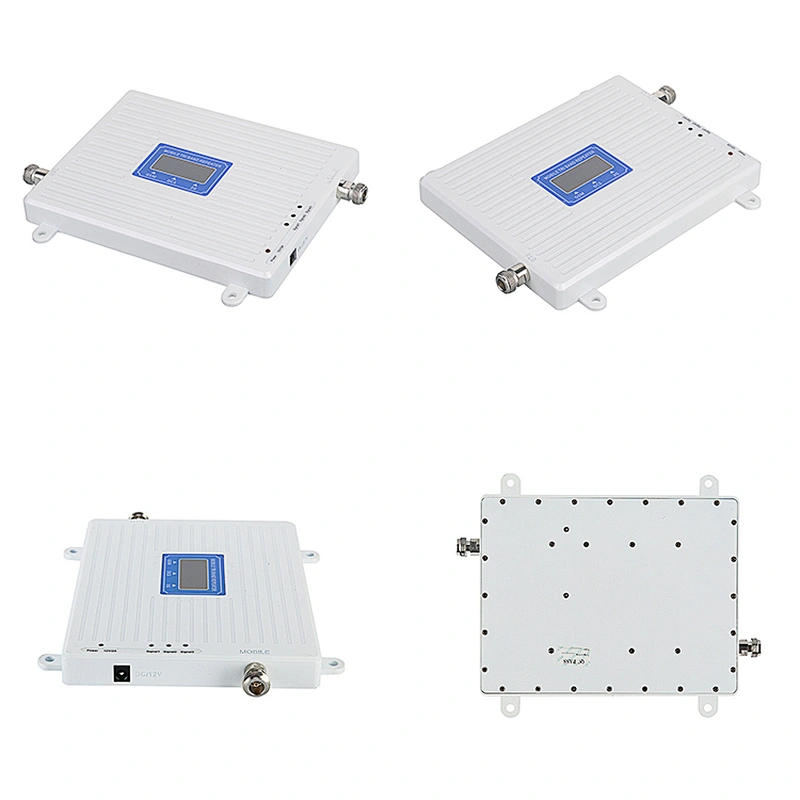

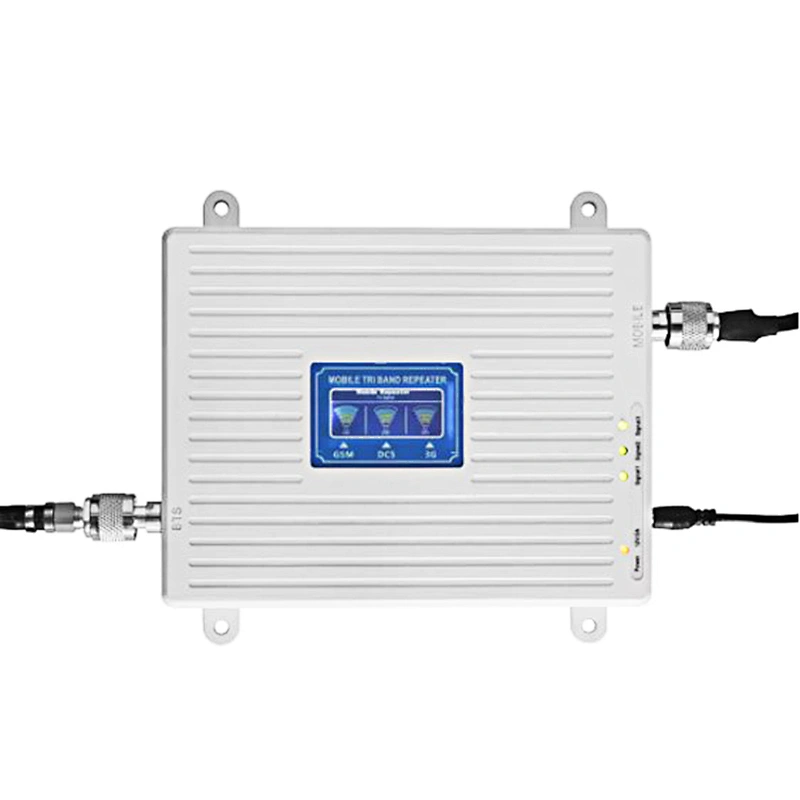

2G 3G 4G Cell Phone Signal Booster Kit 900/1800/2100 GSM DCS WCDMA Triple Band Amplifier Repeater | ||
Model | HS-B3102PL | |
Product Name | Triband GSM DCS WCDMA 2G 3G 4G Repeater | |

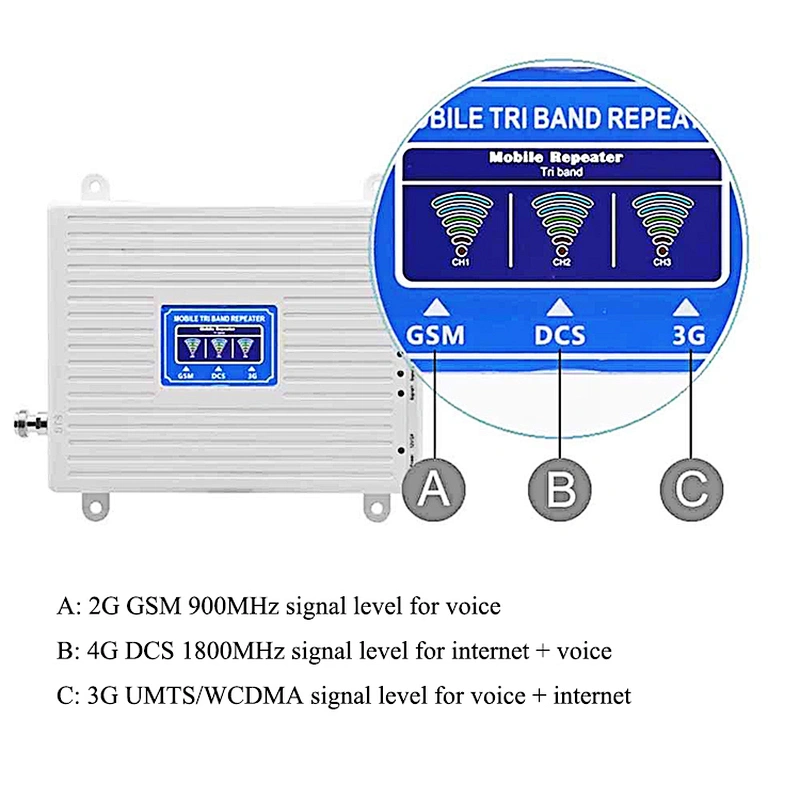

Frequency Range | GSM900(2G): Uplink: 890-915MHz/Downlink: 935-960MHz DCS1800(4G): Uplink: 1710-1785MHz/Downlink: 1805-1880MHz WCDMA2100(3G): Uplink: 1920-1980MHz/Downlink: 2110-2170MHz | |

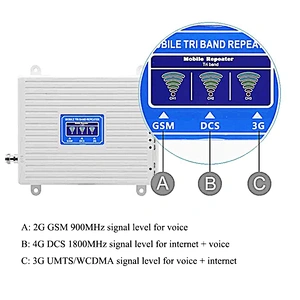

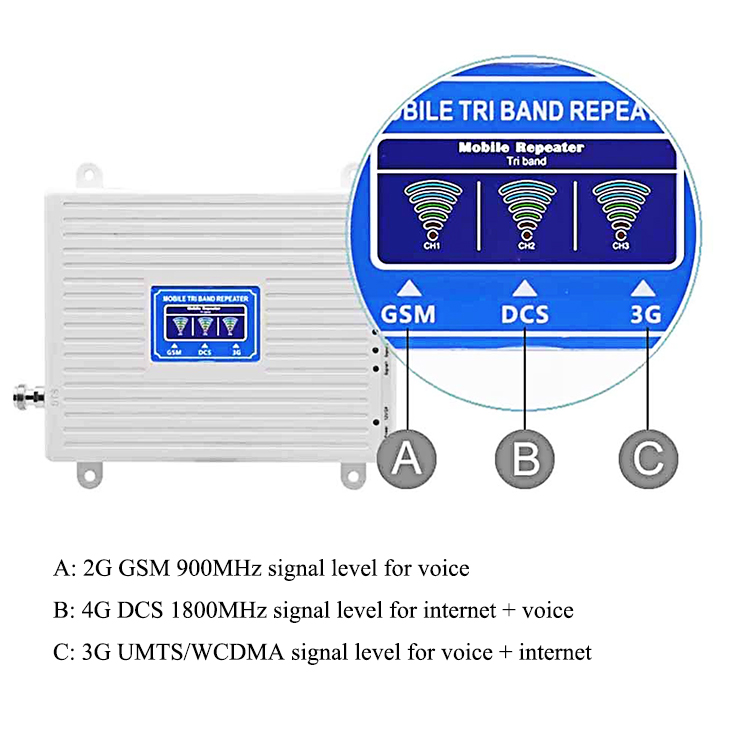

Network | GSM DCS WCDMA 2G 3G 4G (b8, b3, b1) | |
Gain | 60±3DB | |
Impedance | 50Ω | |
Power | ≥ 27dBm | |
Max Output Power | +23dBm/±3DBM Total power | |
Connector | N-Female Connector | |

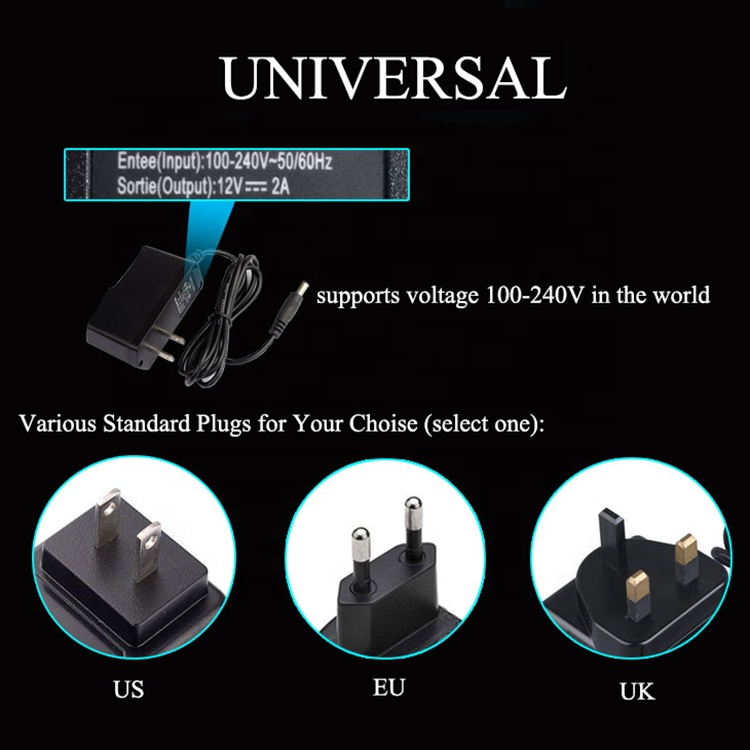

Power Supply | AC 110/220V; DC 12V/2A | |
Coverage | 500-1000m2 | |
Seclusion | <70dB | |
Compact Design | Indoor Use | |
Operating Temperature | -10℃-60℃ | |

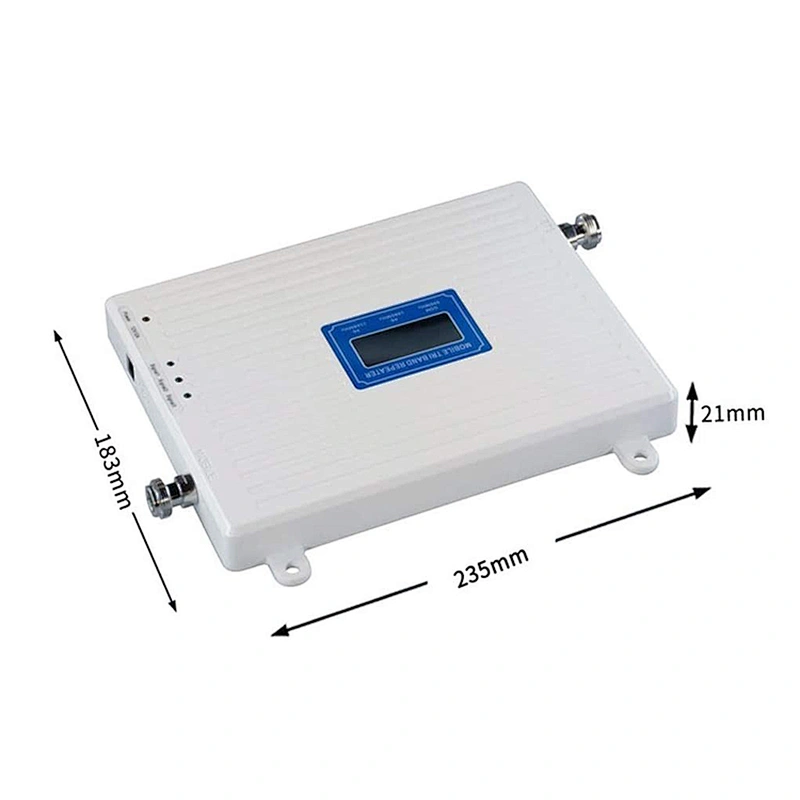

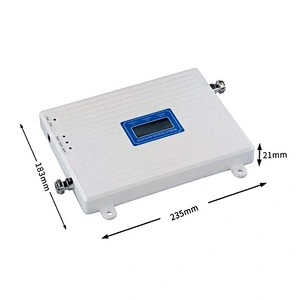

Dimension | 29cm×19cm×5cm | |
Package size | 36cm×25cm×24cm | |
Package weight | 4.5kg | |

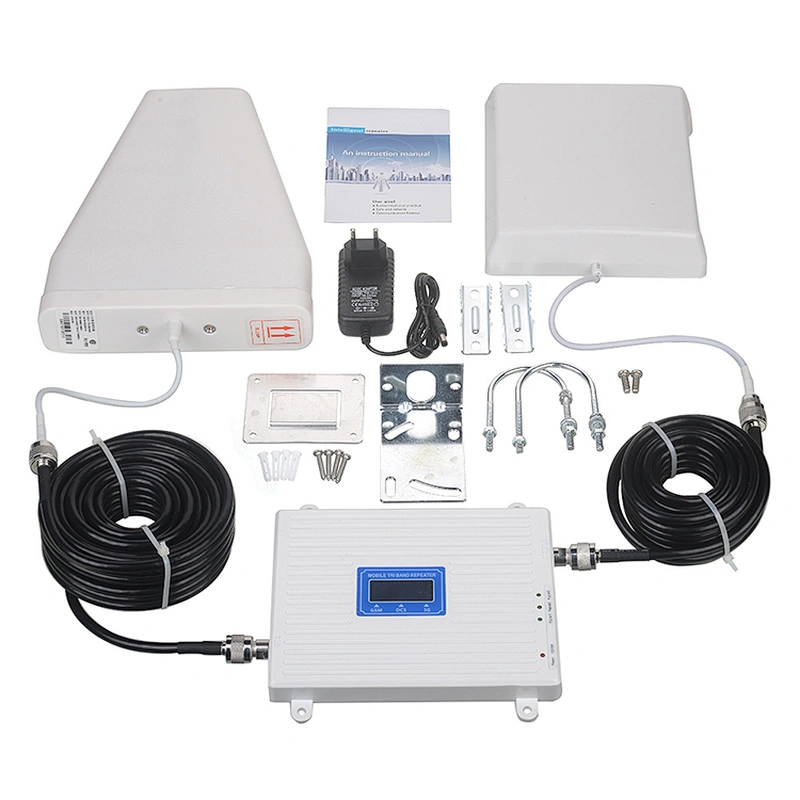

Package Contents | 1*Signal Repeater, 1*Outdoor LPDA antenna, 1*Indoor Panel Antenna, 1*10M Cable, 1*5M Cable, 1*Power Adapter(US, UK, EU, AU four types choose one), 1*User Manual | |
Product Description
This is 65dB 900 1800 2100MHz Triple Mobile Signal Booster Amplifier GSM DCS 3G Triband Repeater,coverage up to 1000 sqm, mainly used for home, office, building, basement, park, hotel, hospital, supermarket, elevator, hall, farm, square, highway, boat, yacht, vehicle etc. This tri band mobile signal booster repeater works with worldwide GSM 900, GSM 1800 (also called DCS, +EGSM 900), 3G 2100 (also called 3, 3G, Three, Three-3G, UMTS, WCDMA, W-CDMA), GSM 900/1800 or GSM 900/2100 Networks.Features:1. Cost effective solution for weak signal zones, reduce drop/off calls.2. Compact size, low power consumption, easy installation, great cover. Expansion and extending of the signal of base station. Optimization of the quality of the signal and source3. Cover about 1000 without block or obstruct.4. High linear design and low interference to BTS.5. Support any cellular devices (voice & data & video)6. Wide band signal booster, or customize selective band booster.

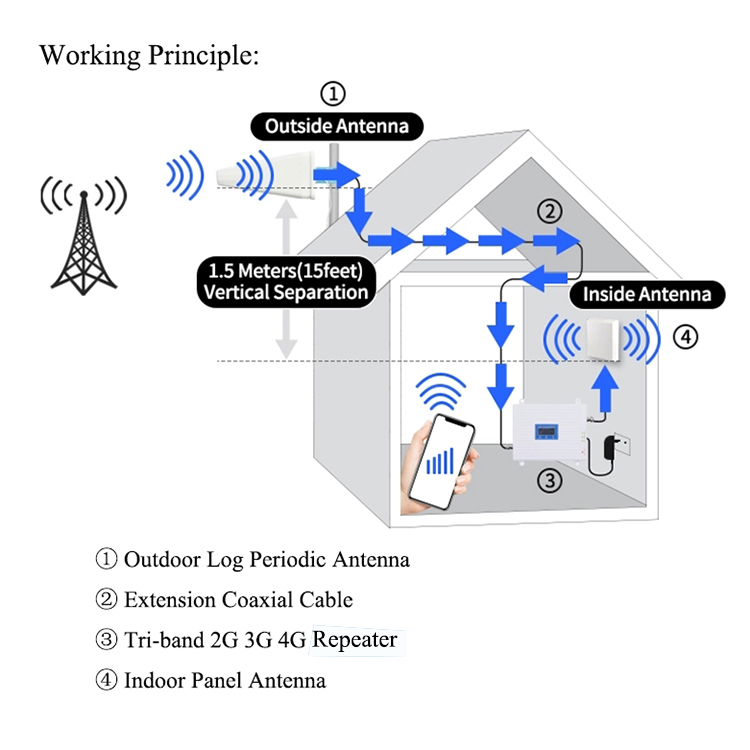

Application:To expand signal coverage or fill signal blind area where signal is weak or unavailable.Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
FAQ
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
This model is suitable for Asia, Europe, The Middle East, and Brazil, Africa, etc.
*For more details please contact us directly.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Can I choose another type of antennas?
Sure, various outdoor and indoor antenna are available, please contact us directly with your requirements.
Q5. The cable length is not good, can I get a longer extension cable?
Yes. We have cable of 5m, 10m, 20m, 30m... also we can customize other length for you. Welcome to contact us for details.
Q6. What payment method is available?
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most
favor, and security method.
favor, and security method.
*Other methods please contact us with more details.
Q7. How is the cost?
We would quote you the EXW price without shipping. If you don't have any shipping agent in China, we can ship to your country via DHL/FEDEX/UPS/TNT... You may need to share us your shipping details and we will check the shipping cost to your reference.
Q8. Leading time.
Sample 1-3 business days
<50 pcs 3-7 days
50-100 pcs 7-15 days
>100pcs Negotiate
