Model NO.:
HS-B4101MC
Quantity:
  • Product name:850 900 1800 2100MHz Quad Band Booster
  • Network:CDMA GSM DCS WCDMA 2G 3G 4G
  • Frequency range:850/900/1800/2100MHz
  • Gain:70±3DB

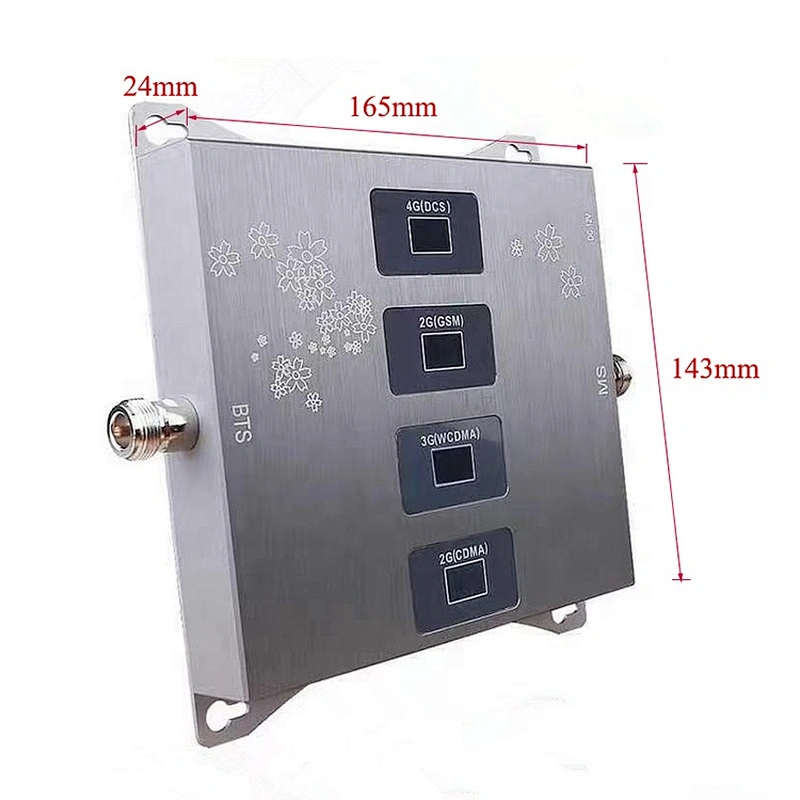

  • Products Size:165mm*143mm*25mm
  • Plug Type:US/EU/UK/AU(select one)
  • Power supply:AC 110-240V; DC 12V/2A
  • Connector Type:N-F
  • Power:≥ 20dBm
  • Coverage Area:1000m2
  • Type:4G signal booster
  • Place of Origin:CN;GUA
  • Model Number:HS-B4101MC
  • Brand Name:Hongsense
Product Description
Specification
Electrical Specifications
Model
HS-B4101MC
Frequency Range-MHz
CDMA850(2G): Uplink: 824-849MHz/Downlink: 869-894MHz
GSM900(2G): Uplink: 890-915MHz/Downlink: 935-960MHz
DCS1800(4G): Uplink: 1710-1785MHz/Downlink: 1805-1880MHz
WCDMA2100(3G): Uplink: 1920-1980MHz/Downlink: 2110-2170MHz

Network
CDMA GSM DCS WCDMA 2G 3G 4G
Gain-dBi
70±3DB
Power
≥ 20dBm
Max Output Power
+20dBm/±3DBM Total power
Impedance-Ω
50
Connector
N-Female Connector
Power Supply
AC 110-240V; DC 12V/2A
Coverage
1000m2
Seclusion
<70dB
Compact Design
Indoor Use
Operating Temperature
-10℃-60℃
Dimension(repeater host)
170mm*150mm*30mm
Package size
360mmx260mmx240mm
Package weight
4.5kg

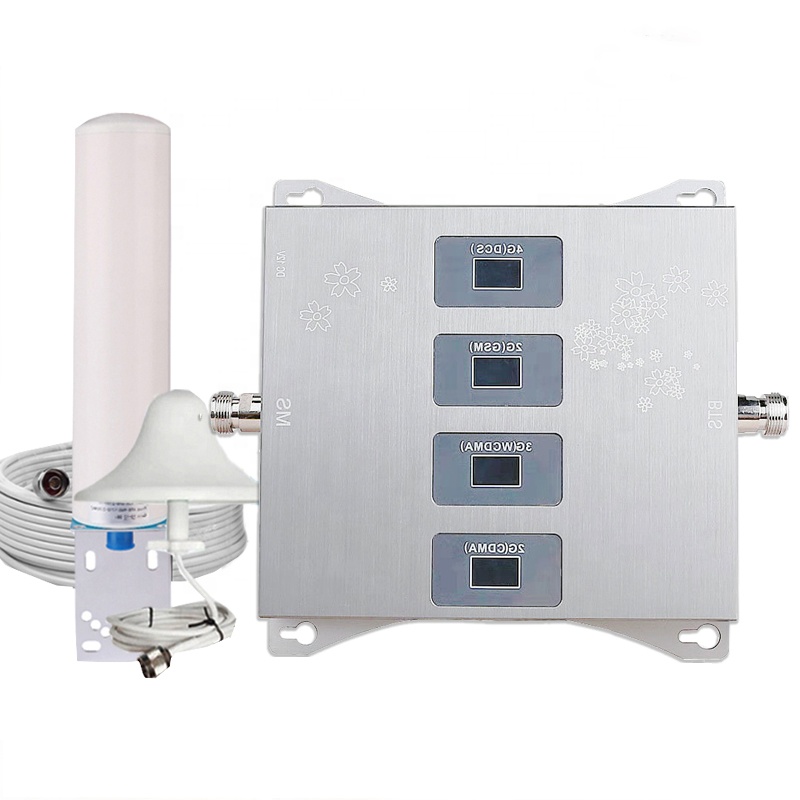

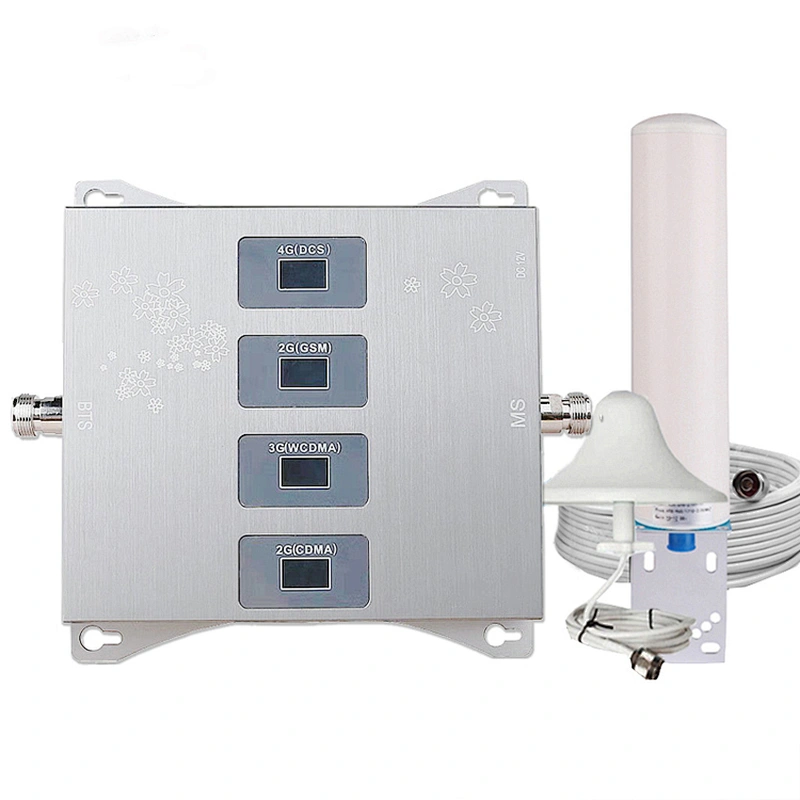

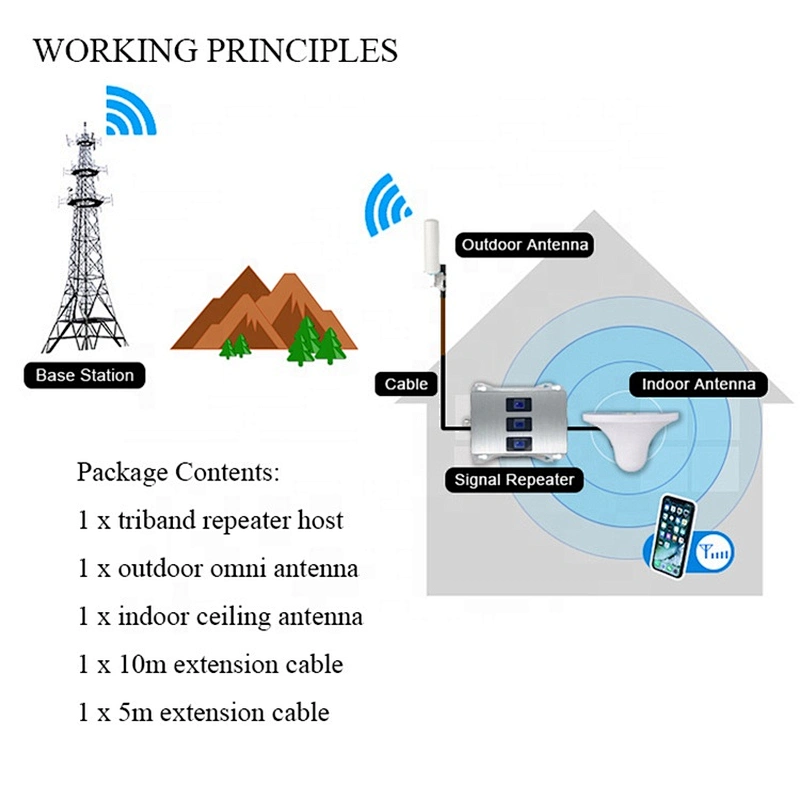

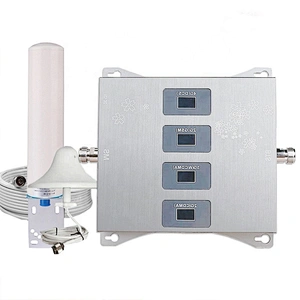

Package Contents
1*Signal Repeater
1*AC adapter(US, UK, EU, AU four types choose one)
1*ourdoor MIMO antenna
1*indoor ceiling antenna
1*10m cable
1*5m cable
1*User Manual
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and wewould also quote you the shipping cost.
