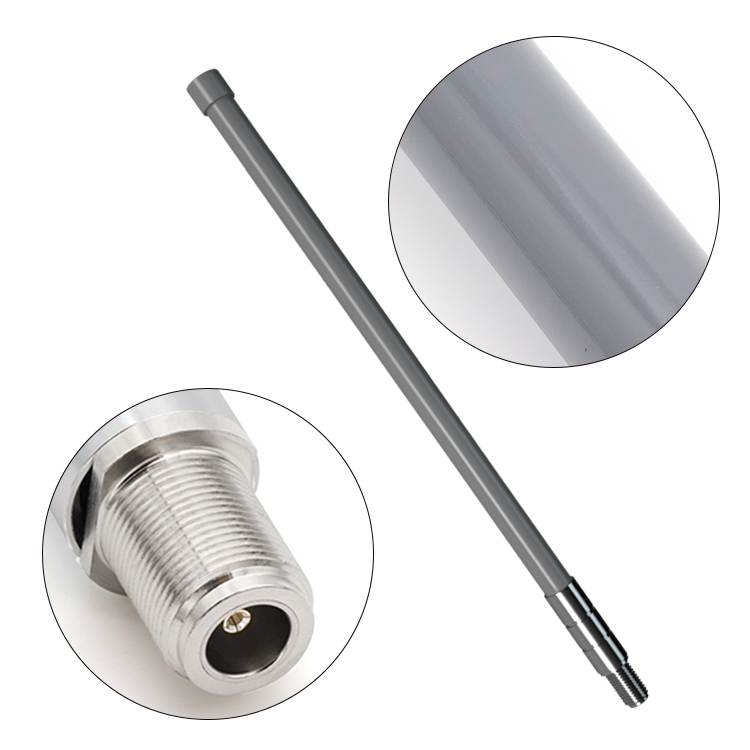

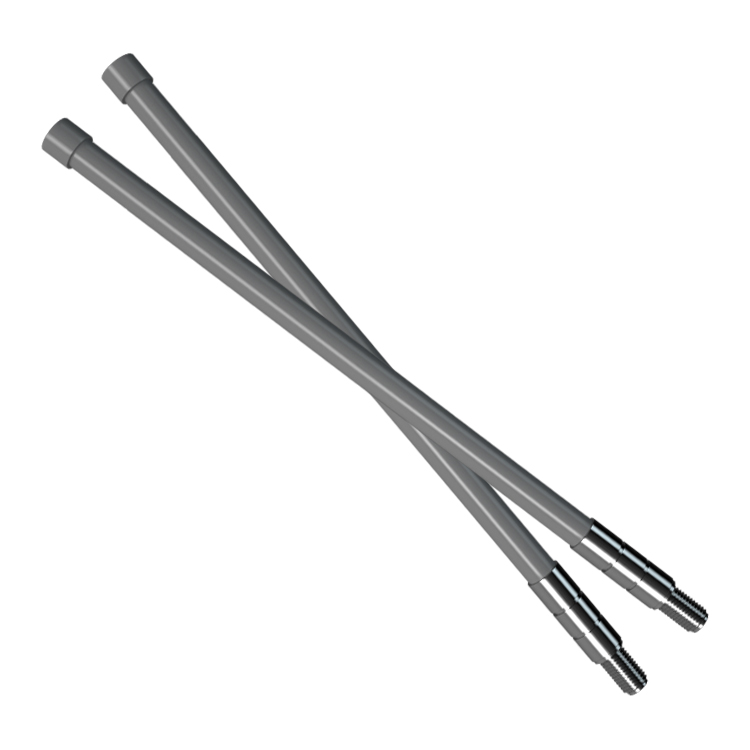

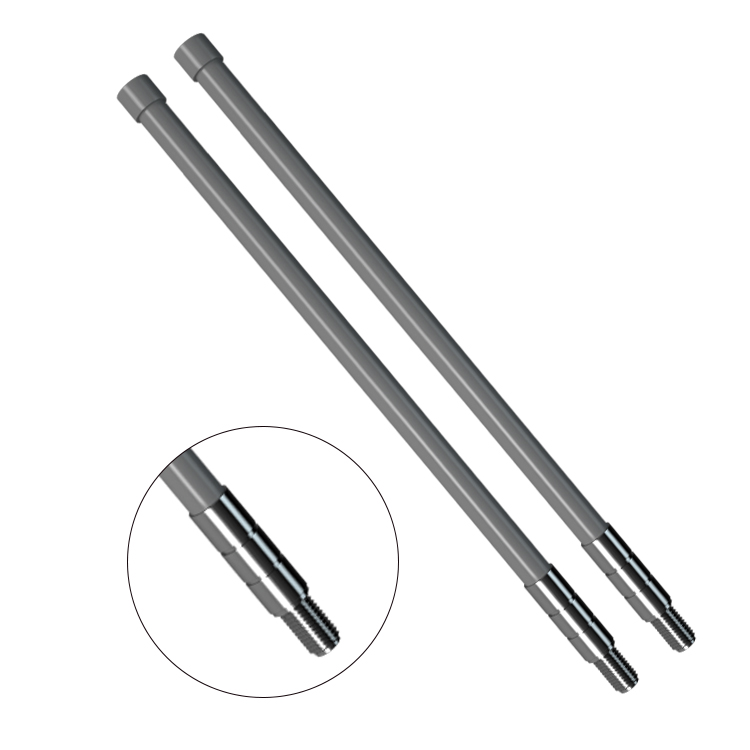

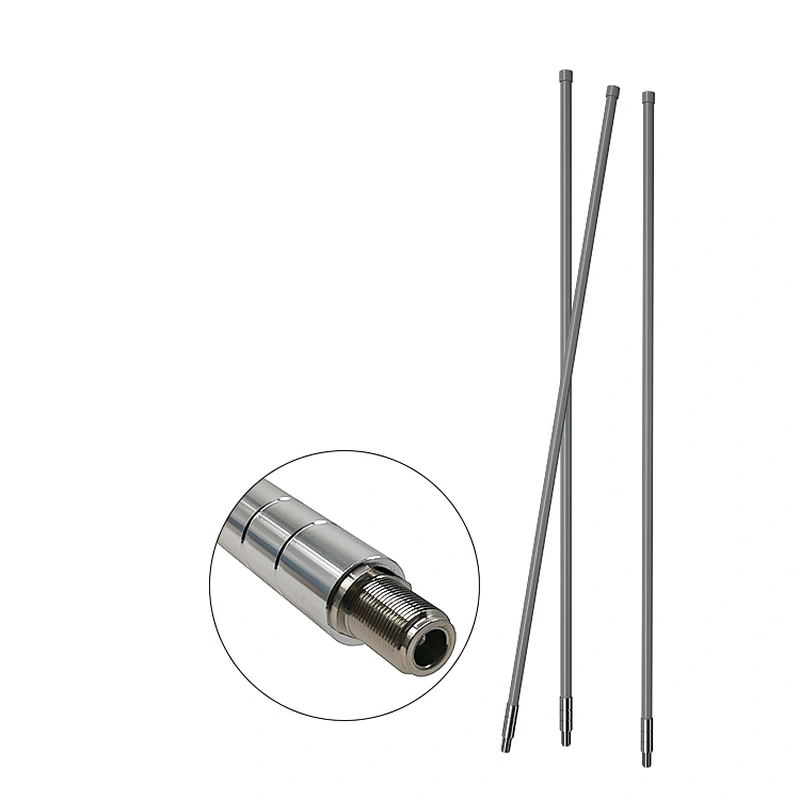

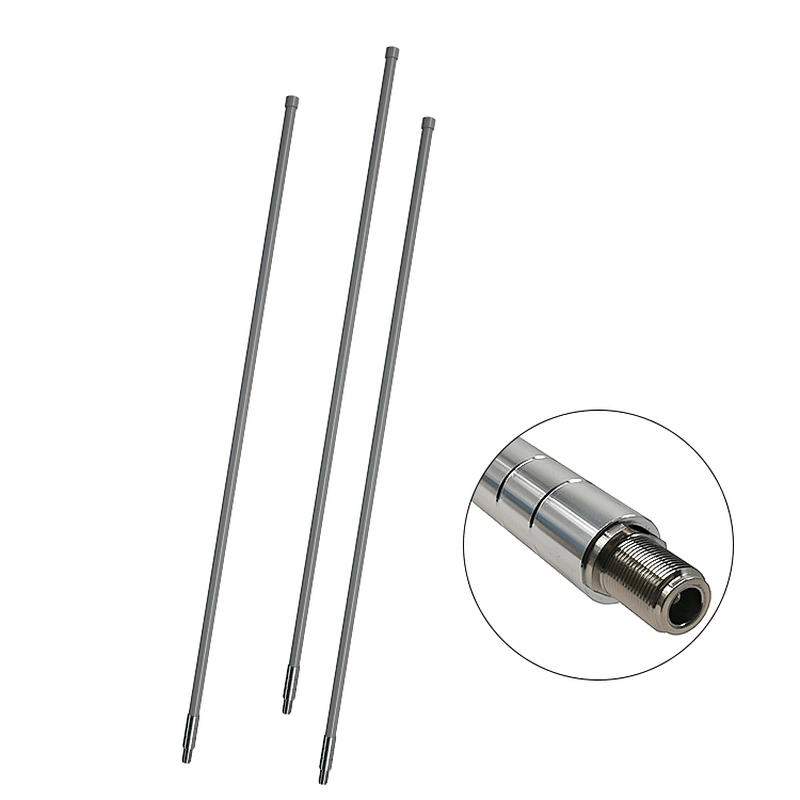

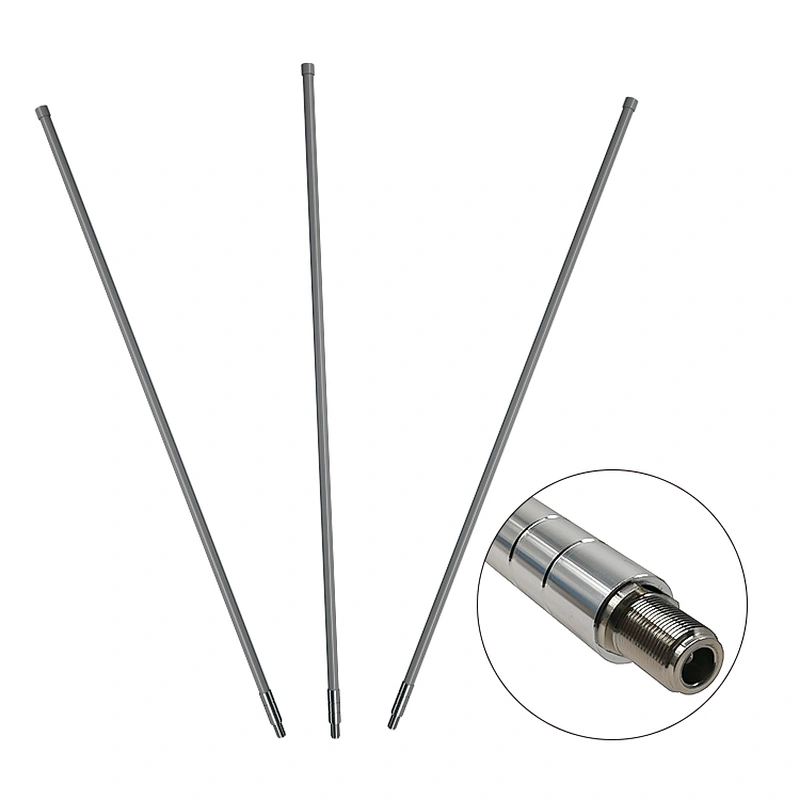

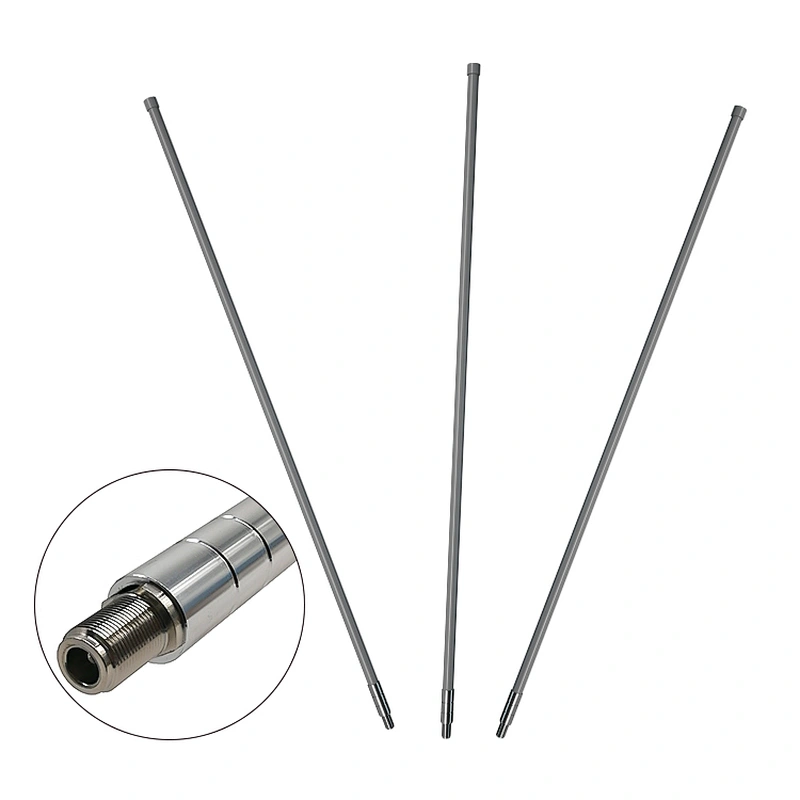

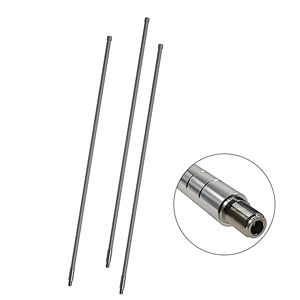

High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna
High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna
High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna
High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna
High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna
High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna
High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna

High Power Waterproof AP Tower Antenna 12dBi Outdoor Wireless 2.4G WiFi Fiberglass Antenna

Model NO.:
HSA-2400FA4
Price:
USD 10.49-13.49 / pieces
Delivery:
Minimum order quantity:
10 pieces
Supply Ability:
5000.0 pieces / Day
Country of Origin:
Shenzhen
  • Product Name:WiFi 2.4GHz Fiberglass Antenna
  • Frequency Range:2400-2483MHz
  • Gain:12dBi
  • Impedance:50Ω

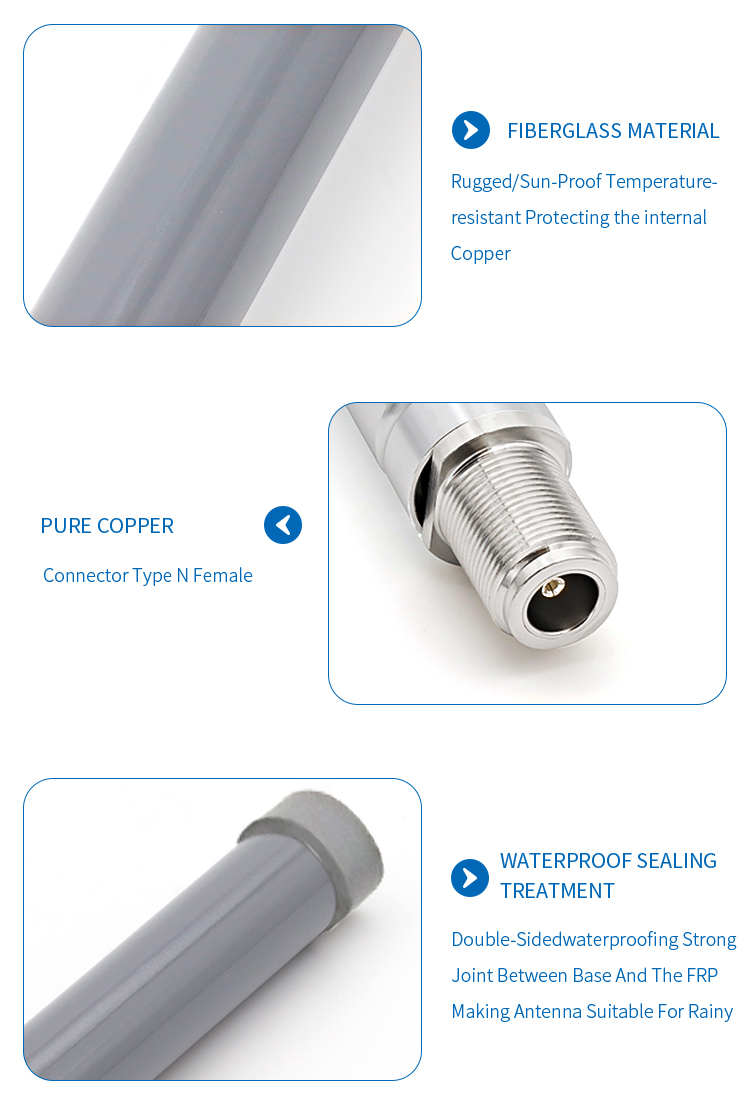

  • Connector:N Female or Customized
  • VSWR:≤1.5
  • Polarization:Vertical
  • Max. power:100W
  • Weight:600g
  • Size:20mm*1250mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-2400FA4
Product Description
Specification
Product name
WiFi 2.4G Fiberglass Antenna
Frequency Range
2400-2483MHz
Gain
12dBi
VSWR
≤1.5
Polarization
Vertical
Impedance
50Ω
Connector
N Female or Customized
Max. Power
100W
Vertical Beam width
Horizontal Beam Width
360°
Operation Temperature
-40~+60℃
Weight
600g

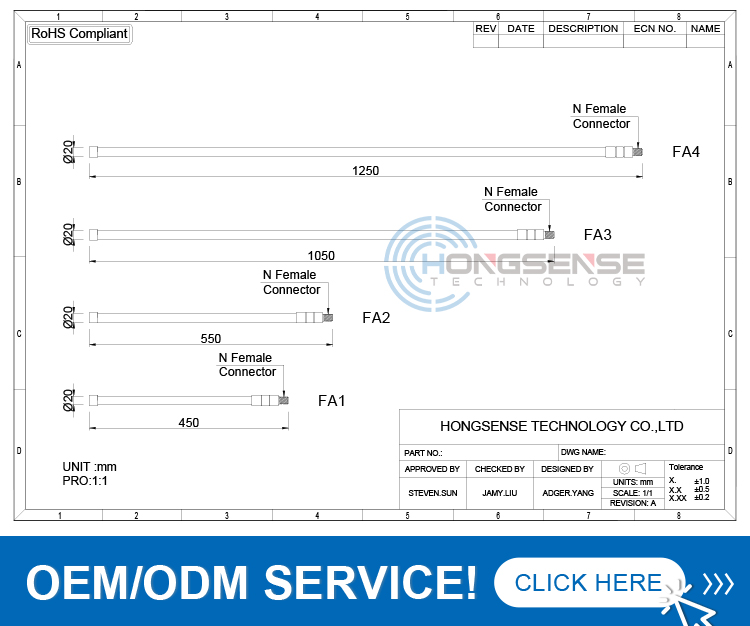

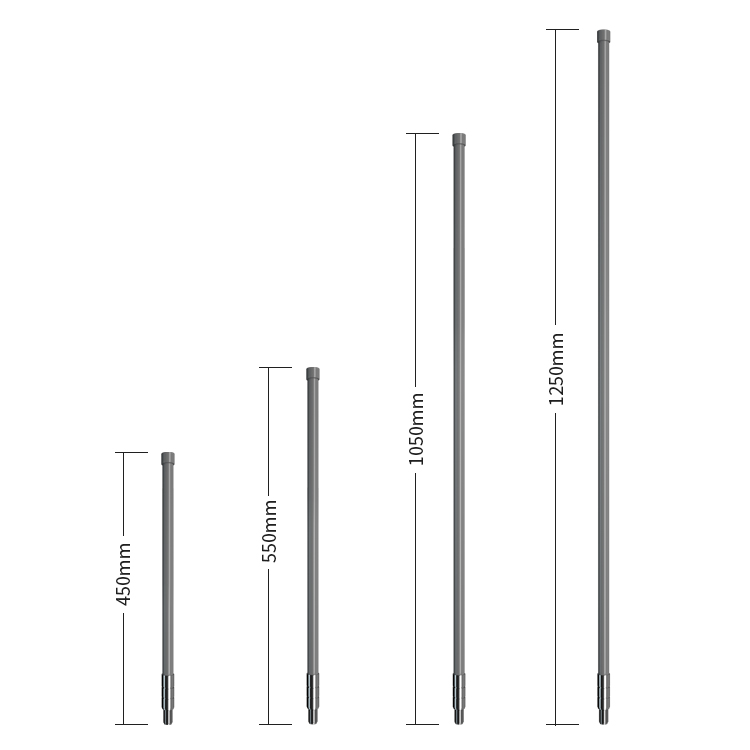

Dimension
20mm*1250mm
Payment & Shipment

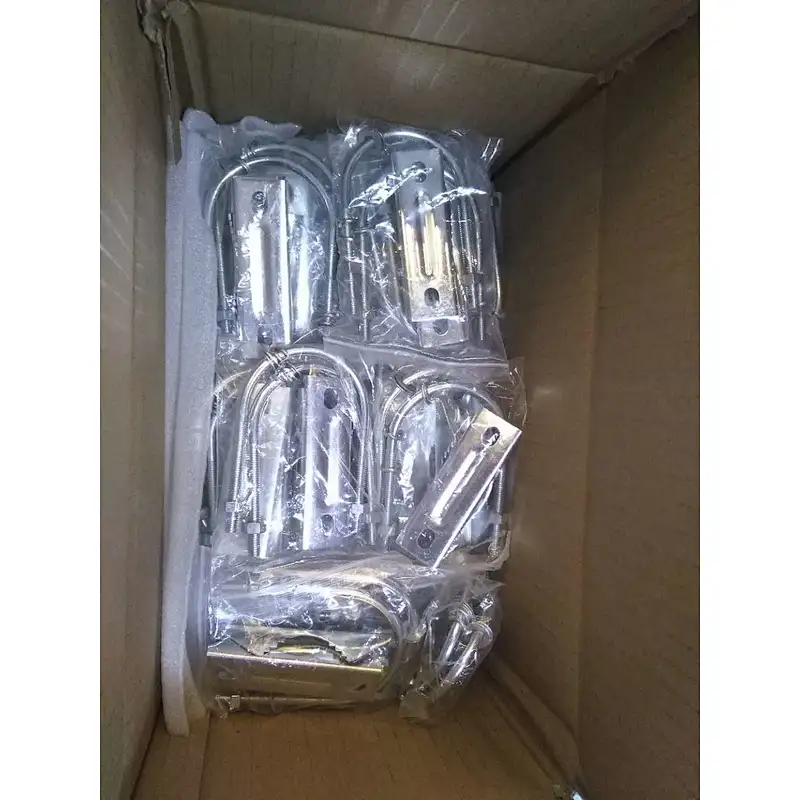

Packing & Delivery
Company Profile
Why Choose Us
FAQ
Q: What type of antenna your company have?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?
A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?
A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?
A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?
A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?
A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
