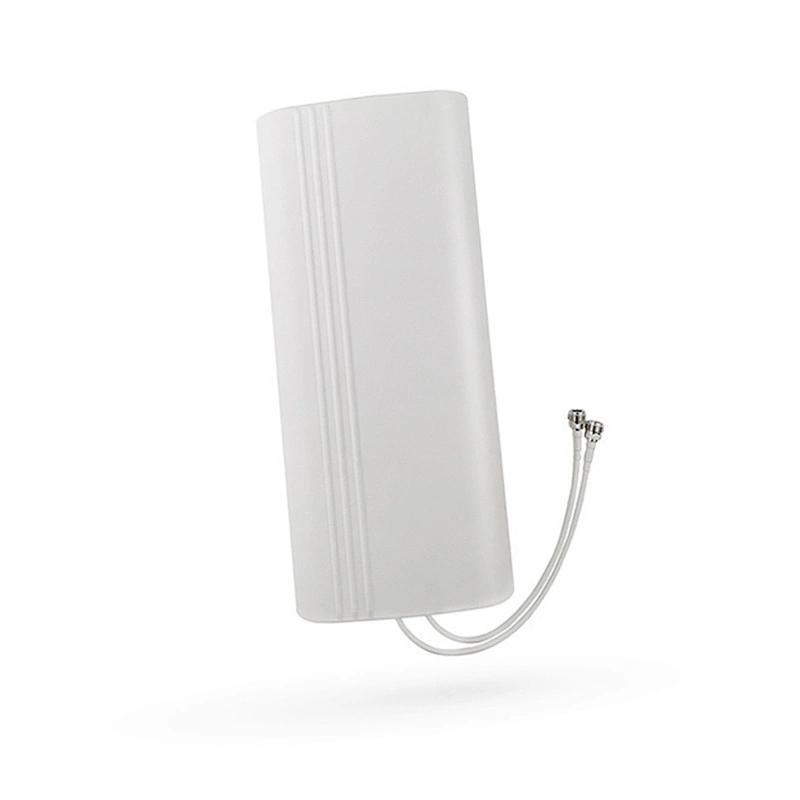

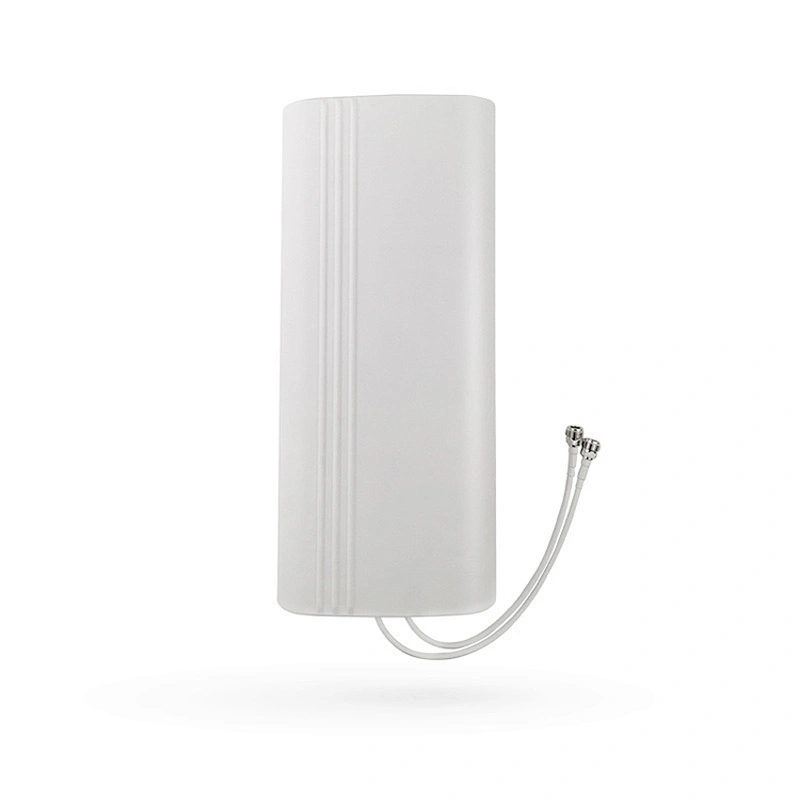

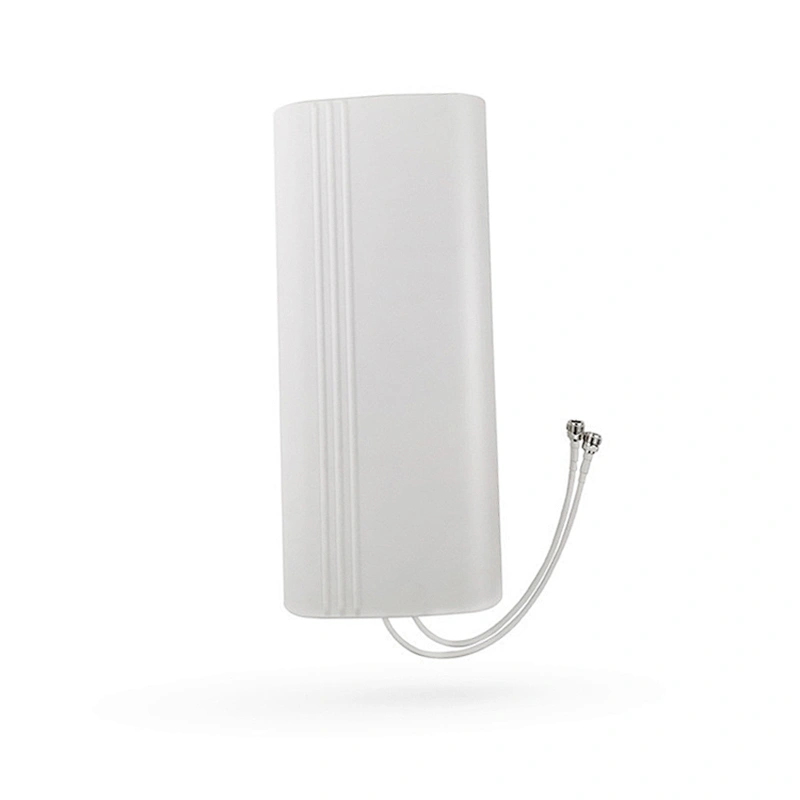

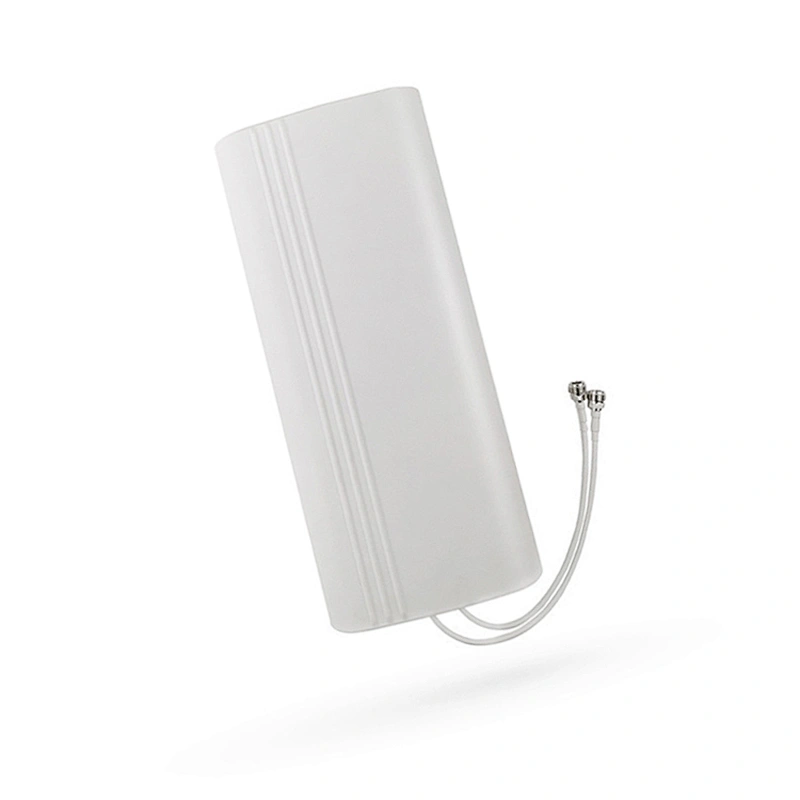

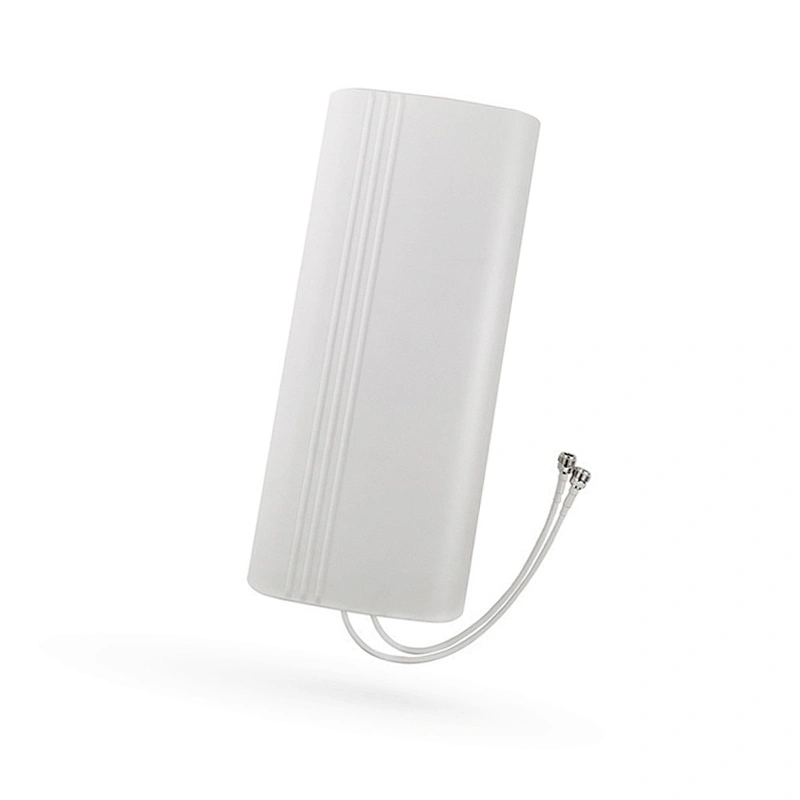

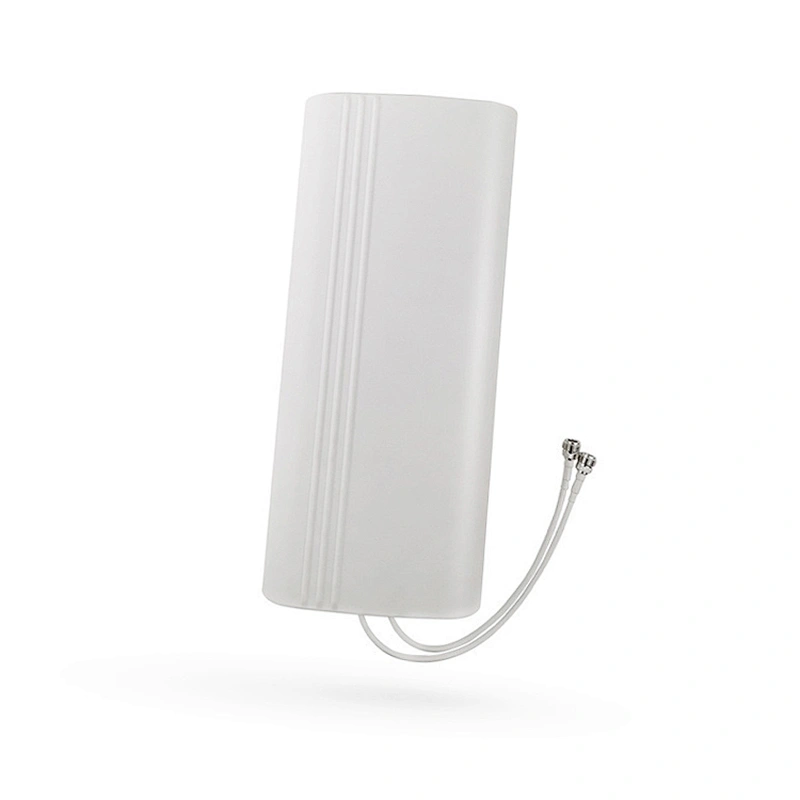

High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna
High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna
High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna
High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna
High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna
High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna
High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna

High Gain 14dbi Panel Mimo Panel Antenna Dual Band 4G Lte directional Panel Antenna

Model NO.:
HSA-1727WA6
Price:
USD 14.59-17.59 / pieces
Delivery:
FOB
Minimum order quantity:
2 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
Shenzhen
  • Name:4G panel antenna
  • Connector:N-F/SMA
  • Gain-dBi:14
  • Frequency Range -MHz:1710-2690
  • VSWR:1.8
  • Impedance-Ω:50
  • Dimension-mm:410*180*62
  • Polarization:Vertical & Horizontal
  • Max. Power-W:50
  • Color:White
  • Place of Origin:CN;GUA
  • Brand Name:Honsense
  • Model Number:HSA-1727WA6
Specification
Model Number
HSA-1727WA6
Frequency Range -MHz
1710-2690
Connector
N female or customize
Radiation
Directional
Gain-dBi
14
VSWR
1.8
Impedance-
50
Polarization
Vertical and Horizontal
Max. Power-W
50
Length-m
50cm or customize
Product Keywords
4G panel antennae,antenna panel
Product Description
Customer Reviews
Packing & Delivery
Company Information
Certifications
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount
antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we
would also quote you the shipping cost.
