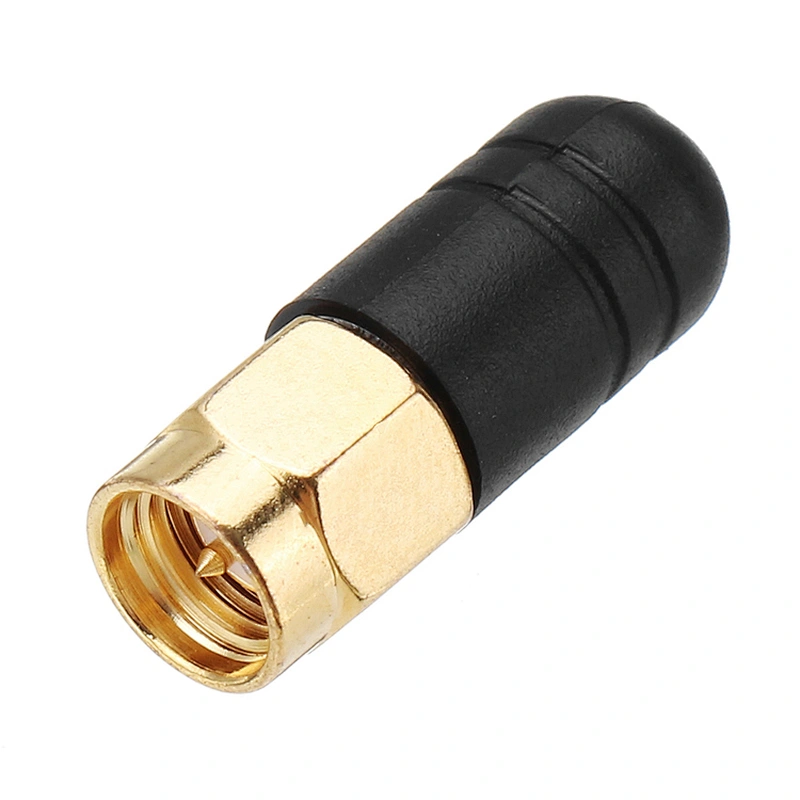

25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna
25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna

25mm 2.4G 2DBi Gain OMNI SMA-J Male Connector Antenna

Model NO.
HSA-2400TEA1
Price:
USD 0.42-0.65 / pieces
Minimum order quantity:
50 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
shenzhen
Quantity:
  • Frequency Range:2400-2483Mhz
  • Polarization:Vertical
  • VSWR:1.5
  • Connector:RP-SMA Male
  • Weight:5g
  • Impedance:50 Ohm
  • Gain:3dbi
  • Size:8.5*26mm
  • Type:External Rubber Antenna
  • Product name:Rubber Antenna
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-2400TEA1
Product Description
Specification
Electrical Specifications of Long Range Wifi Antenna
Name
Long Range Wifi Antenna
Frequency Range (MHz)
2400-2483
V.S.W.R
≤1.5
Gain (dBi)
2
Impendence (Ω)
50
Max Input Power (w)
50
Polarization
Vertical
Mechanical Specifications of Long Range Wifi Antenna
Connector
RP-SMA or customized
Operation Temperature
-40~+60°C
Color
Black/white or customized
Description of Long Range Wifi Antenna
Apply to 2.4GHz WLAN/Wifi system,strength the wireless network signal.
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
