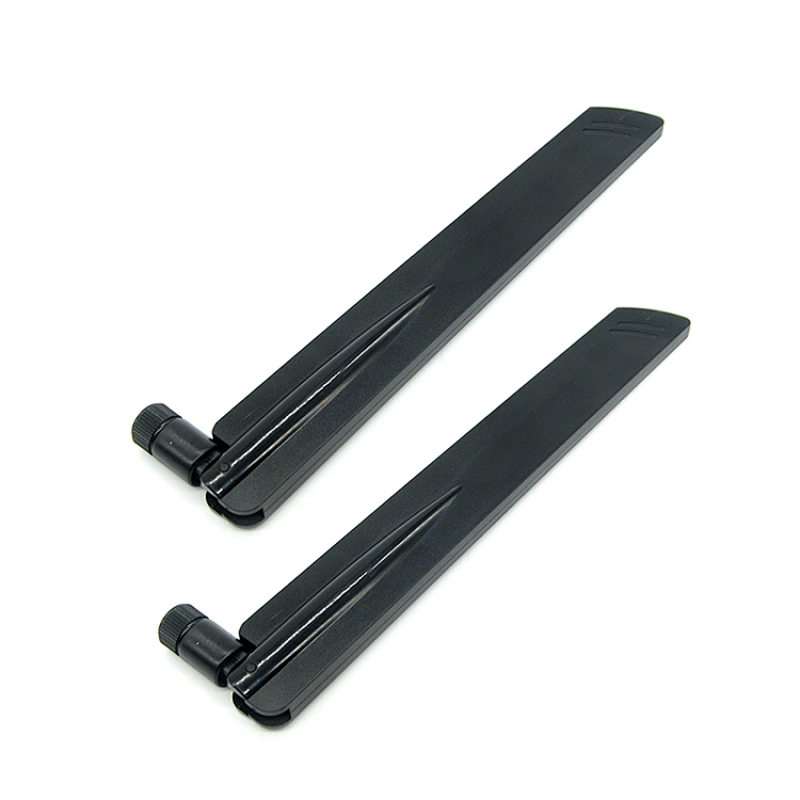

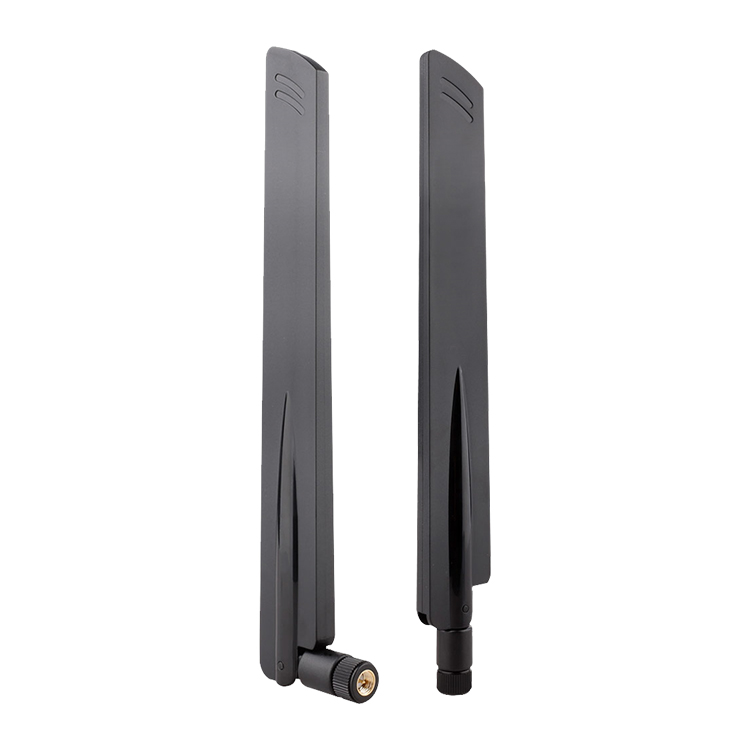

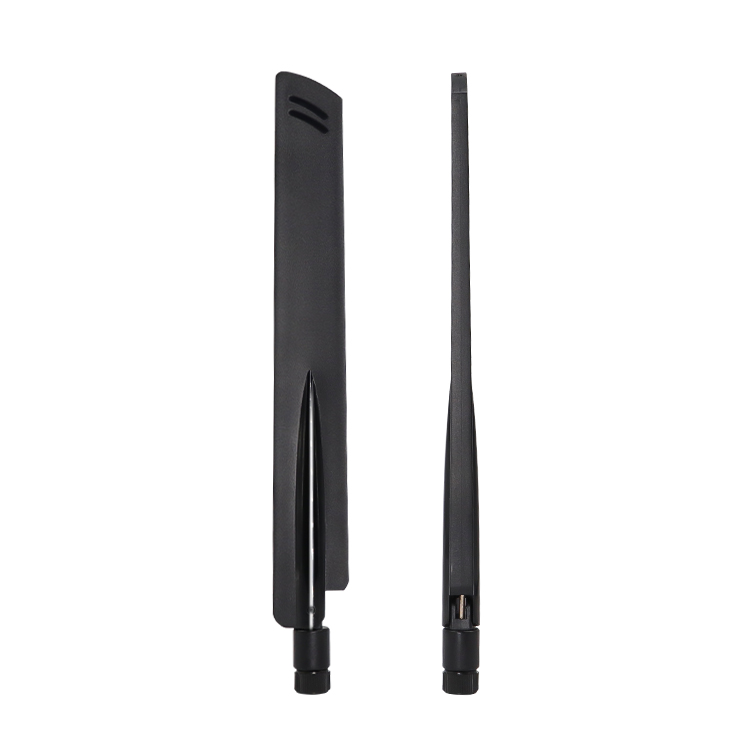

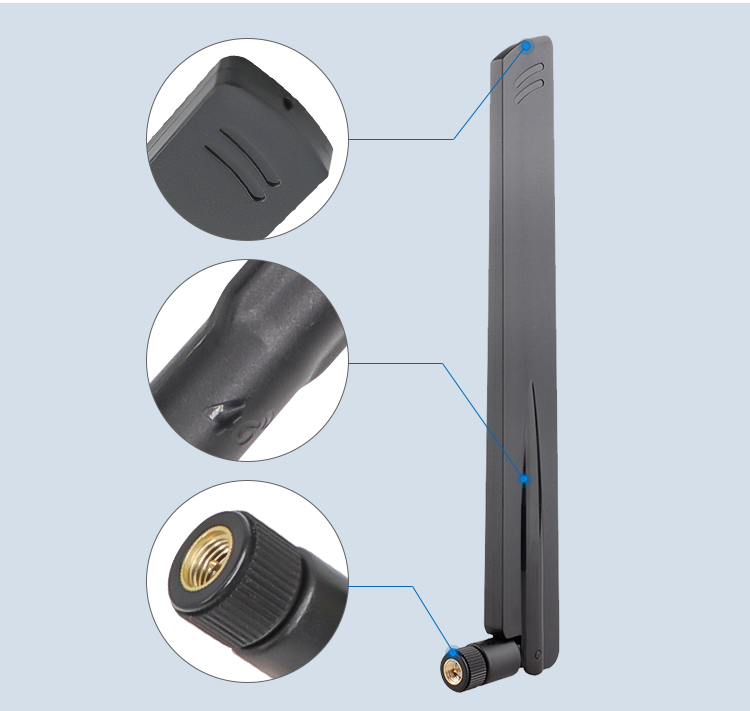

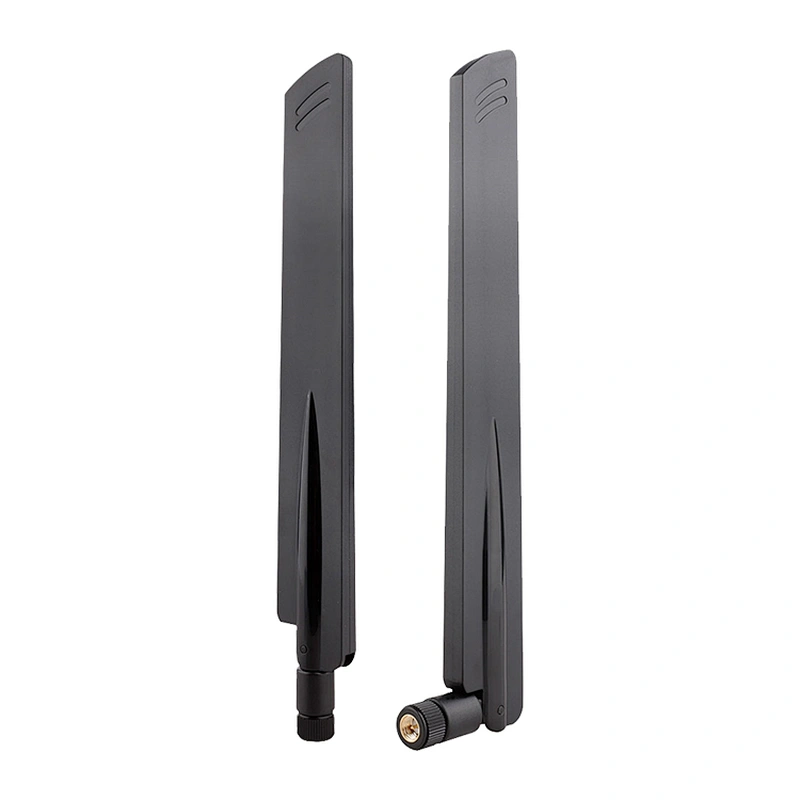

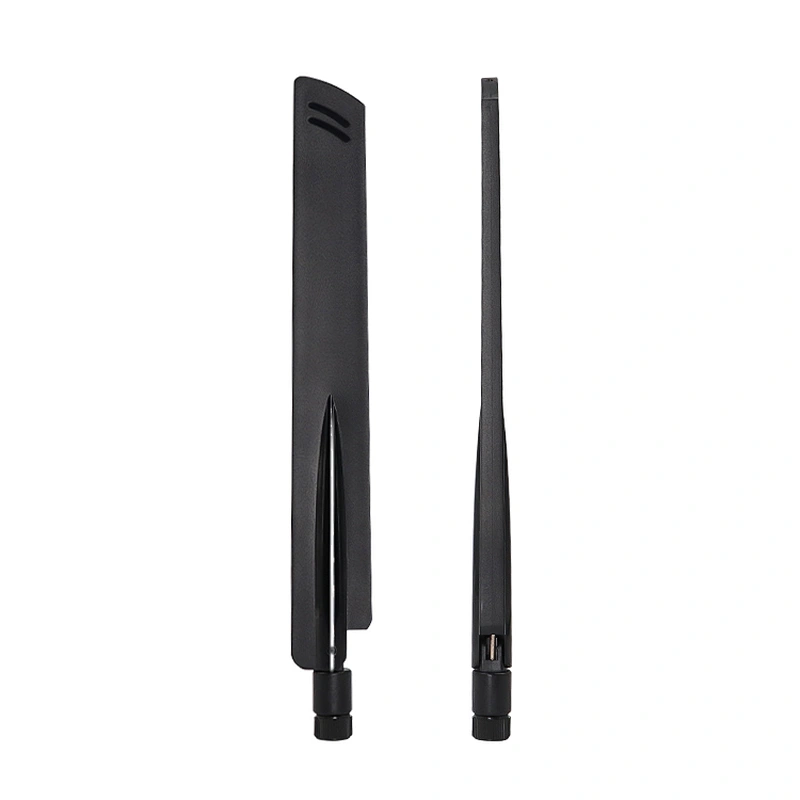

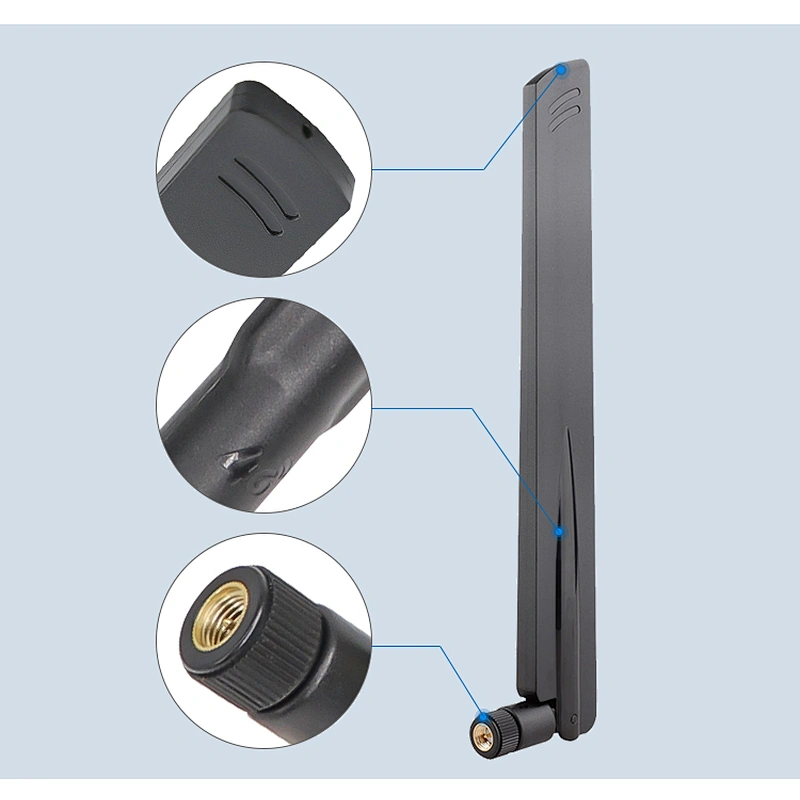

Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector
Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector

Screwing Mount 7dBi 4G 5G Rubber Terminal Antenna With SMA Connector

Model NO.:
HSA-0738TBH
Price:
USD 1.19-1.99 / pieces
Minimum order quantity:
50 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
shenzhen
Quantity:
  • Product Name:7dBi 5G Rubber Terminal Antenna
  • Frequency Range:698-3800MHz
  • Gain:7dBi
  • Impedance:50Ω
  • Connector:SMA or Customized
  • VSWR:≤2.0
  • Polarization:Vertical
  • Color:Black/White
  • Weight:32g
  • Size:27mm*220mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0738TBH
Product Description
Specification
Model
HSA-0738TBH
Product Name
7dBi 5G Rubber Terminal Antenna
Frequency Range
698-3800MHz
Gain
7dBi
Impedance
50Ω
Connector
SMA/RP-SMA (or customized)
VSWR
≤2.0
Polarization
Vertical
Radiation
Omni-directional
Max. Power
50W
Radome Material
Plastic
Operation Temperature
-40~+60℃
Weight
32g

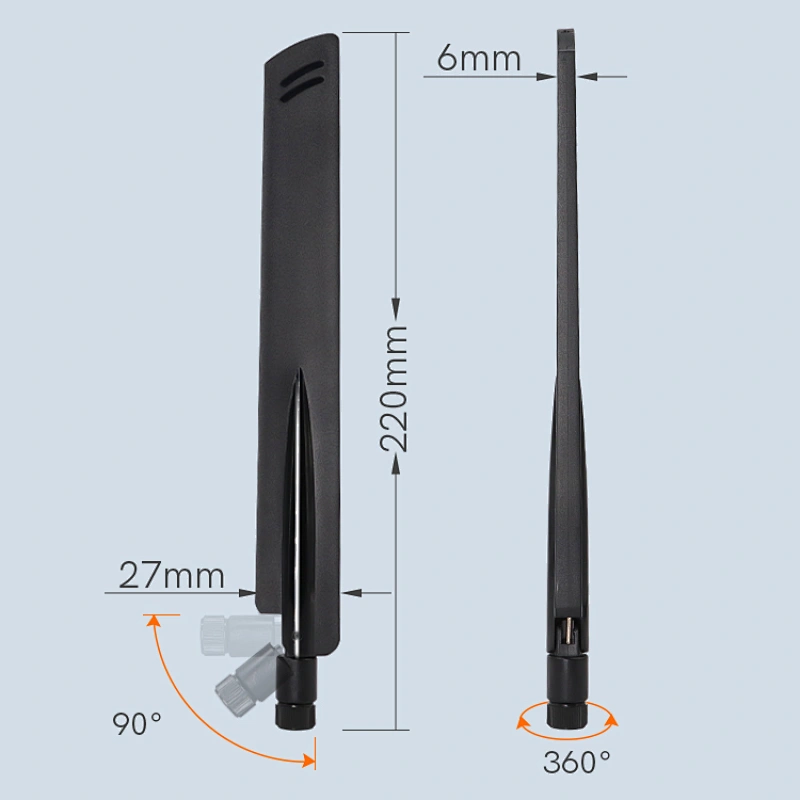

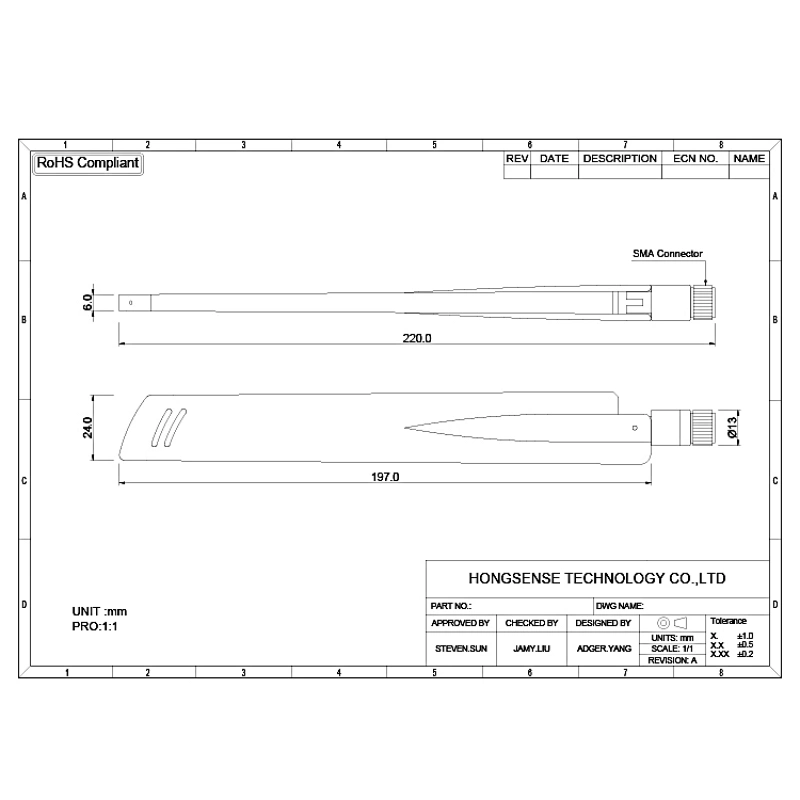

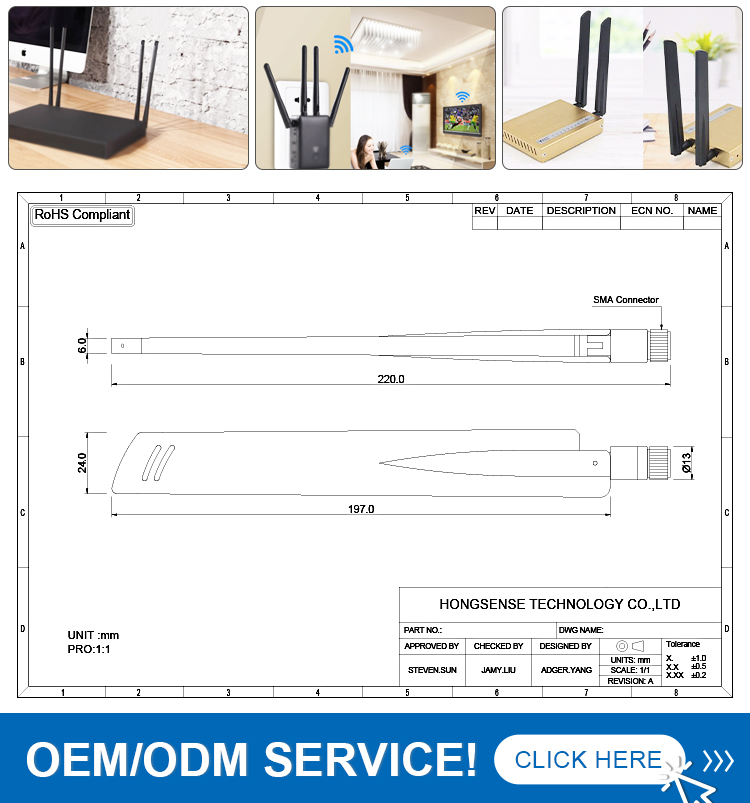

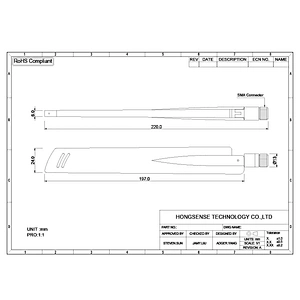

Dimension
27mm*220mm
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose Us
FAQ
Q: What type of antenna your company have?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?
A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?
A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?
A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?
A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?
A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
