Model NO.
HSA-0727CEB
Price:
USD 1.99-3.99 / pieces
Minimum order quantity:
50 pieces
Supply Ability:
1000.0 pieces / Day
Country of Origin:
SHENZHEN
Quantity:
  • Product name:ceiling Antenna
  • Frequency Range -MHz:806-960/1710-2700
  • Connector:N-F/SMA-male
  • Radiation:Onmi Directional
  • Gain-dBi:2/4
  • Polarization:vertical
  • VSWR:<=2.0
  • Impedance-:50
  • Max. Power-W:50
  • Cable type:RG58 cable
  • Place of Origin:CN;GUA
  • Brand Name:Honsense
  • Model Number:HSA-0727CEB
Product Description

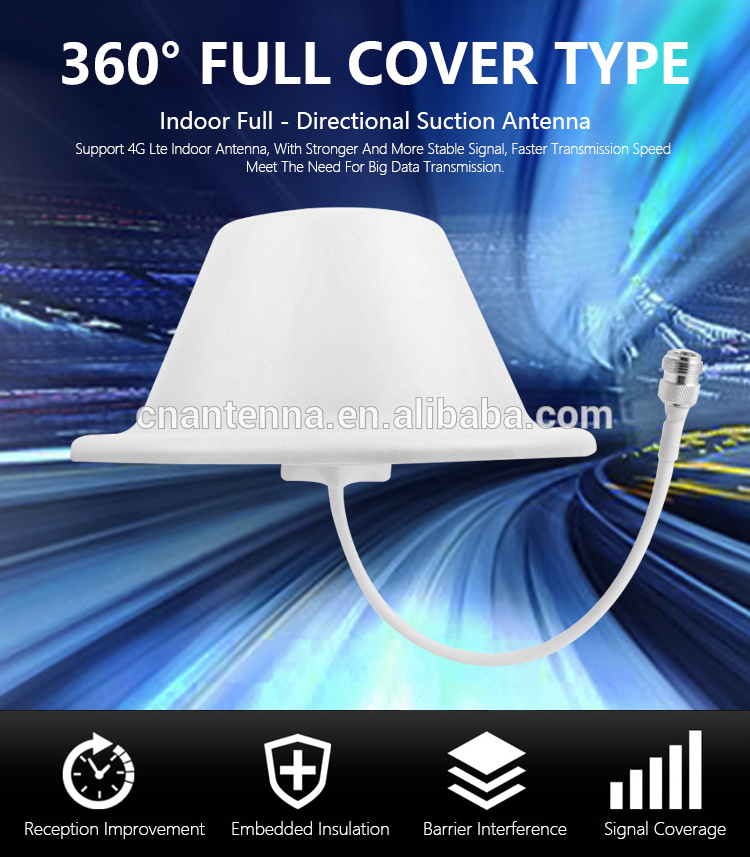

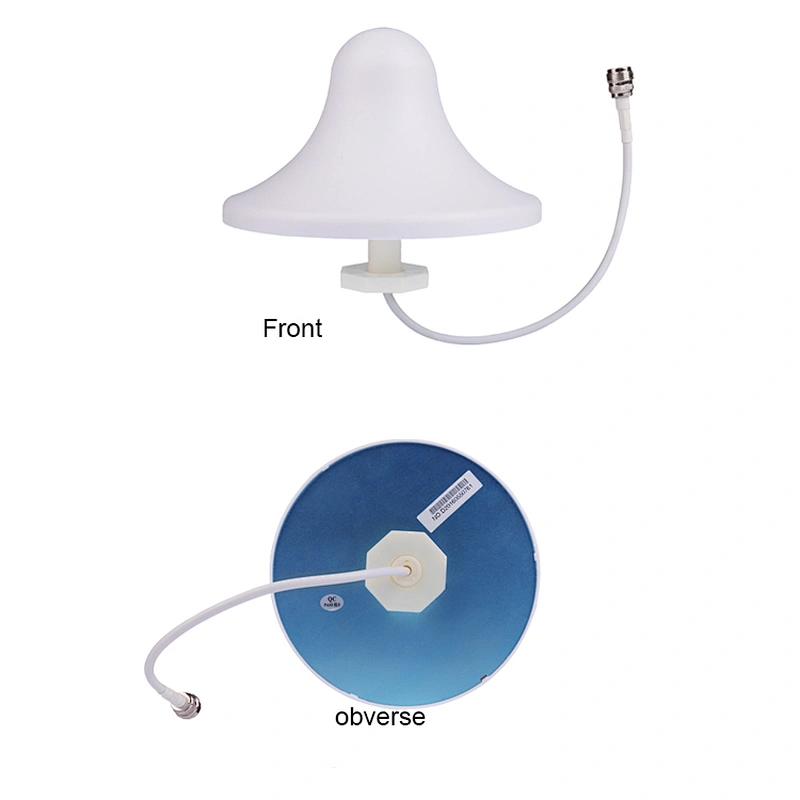

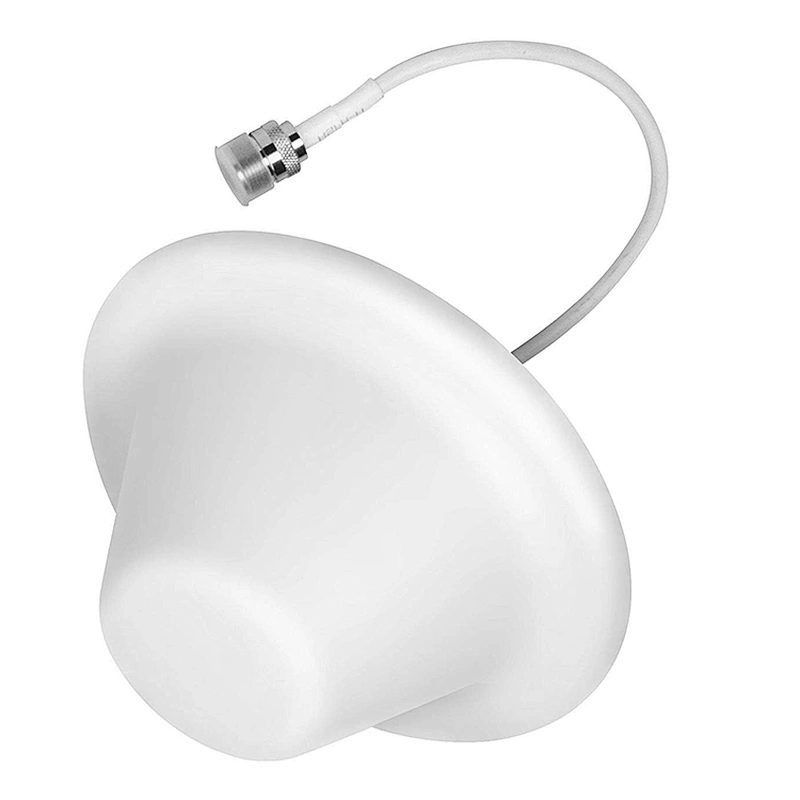

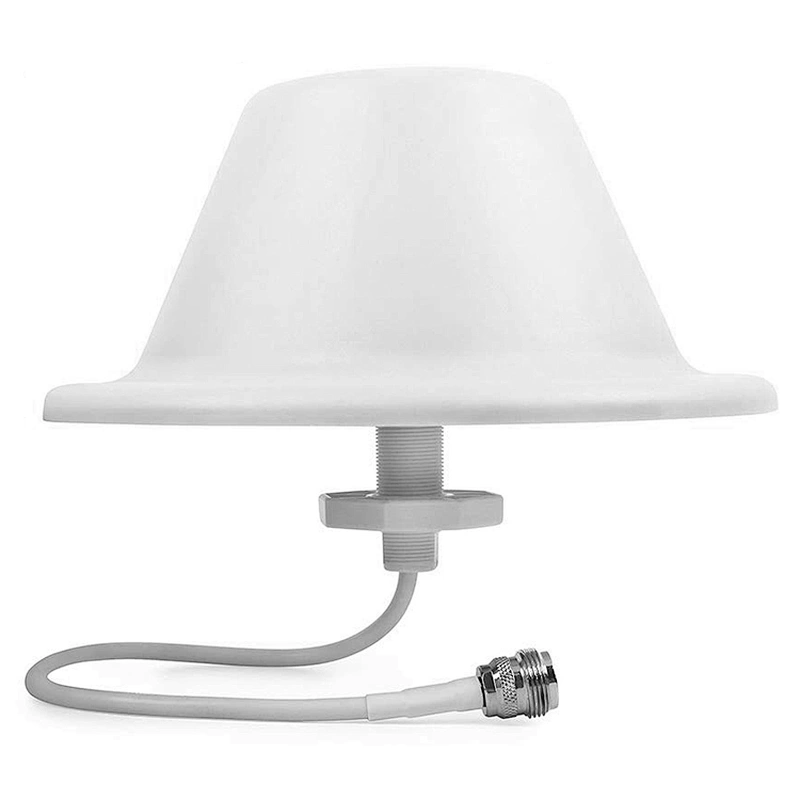

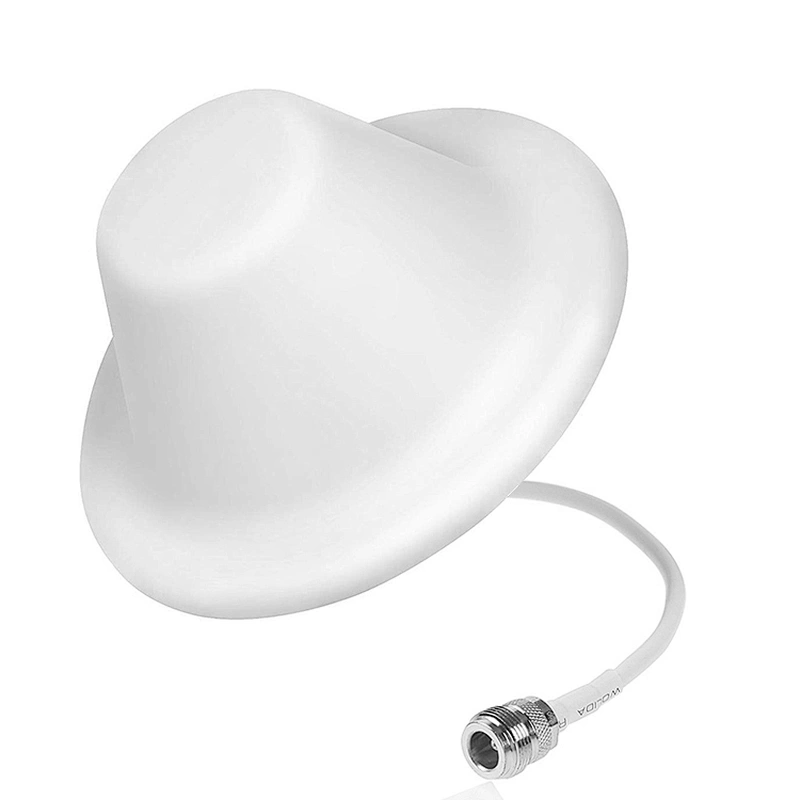

This omni-directional antenna operates in the 690 to 2700 MHz frequency range and is ideal for indoor DAS applications. This antenna is vertically polarized and designed to be easily mounted to a ceiling. It supports AMPS, GSM, PCS, CDMA, UMTS, LTE, WiFi2.4 GHz, and includes a 30 cm feeding cable mit N jack (f) connector.
Specification
Electrical specifications
Frequency Range-MHz
698-960/1710-2700
VSWR
≤1.5
Gain-dBi
5

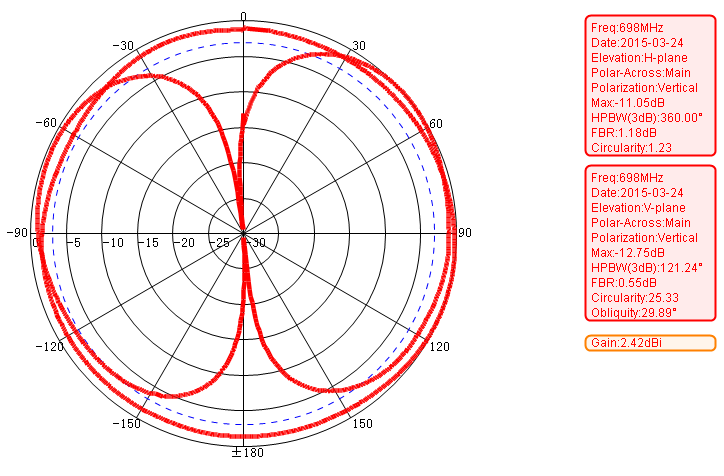

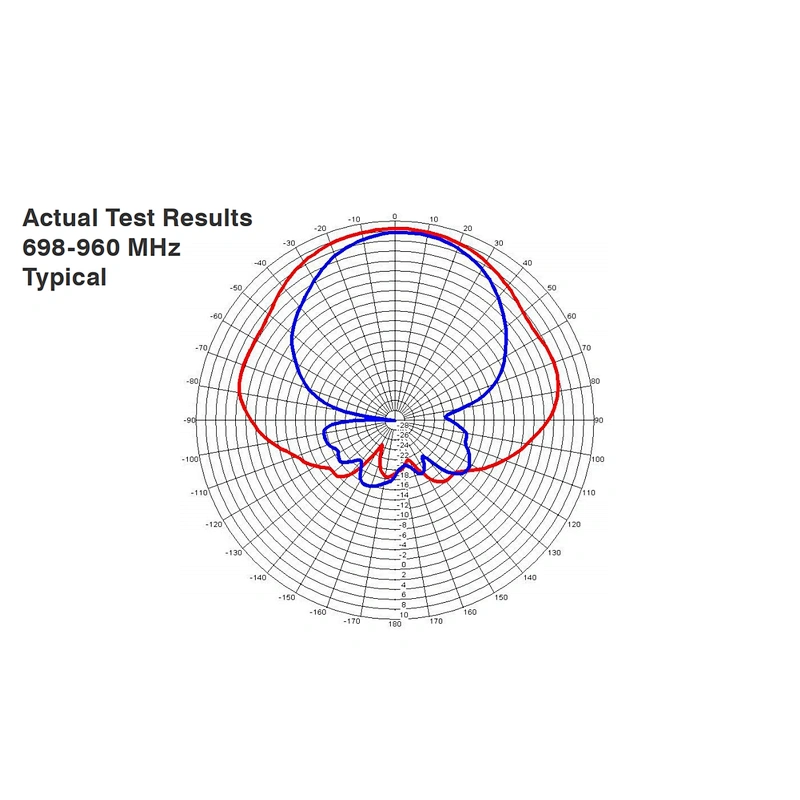

Vertical Beam width-°
120/120
Horizontal Beam width-°
360/120
Polarization
Vertical
Impedance-Ω
50
Max.Power-W
50
Lightning Protection
DC Ground
Mechanical specifications
Connector
N-K or customized

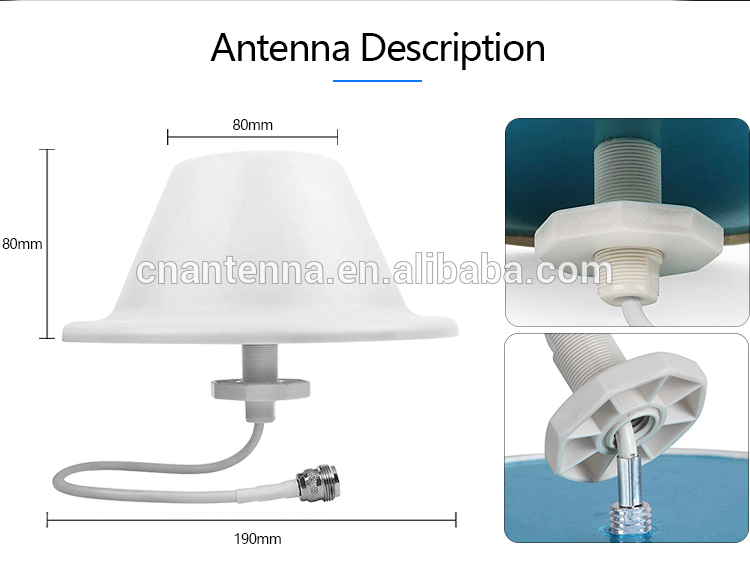

Dimension-mm
185*84
Net Weight-g
180

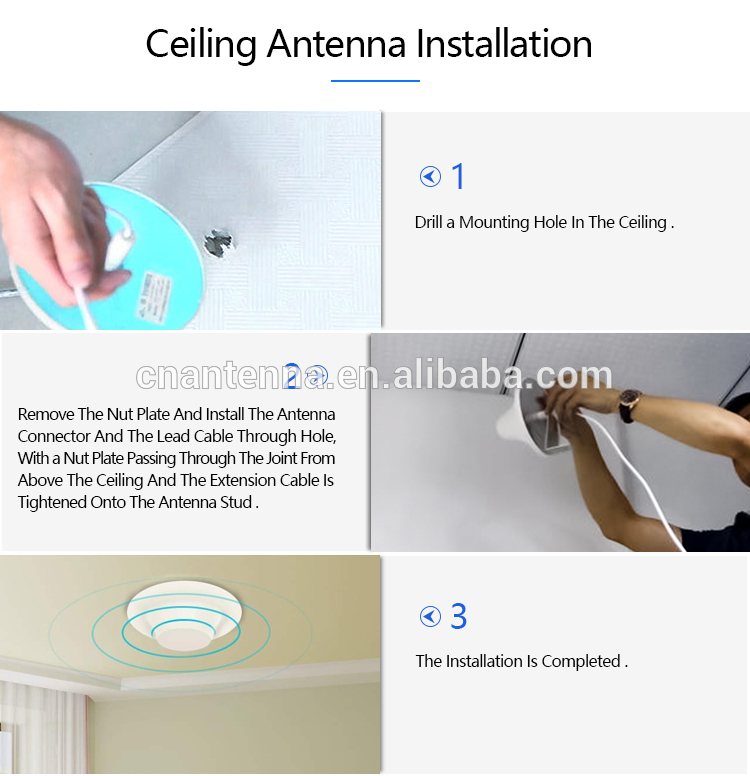

Installation

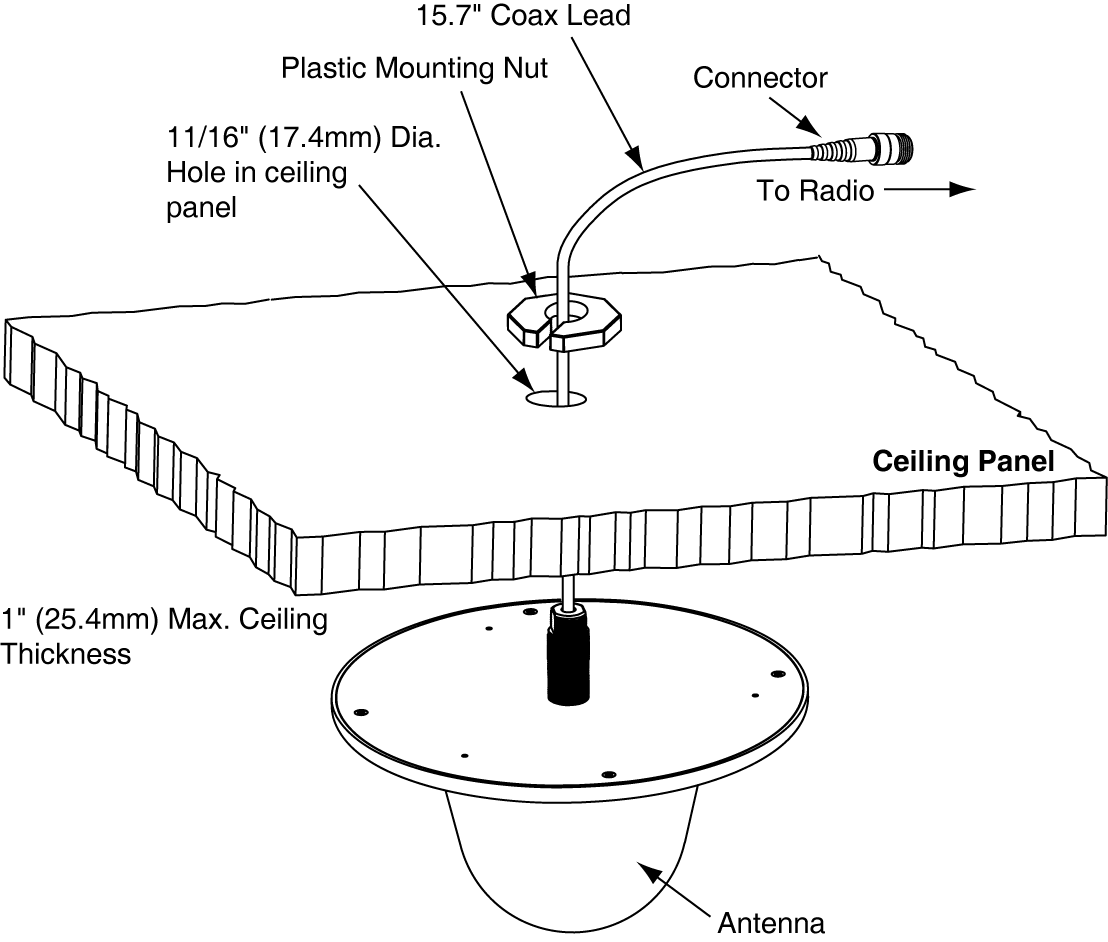

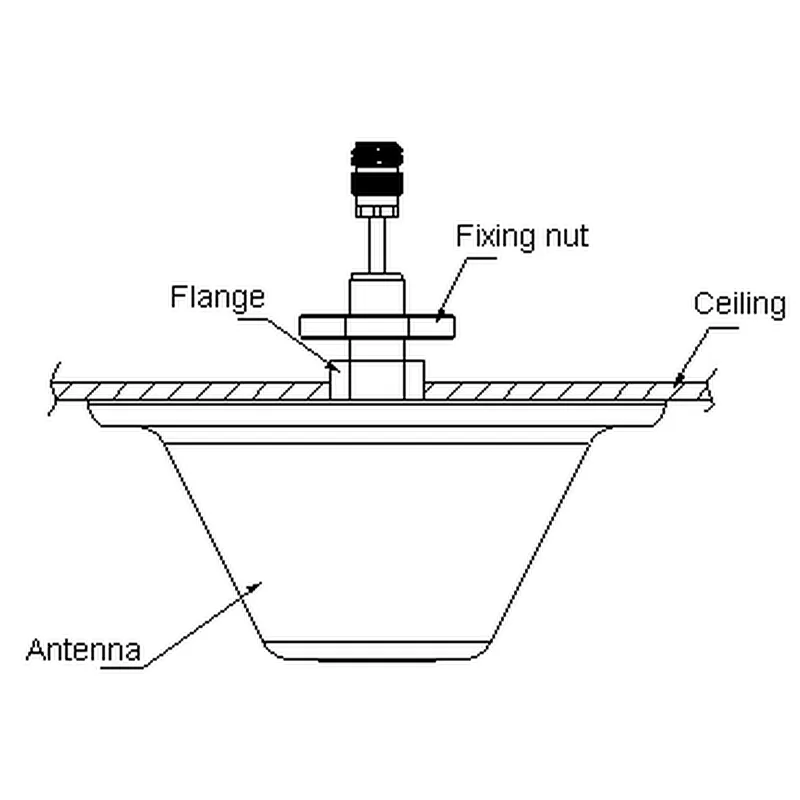

Ceiling Mount
Operation Temperature-℃
-40-+60

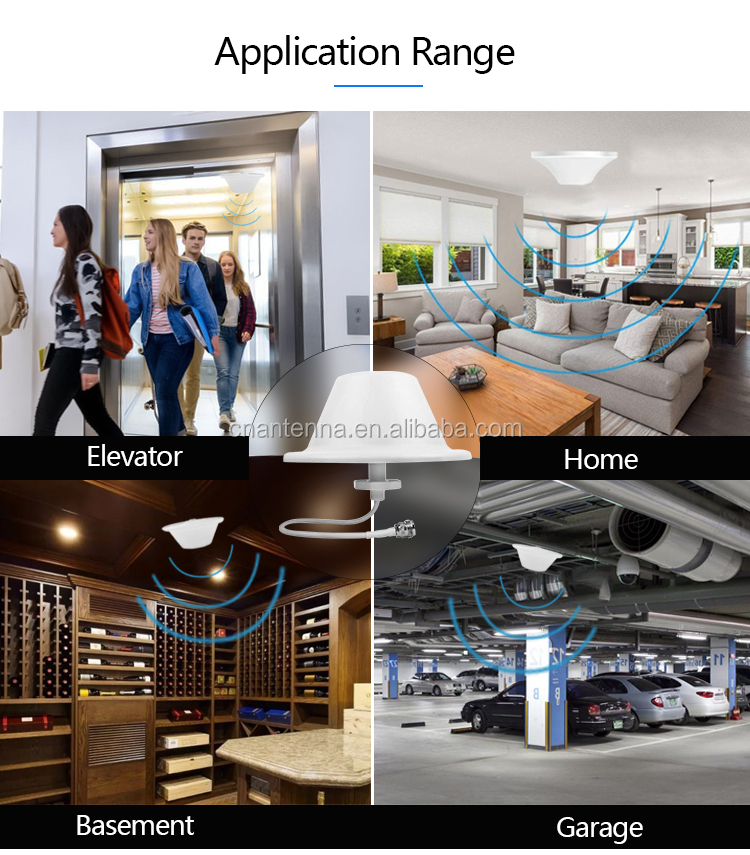

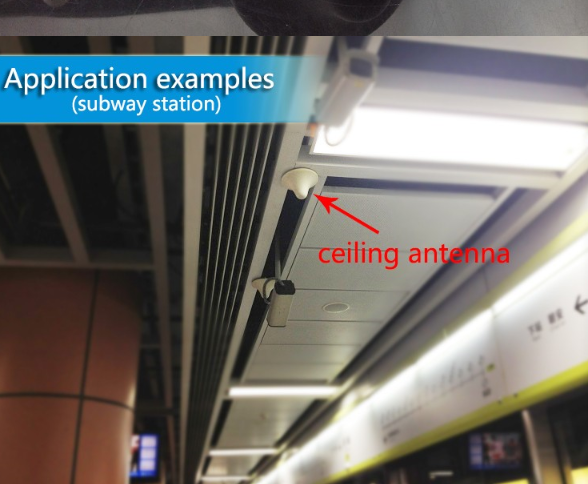

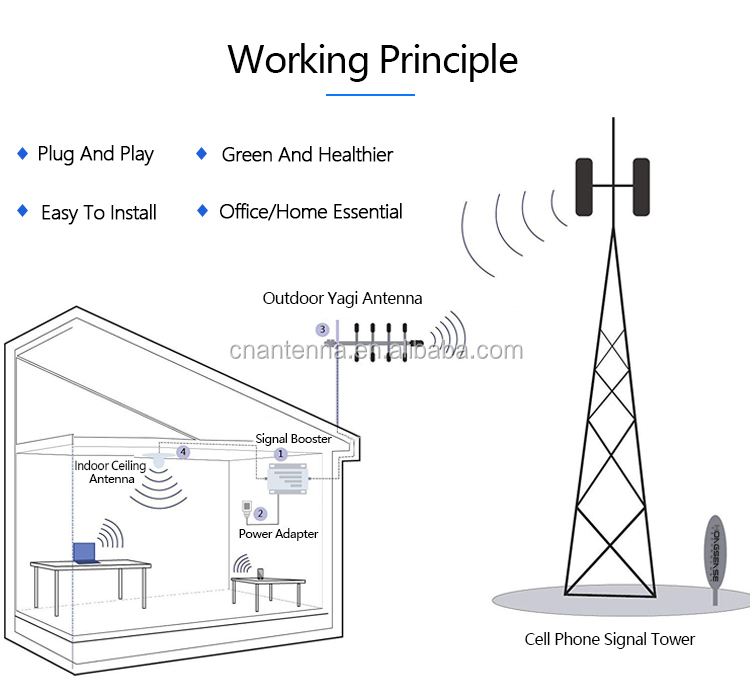

Description: Apply to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system
Packing & Delivery
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

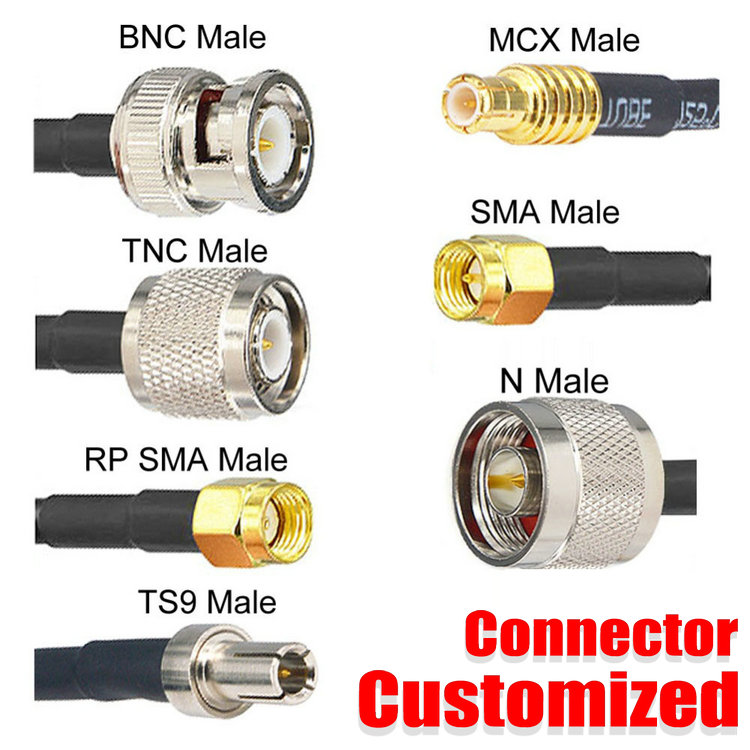

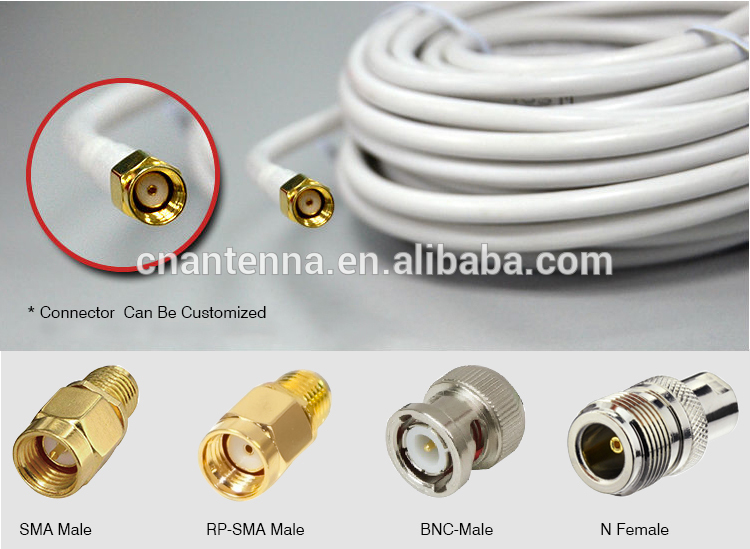

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
