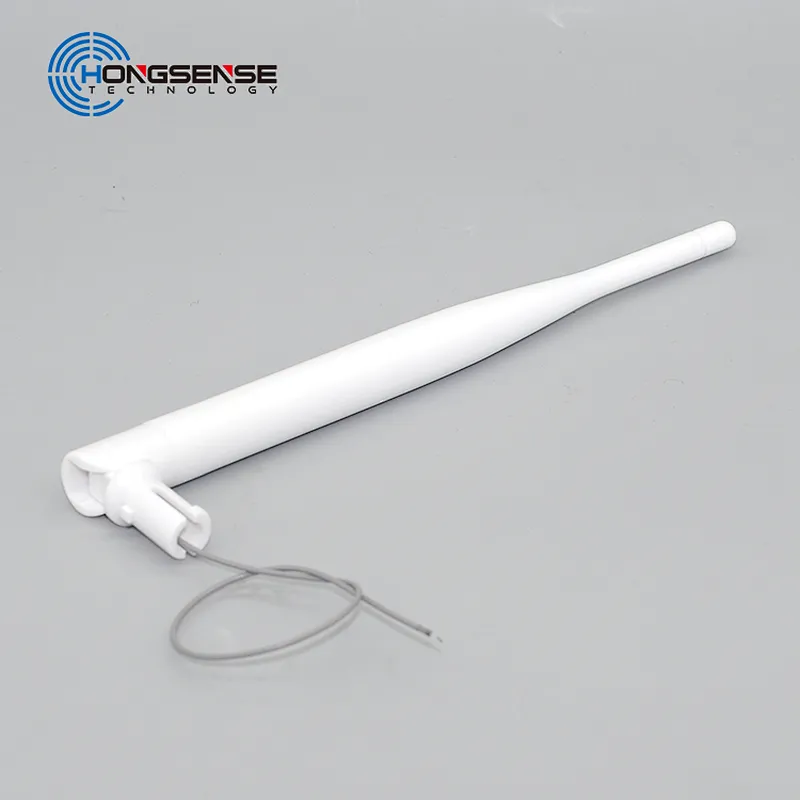

stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white
stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white

stock Processing 2.4ghz Omni Wifi rubber router antenna 5dbi with 1.13 cable white

Model NO.
HSA-2400TFH1
Quantity:
  • Product name:Wifi antenna
  • Frequency Range -MHz:2400-2483mhz
  • Gain-dBi:5dbi
  • VSWR:≤1.7
  • Polarization:Vertical
  • Impedance-Ω:50Ω
  • Max. Power-W:50W
  • Cable Length:155mm(outside)
  • Net Weight:20g
  • Color:White
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-2400TFH1

Stock !100%NEW !Engineering excess stock!

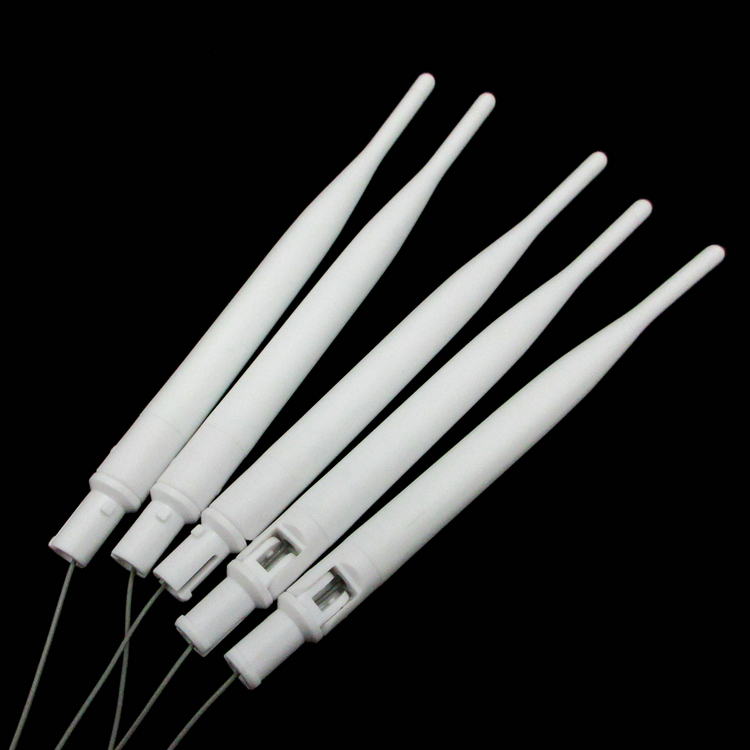

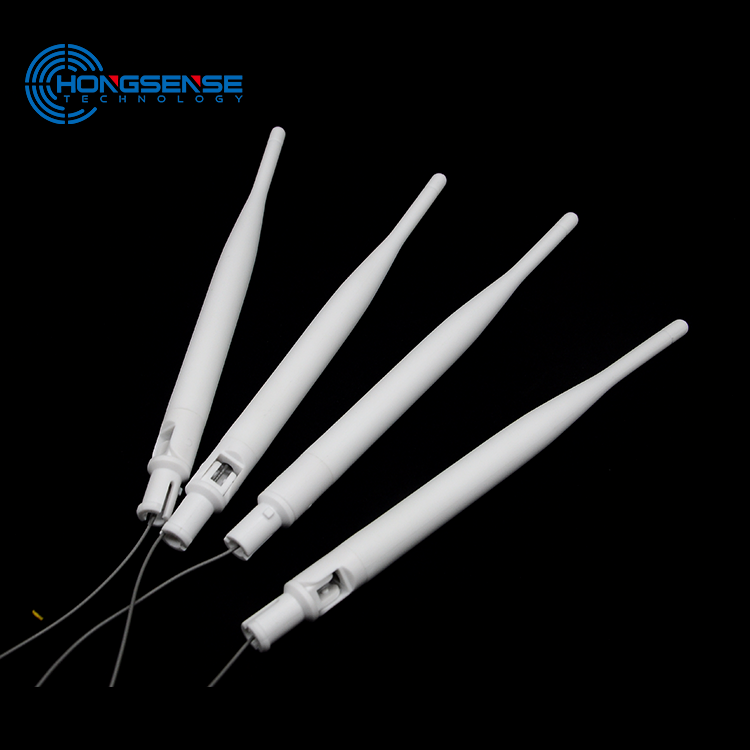

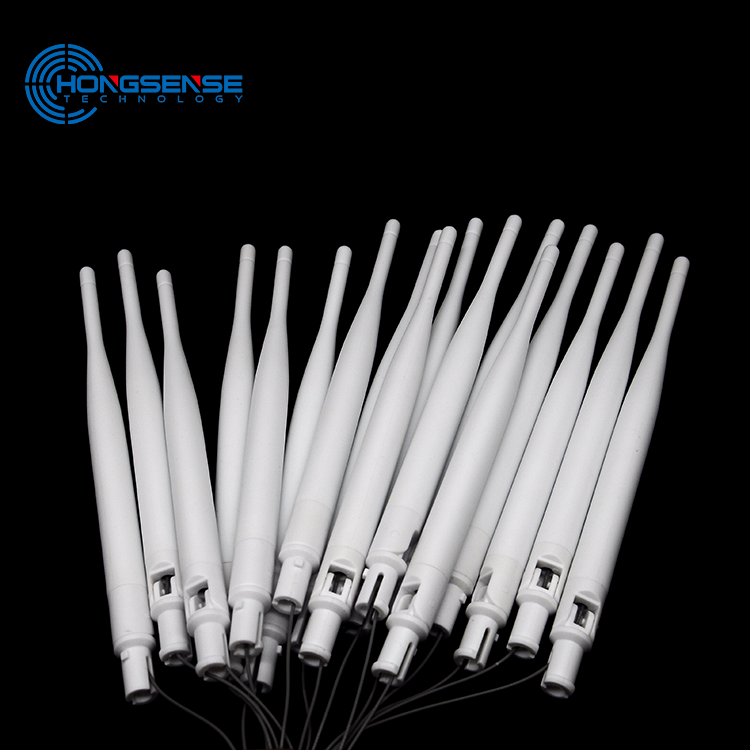

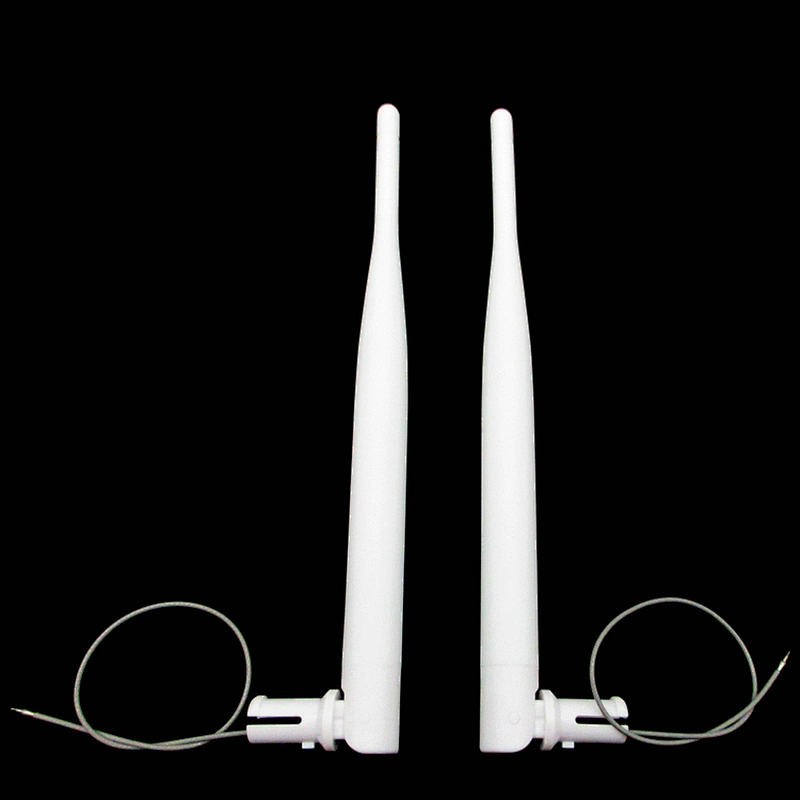

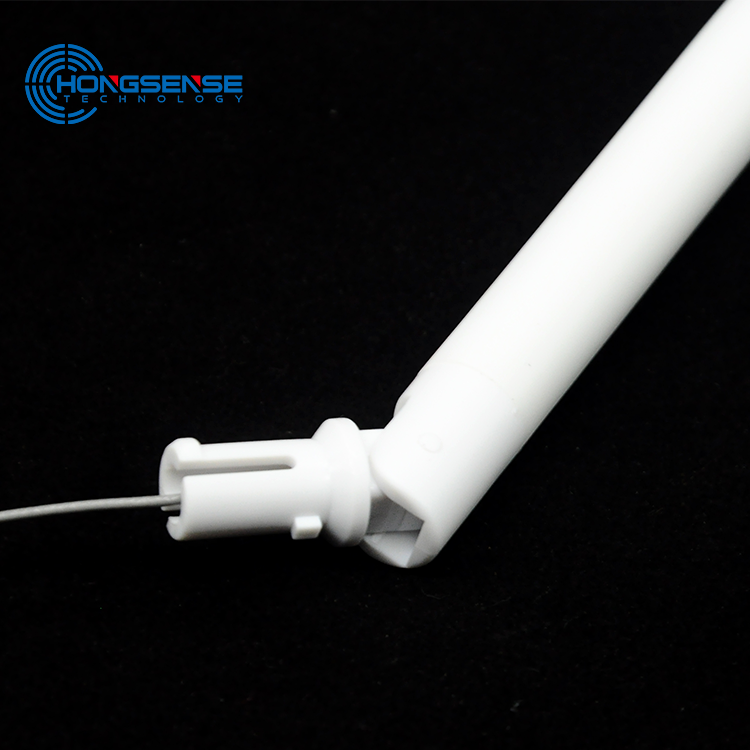

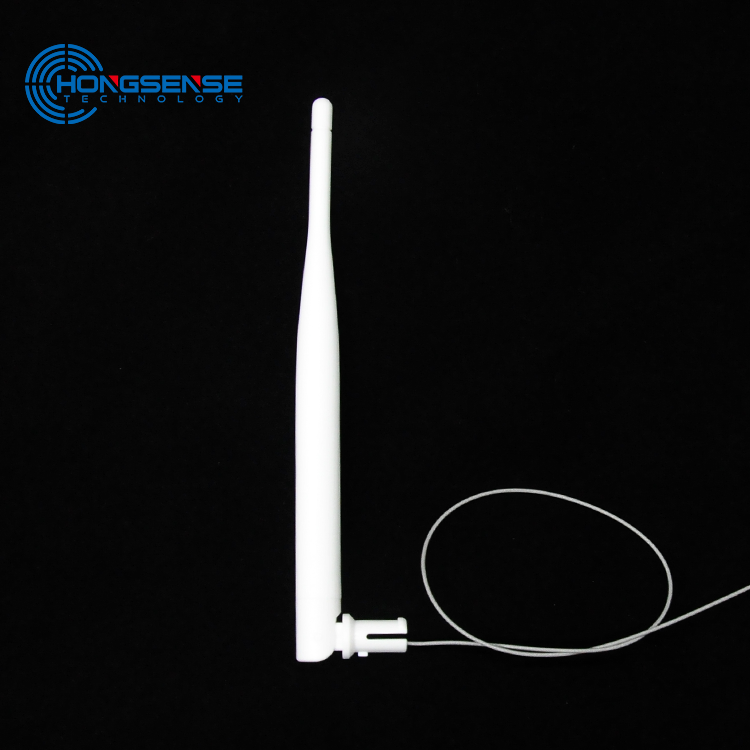

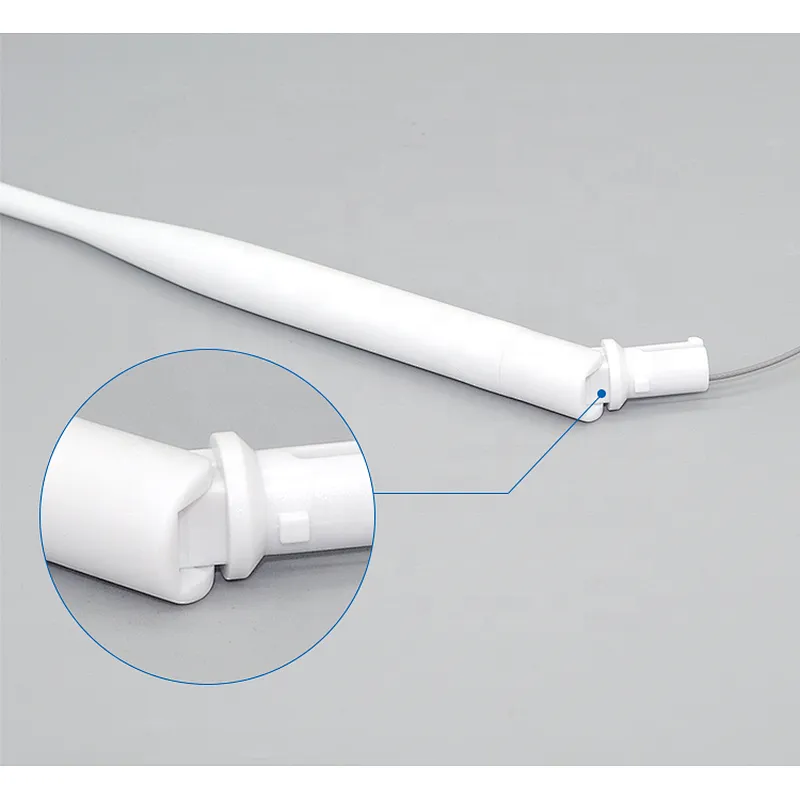

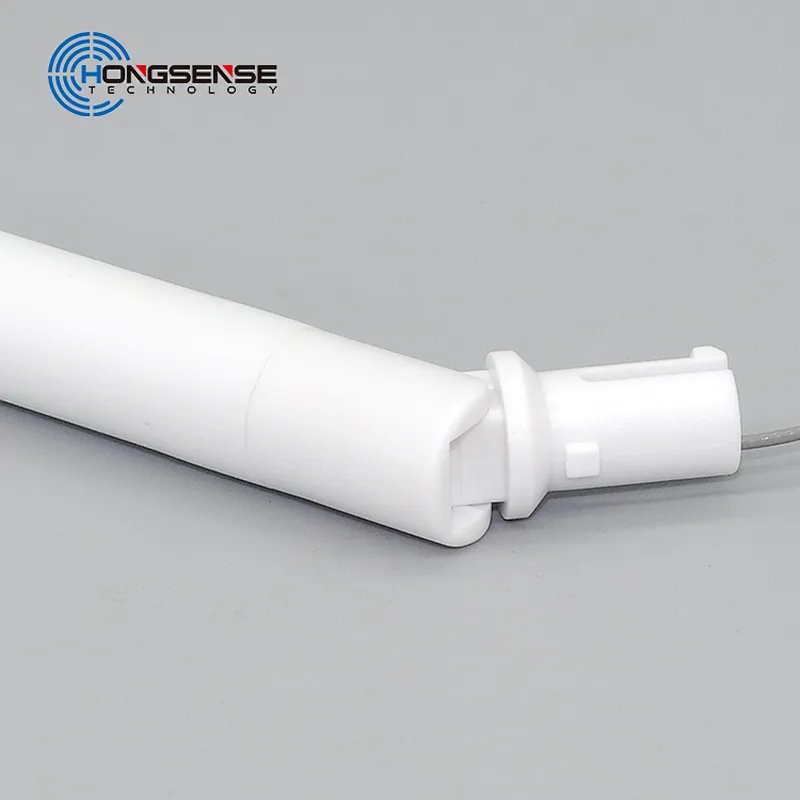

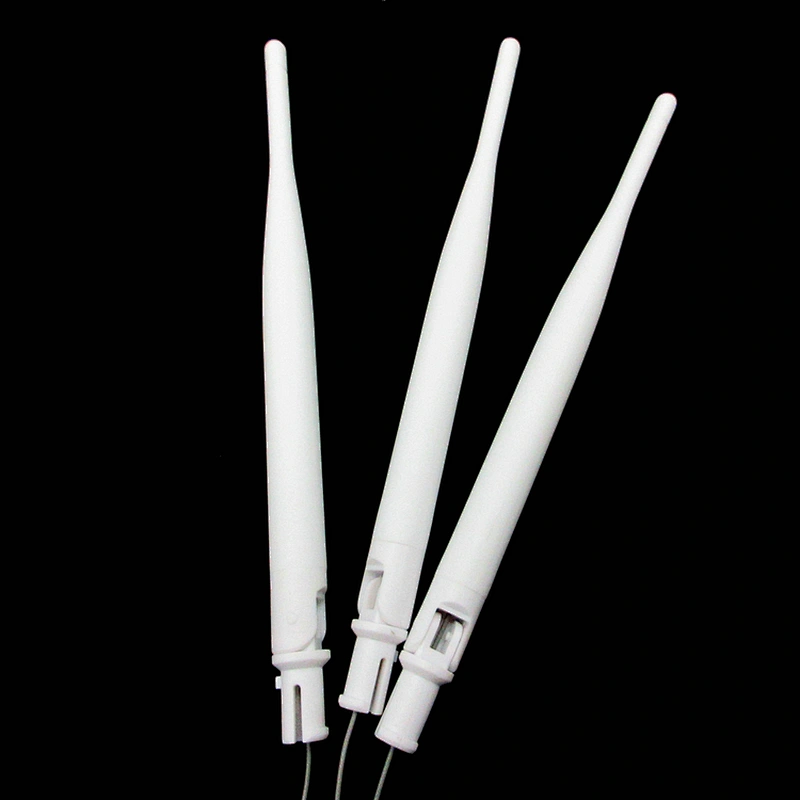

2.4G router antenna white.
Product Description

This type antenna Suitable for wireless LAN and WiFi router adapter, such as huawei router, all of those antenna used for Netgear,
D-Link, Airlink101, Belkin, and also used on many PCI wireless cards and nearly all including Linksys use this type. Compliant
with IEEE 802.11b/g wireless LAN

All our products pass the below tests:
1.Humidity test:After exposed to the temperature 40±2°C and the relative humidity 5~95% for 96 hours and 1~2 hours recovery time
under normal condition.
2.Vibration test:After applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions.
3.Drop Shock:After dropping onto the hard wooden board from the height of 30cm for 3 times each facet of the 3 dimensions of the device.
4.High Temperature Endurance:After exposed to temperature 80±5°Cfor 24±2 hours and 1~2 hours recovery time under normal temperature.
5. Low Temperature Endurance:After exposed to the temperature -40°C±5°C for 24±2 hours and to 2 hours recovery time under normal temperature.
6. Temperature Cycle Test:After exposed to the low temperature -25°C and high temperature +85°C for 30±2 min each by 5 cycles and 1 to 2 hours recovery time under normal temperature.
7.Weatherproof:Put the antennas in 1m deep water for 12h, and find 100% waterproof.
Specification
Antenna
2.4G 5dBi antenna
Frequency Range
2400MHz~2500MHz
Gain
5dBi
VSWR
<1.8
Impedance
50 ohm
Polarization
Horizontal
Cable type
rf1.13
Antenna Length
190mm
Suitable For
WiFi router/USB Modem/AP

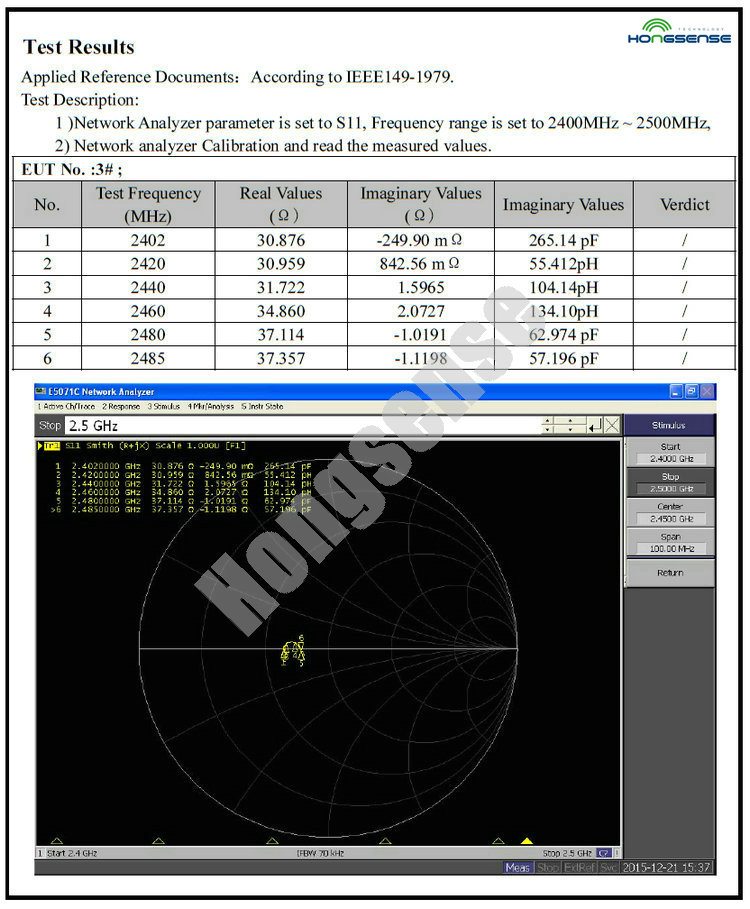

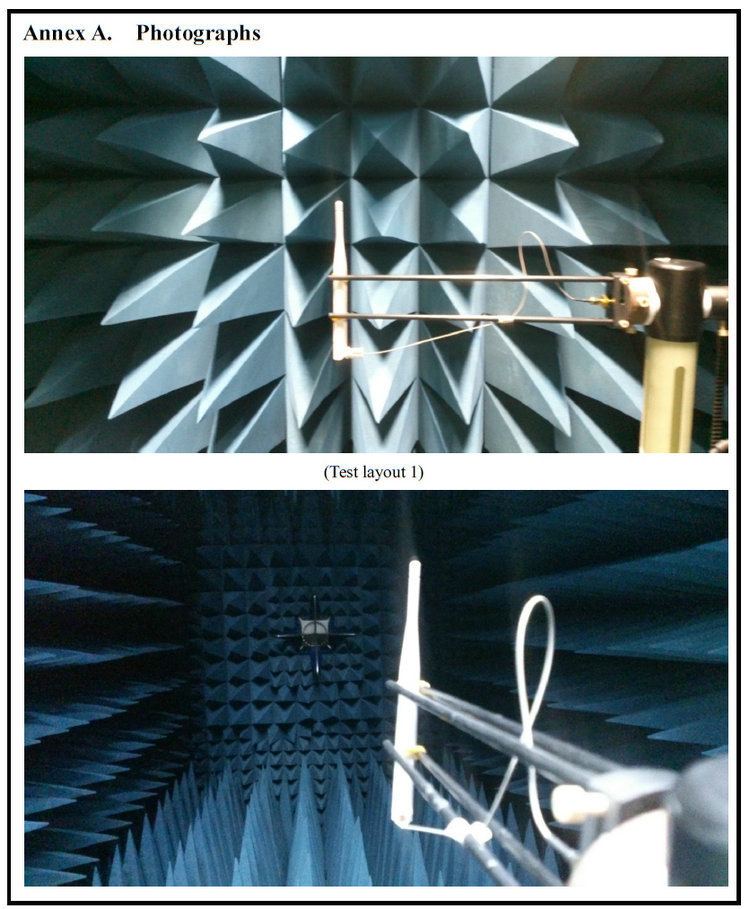

MORLAB Laboratory OTA TEST

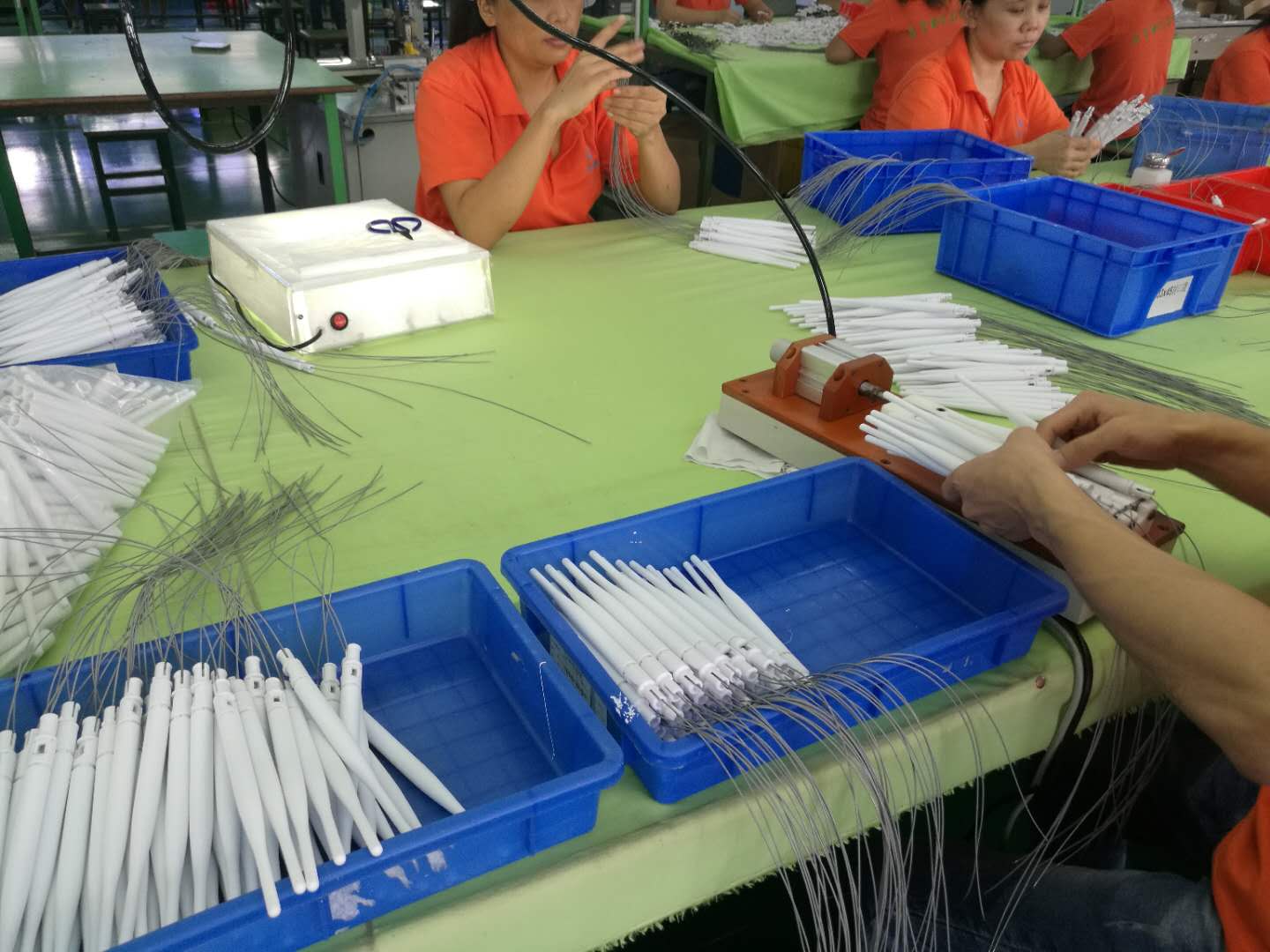

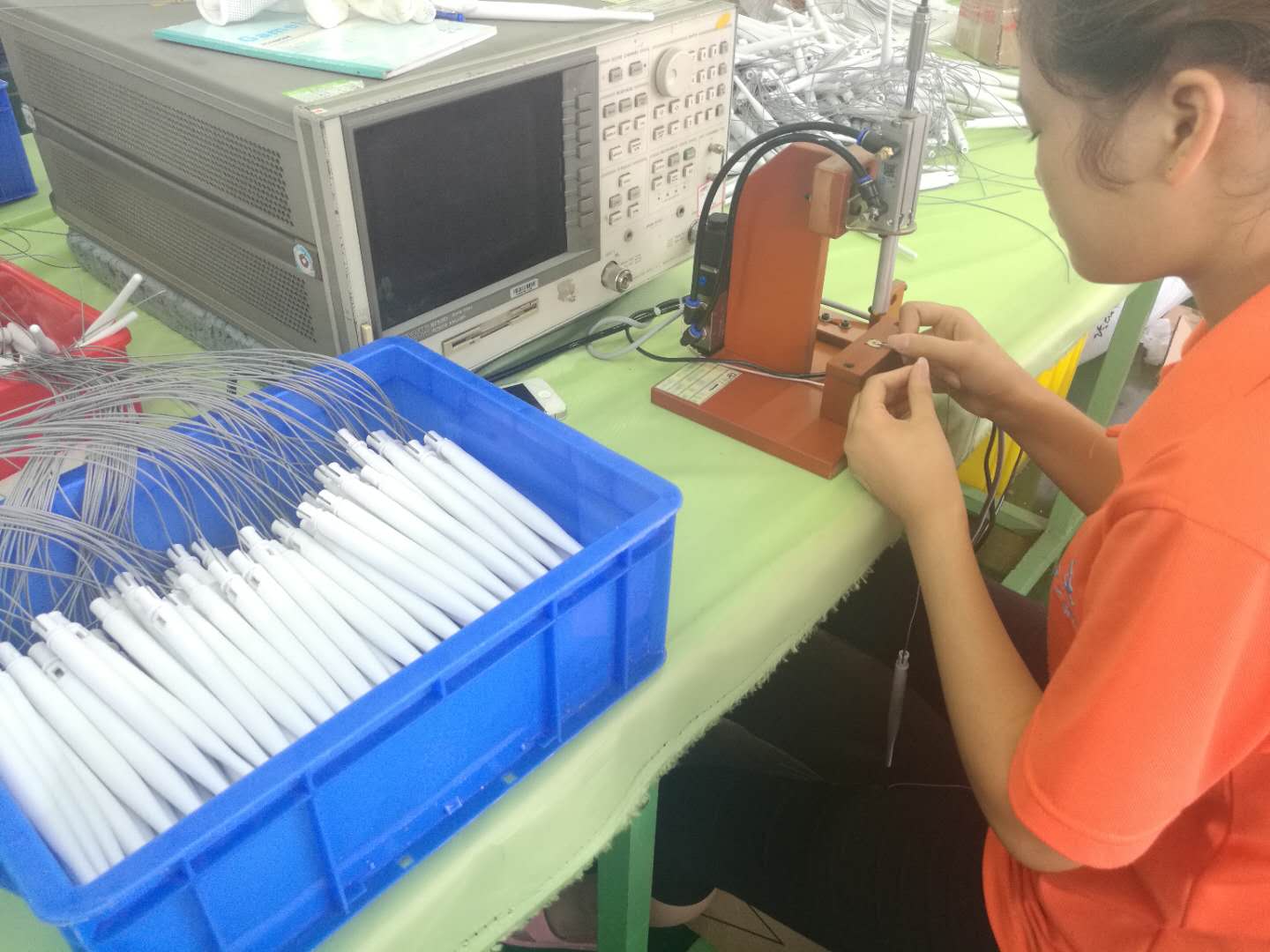

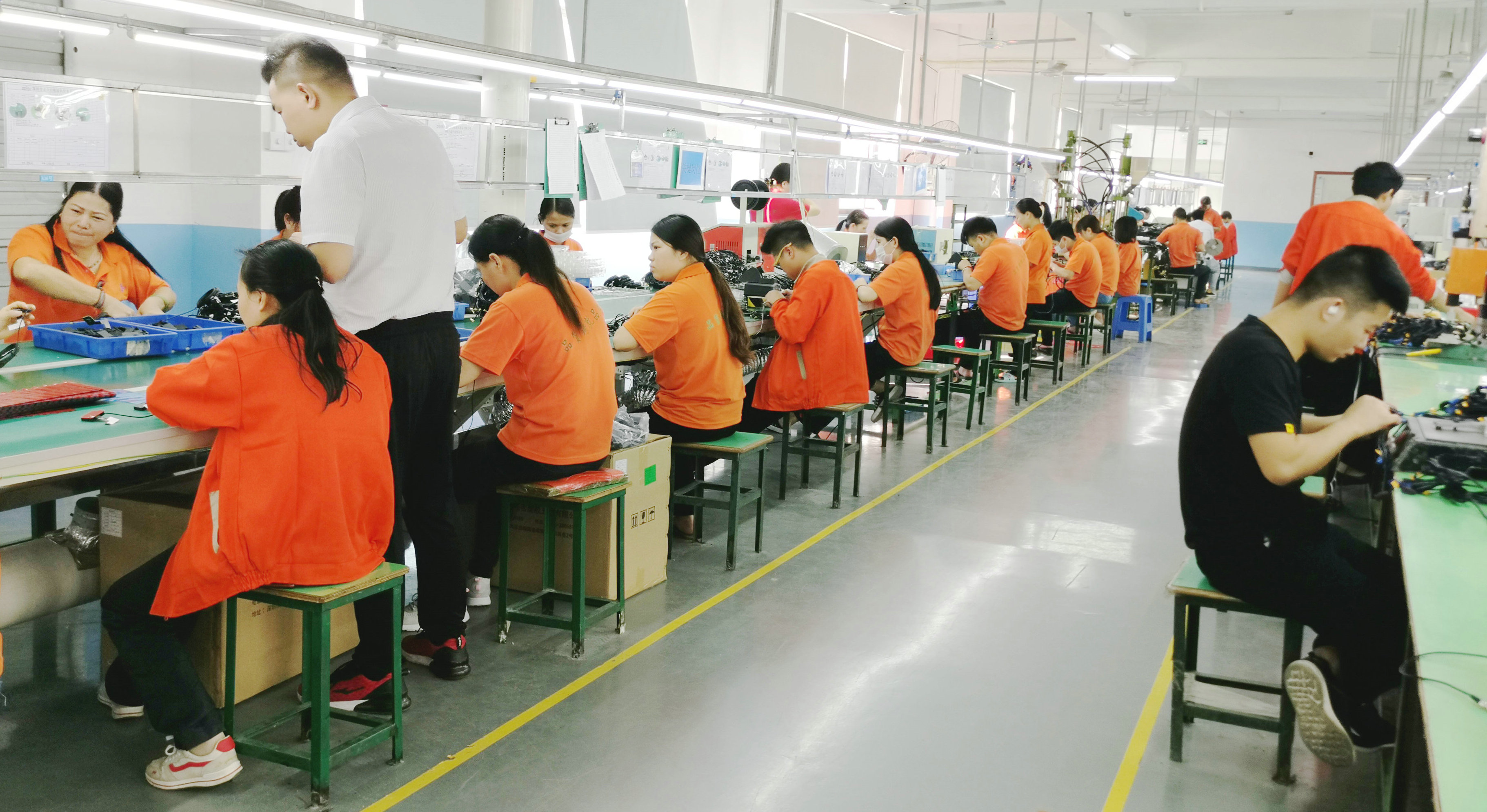

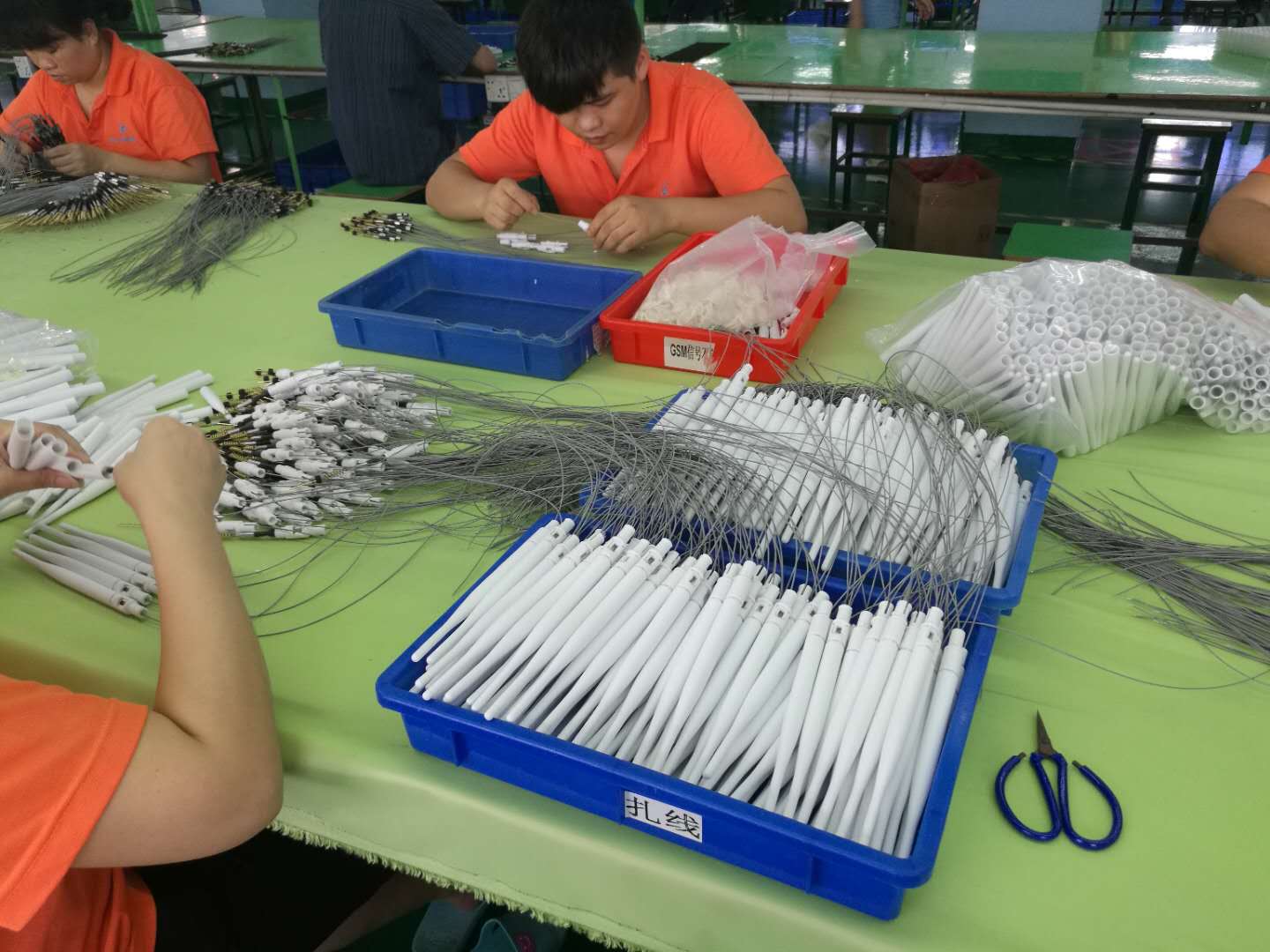

Production View

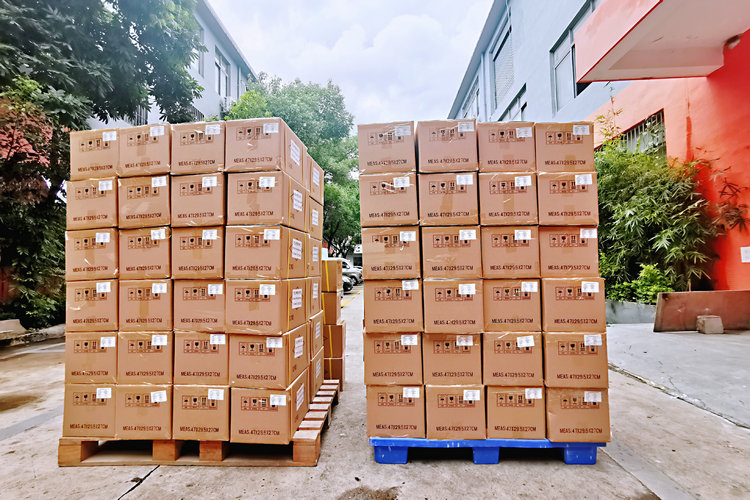

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Payment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi, 5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9 and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount
antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we
would also quote you the shipping cost.

Q:The Warranty term is?
A:One year.

OEM&ODM SERVICE!
All Antennas can be customized as required!
Customized:
1.Color
2.Frequency Range
3.Cable Type
4.Cable Length
5.Connector Type
