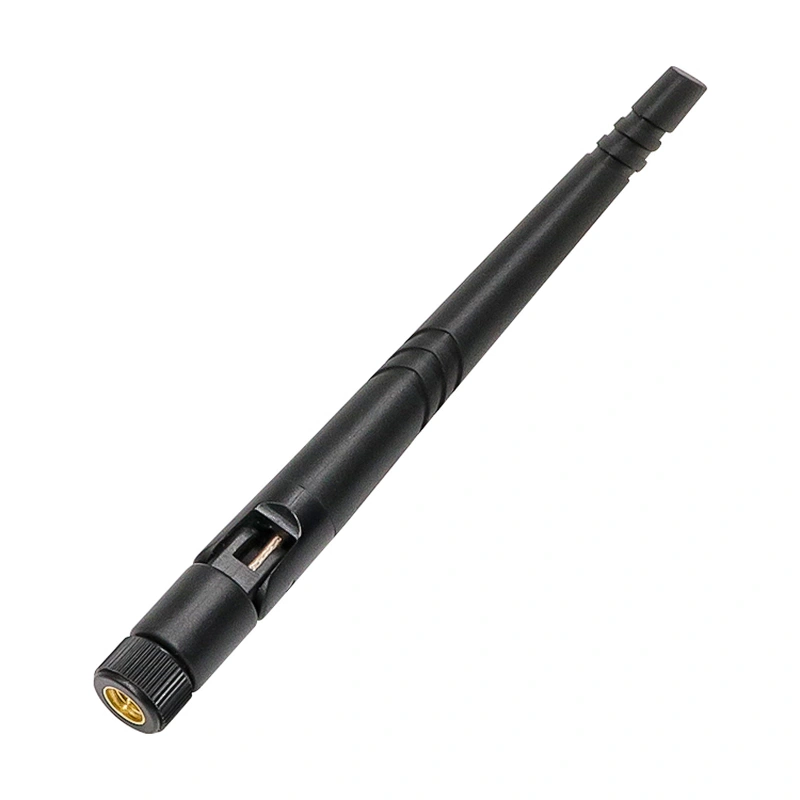

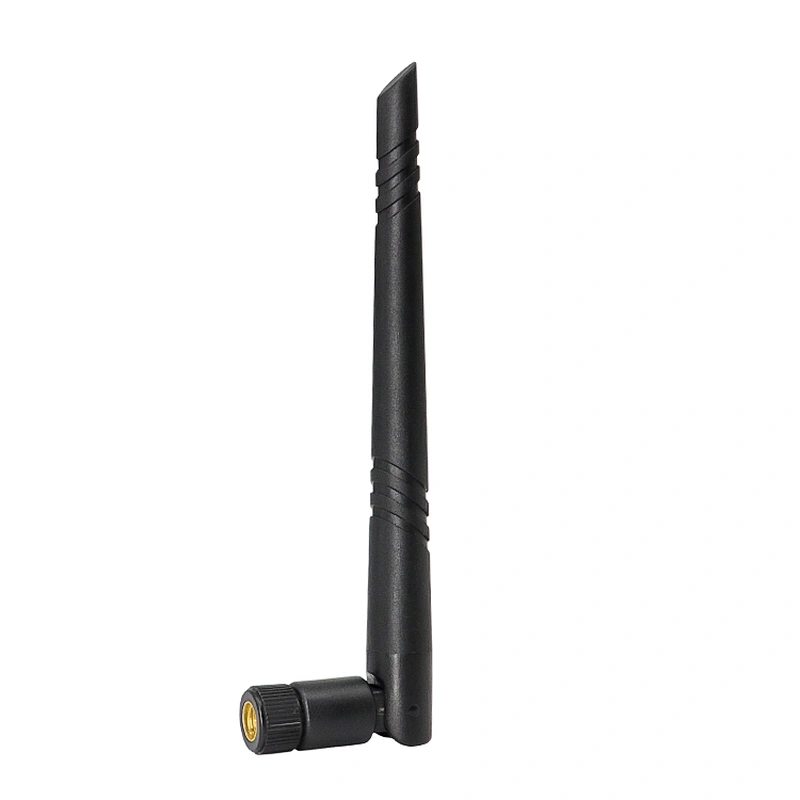

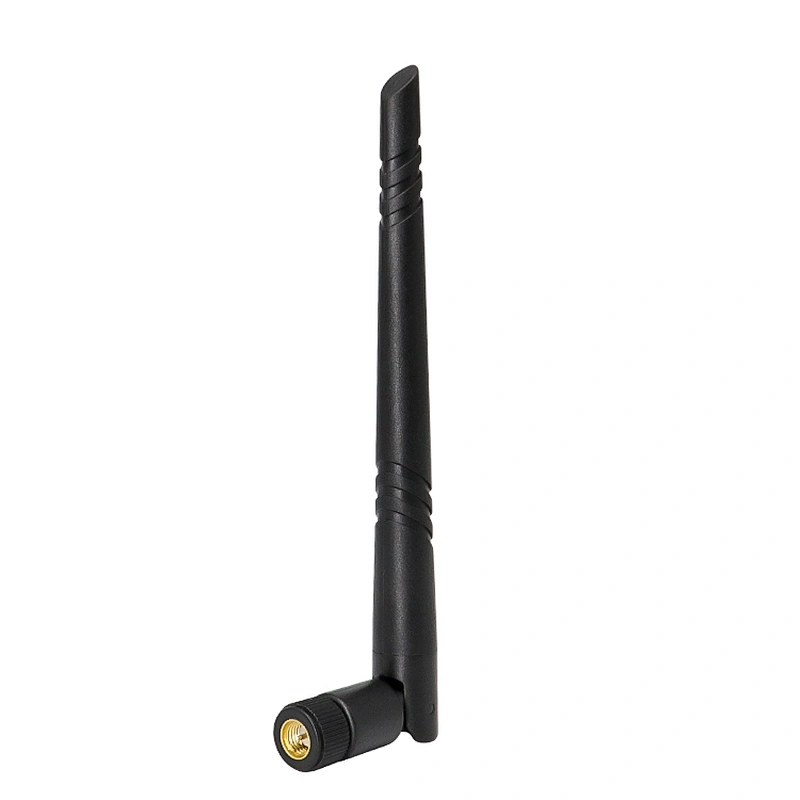

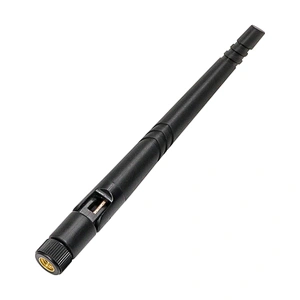

GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna

GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna

Model NO.
HSA-0918TFC
Delivery:
FOB
Quantity:
  • Frequency range:900-1800MHz
  • Gain:5DBi
  • Max power:50 -W
  • VSWR:≤2
  • Size:13*155mm
  • Weight:9g
  • Impedance:50 Ohm
  • Polarization:Vertical
  • Color:Black and white
  • Customization:Available
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0918TFC

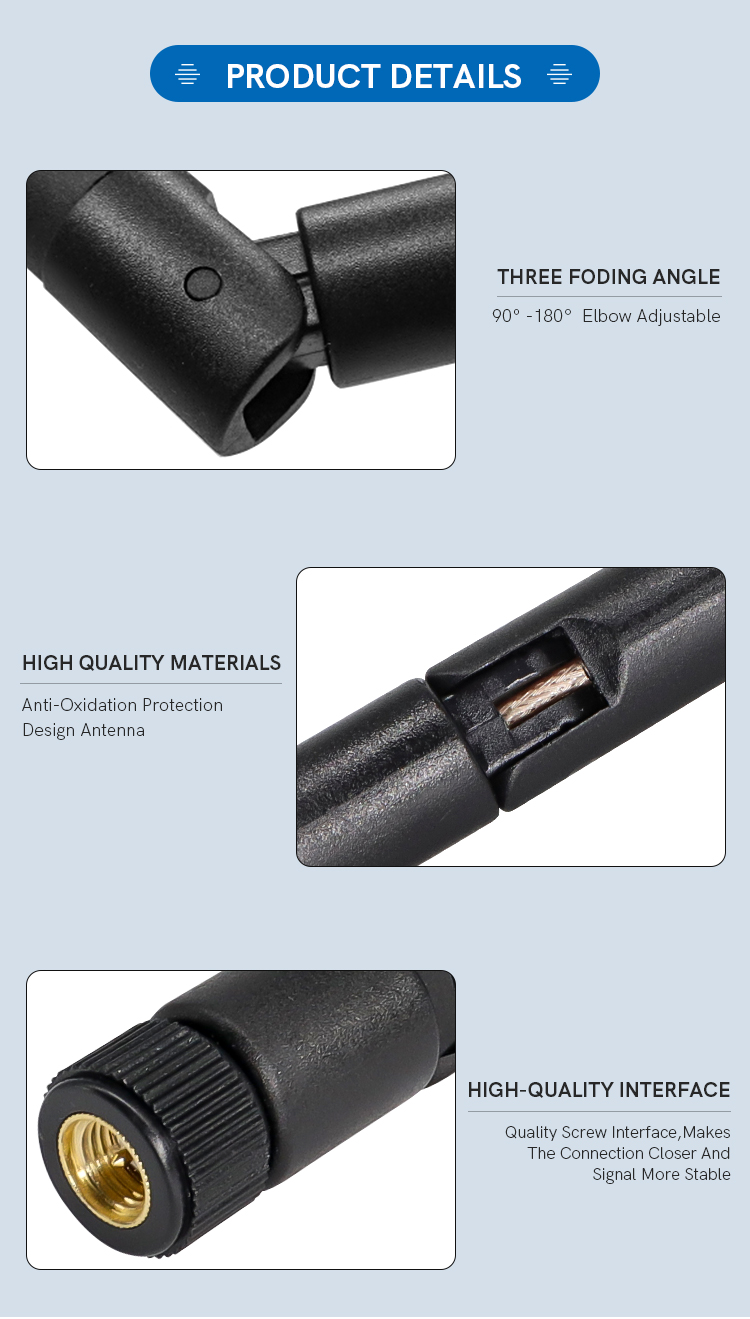

Product Details
Product Description

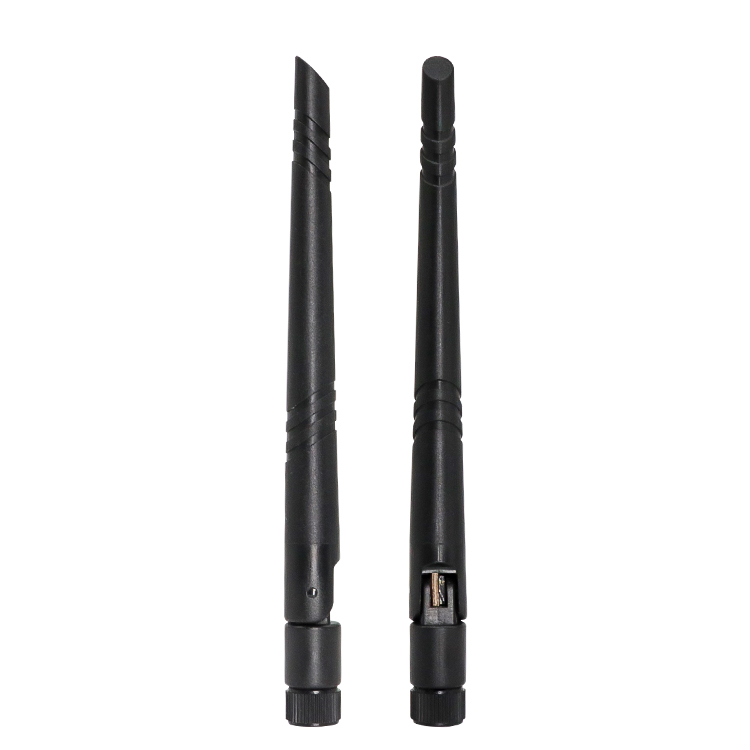

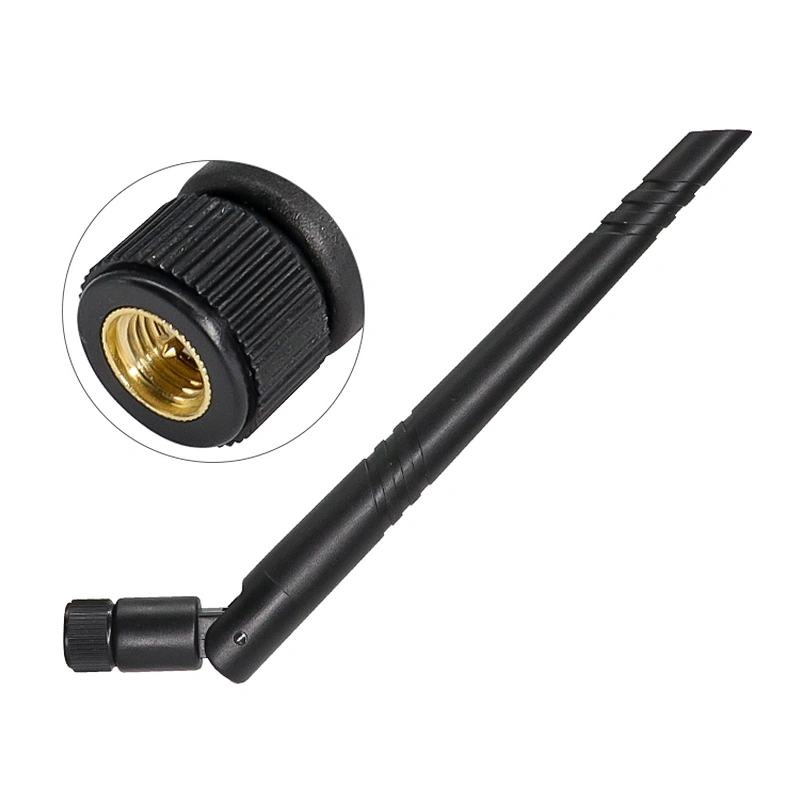

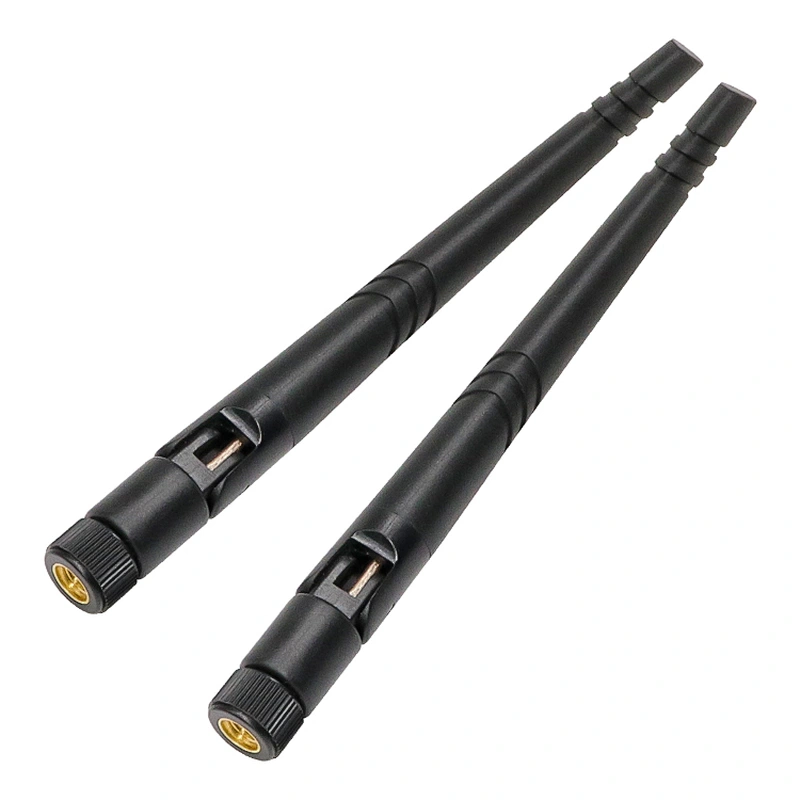

GSM Antenna High Gain 5dBi 900-1800MHZ Flexible Rubber Omni Antenna
Electrical Specifications
Model
HSA-0918TFC
Frequency Range-MHz
900-1800
VSWR
≦1.5
Gain-dBi
5
Polarization
Vertical
Impedance-Ω
50
Max.Power-W
50

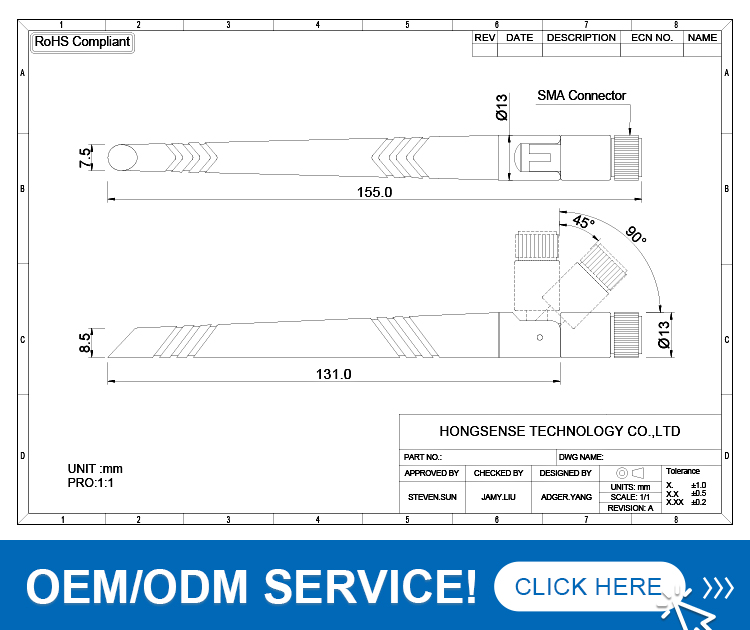

Mechanical Specifications

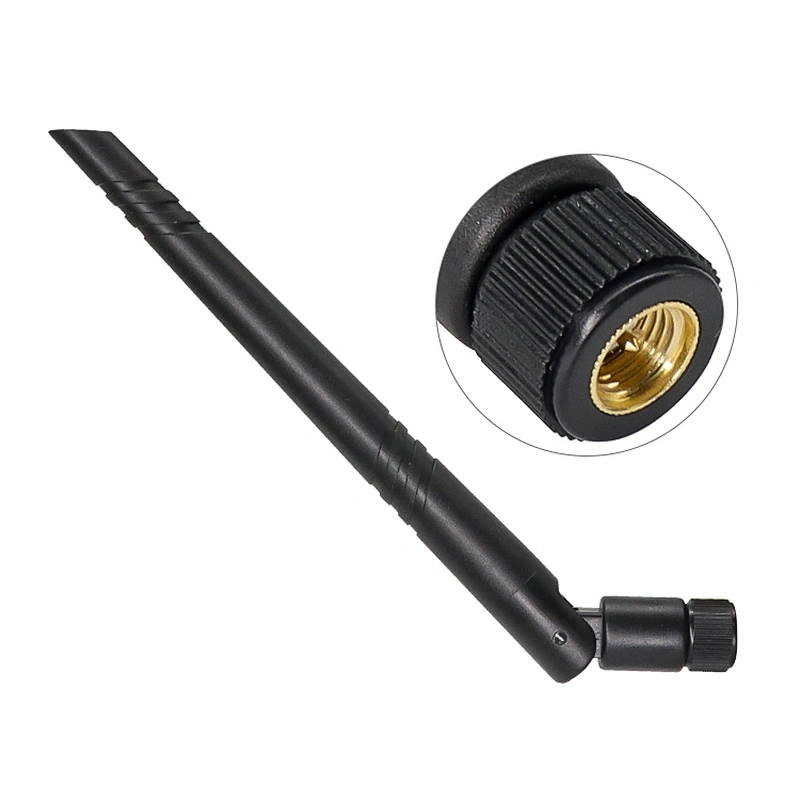

Connector
SMA Male

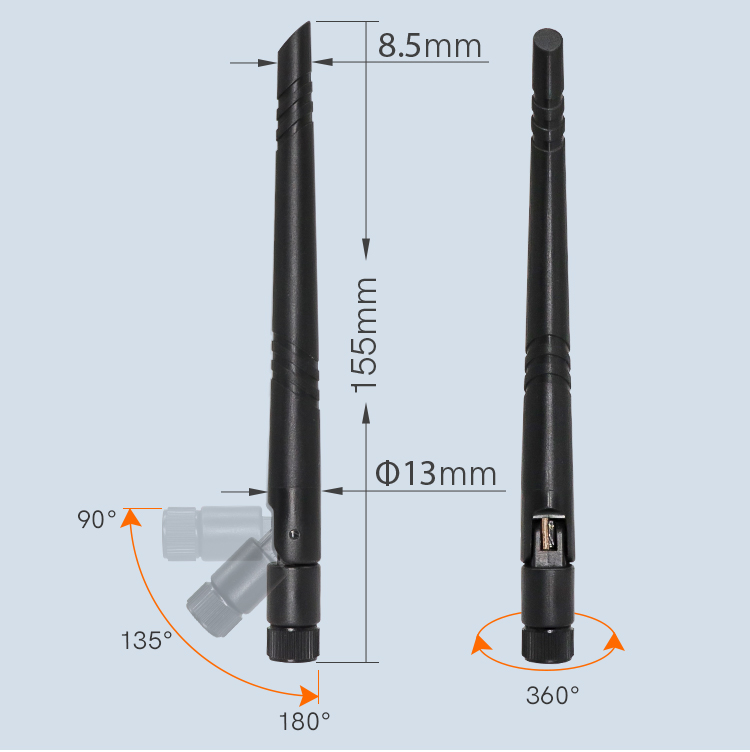

Dimension-mm
13.5*155
Net Weight-g
12
Radome Material
Plastic
Opration Temerature-℃
-40-+60
Description: Apply to GSM system
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...


Q: What's your company MOQ?
A: The MOQ is 50PCS.

Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q:We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
