Model NO.:
HS-P2102
Quantity:
  • Product name:900 1800 2100MHz Triple Band Repeater
  • Frequency Range:GSM/3G/4G/WCDMA/DCS
  • Gain:60±3DB
  • Power:≥ 27dBm
  • Power Supply:AC 110/220V; DC 12V/2A
  • Connector:N-Female Connector
  • Coverage:1000m2
  • Impedance:50Ω
  • Product Size:29*19*5cm
  • Package Weight:3KG
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HS-P2102
Product Details

Product Features
Electrical
Mechanical
Product Name
2G 3G 4G Tri Band Repeater
Compact Design
Indoor Use
Model
HS-P2102
Operating Temperature
-10℃-60℃
Frequency Range
2G 3G 4G
Power Supply
AC 110/220V DC12V/2A
Gain
60±3DB
Coverage Area
1000m2
Power
≥ 27dBm
Dimension
29cm×19cm×5cm
Max Output Power
+23dBm/±3DBM Total power
Package size
34cm×27cm×18cm
Impedance
50Ω
Package weight
3.0kg
Seclusion
<70dB
Connector Type
N-F



Support Network
GSM900: up link 980-915MHz down link:935-960MHz
DCS1800: up link 1710-1785MHz
down link:1810-1880MHz
3G/WCDMA: up link 1920-1990MHz down link:2110-2180MHz

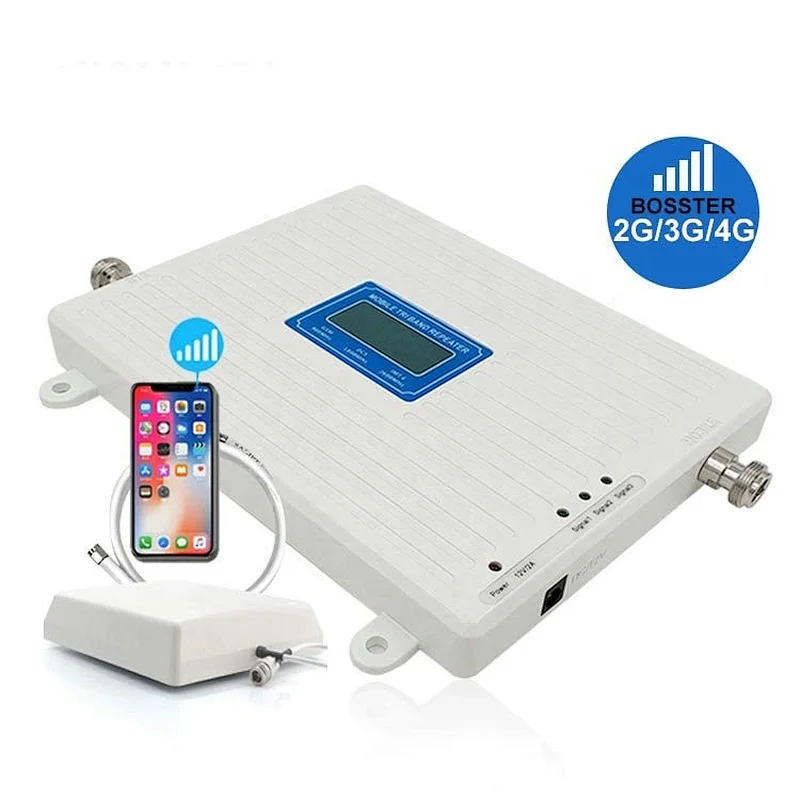

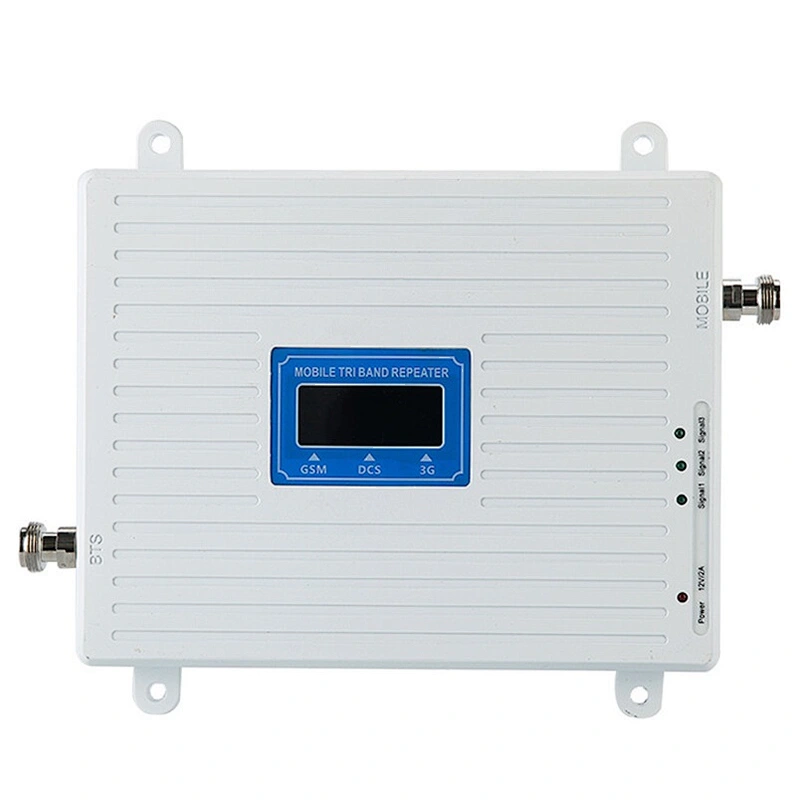

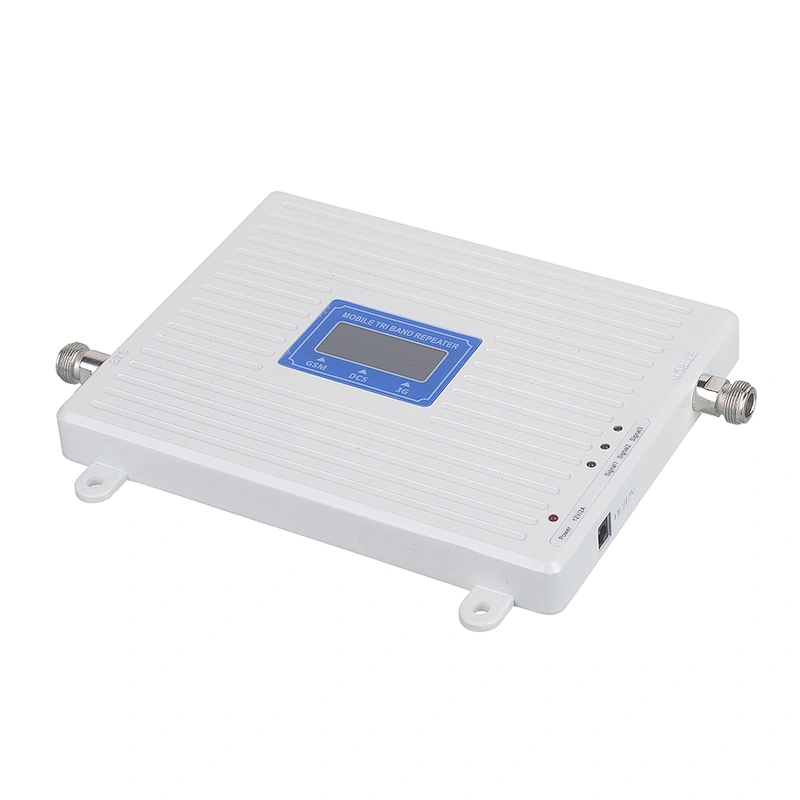

HS-P2102 is a mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.


The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.

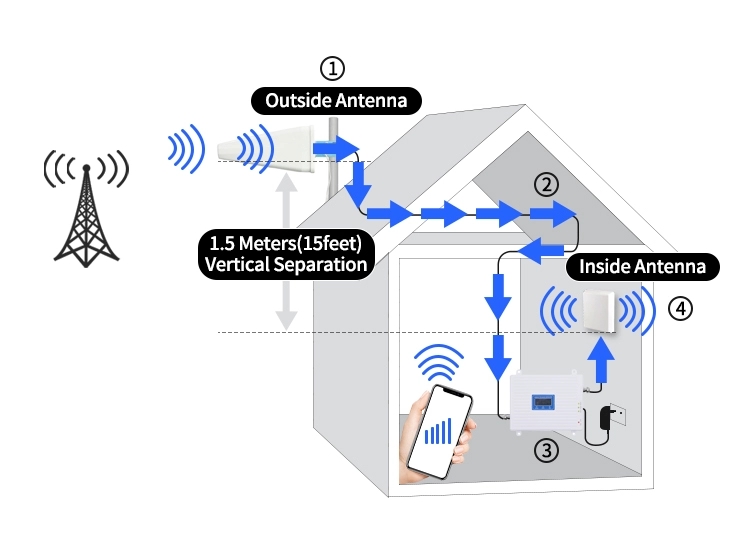

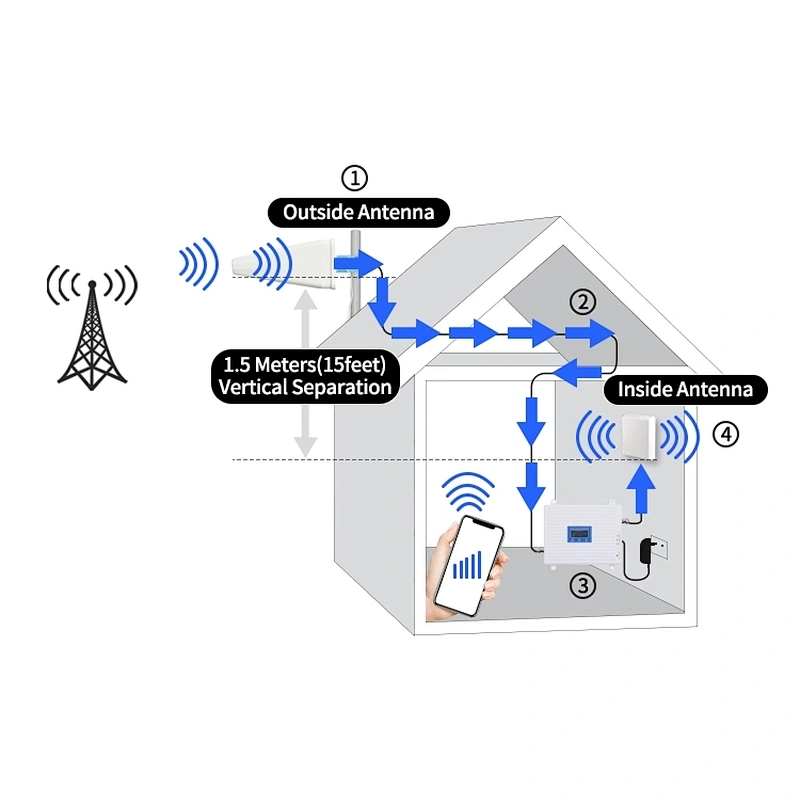

How does the Booster/Repeater Works?
Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with the weak or bad signal and to amplify these low signals in order to provide you with the communication suitable for you.

Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your company MOQ?
A: MOQ is 2pcs.

Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q: We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime. The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
