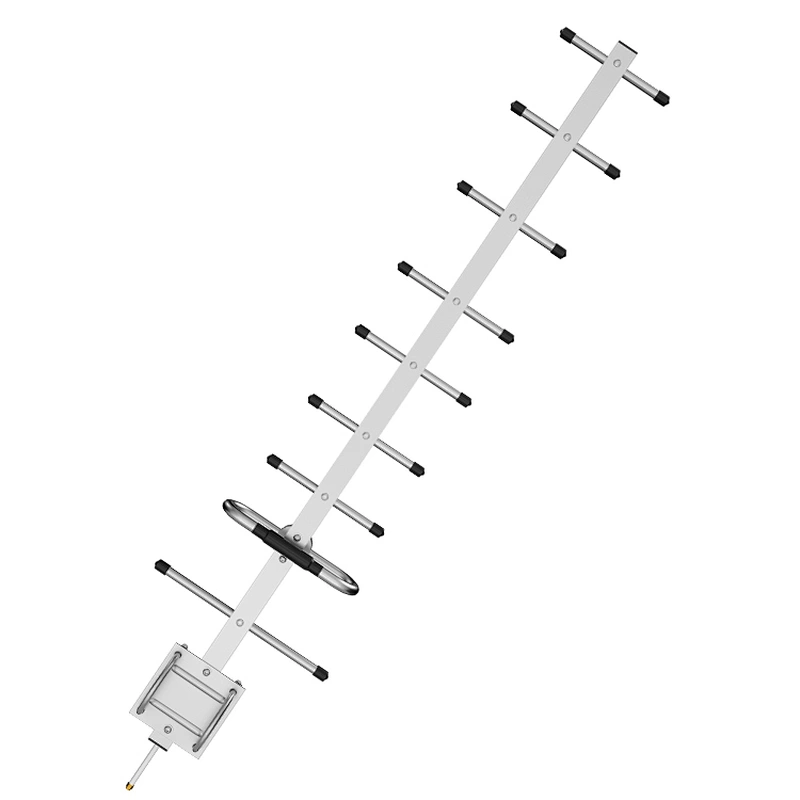

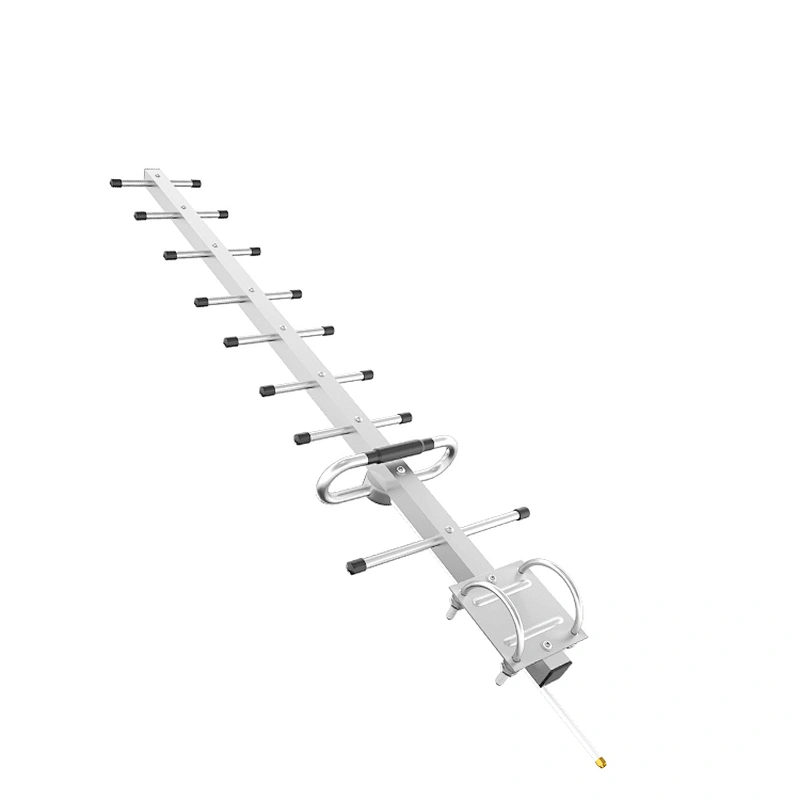

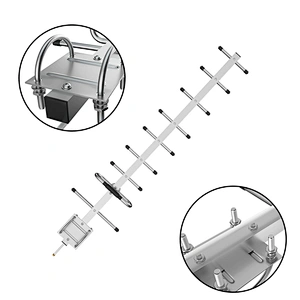

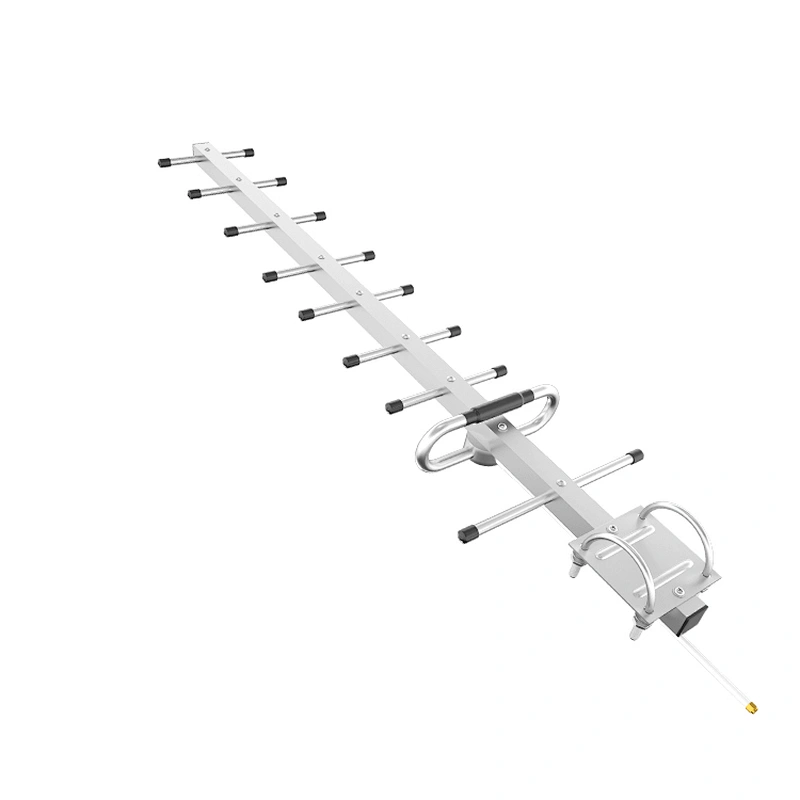

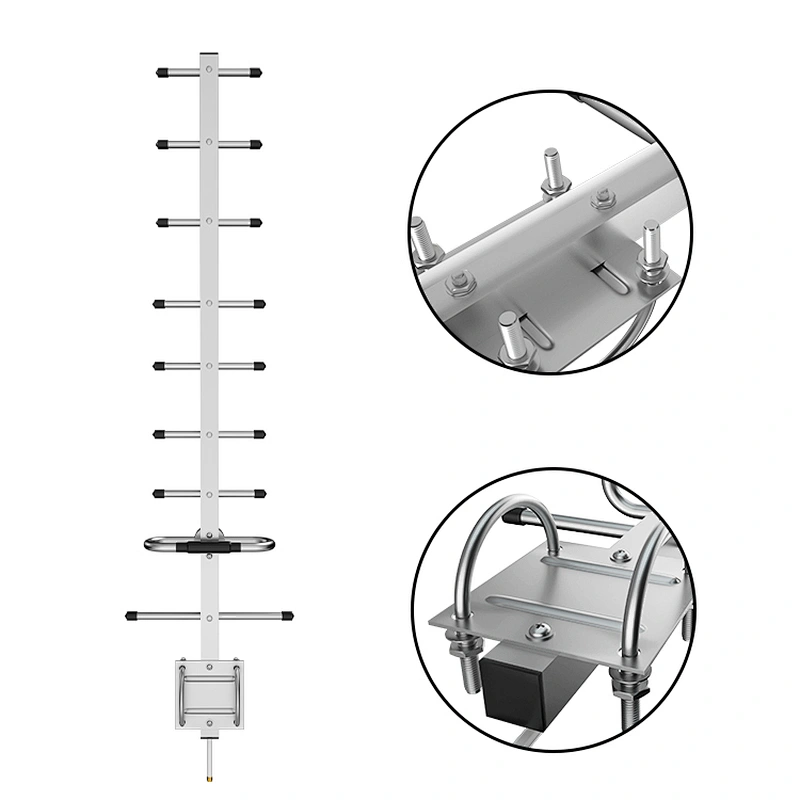

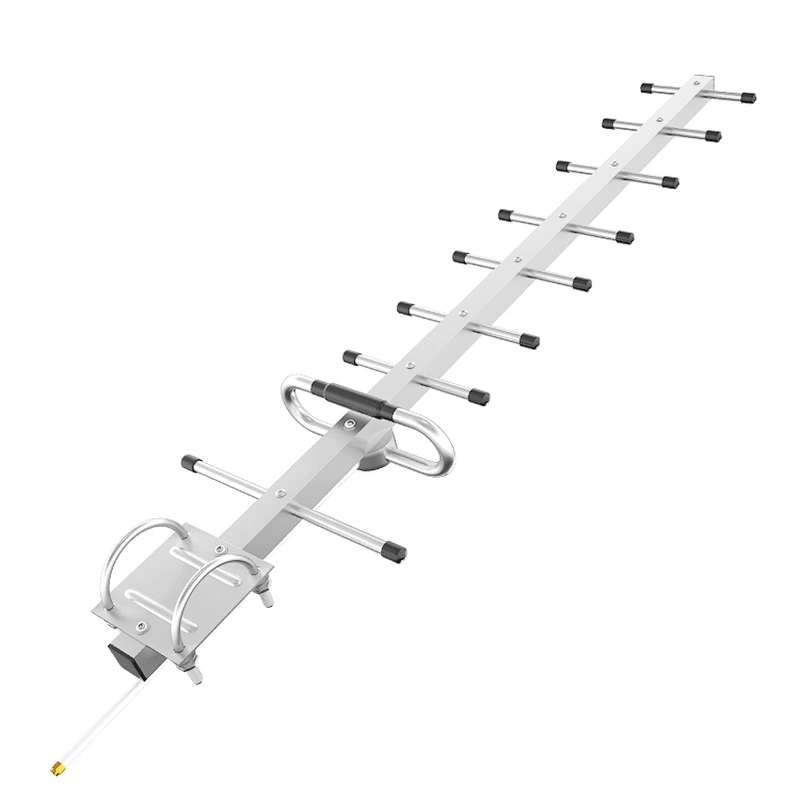

806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna
806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna
806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna
806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna
806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna
806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna
806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna

806-960MHz 13dBi 2G Cell Phone Signal Antenna 9 Elements GSM Yagi Antenna

Model NO.:
HSA-0896YGF
Price:
USD 6.90-8.50 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
20000.0 pieces / Month
  • Product Name:GSM 2G Yagi Antenna
  • Frequency Range:806-960MHz
  • Gain:13dBi
  • Impedance:50Ω
  • Connector:SMA/N Type or Customized
  • VSWR:≤2.0
  • Polarization:Horizontal or Vertical
  • Radiation:Directional
  • Weight:362g
  • Size:755mm*188mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0896YGF
Specification
Model
HSA-0896YGF
Product Name
GSM 2G Yagi Antenna
Frequency Range
806-960MHz
Gain
13dBi
Impedance
50Ω
Connector
SMA/N Type or Customized
VSWR
≤2.0
Polarization
Horizontal or Vertical
Radiation
Directional
Max. Power
50W
Lightning Protection
DC Ground
Pole Installation
40-50mm
Cable Type
RG58
Cable Length
60cm or Customized
Operation Temperature
-40~+60℃
Weight
362g

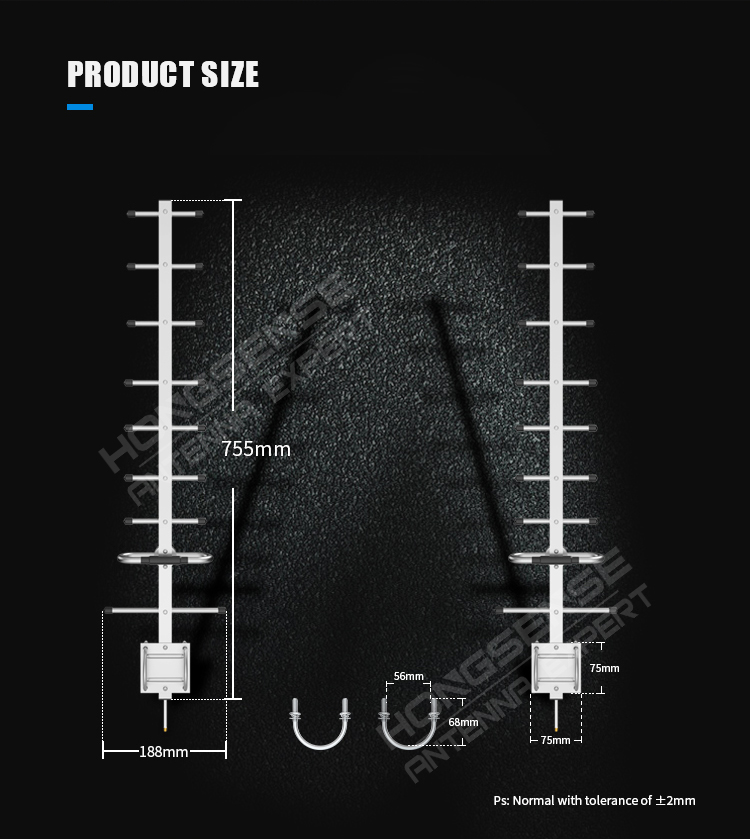

Size
755mm*188mm
Product Description
Customer Reviews
Packing & Delivery
Package Details:1. Each antennas has a single package,
2. 20pcs antennas in one carton,
3. Customized package for antennas is available.Delivery Time:1. Sample order and 2-1000pcs, Lead time is 1-7 working days;2. 1000-5000pcs, lead time is 7-10 working days;3. Over 5000pcs, lead time is 10-15 working days.Shipping Methods:Parcel will be sent by DHL/UPS/FEDEX/EMS or customers' own shipping agent.

Company Profile
Shenzhen Hongsense Technology Co., Ltd. is a company engaged in the communications antenna research and development, production, sales, professional services in one of the professional high-tech enterprises, Company Hongsense (Hong Kong) Co., Ltd. is a branch in the overseas markets. The company has the full import of the ISO9001:2000 international quality system certification, mainly products are GPS navigation antennas,Security Series antennas, 3G mobile communications antennas, microwave antennas, wireless antennas, car antennas, digital TV antennas, Gps antennas, WLAN / WIMAX series 2.4G, 3.5G, 5.8G spread spectrum antennas, indoor coverage antennas, communication antenna accessories, and other series of over two hundred varieties.
Certification
FAQ
Q: What type of antenna your company have?A: We have different frequencies and gains according to different types of antenna. Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...Q: What's your MOQ?A: We don't have MOQ. Small quantity is also acceptable.Q: Can you accept customize?A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.Q: Can the connector make with another type connector?A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.Q: Coud you offer samples for test first?A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.Q: How is the cost?A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
