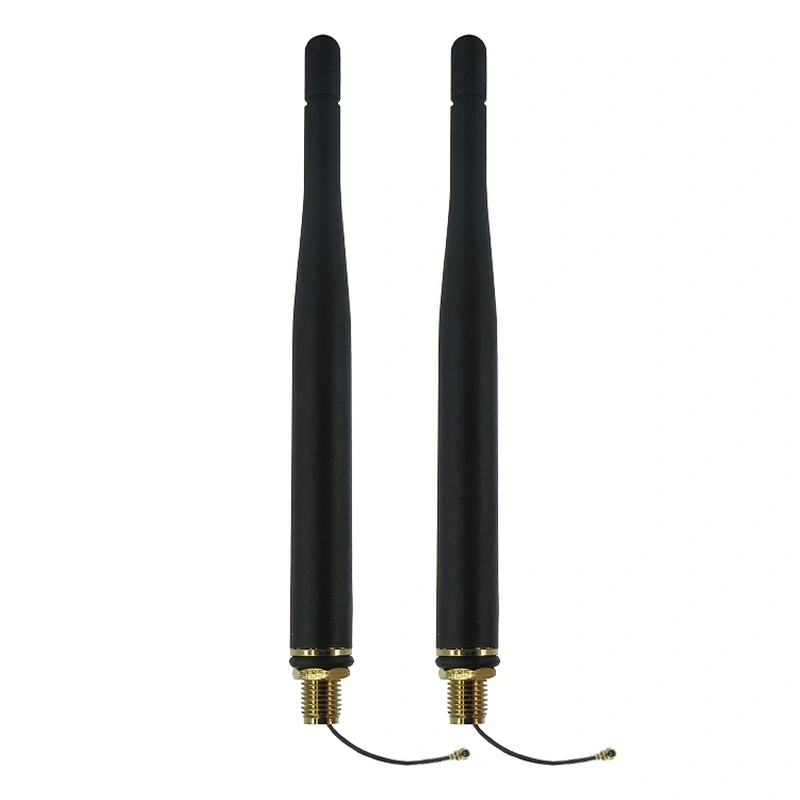

- Frequency range:915MHz
- Gain:5DBi
- Max power:50 -W
- VSWR:≤2
- Size:13*165mm
- Weight:18g
- Impedance:50 Ohm
- Polarization:Vertical
- Color:Black and white
- Customization:available
- Place of Origin:CN;GUA
- Brand Name:Hongsense
- Model Number:HSA-868TFK1
Product Details
Product Description
Electrical Specifications | ||
Model | HSA-868TFK1 | |
Frequency Range-MHz | 868 | |
VSWR | ≦1.5 | |
Gain-dBi | 5 | |
Polarization | Vertical | |
Impedance-Ω | 50 | |
Max.Power-W | 50 | |

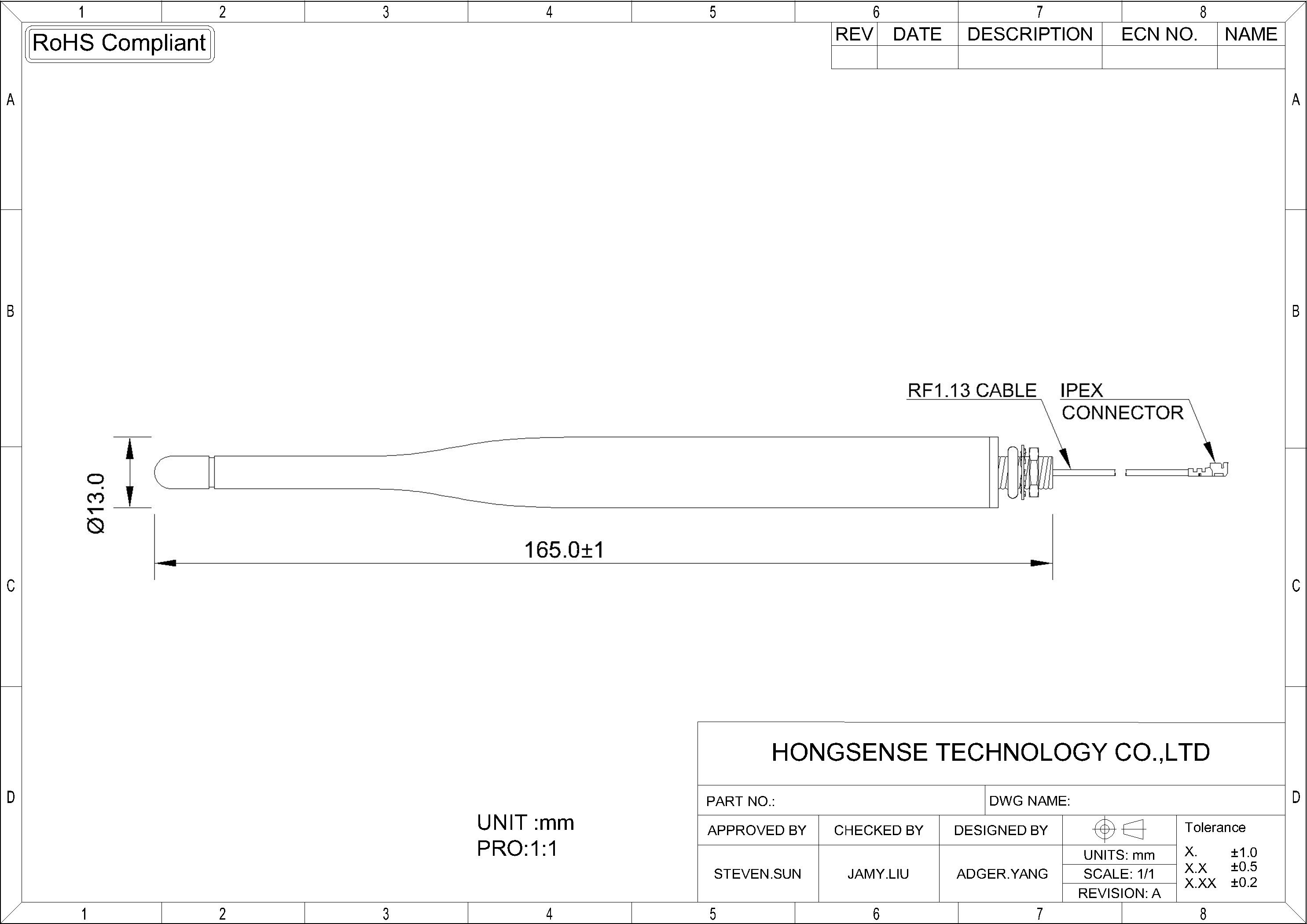

Mechanical Specifications | ||
Connector | IPEX/U.FL | |
Dimension-mm | 13*165 | |
Net Weight-g | 18 | |
Radome Material | Plastic | |
Opration Temerature-℃ | -40-+60 | |
Description: Apply to 868MHz system | ||
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: What's your company MOQ?
A: The MOQ is 50PCS.
A: The MOQ is 50PCS.
Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.
Q:We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.
Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
