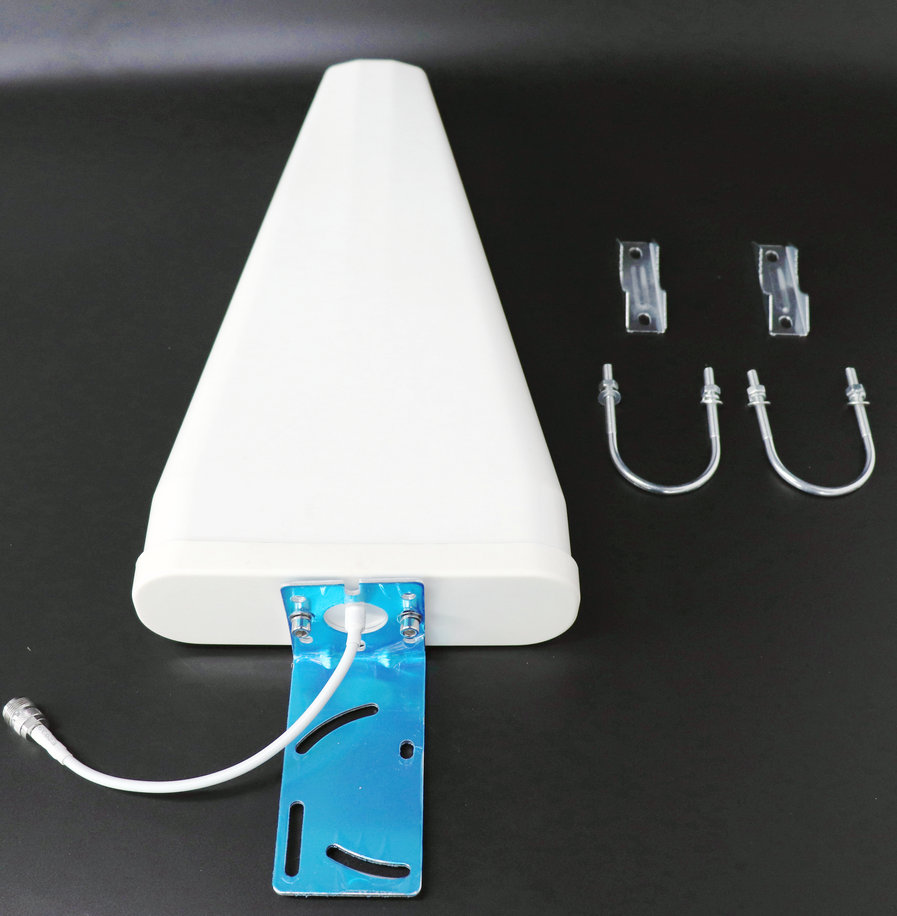

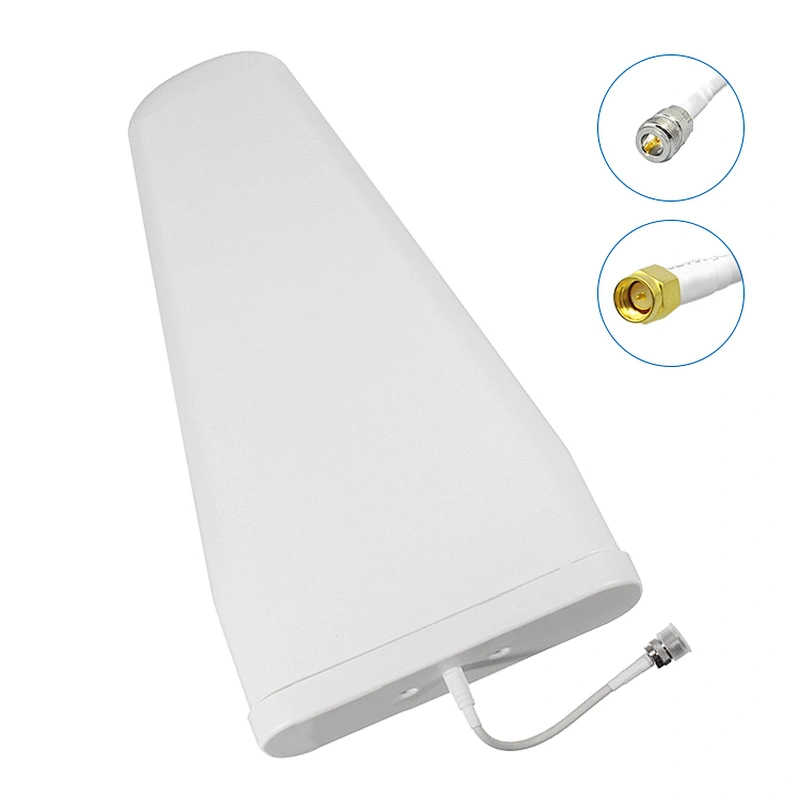

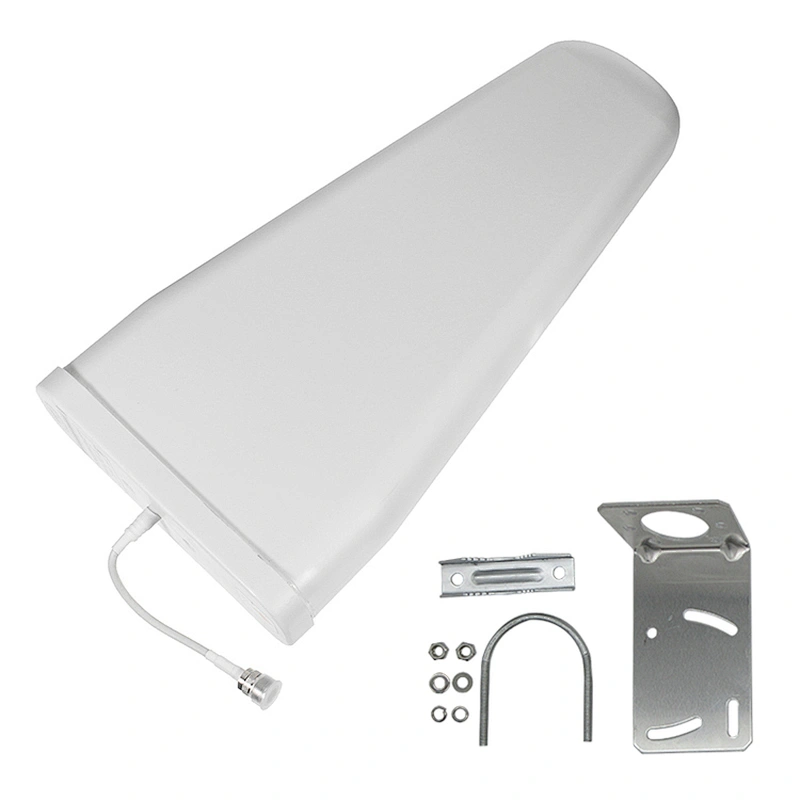

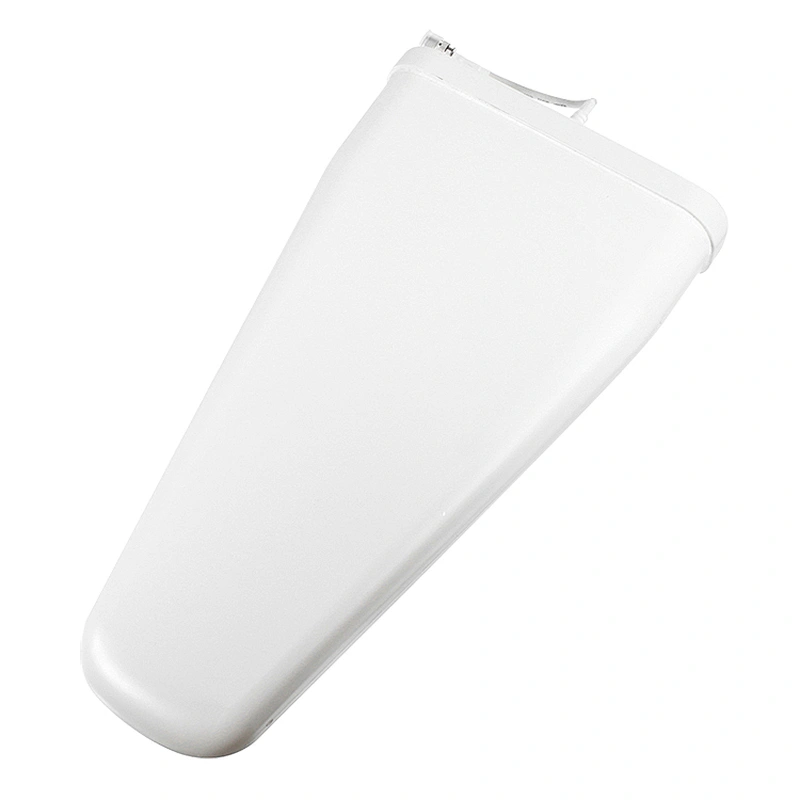

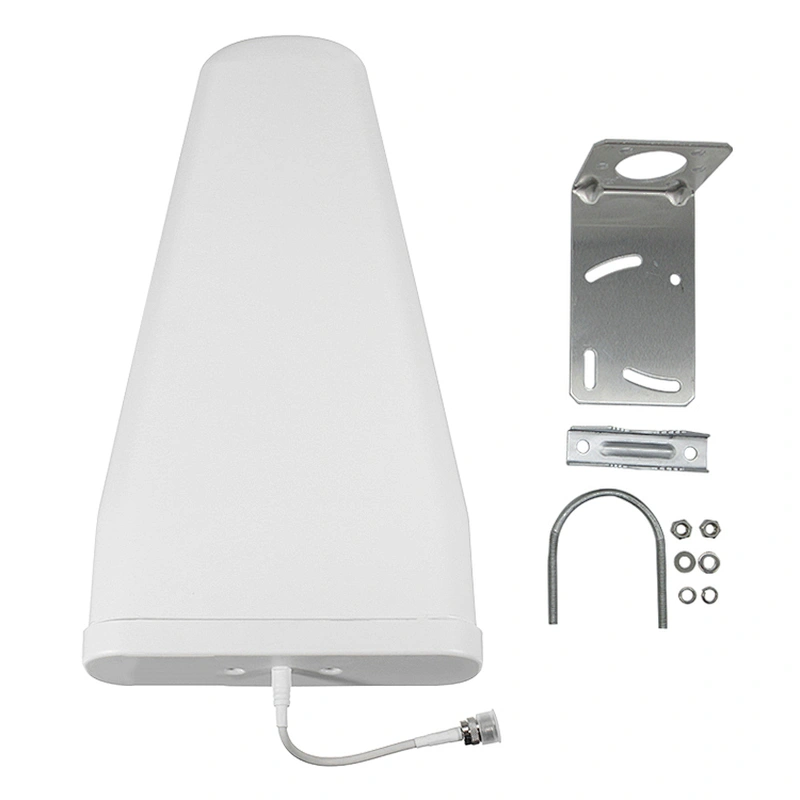

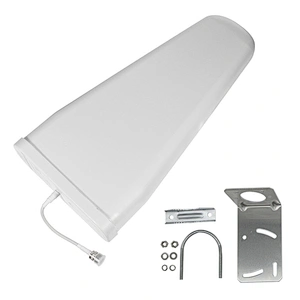

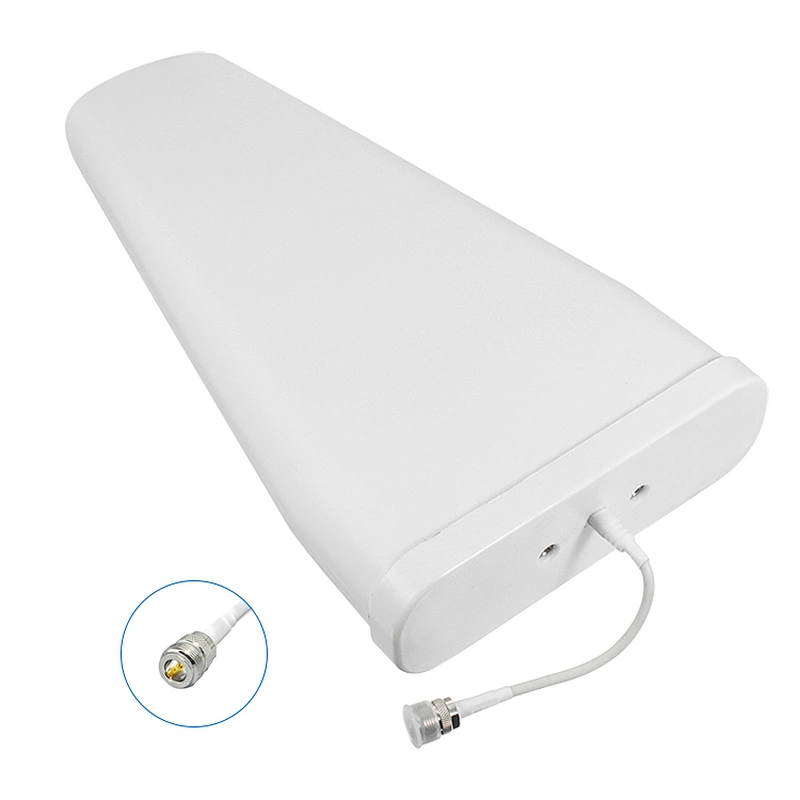

698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector
698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector

698-2700MHz 4G LTE High Gain 10dbi Directional Log-Periodic Outdoor Antenna with N Female Connector

Model NO.:
HSA-0727LPA
Quantity:
  • Frequency Range -MHz:800-2500MHz
  • Connector:N type or customized
  • Date Transmission Rate:Up to 75 Mbps (LTE)
  • Gain:11dBi
  • VSWR:1.5
  • Polarization:Vertical
  • Impedance-:50

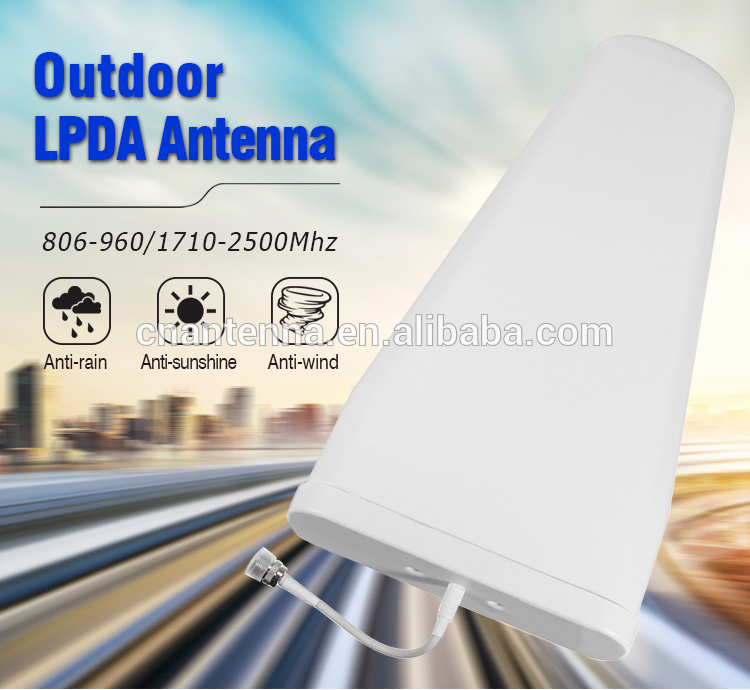

  • Name:LTE 4G LPDA Antenna
  • Max. Power-W:50
  • Length:30cm or customized
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0727LPA
Product Description
Specification
Electrical Specifications
Frequency Range-MHz
806-960/1710-2500
VSWR
≤1.5
Gain-dBi
10/11
Vertical Beam width-°
60/55
Horizontal Beam width-°
90/70
F/B Radio-dB
≥19
Polarization
Vertical
Impedance-Ω
50
Max.Power-W
100
Lightning Protection
DC Ground

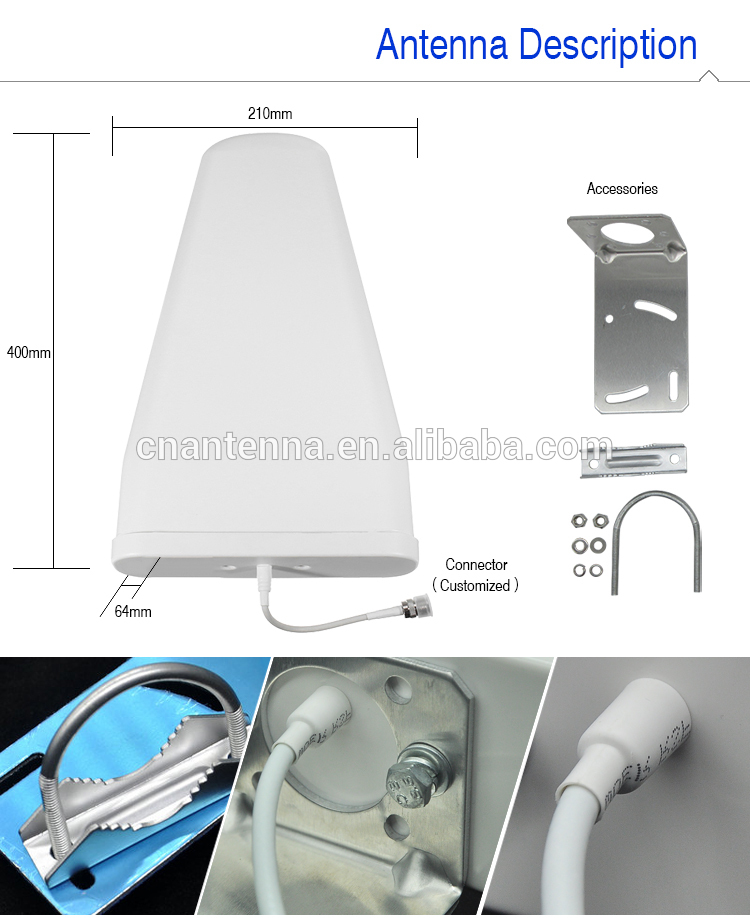

Mechanical Specifications
Connector
N-K or customized
Net weight-g
460
Dimension-mm
440*215*64

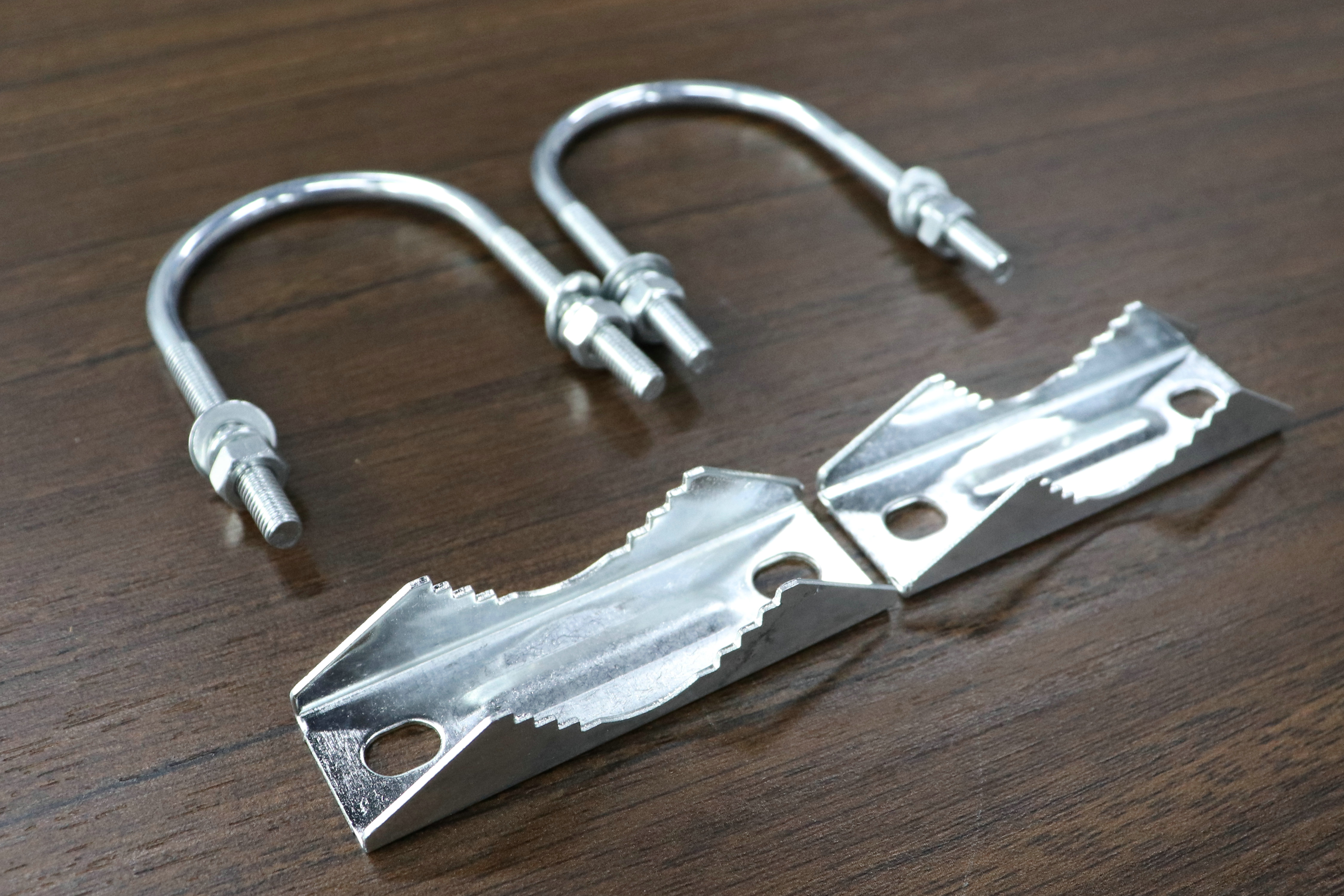

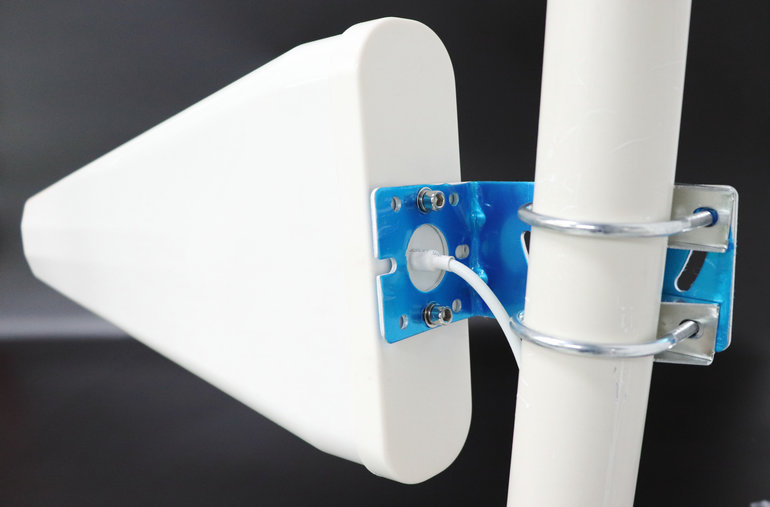

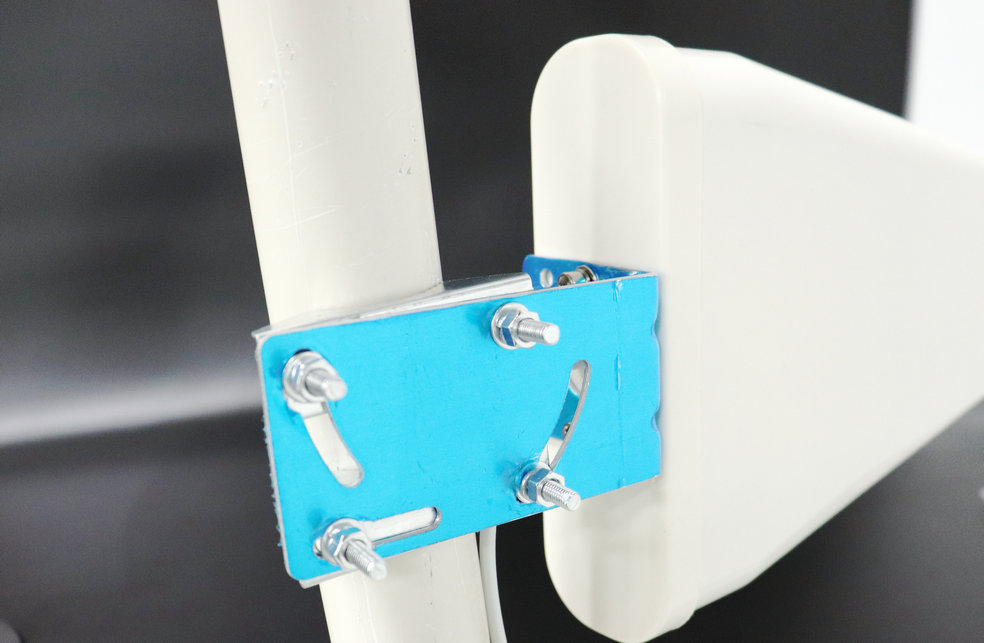

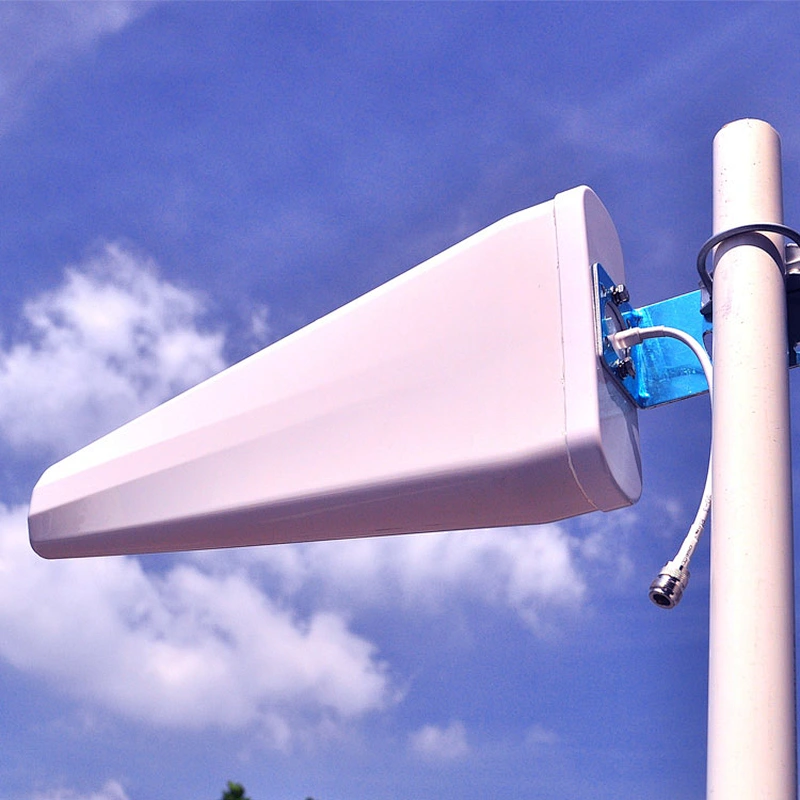

Installation-mm
Pole Φ40-50
Operation Temperature-℃
-40-+60

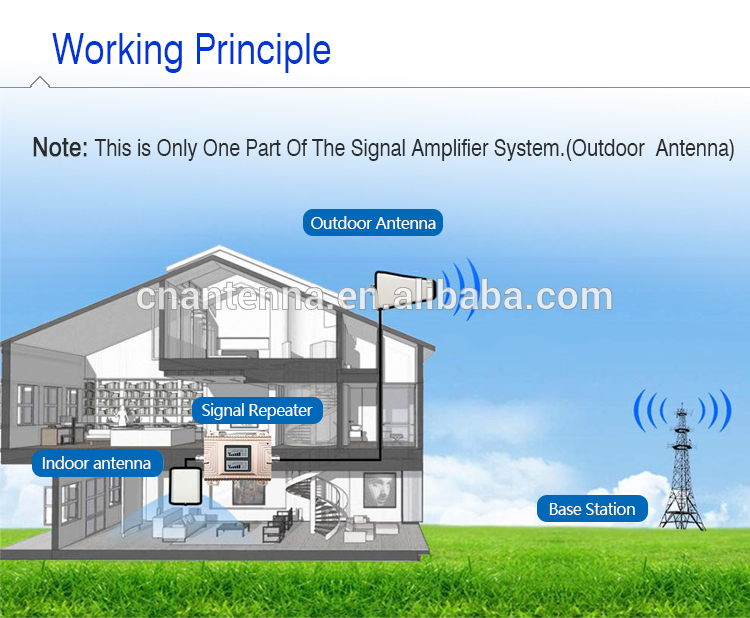

Description: Apply to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system.

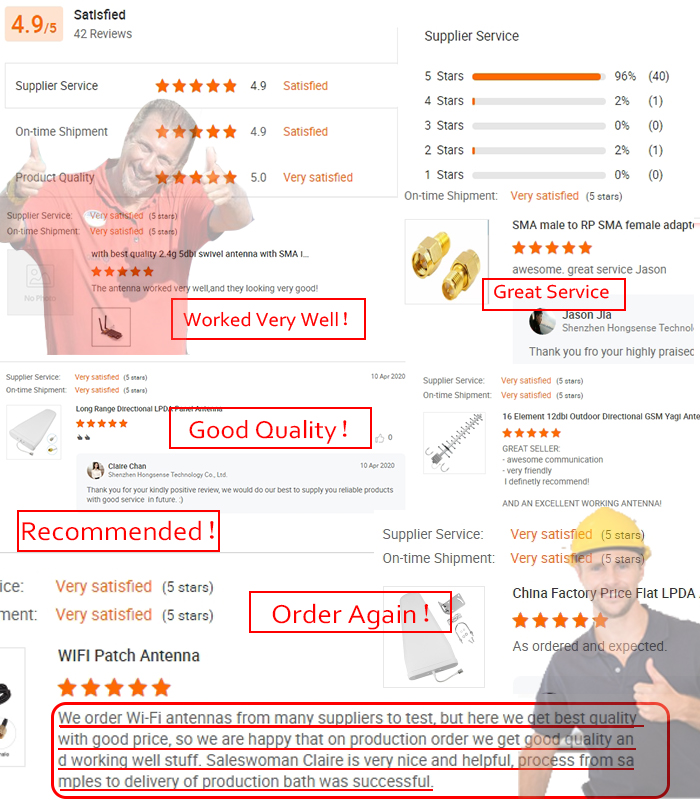

Customer Reviews
Packing & Delivery
Package:
1.Each antenna has single PP bag.
2.20Pcs antenna in one carton.
3.Customize package for gps antenna available.

Delivery:
1.Sample order will be send in 1-3days after payment.
2.2-1000pcs, Lead time is 5-7 working days.
3.1000-5000pcs,Lead time is 10-15 working days.
4.Over 5000pcs,lead time is 15-25 working days.
Parcel will be sent by DHL/UPS/Fedex/EMS or customers own shipping agent.

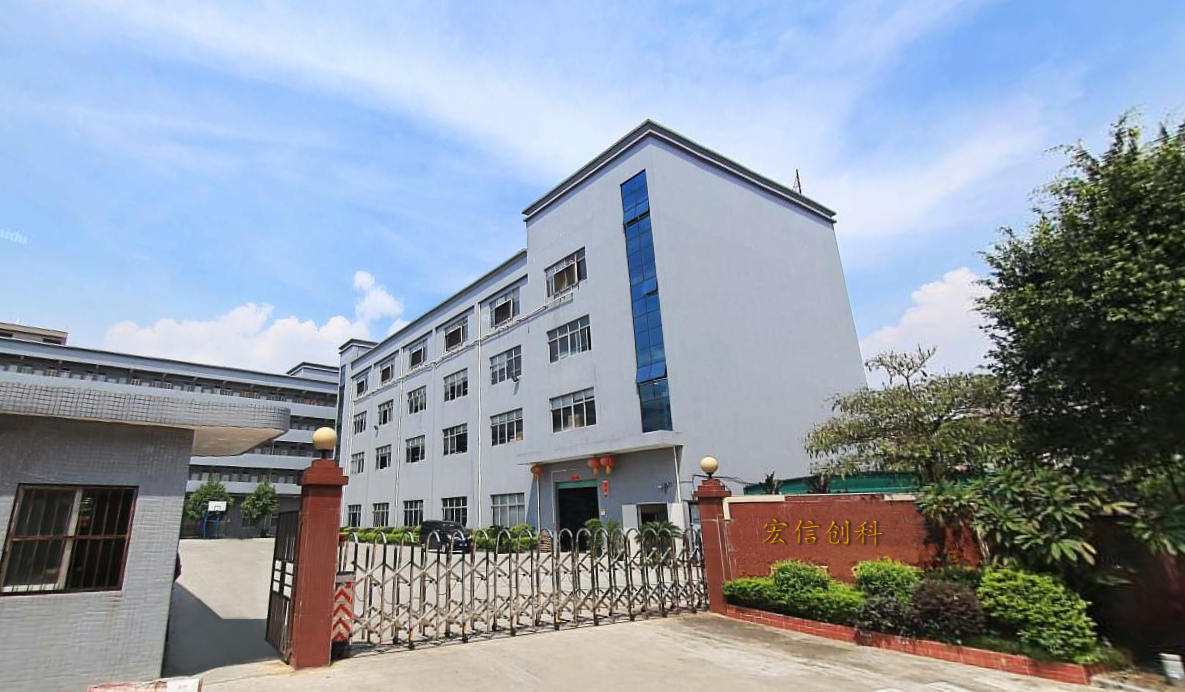

Company Profile
Hongsense Technology Co.,Ltd is a company devotes to the GPS Navigation Antenna, Mobile Digital TV Antenna, Car Antenna, Terminal Antenna ,3G Antenna , 2,4GHz Wlan& WiFi Antenna, 5.8GHz Antenna, Internal Antenna Series ,Interface Cable Series and technology development in one of the high-tech enterprise.

The company has a perennial engaged in the field of telecommunication high-tech product development of high-quality professional and technical R & D team, strong technical force, has a number of experienced hardware engineers, professional product development designer.

Mian products: RF antenna RF/ microwave coaxial connectors RF cable assmblies.(Such as SMA, SMB, TNC, BNC, MCX, MIMCX, N, FME, adapters) Our advantage: with very professional technology, strictly QC and QA, as our best service to our customers in time, we will provide our customers with the most effective, competitive product.

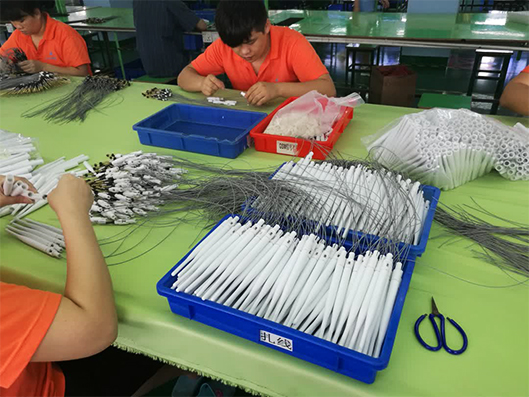

Factory scale: Our factory covers an area of 2,000 square meters with 200 employees and 10 large machines.
Certification
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

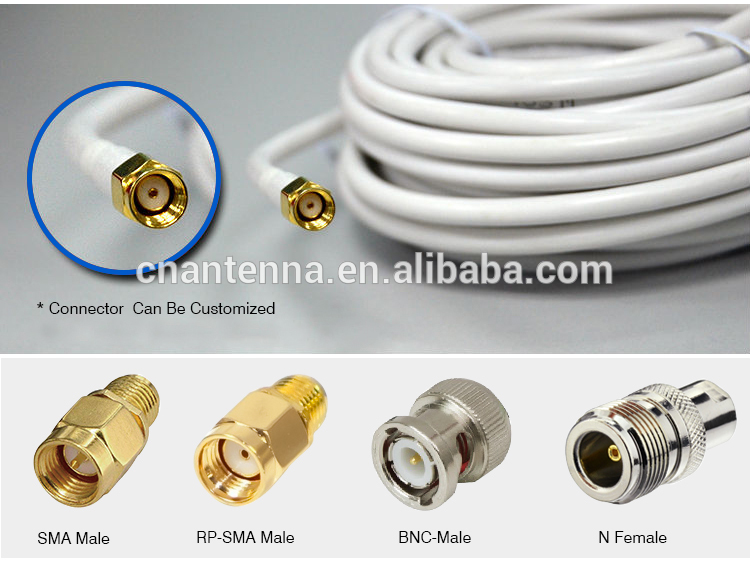

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
