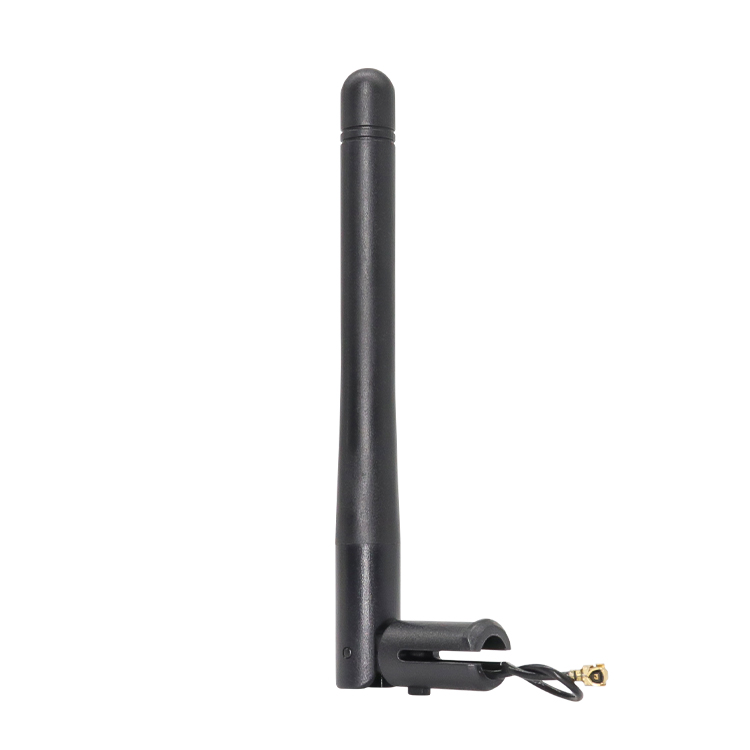

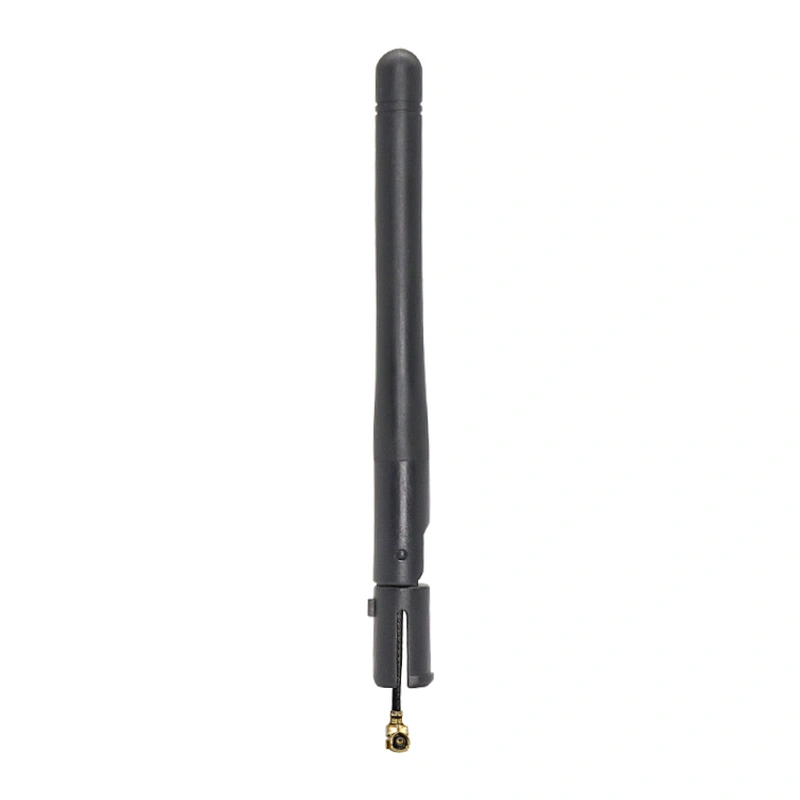

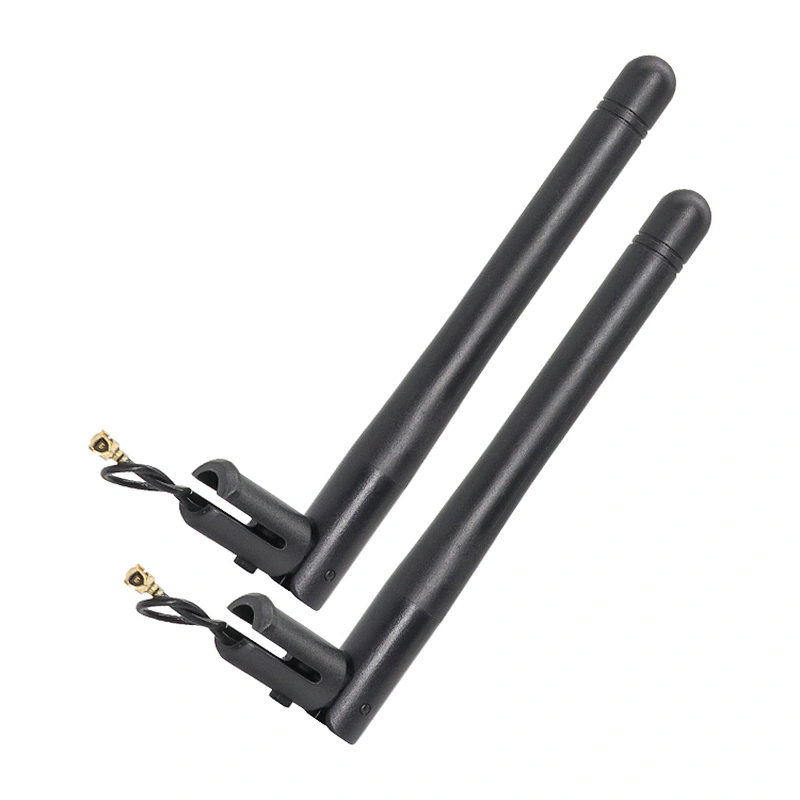

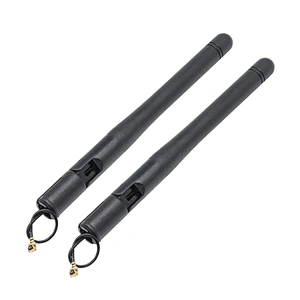

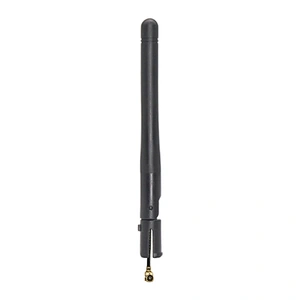

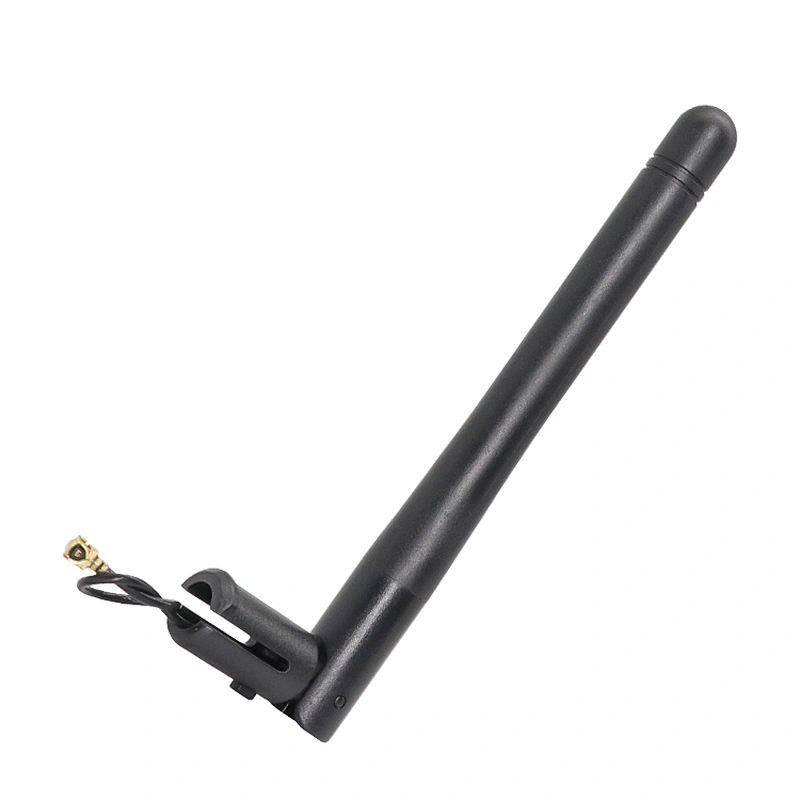

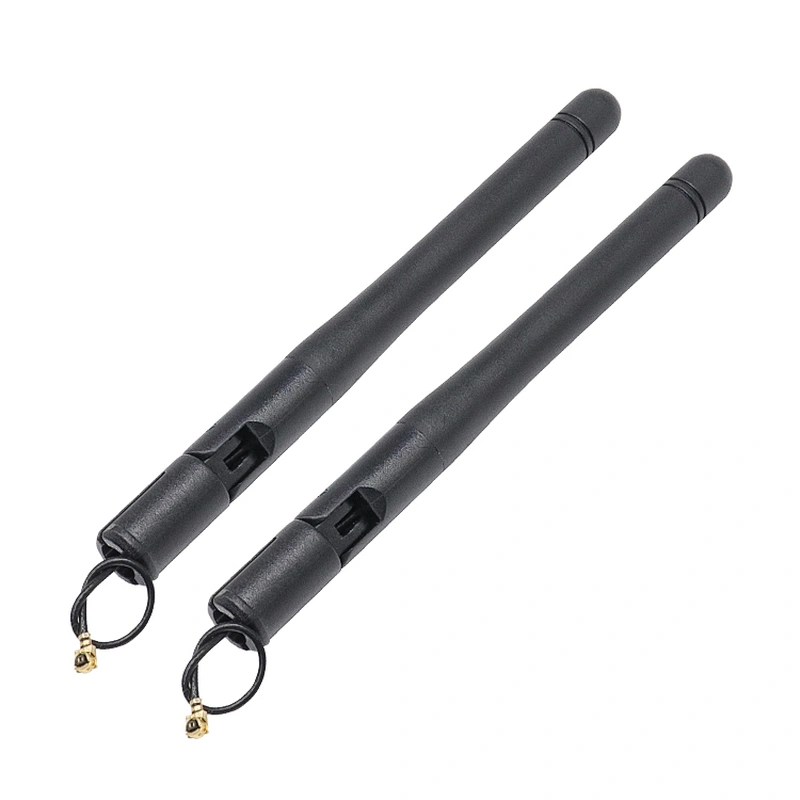

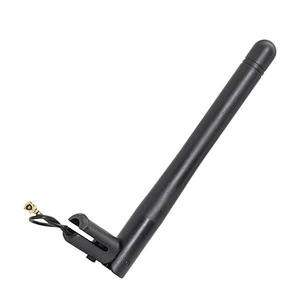

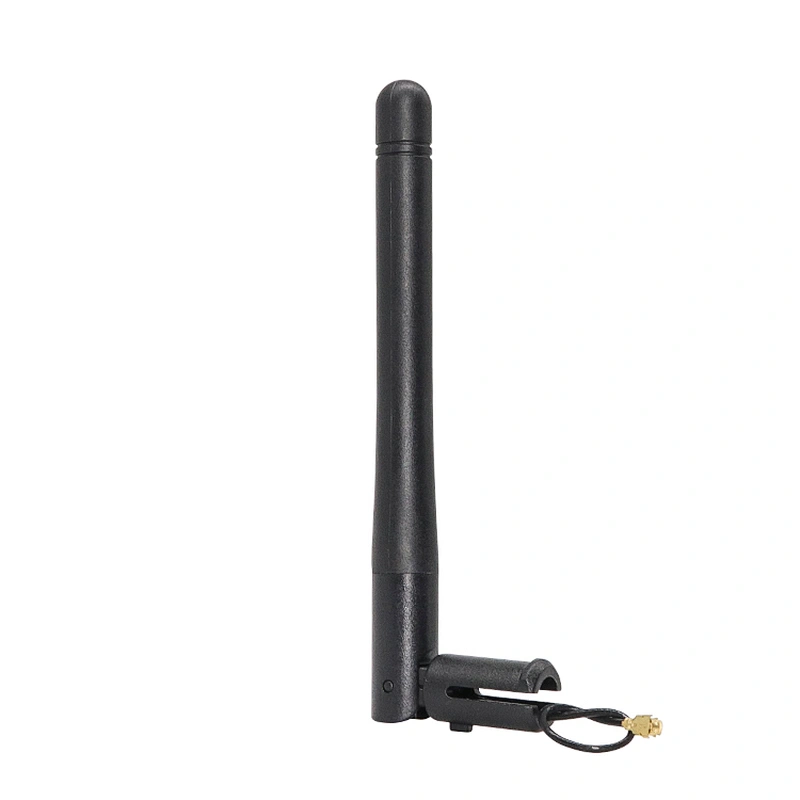

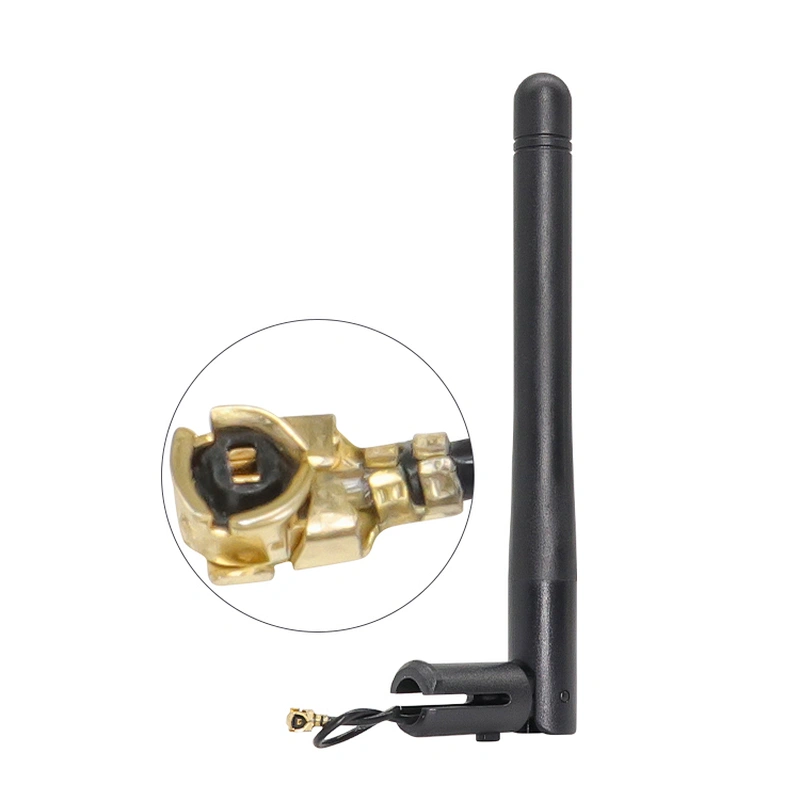

Omnidirectional Gsm Rubber Antenna 2dbi With RF 1.13 Pigtail Cable u.fl Ipex Connector

Model NO.
HSA-0918TFB1
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
100000.0 pieces / Month
Country of Origin:
Shenzhen
Quantity:
  • Frequency Range-MHz:900-1800
  • Gain-dBi:2
  • VSWR:1.5
  • Connector:SMA or Customized
  • Impedance-Ω:50
  • Polarization:Vertical
  • Dimension-mm:10*102.5
  • Max. Power-W:50
  • Net Weight-g:5
  • Radiation:Omnidirectional
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0918TFB1
Product Description

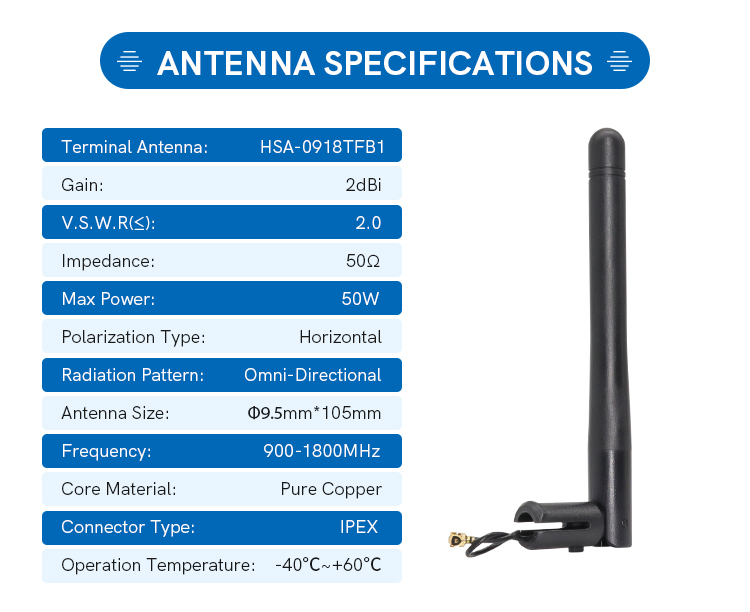

Specification
Electrical Specifications of wifi antenna
Frequency (MHz)
900-1800
Gian (dBi)
2
Input Impendence (Ω)
50
V.S.W.R
≤1.5
Polarization Intensity
Vertical
Max Input Power(w)
50

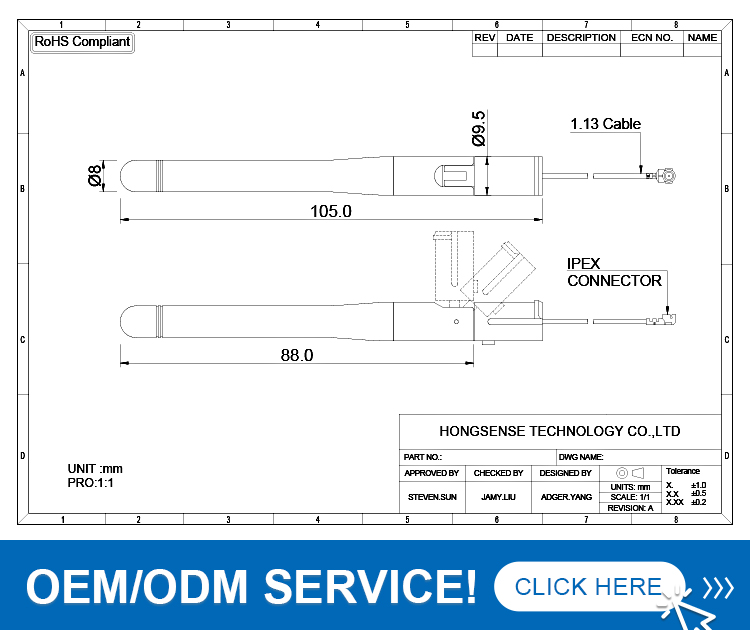

Mechanical Specifications
Connector
RP-SMA/IPEX

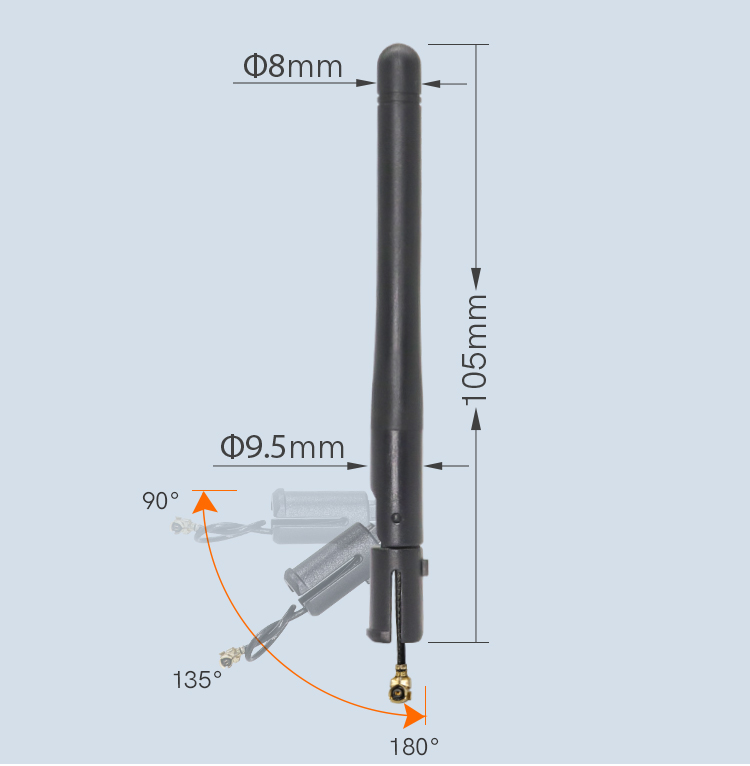

Size-mm
Φ10*102.5
Radome Color
Plastic
Net weight (g)
5
Operating Temperature(°C)
-40°C~+60
Humidity-%
5-95
Feature:Applied in the 900-1800 MHZ WLAN/WIFI system, strengthen the wireless network signal (sma antenna)
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9 and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
