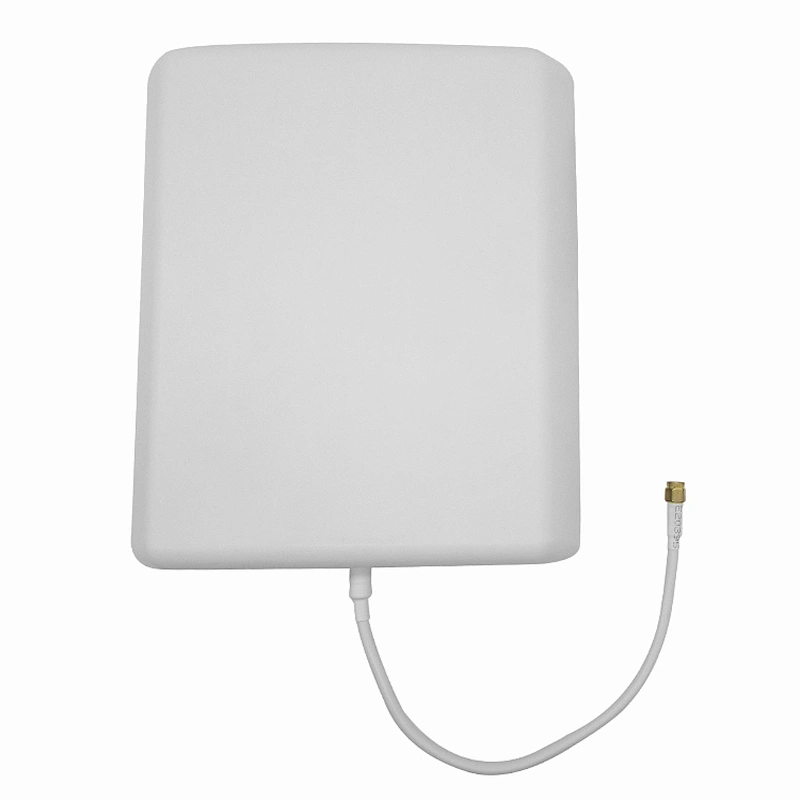

Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector
Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector

Indoor Directional Broadband 800-2500MHz GSM/3G/4G/LTE Panel Antenna with N Connector

Model NO.:
HSA-0825WA5
Quantity:

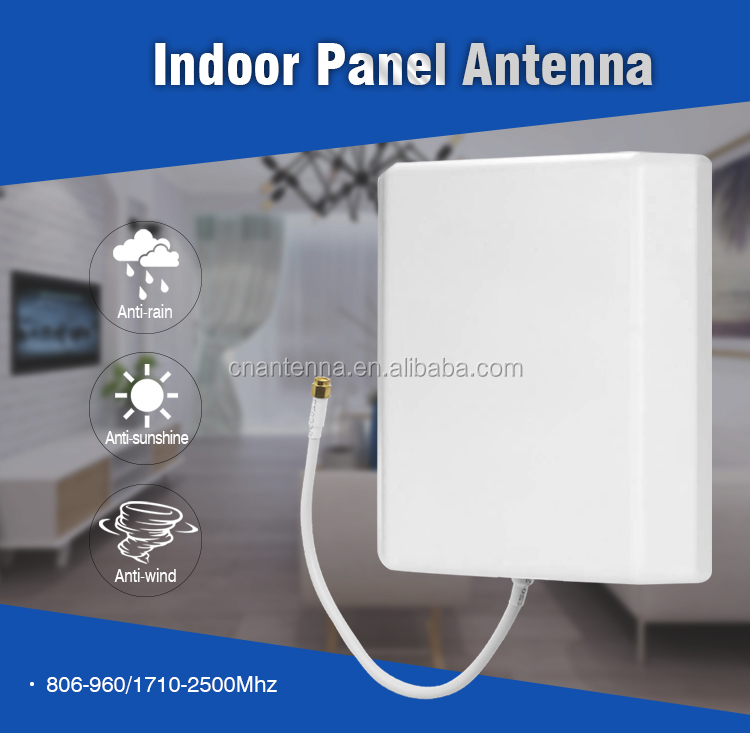

  • Product Name:Indoor Panel Antenna for GSM/WCDMA/3G/4G/LTE/WiFi
  • Frequency Range:800-2500MHz
  • Gain:10dBi
  • Impedance:50Ω
  • Connector:Customized(SMA Male by Default)
  • Cable Length:Customized(60cm by Default)
  • VSWR:≤2.0
  • Radiation:Directional
  • Weight:360g
  • Size:206mm*178mm*45mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0825WA5
Product Description
Specification
Model
HSA-0825WA5
Product Name
Indoor Panel Antenna for GSM/WCDMA/3G/4G/LTE/WiFi
Frequency Range
800-2500MHz
Gain
10dBi
Impedance
50Ω

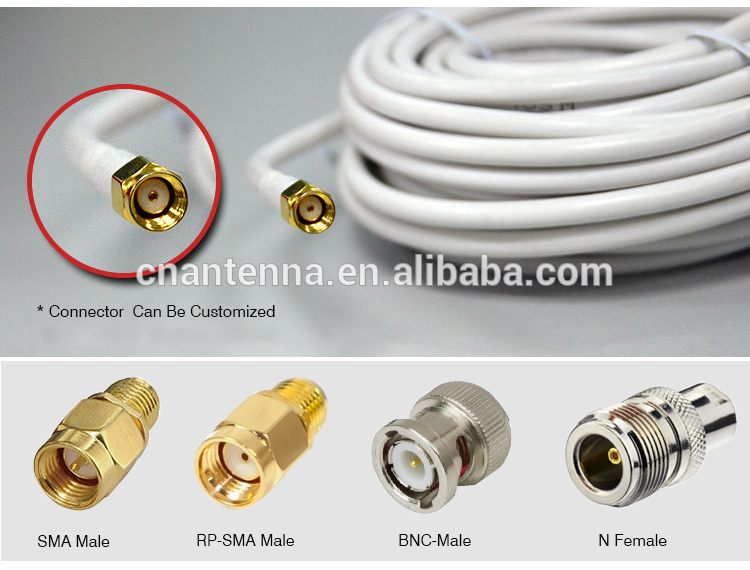

Connector
Customized (SMA Male by default)
VSWR
≤2.0
Polarization
Vertical
Radiation
Directional
Max. Power
50W
Lightning Protection
DC Ground

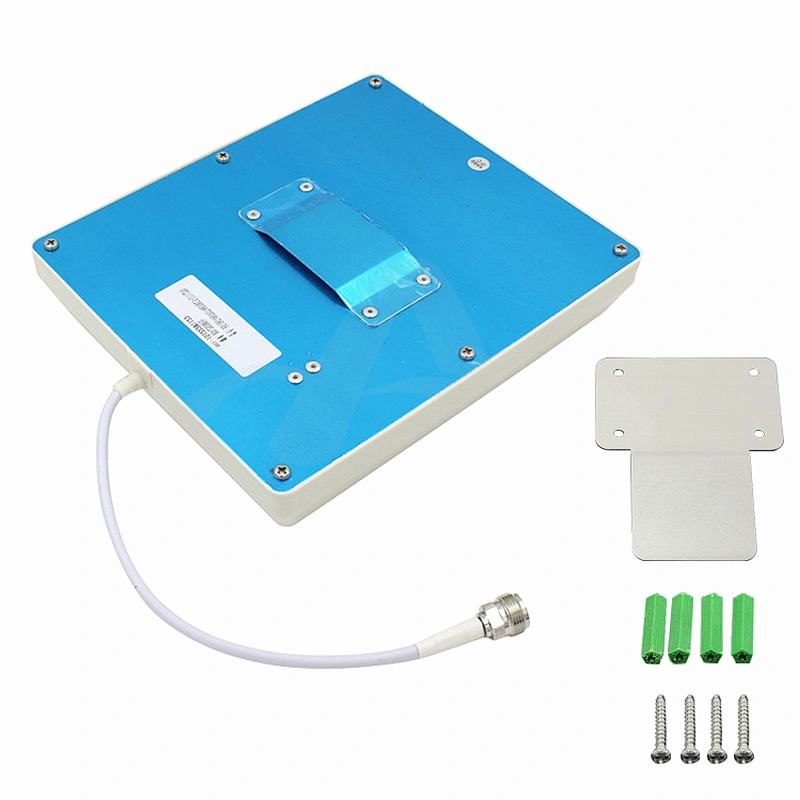

Installation
Wall Mount
Cable Type
RG58
Cable Length
Customized (60cm by default)
Operation Temperature
-40~+60℃
Weight
360g

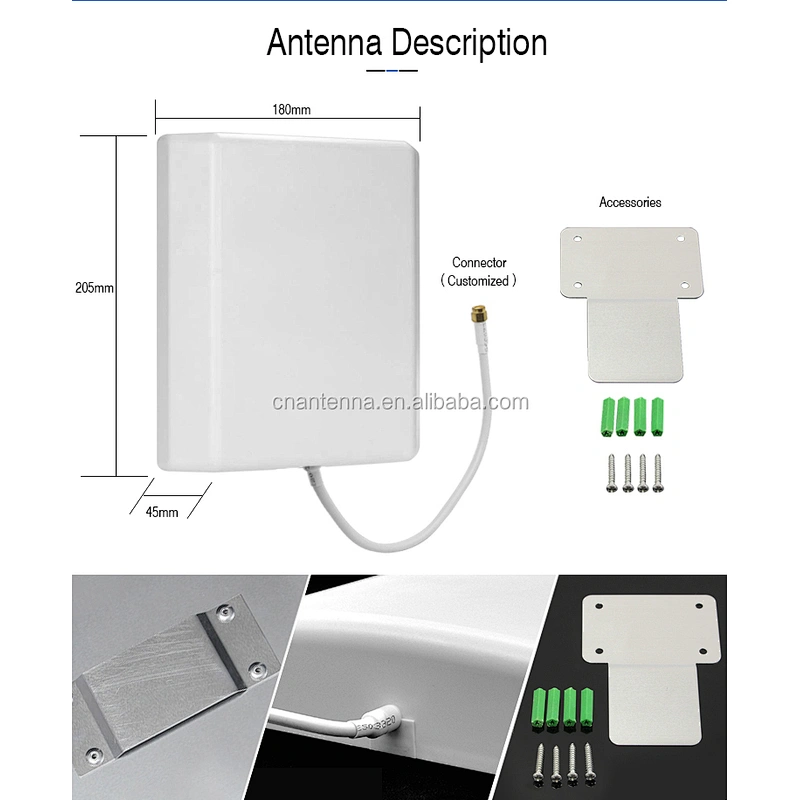

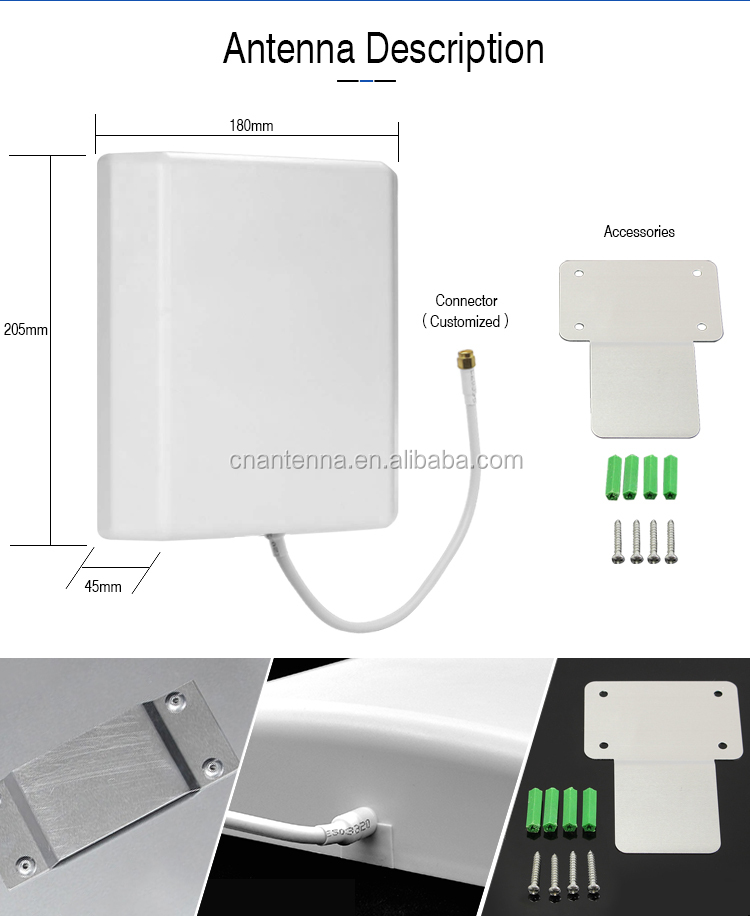

Size
206mm*178mm*45mm
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose Us
FAQ
Q: What type of antenna your company have?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?
A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?
A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

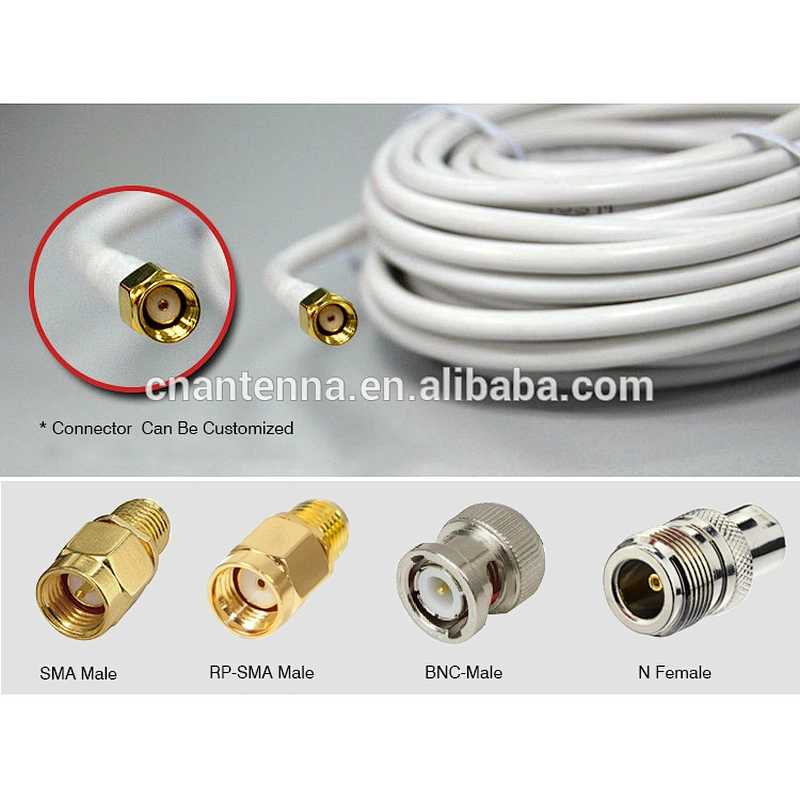

Q: Can the connector make with another type connector?
A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?
A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?
A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
