Model NO.:
HSA-DAB1
Quantity:

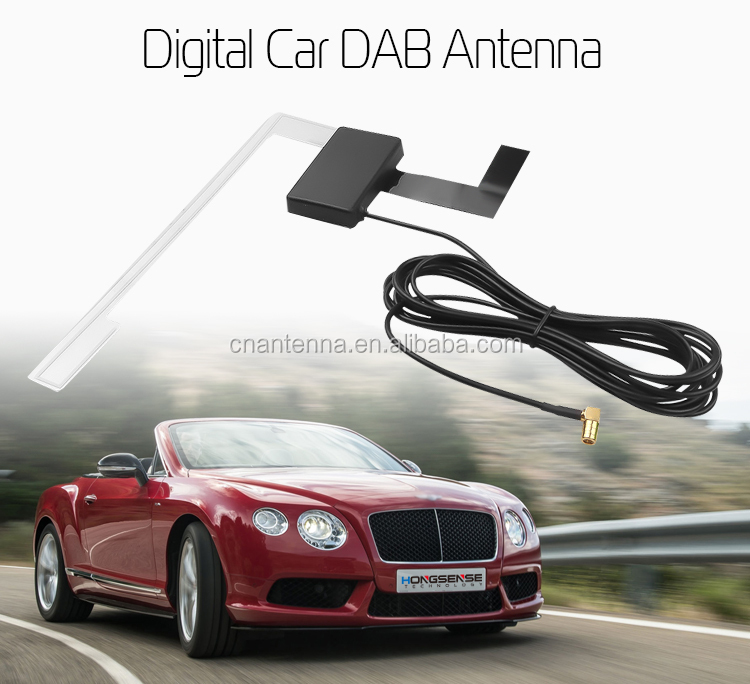

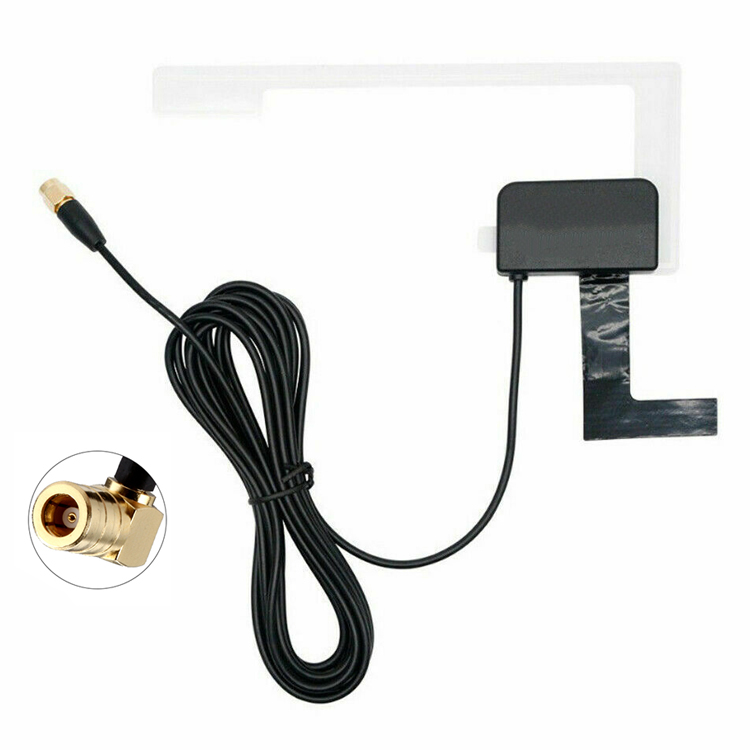

  • Name:DAB DAB+ Digital Active Radio Antenna
  • Connector:SMB R/A Female
  • Frequency Range:174Mhz-240Mhz(Band-III) 1452~1492MHz(L-Band)
  • Gain:B-III:8±2dBi L-Band:10±2dBi
  • Polarization:Vertical
  • Color:black
  • VSWR:2.0
  • Material:Plastic
  • Impedance:50 Ohm
  • Operating Curren:30-60mA
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-DAB1
Product Description

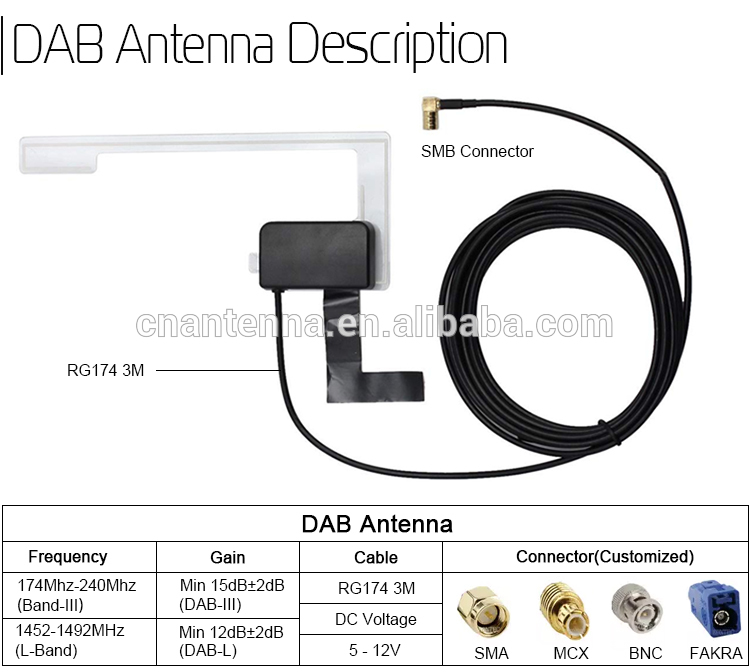

Specification
Model Number
HSA-DAB1
Frequency Range
174-240(DAB-Ⅲ)/1452-1492(DAB-L)
Input Impendence(Ω)
50
VSWR
≦3.0:1
Gain
8dB±2(DAB-Ⅲ) 10dB±2(DAB-L)
Polarization
Linear
Working Voltage
8.5-16V
Lighting Protection
DC Ground/External 12V

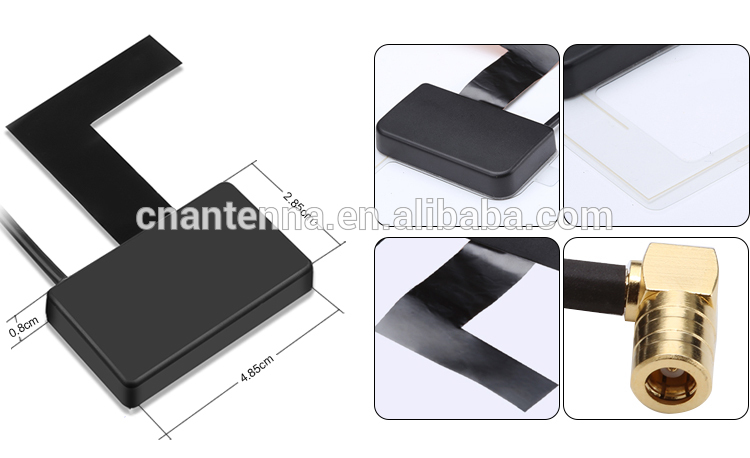

Antenna Size
49*29mm
Cable Length
RG174 3000mm or customized
Connector Type
SMB or customized
Working Temp
-40-+80℃

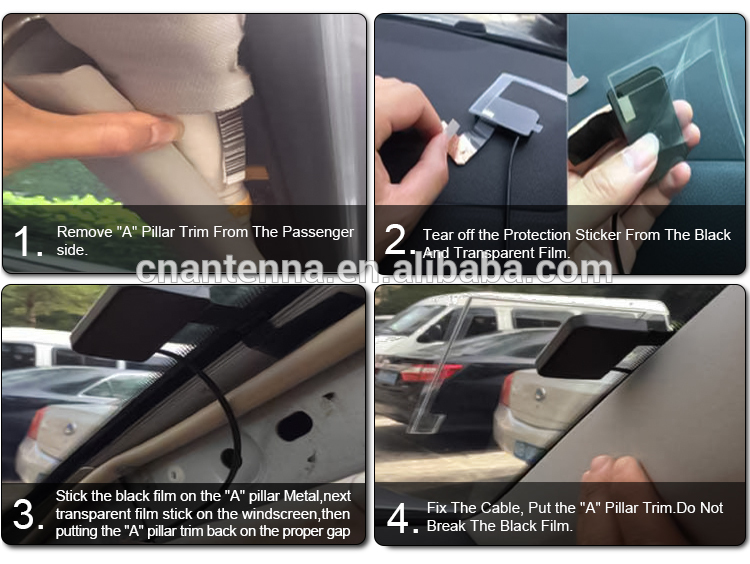

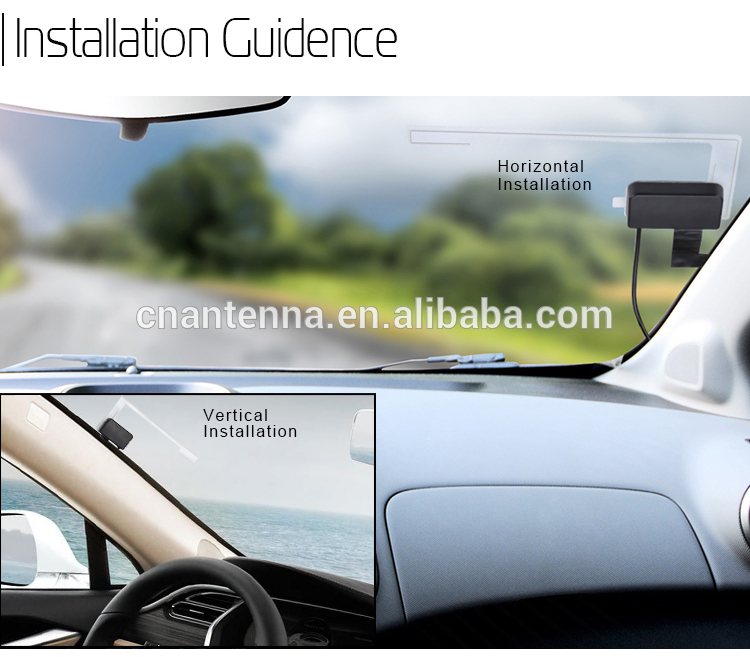

Mounting
Adhesive
Shell Color
Black
Connector Way
Copper foil ground
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
