OEM RF jumper coaxial pigtail cable 1.13/RG174/RG178/RG316/RG58/LMR200/LMR400 with SMA/TNC/BNC/ ufl connector

Model NO.:
HSB-RFCABLE
Price:
USD 0.29-1.90 / pieces
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
SHENZHEN
  • Frequency range:DC-3000
  • Cable type:RG58
  • Cable length:customized
  • Connector:customized
  • Color:Black/white
  • Withstand Voltage:50
  • Max. Power-W:1000V rms
  • Insulator:PTFE
  • VSWR:≤1.20+0.003f
  • Application:RF, Micro-wave &communication equipment
  • Number of Conductors:1
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSB-RFCABLE
Specification
All Cables can be customized as required!
Any need please contact us!
Place of Origin
Shenzhen China (Mainland)
Frequency Range (MHz)
DC~12.4GHz
Input Impendence (ohm)
50
Max Voltage
335V max
V.S.W.R
≤1.20+0.003f
Withstand Voltage
100v rms
insulation resistance
≥5000mΩ
Max input power (w)
50
Contact resistance
Center Contact ≤3mΩ
Material
Brass/Gold plated

Cable Length customization

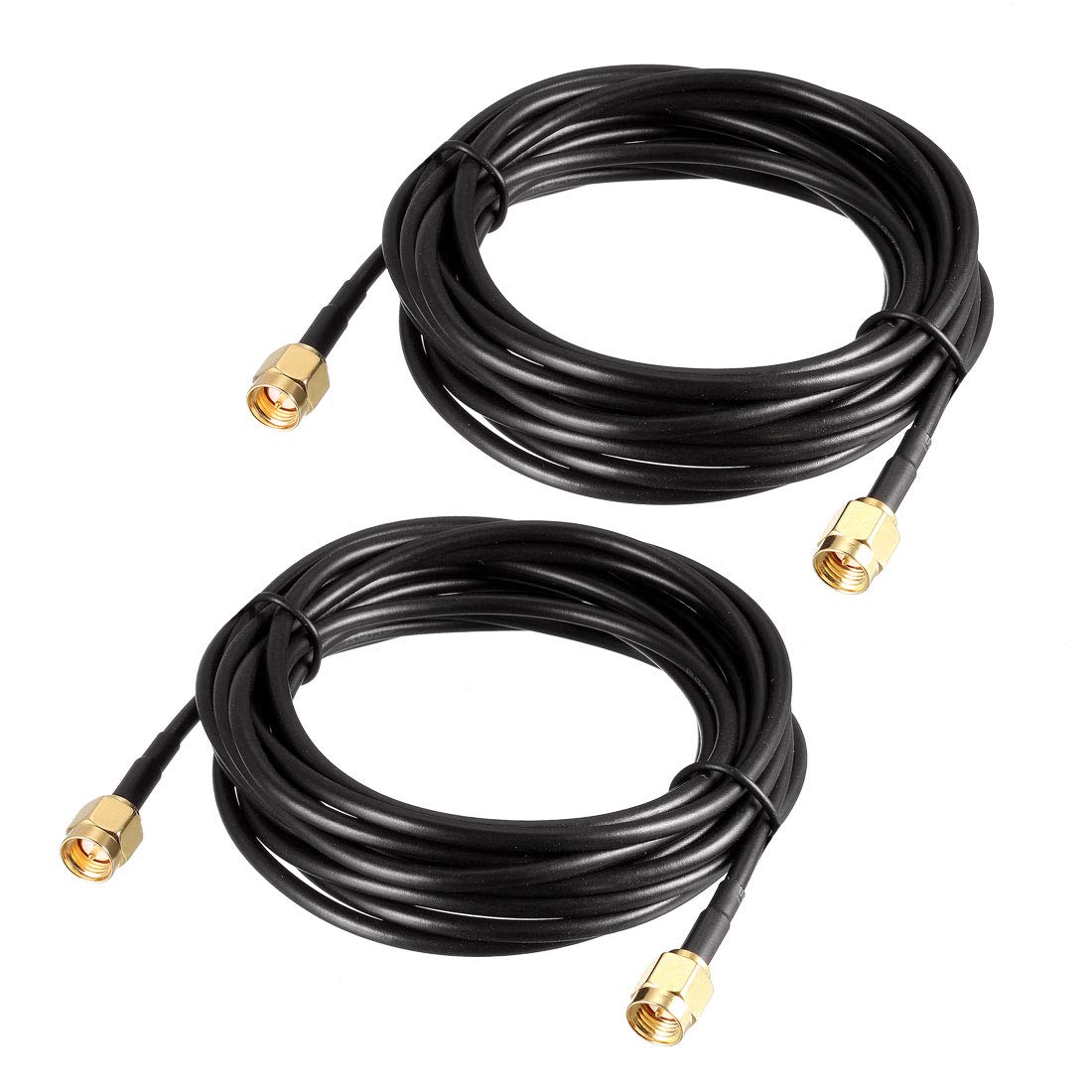

Available for 1 meter, 5 meters, 10 meters or any length you required.

Connector Customization

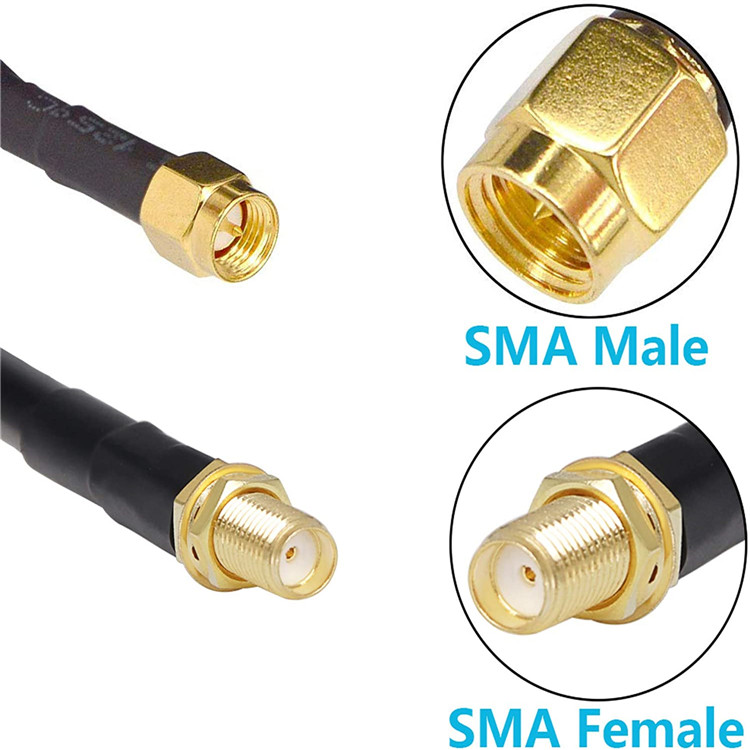

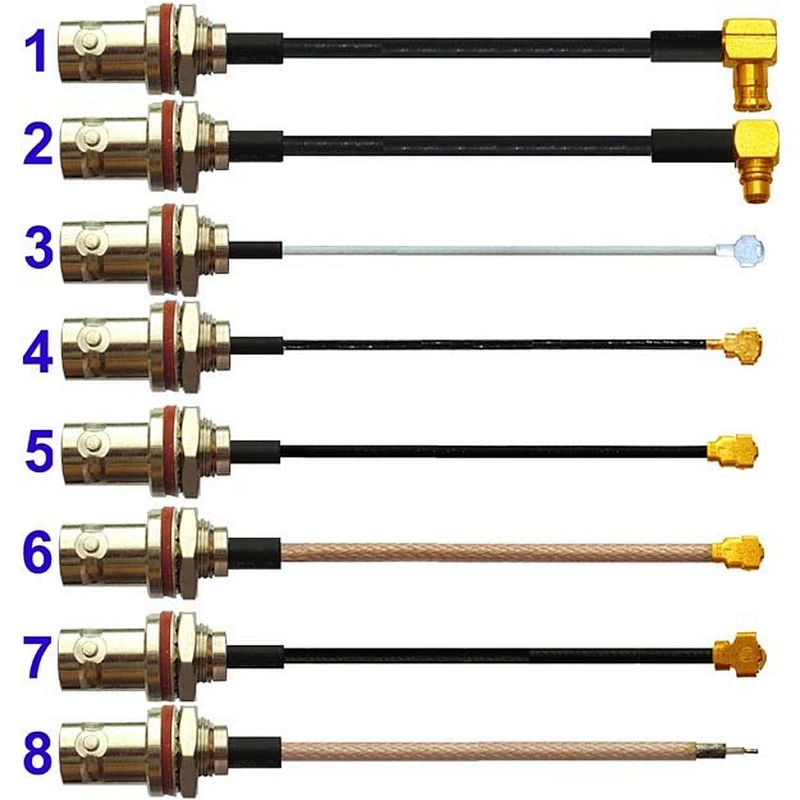

Available to be with SMA, N, TNC, BNC, CRC9, TS9.....
Contact us for details
Packing & Delivery
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount
antenna, then we would charge you, and the shipping cost is paid by your side.
