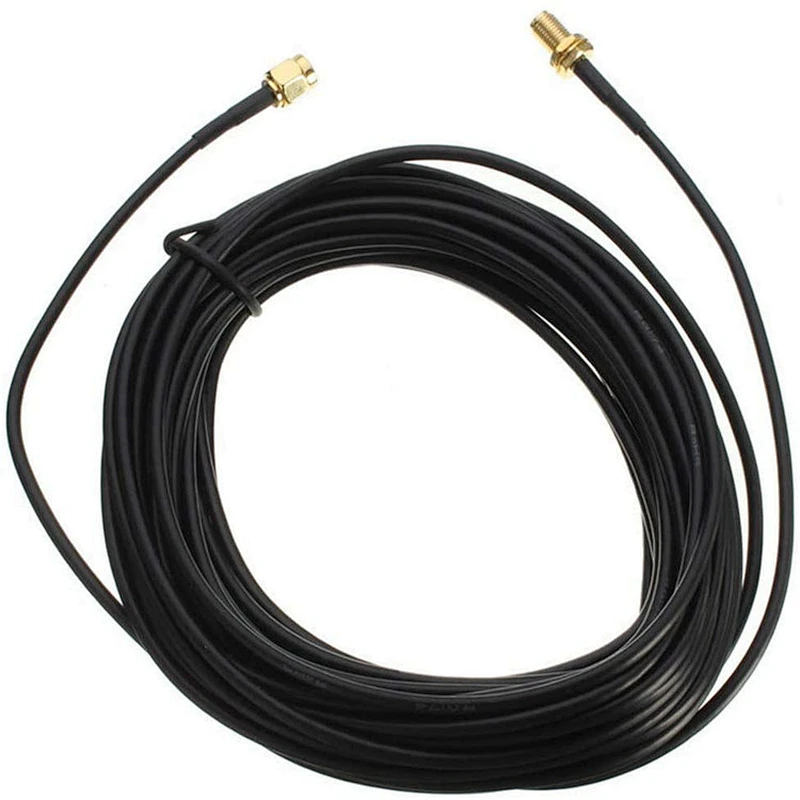

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

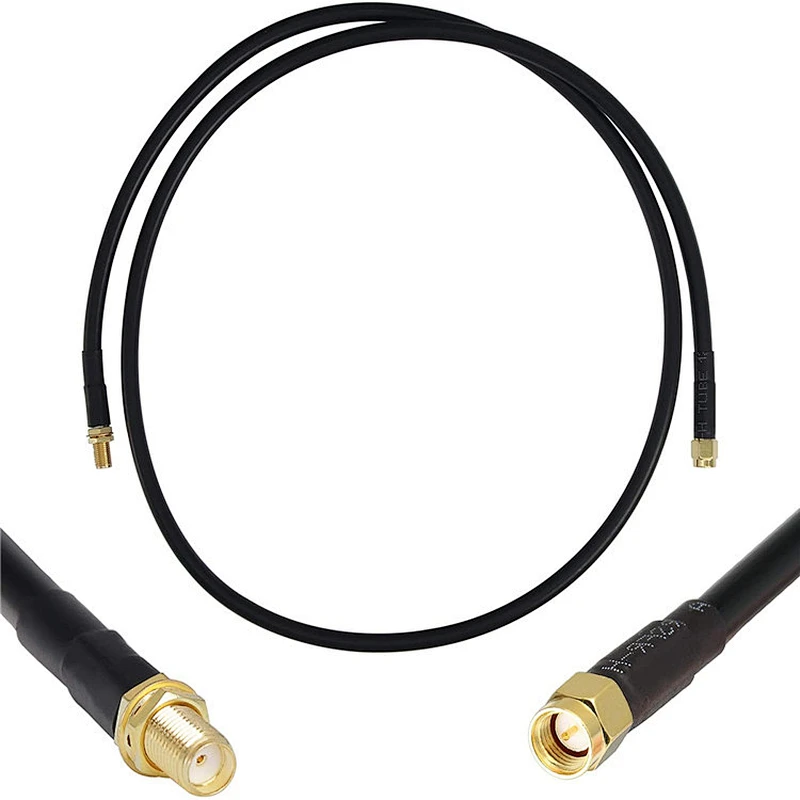

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

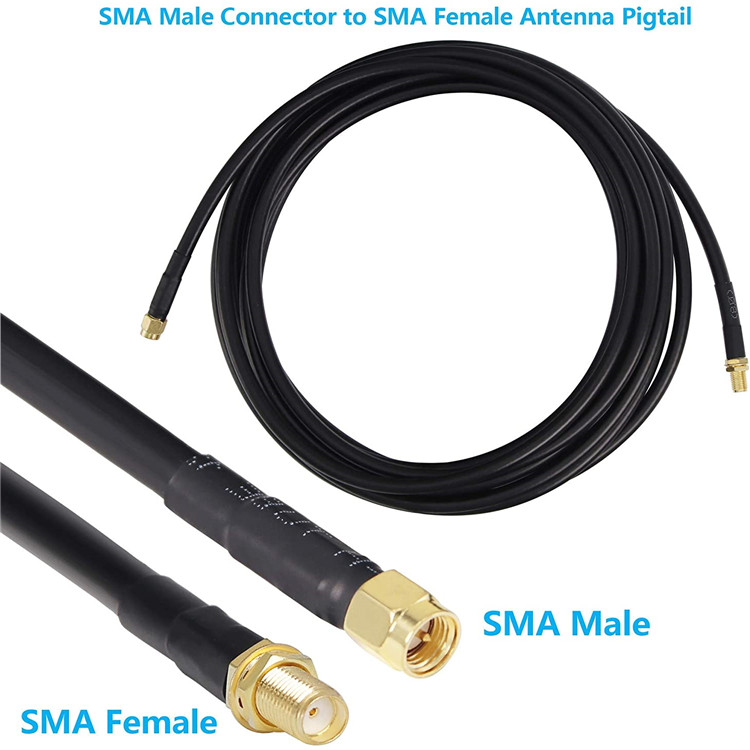

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

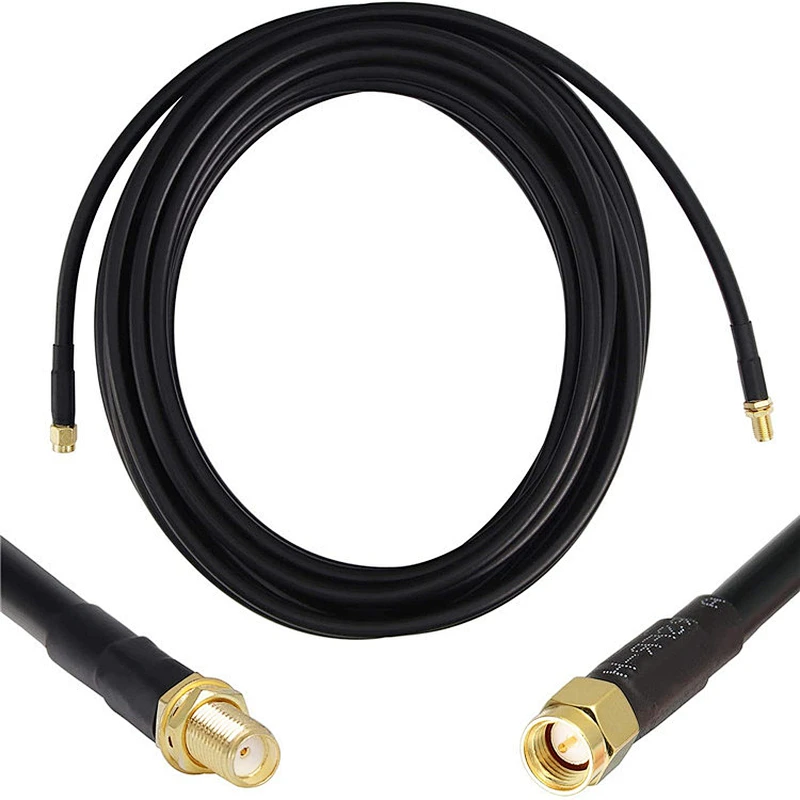

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

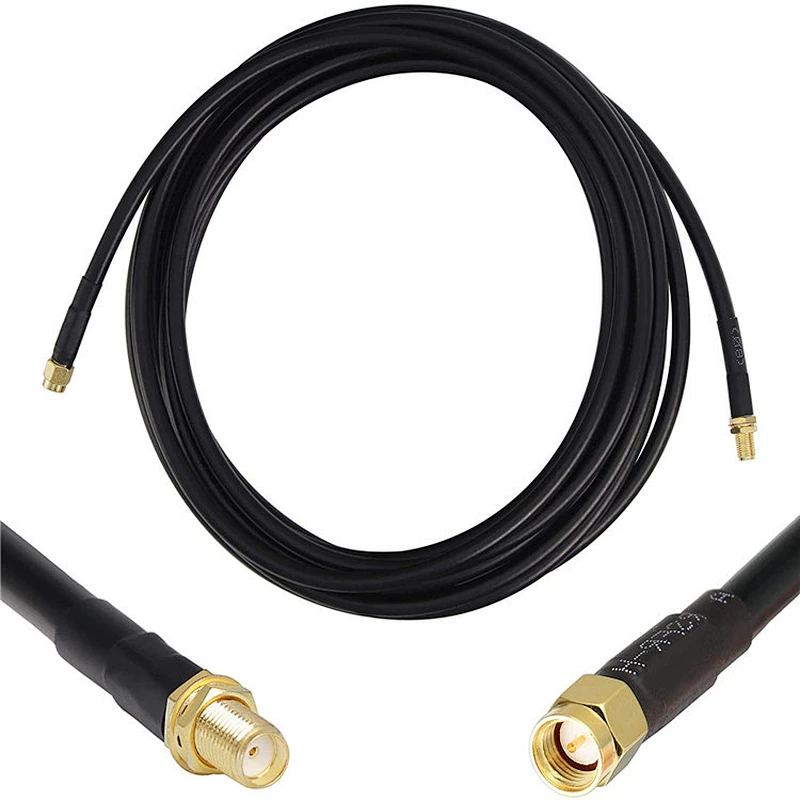

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

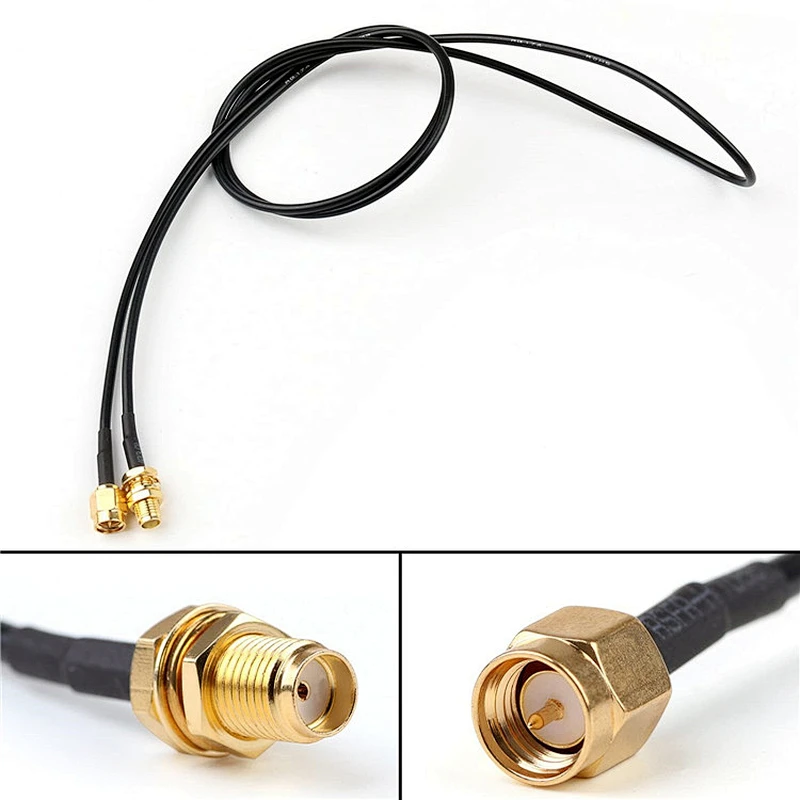

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

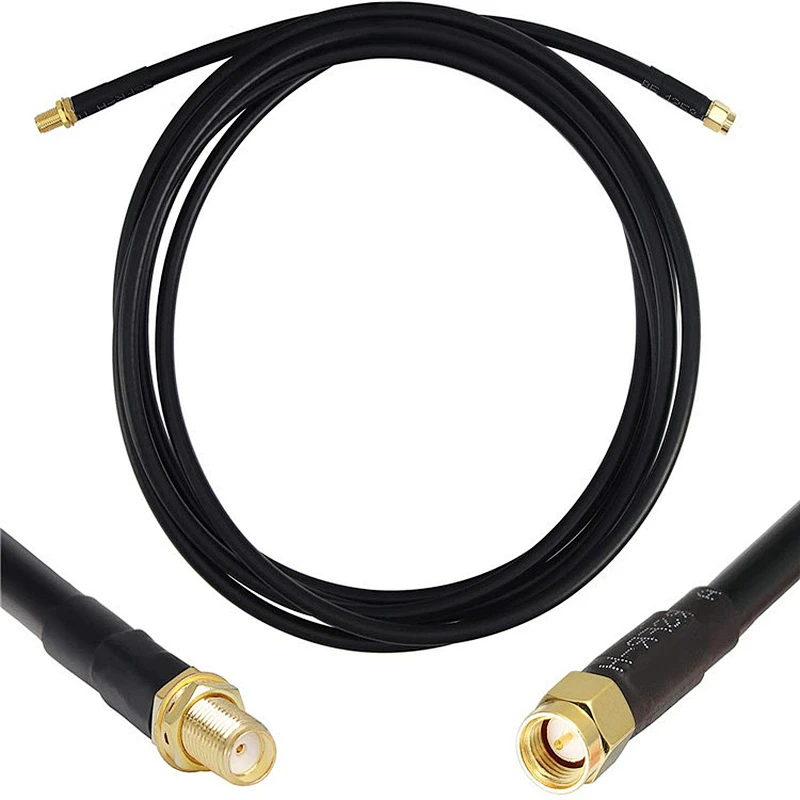

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

RG174 Cable SMA Male Plug to SMA Female Jack Bulkhead Coax Pigtail Plug J

Model NO.:
HSB-SMAM174SMAF
Delivery:
  • Product Name:RG174 SMA Coaxial Cable
  • Frequency Range:DC-6GHz
  • Material:Copper
  • Impedance:50Ω
  • Connector Type:SMA Male To SMA Female Connetcor
  • Voltage:1000V r.m.s at sea level
  • Insertion Loss:≤ 0.15dB/6GHz
  • Temperature Range:-55~+155°C (PE Cable -40~+85°C)
  • Packing:Plastic Bag
  • Cable length:30cm/customized
  • Number of Conductors:1
  • Place of Origin:CN;GUA
  • Brand Name:HONGSENSE
  • Model Number:HSB-SMAM174SMAF
Product Description
Specification
Product Name
Black RG174 SMA Coaxial Cable 50 Ohm SMA Male to SMA Male
Frequency Range
DC-6GHz
Output Impednace
50 Ohm
Connector A
SMA male
Connector B
SMA male
Cable Type
RG174
Cable Length
10CM or customized
Cable OD
Ø2.76
Package
Ploybag,carton
Applications
Wireless LAN Devices
Wi-Fi Radios
External Antenna Applications
Wireless OEM Applications
Wireless Infrastructure
Payment & Shipment
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.

Q:Can the connector make with another type connector?
A:Yes, we can customized connector for you, SMA serial ,MCX, Fakra, TS9, CRC9and so on.

Q: We want to have several samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, then we would charge you, and the shipping cost is paid by your side.

Q:How is the cost?
A:We would quote you the EXW price , and we can use your own courier account, such as DHL, and if you prefer to use ours and we would also quote you the shipping cost.
