28dbi 1575.42mhz Active Navigation GPS Aerial External GPS Antenna Module for Dash DVD Head Unit

Model NO.:
HSA-1575GPSG
Price:
USD 1.60-2.20 / pieces
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
shenzhen
  • VSWR:Below 2.0
  • LNA Gain-dBi:28
  • Frequency Range -MHz:1575.42
  • Installation:Magnet or Adhesive
  • Max. Power-W:50
  • Impedance-:50
  • Connector:Fakra or customized
  • Length-m:3 or customized
  • Waterproof:IP67
  • Size:50x50x16mm
  • Model Number:HSA-1575GPSG
  • Brand Name:hongsense
  • Place of Origin:CN;GUA
Specification

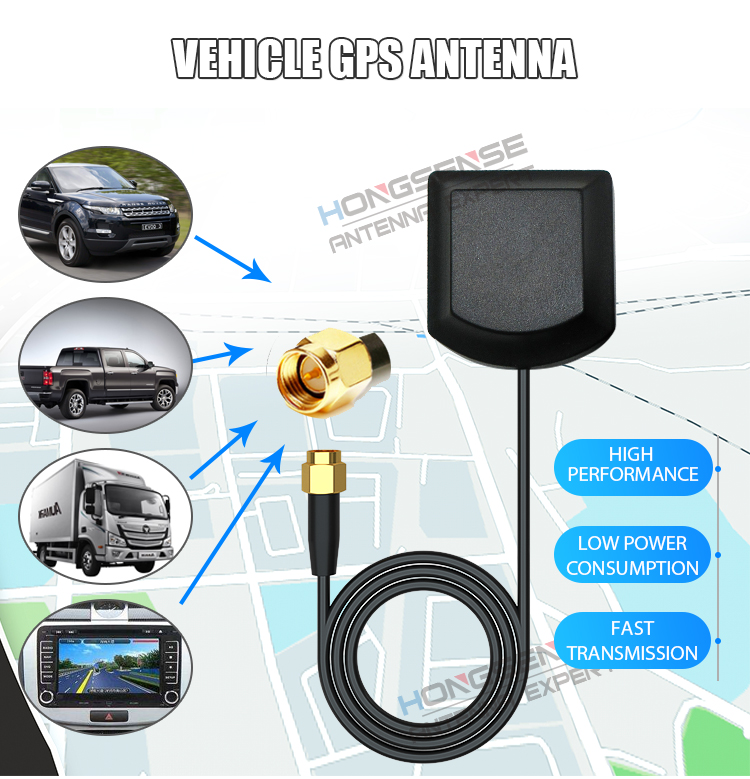

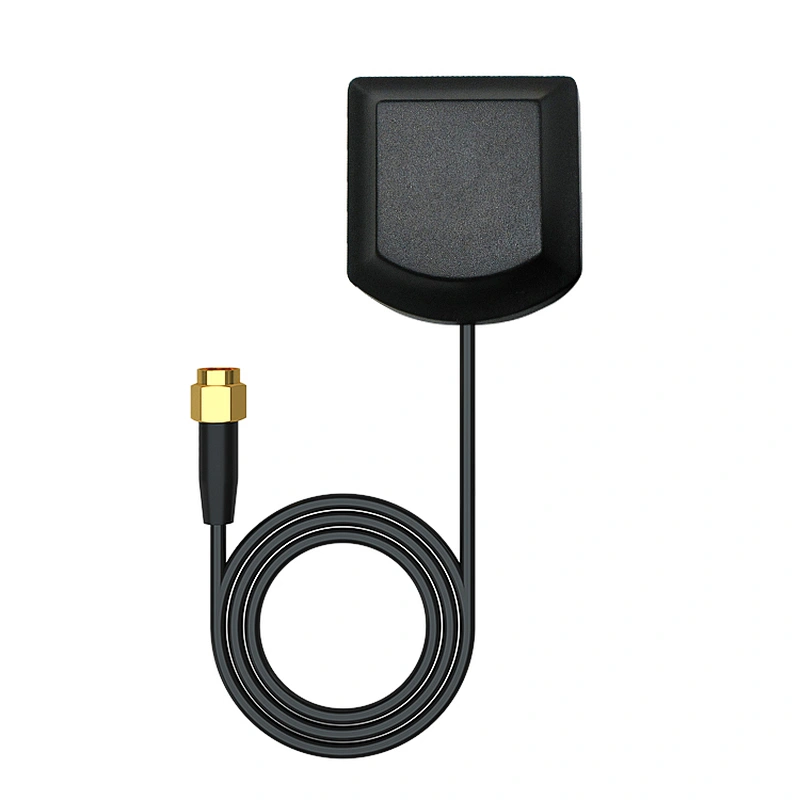

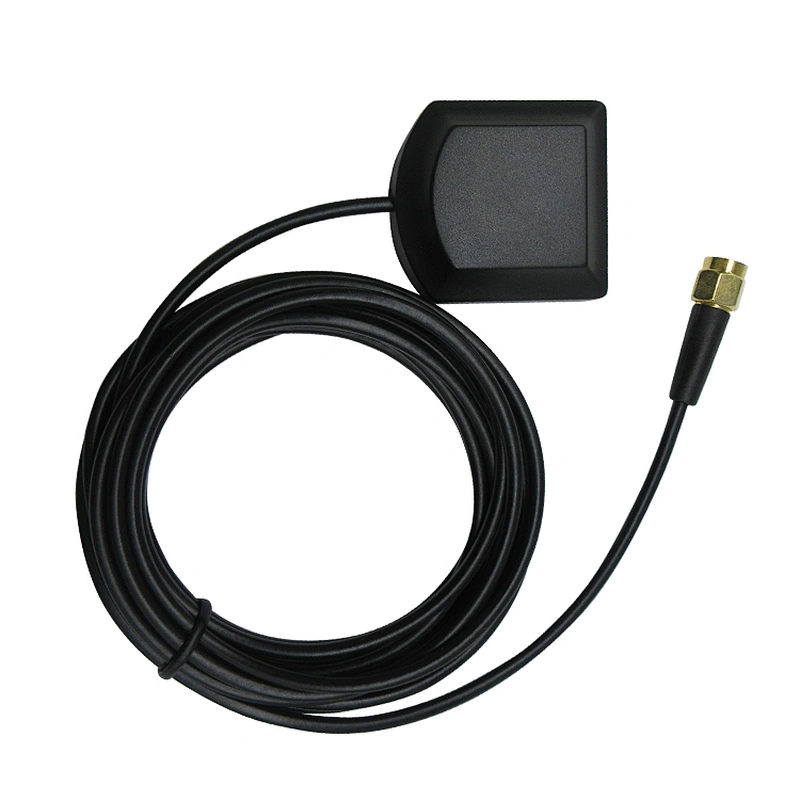

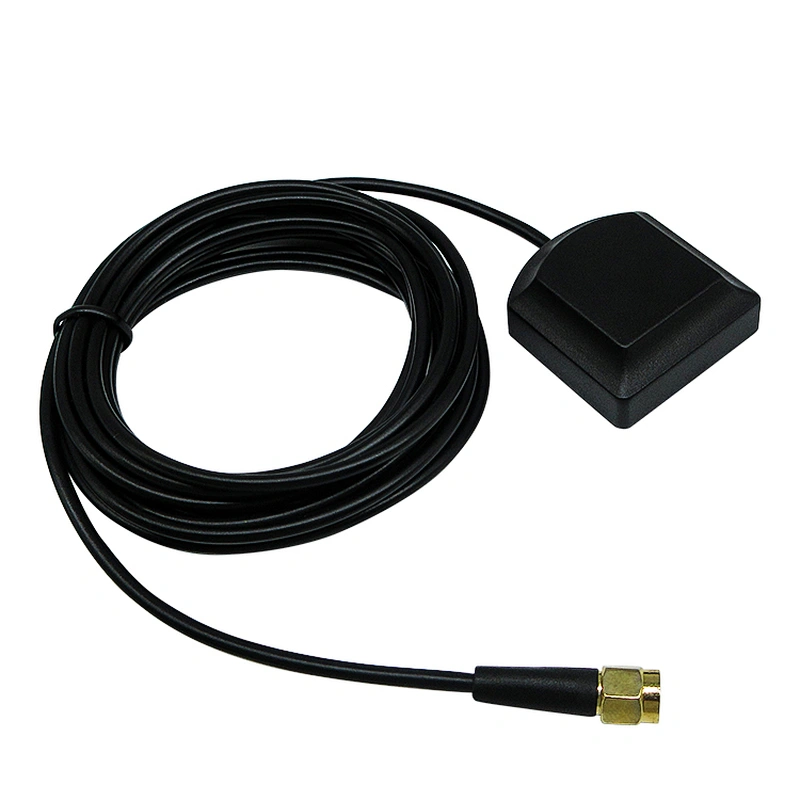

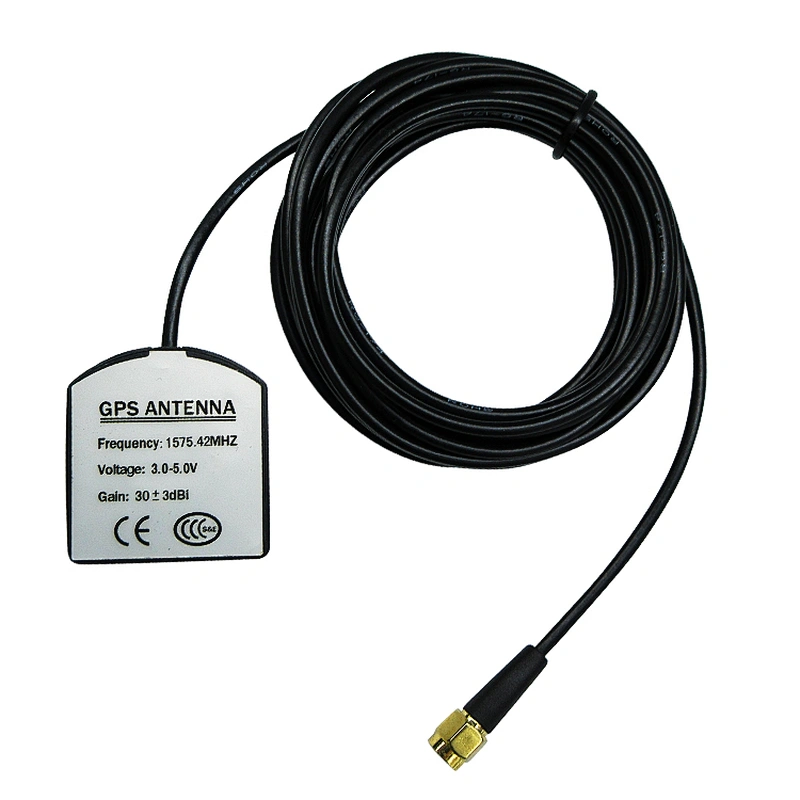

High Gain 28dBi 1575.42mhz External GPS Antenna Amplifier Car GPS Navigation Antenna
Mechanical
Model No.
HSA-1575GPSE
Center Frequency
1575.42MHz
Impendence
50Ω
Polarization
Vertical
Weight
62g

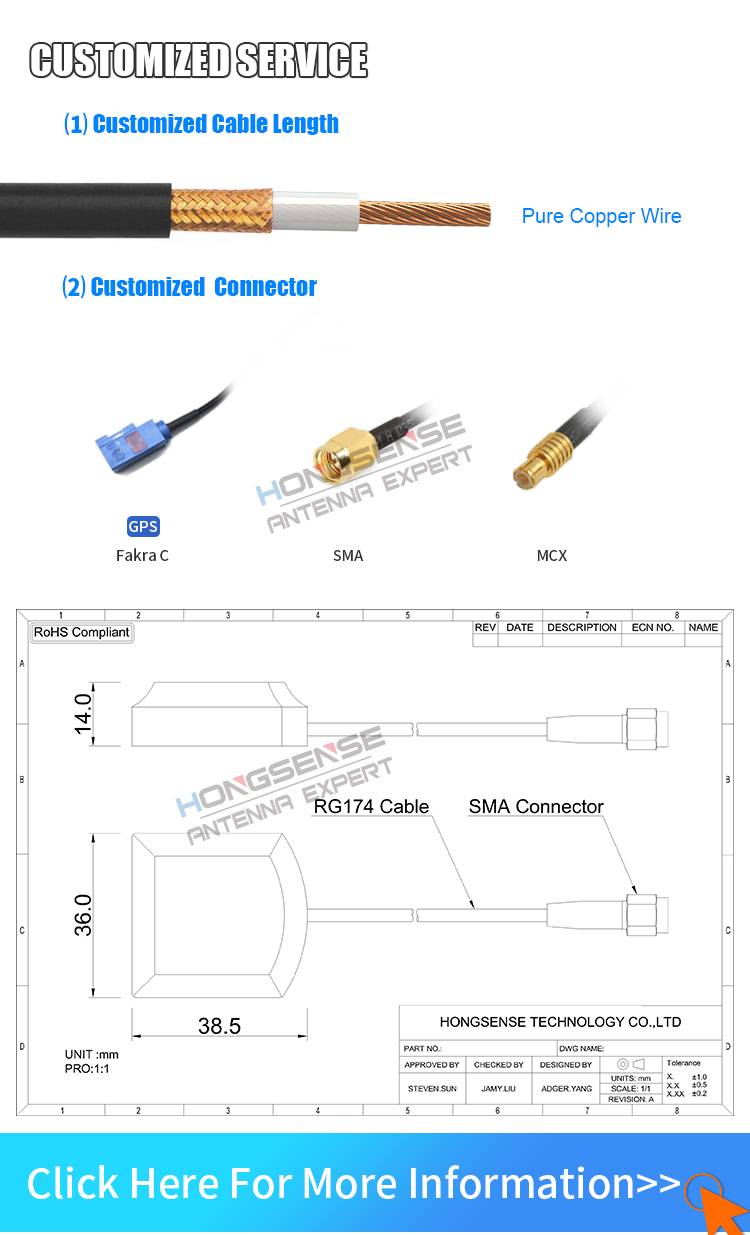

Size
39X37X15mm
Cable Type
RG174 Cable, 3 Meters (customized)
Connector
SMA Male Connector (SMB, MCX, MMCX, ect customized)

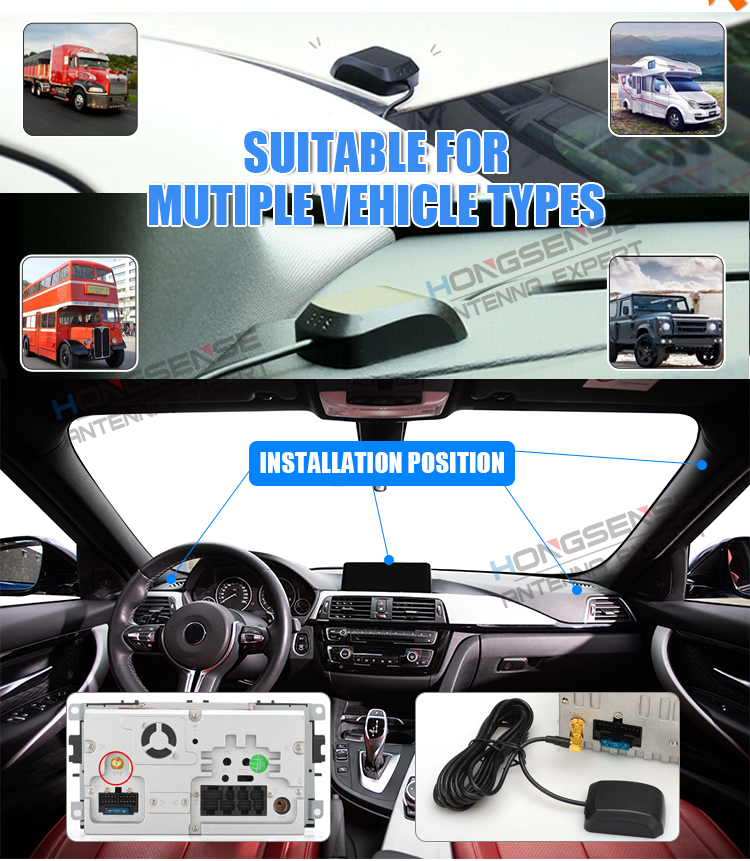

Mounting
Magnetic Mounting (Adhesive Mouting customized)
Housing
Black
LNA/Filter
LNA Gain Without Cable
28dBi
Noise Figure
2.0dB
Filter Out Band Attenuation
(f0=1575.42MHz)
Mechanical
7dB Min f0+/-20MHz;20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V.S.W.R
≤2.0
DC Voltage
3V to 5V
DC current
7-10MA
Environmental
Working Temp
-40℃~+105℃
Vibration
Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity
95%~100%
Product Description
Packing & Delivery
Package:
1.Each antenna has single PP bag,
2.100Pcs antenna in one carton,
3.Customize package for gps antenna available.

Delivery:
1.Sample order will be send in 1-3days after payment
2.2-1000pcs, Lead time is 5-7 working days,
3.1000-5000pcs,Lead time is 10-15 working days,
4.Over 5000pcs,lead time is 15-25 working days,
Parcel will be sent by DHL/UPS/Fedex/EMS or customers own shipping agent.
Company Profile
Shenzhen Hongsense Technology Co., Ltd. is a company engaged in the communications antenna research and development, production, sales, professional services in one of the professional high-tech enterprises, Company Hongsense (Hong Kong) Co., Ltd. is a branch in the overseas markets. The company has the full import of the ISO9001:2000 international quality system certification, mainly products are GPS navigation antennas,Security Series antennas,3Gmobilecommunications antennas, microwave antennas, wireless antennas, car antennas, digital television antennas
Why Choose us?
1) .We accept OEM ODM OBM service,We are Antenna manufacture more than 7 years experience

2) .We can customized connector and cable length for you

3). We test every product before we send it to our customer.

4). We have different frequencies and gains according to different types of antenna.

5).Hongsense has been qualify by third party and awarded"Gold Supplier"in Alibaba Group company.

6 ) Hongsense is an officially registered company in China.

7). Special team for after-sales service and technical support

8). Hongsense accept Payment by TT, PAYPAL and Western Union etc.( protect your benefits ).

9). Customer satisfaction is our pursuit.
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Indoor Antenna,Outdoor Antenna,GPS,RF Cable,RF Connector

4. why should you buy from us not from other suppliers?
"pragmatic integrity, Best service", all the hongsense staff will wholeheartedly provide you with the most high-quality products and excellent service, and sincerely hope to cooperate with clients for a better future.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Korean
