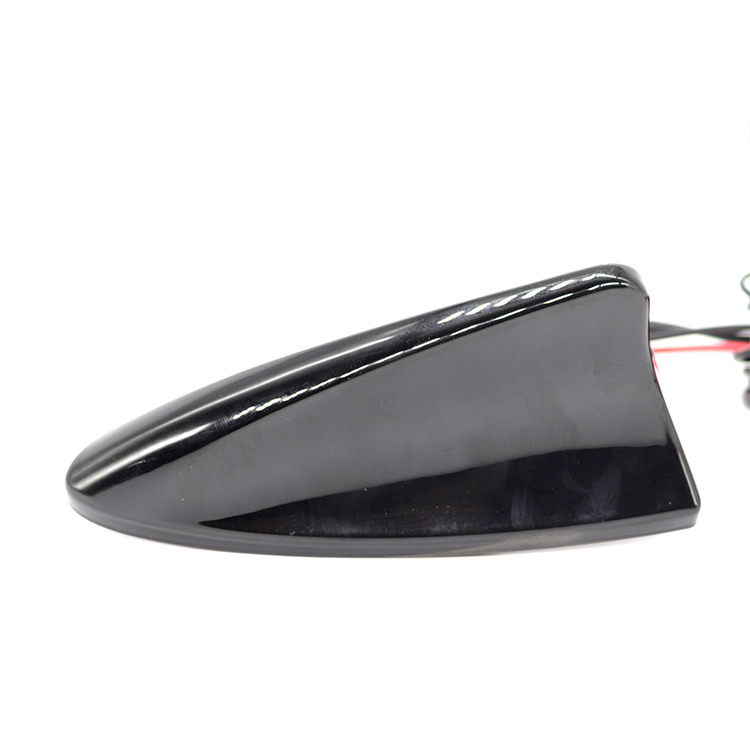

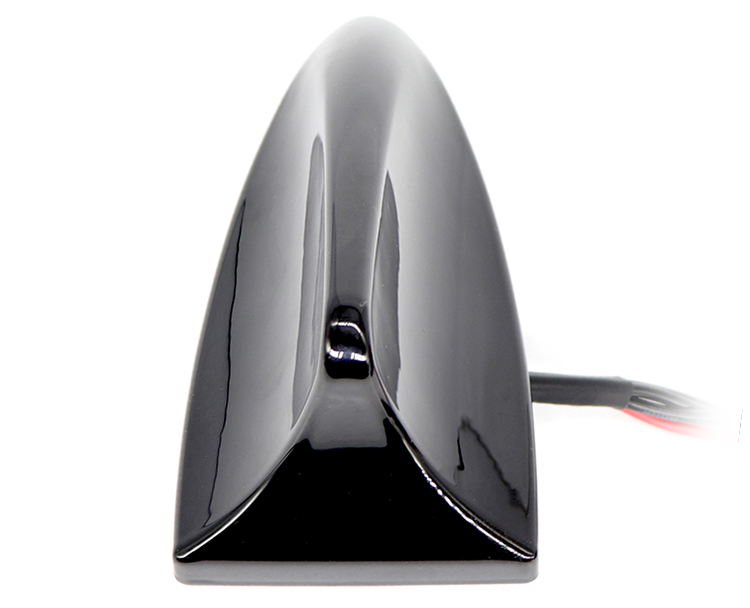

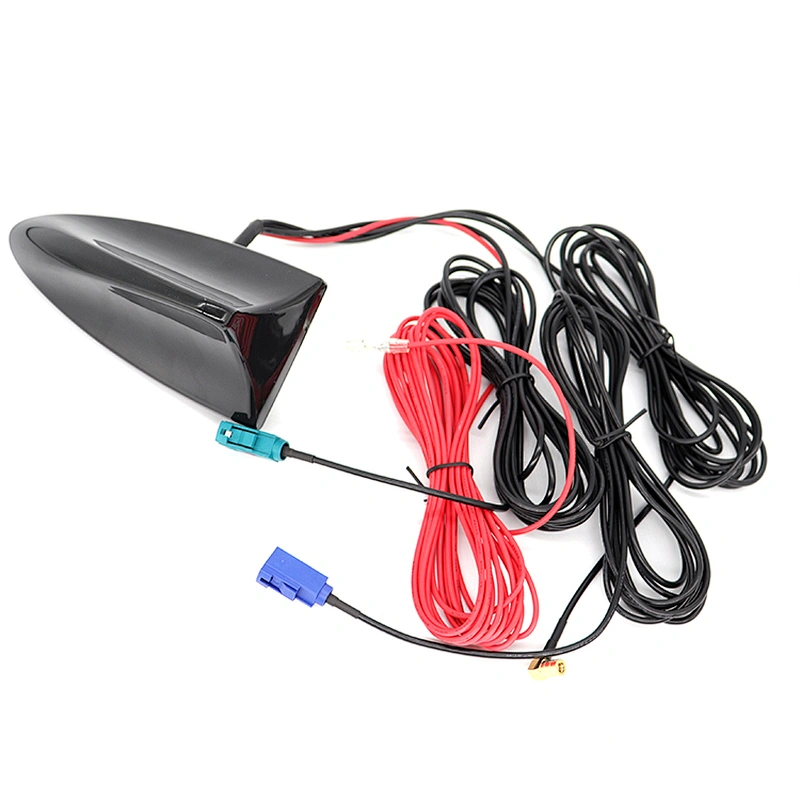

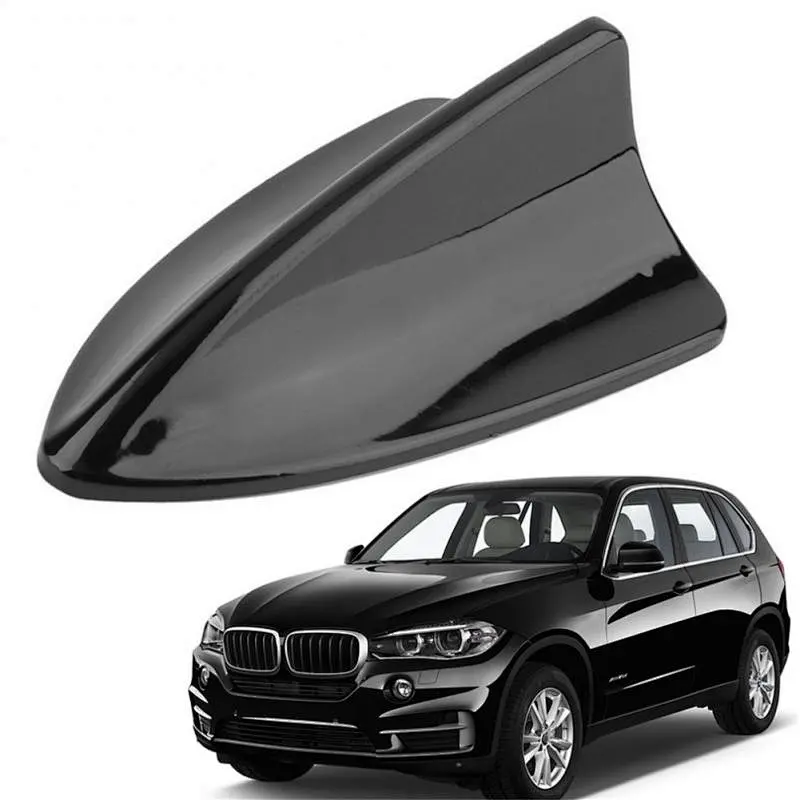

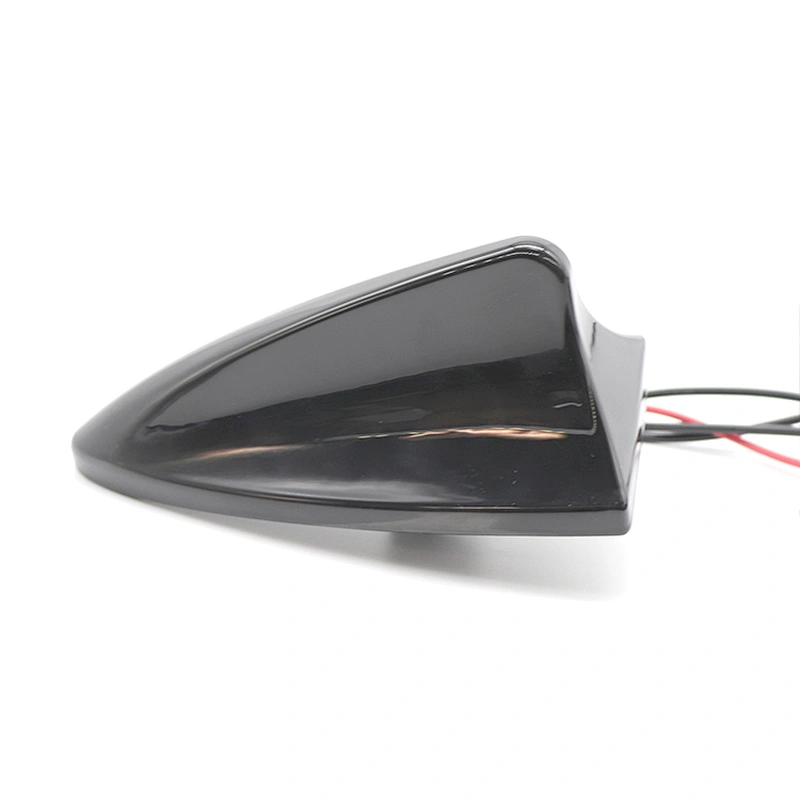

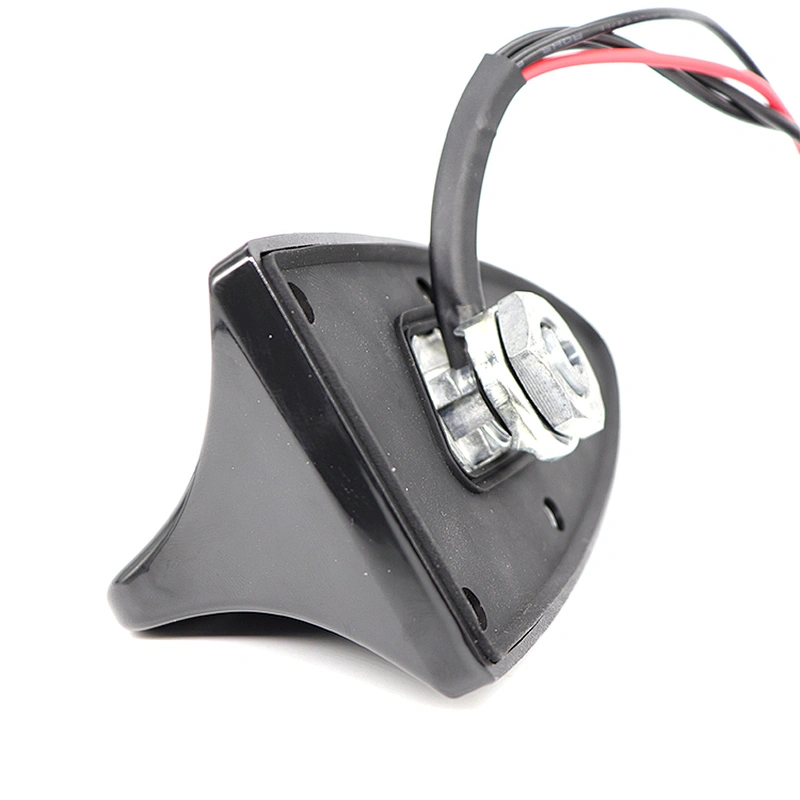

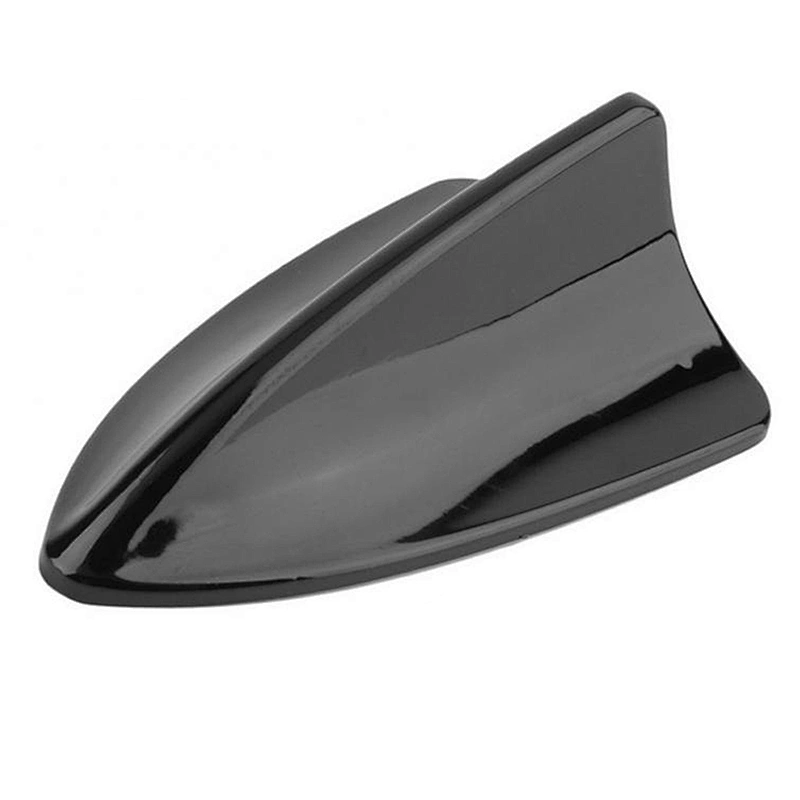

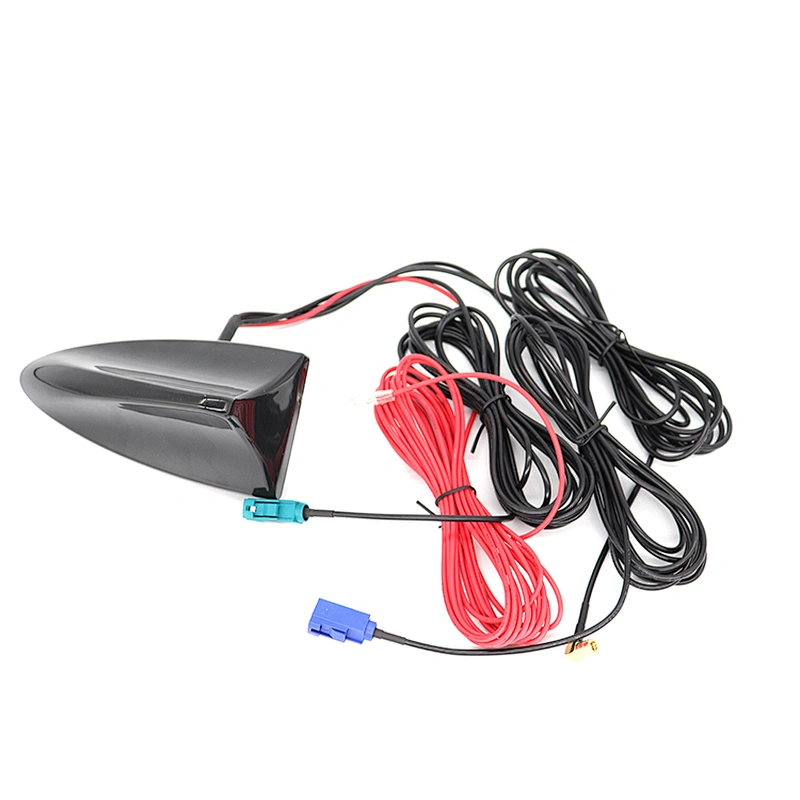

Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna
Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna
Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna
Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna
Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna
Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna
Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna

Car Top Mount Shark Fin DAB+AM+FM+GPS+GNSS Antenna Universal Sticker Combo Antenna

Model NO.:
HSA-CGPSK
Price:
USD 11.99-14.99 / pieces
Delivery:
Minimum order quantity:
10 pieces
Supply Ability:
5000.0 pieces / Day
Country of Origin:
Shenzhen
  • Product Name:GPS+GNSS+DAB+AM+FM Combo Antenna
  • Frequency Range:GPS&GNSS&DAB&AM&FM
  • Gain:28dBi
  • Impedance:50Ω

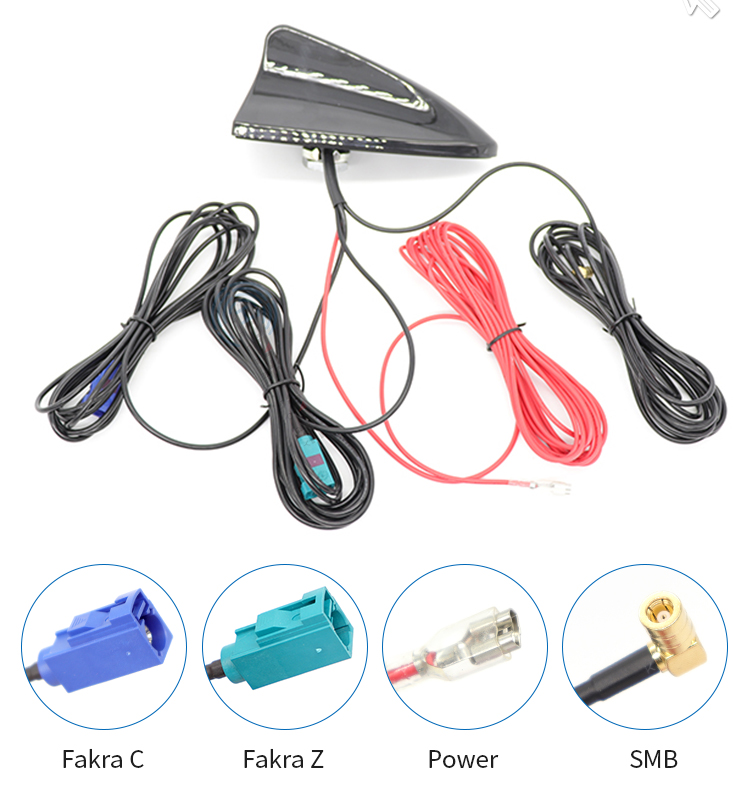

  • Connector:SMA/Fakra or Customized
  • VSWR:≤2.0
  • Cable Length:3M or customized
  • Waterproof:IP67
  • Weight:187g
  • Size:145mm*67mm*57mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-CGPSK
Product Description

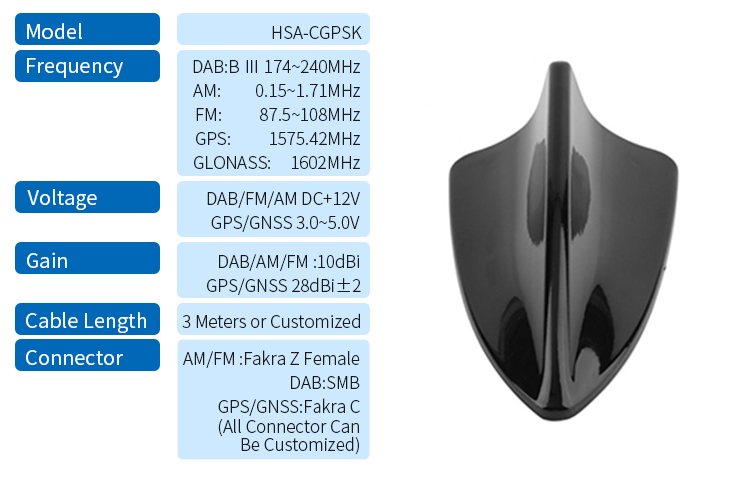

Specification
Model
HSA-CGPSK
Product Name
GPS+GNSS+DAB+AM+FM Combo Antenna
Frequency Range
DAB: 174-240MHz
AM: 0.15-1.71MHz
FM: 87.5-108MHz
GPS: 1575.42MHz
GNSS: 1602MHz
Gain
28dBi
Impedance
50Ω
Connector
SMA/Fakra or Customized
VSWR
≤2.0
Polarization
Vertical
Cable Type
RG174
Cable Length
3M or customized
Waterproof
IP67
Max. Power
50W

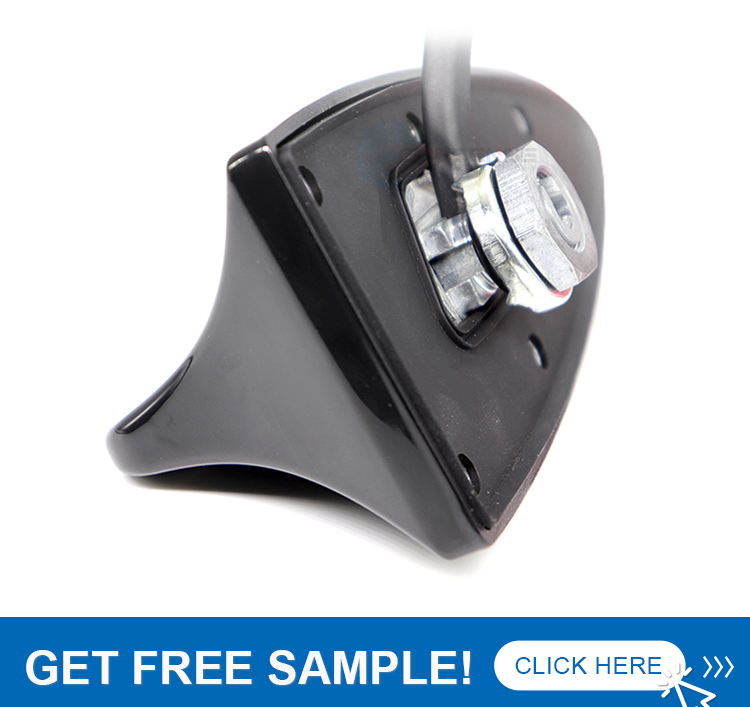

Installation
Adhesive
Operation Temperature
-40~+60℃
Humidity
5~95%
Weight
187g

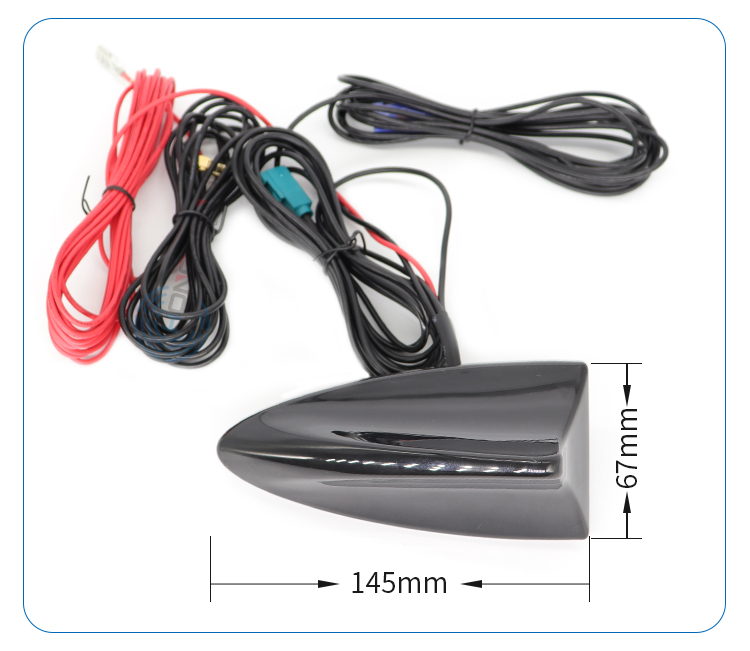

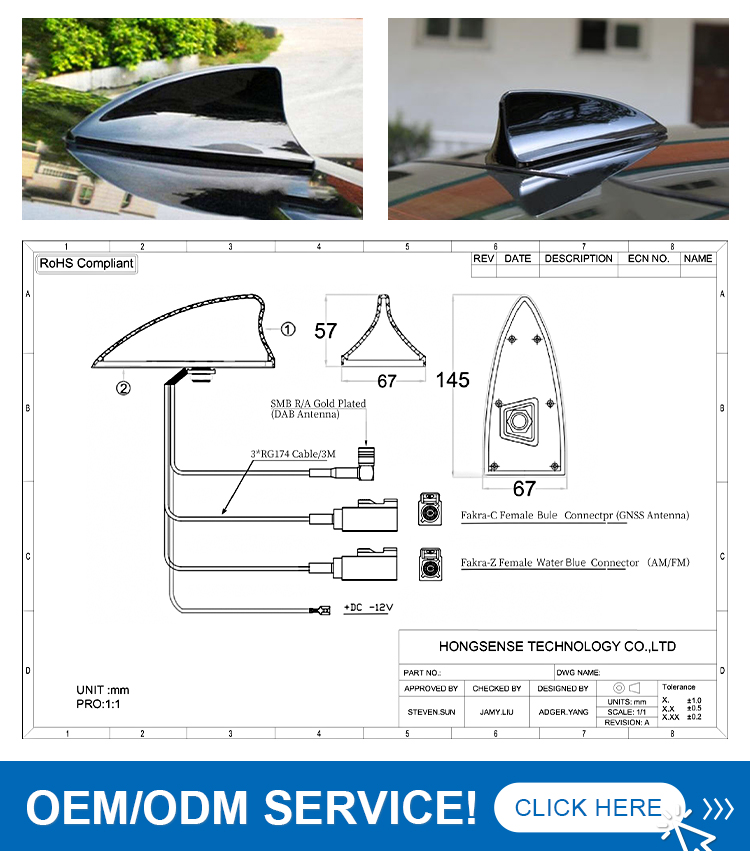

Size
145mm*67mm*57mm
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose Us
FAQ
Q: What type of antenna your company have?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?
A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?
A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?
A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?
A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?
A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
