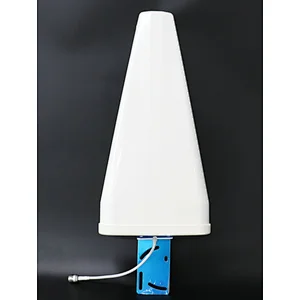

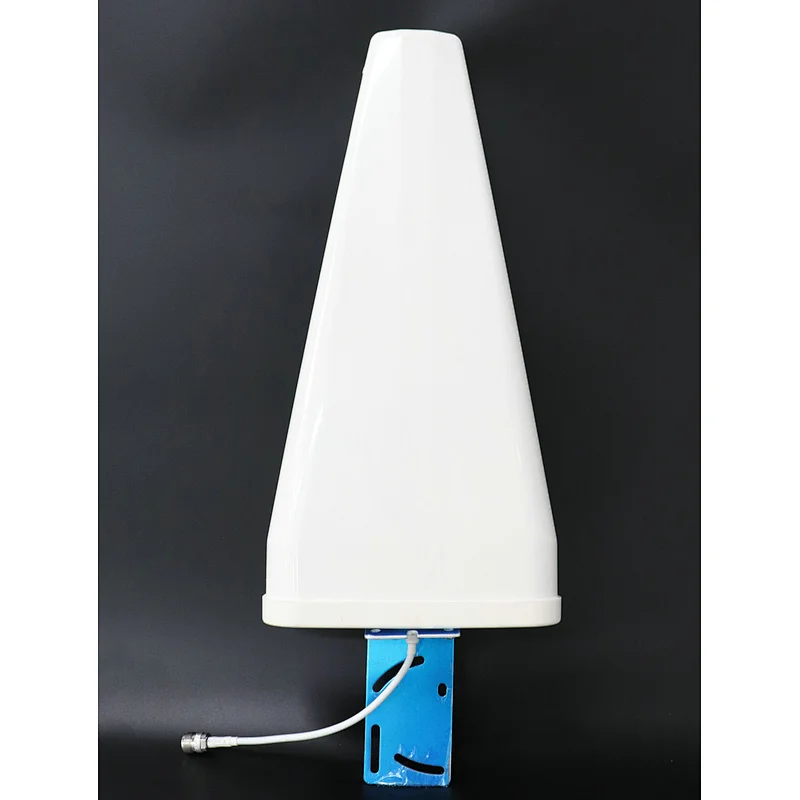

Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular
Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular

Directional Lpda 600-3800MHz 5G Log Periodic Signal Booster Antenna for Verizon Sprint T-Mobile AT&T U.S.Cellular

Model NO.
HSA-0638LPA
Price:
USD 8.49-10.49 / piece
Minimum order quantity:
1 piece
Supply Ability:
5000.0 piece / Week
Country of Origin:
Shenzhen
Quantity:
  • Name:5G LPDA Antenna
  • Gain:12dBi
  • VSWR:≤2.0
  • Input Impendence (Ω):75
  • Net weight:604g
  • Frequency Range:600-3800mhz
  • Size-mm:440*215*64

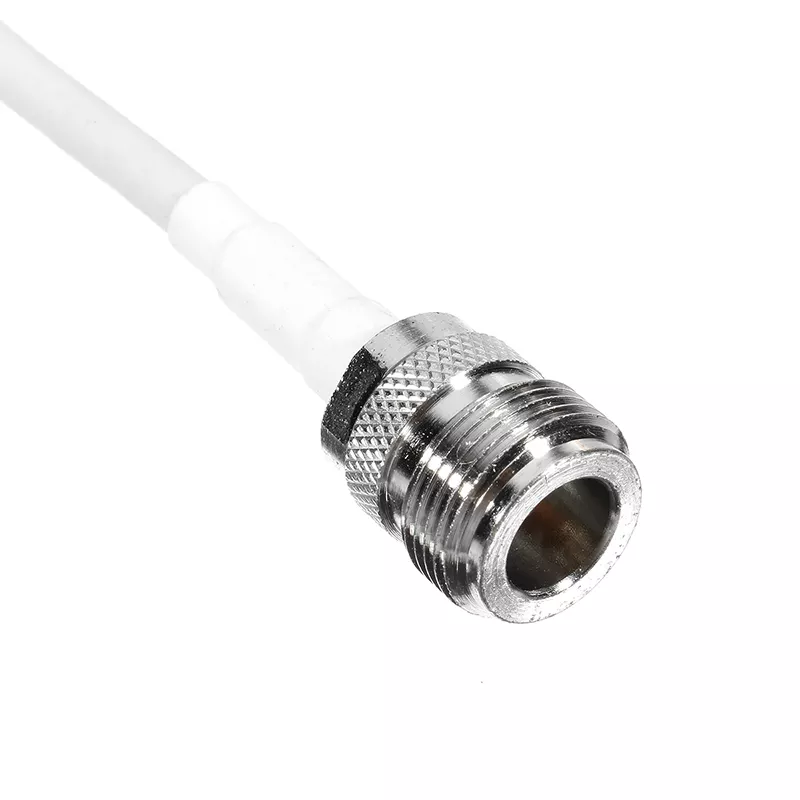

  • Connector:N Female
  • Color:White
  • Max Power:50
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-0638LPA
Product Details

Product Features
Electrical
Frequency Range(MHz)
600-3800MHz
Gain(dBi)
12
VSWR
≤2.0
Polarization
Vertical

PIM, 3rd Order, 2x20W
≤-140/-150 dBc
Front to Back Ratio
≥15 dB
Horizontal Beam width
70°
Vertical Beam width
60°
Input Impedance
50 Ω
Max. Input Power
50 W
Lightning Protection
DC Ground
Mechanical
Connector Type
N Female

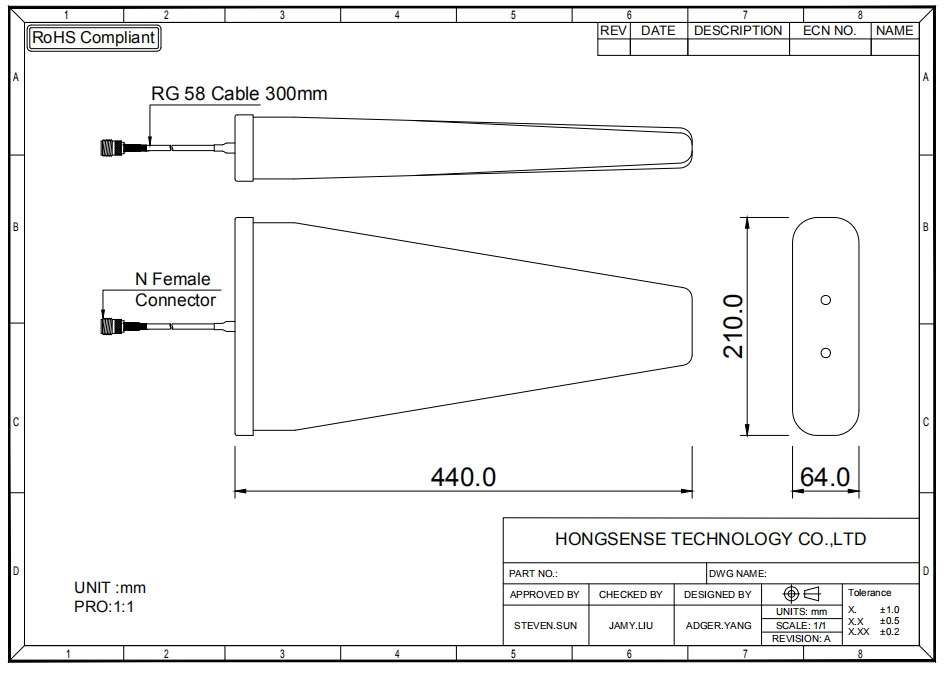

Dimensions
44*21.5*6.4cm
Weight
2.5kg
Radome Material
ABS (UV Stabilized)
Reflector Material
Copper
Cable
RG58, 60cm
Color
White
Operating Temperature
-40°C to +65 °C
Mounting Pole
Ø38-Ø52 mm
Rated Wind Velocity
210 km/h
Package
52*25*10cm

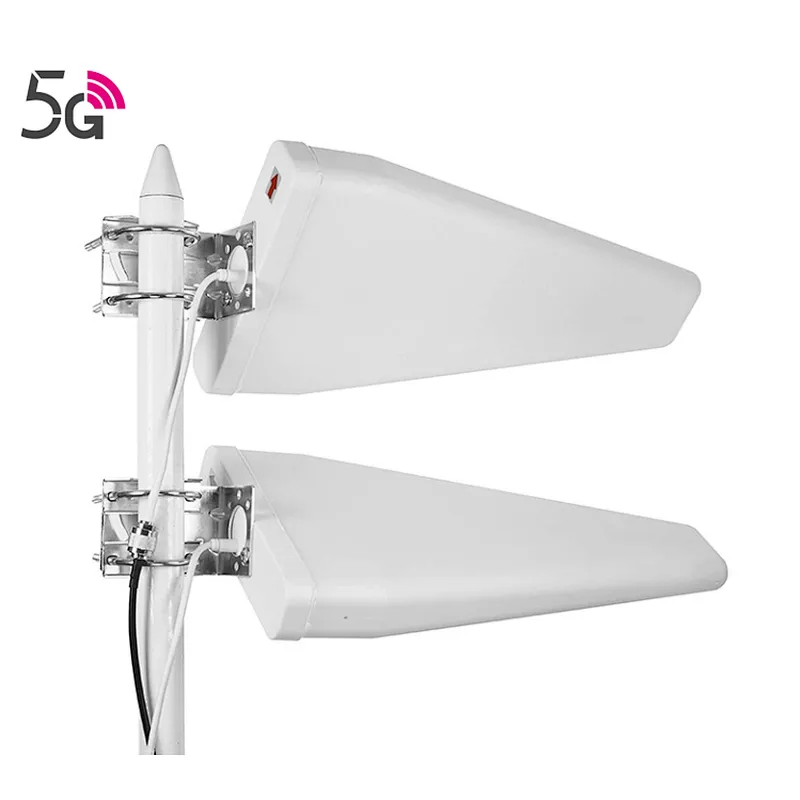

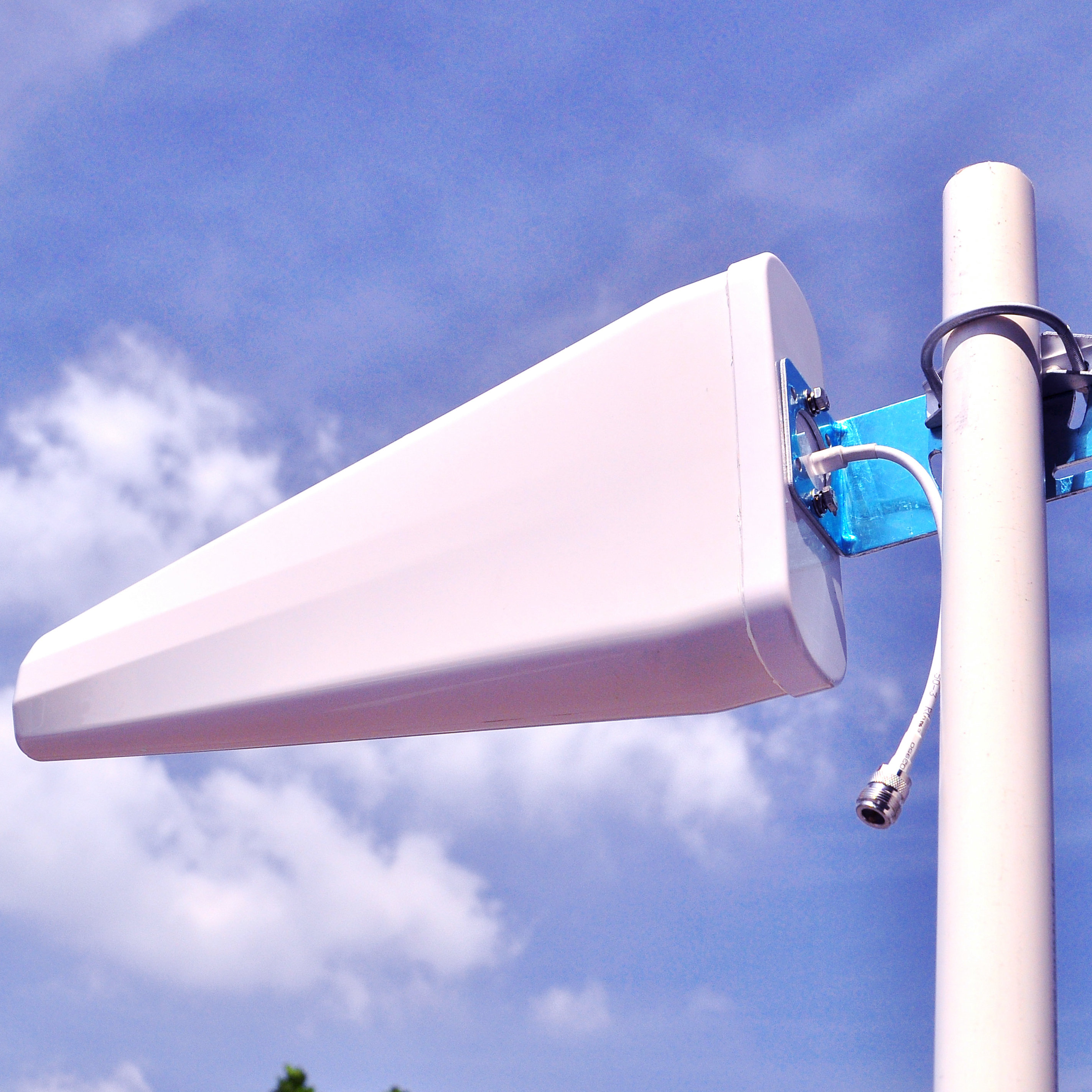

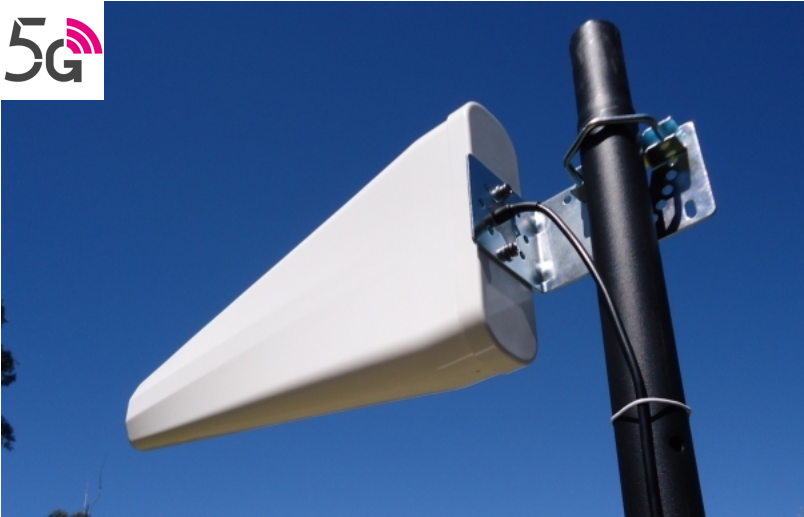

HSA-0638LPA is a 5G lpda antenna has been designed for maximum performance. It has a high-gain directional outdoor antenna with a range of up to 30 miles for the most remote signal booster applications. The Ultra-Wideband outdoor antenna transmits and receives signal directionally.

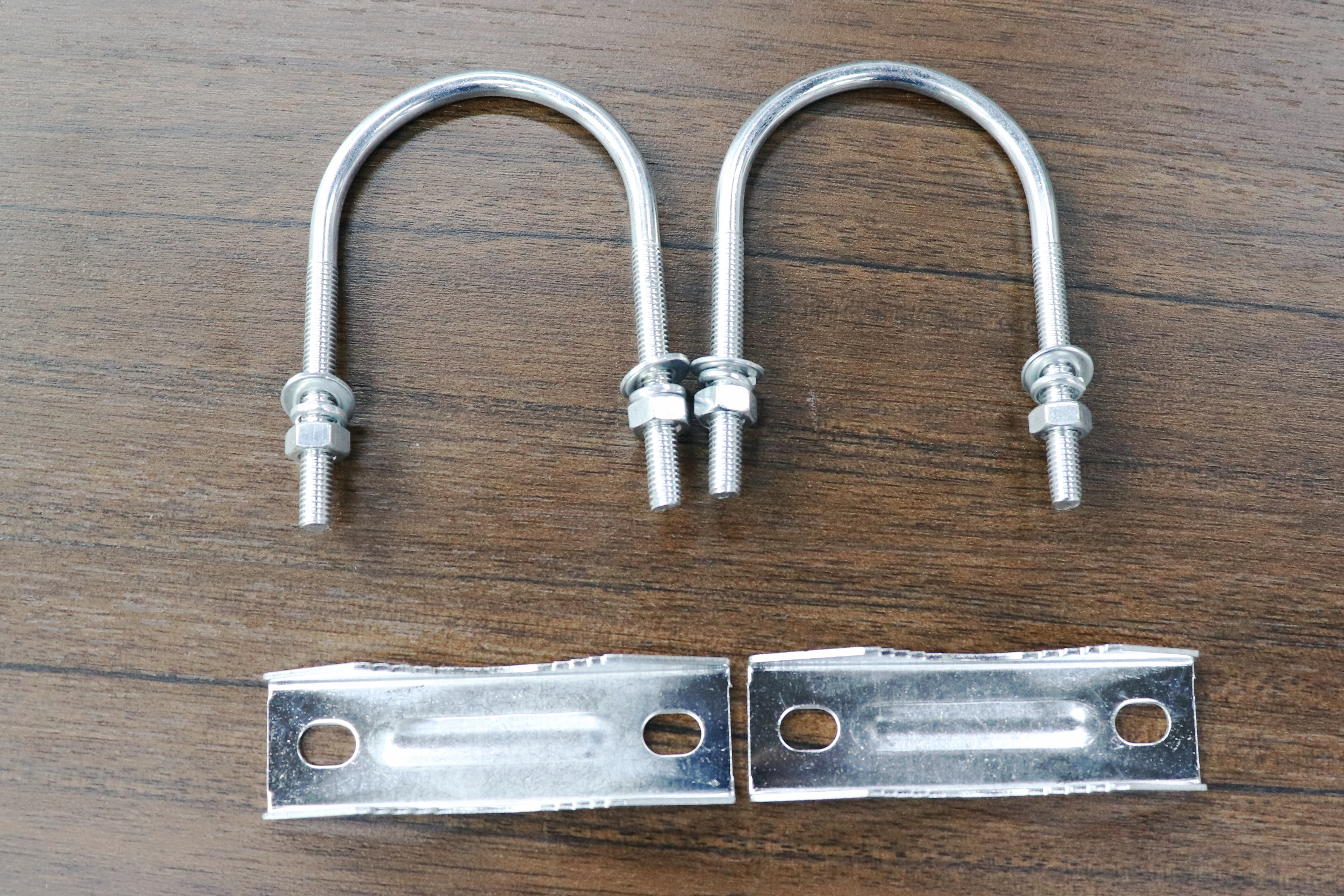

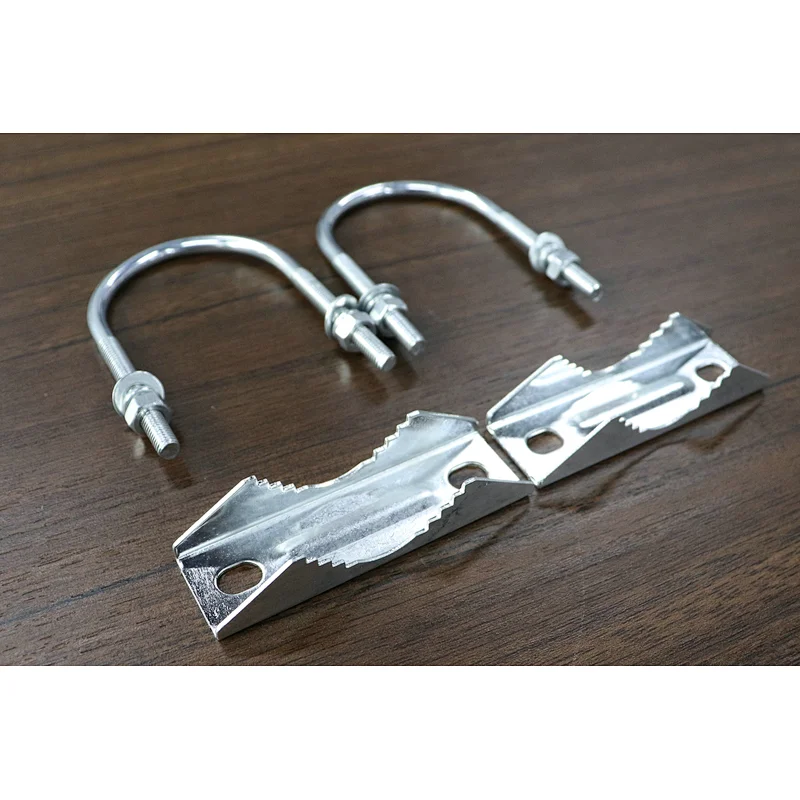

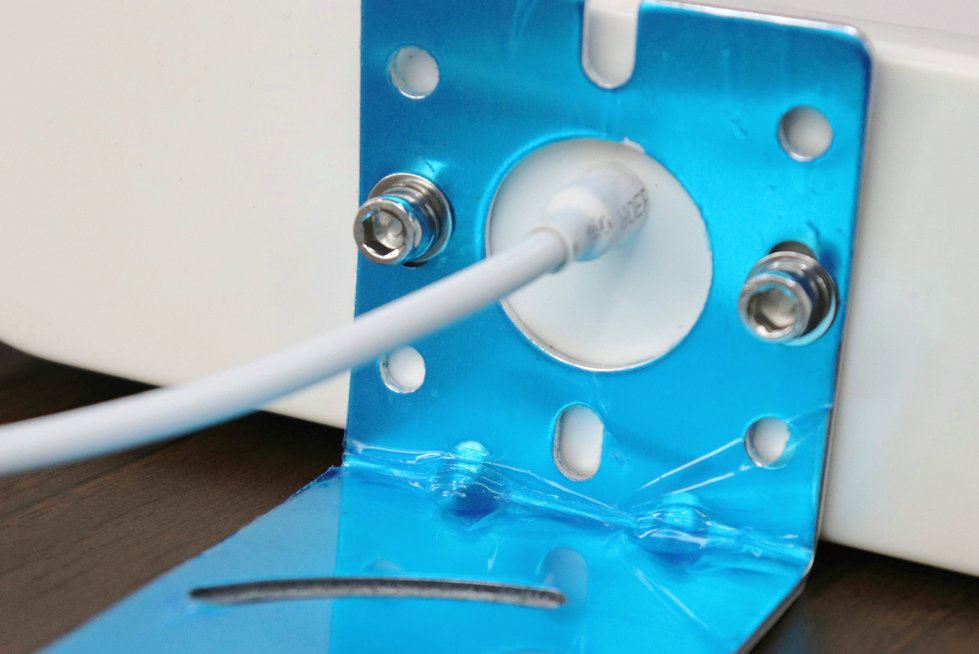

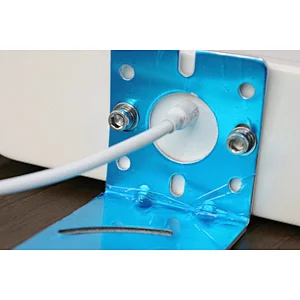

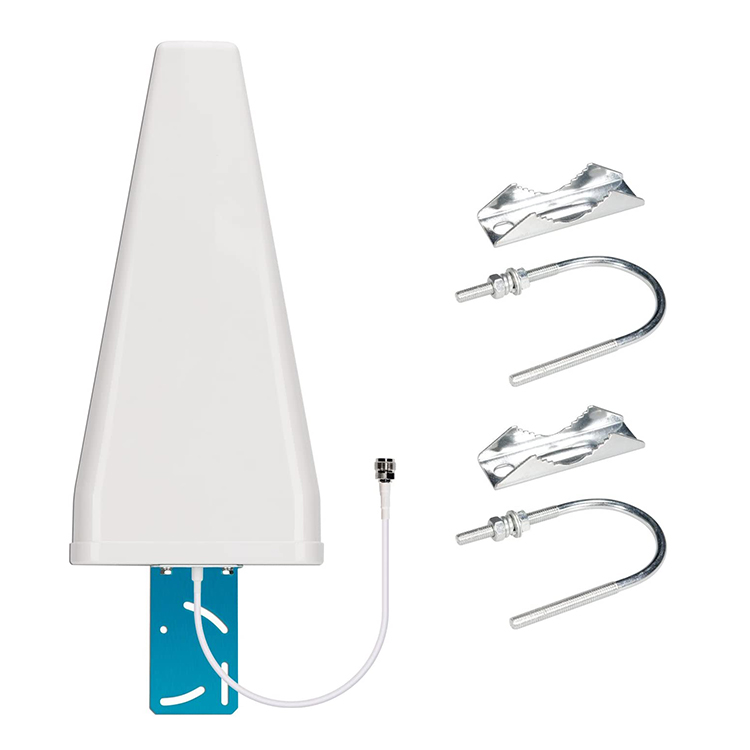

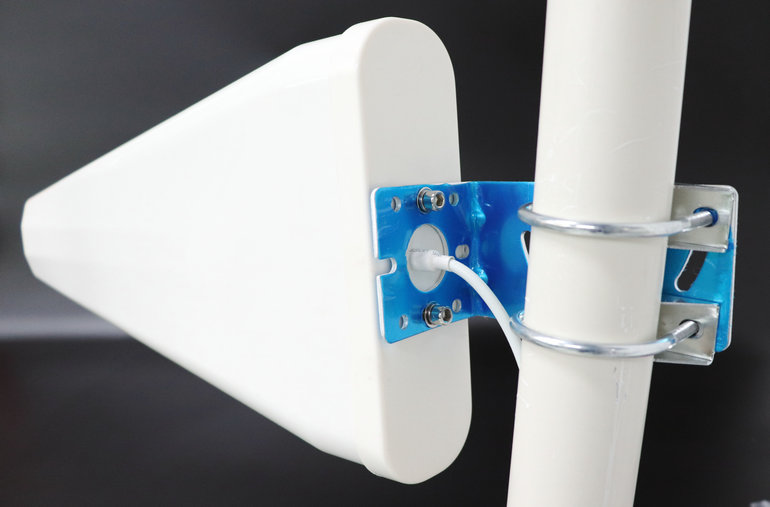

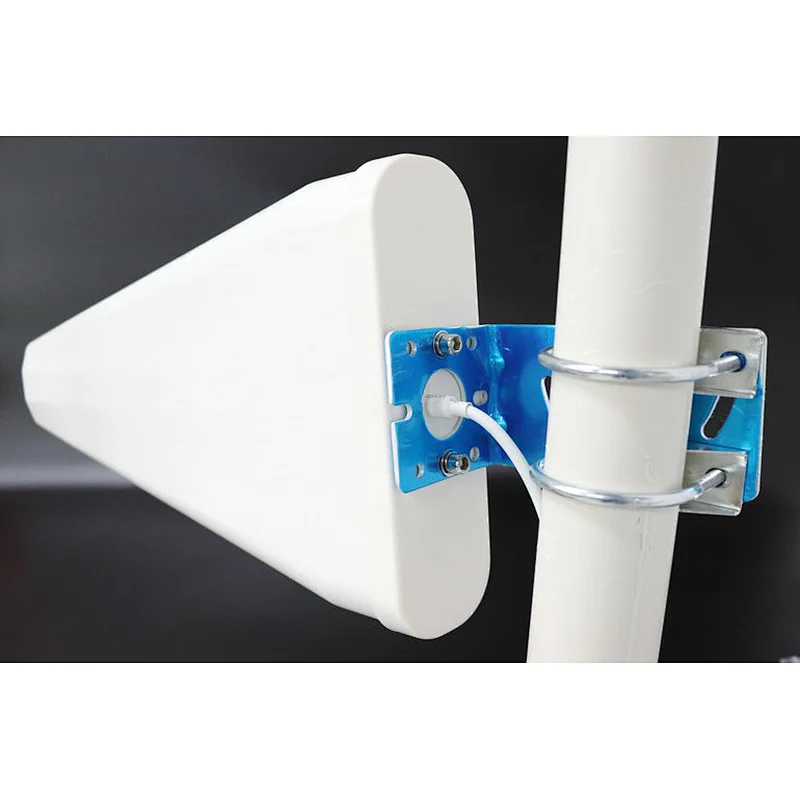

It has been designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. It has N-Female connector. Impedance: 50 Ohm. Ultra-Wideband: 617 -2700 MHz. 5G Band 71 compatible that includes T-Mobile 5G Sub-6 Frequency; Includes mounting hardware - U-bolts come with the lpda antenna and will fit any 1.25 inch to 2 inch diameter pole (not included).
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your company MOQ?
A: One pcs for sample is acceptable.

Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q: We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime. The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
