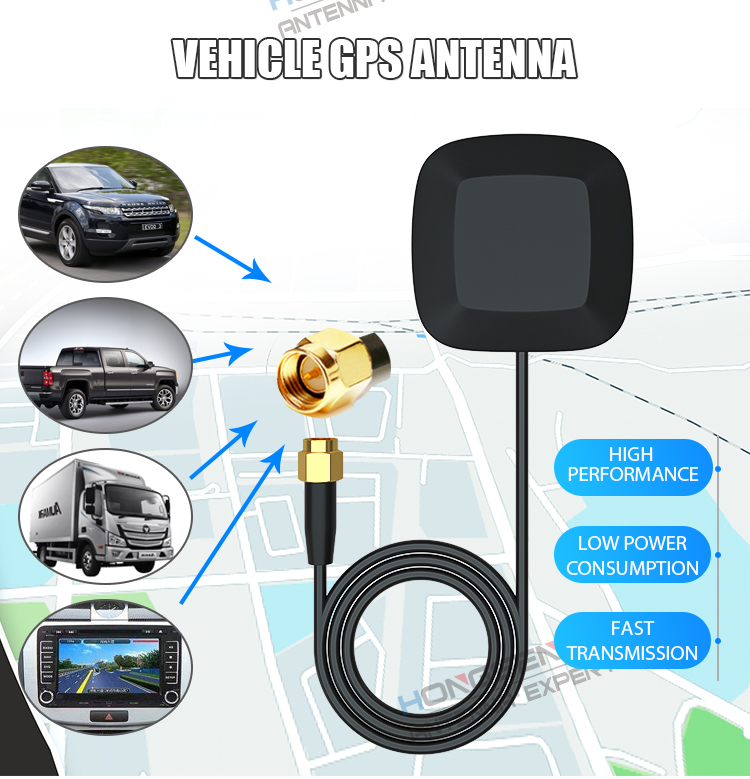

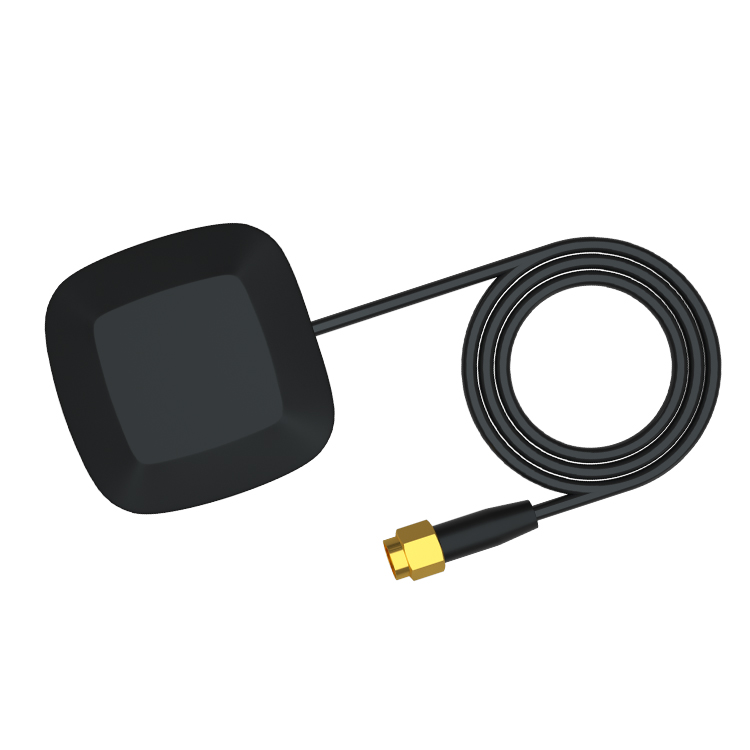

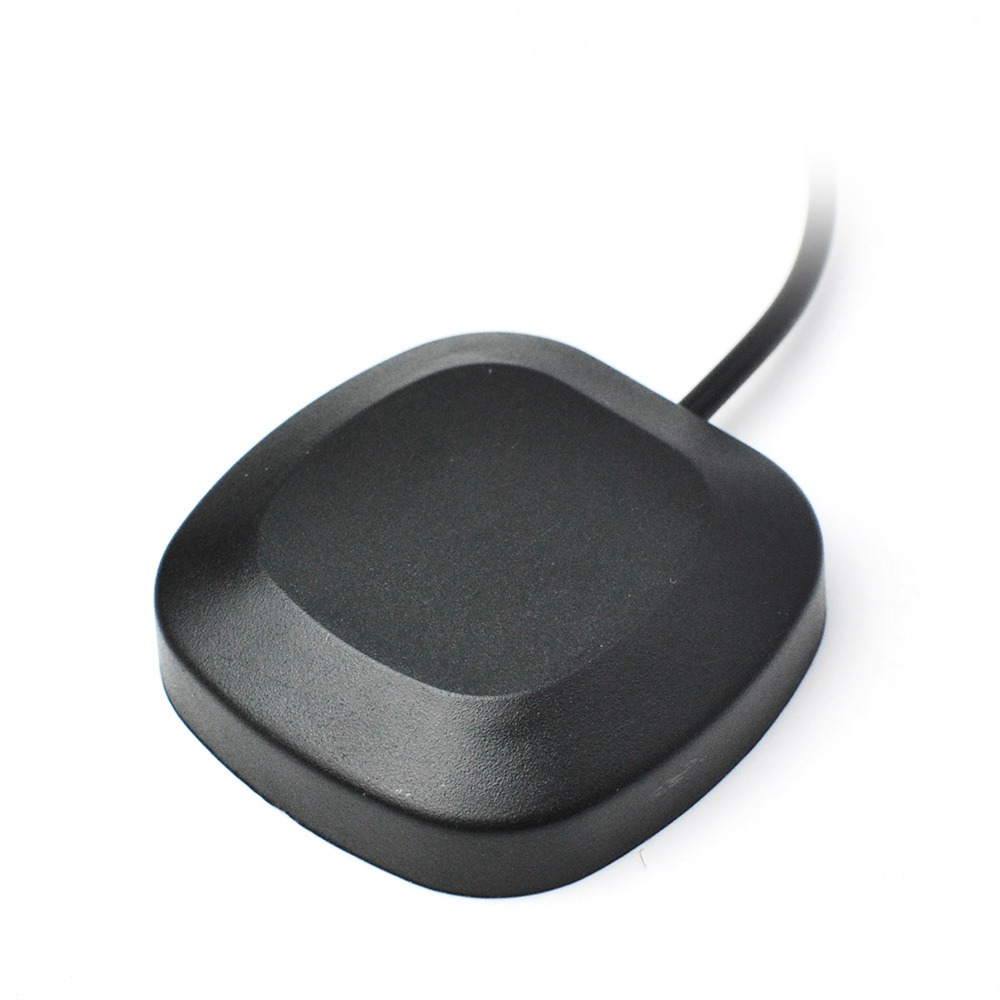

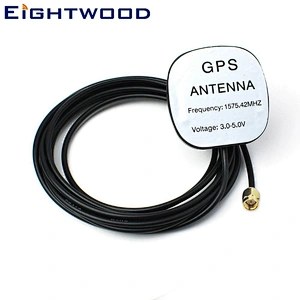

Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna
Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna

Waterproof Active 28dBiGPS Navigation Antenna Patch 1575.42 MHz Antenna

Model NO.
HSA-GPSF
Price:
USD 1.45-2.19 / pieces
Minimum order quantity:
50 pieces
Supply Ability:
10000.0 pieces / Day
Country of Origin:
Shenzhen
Quantity:

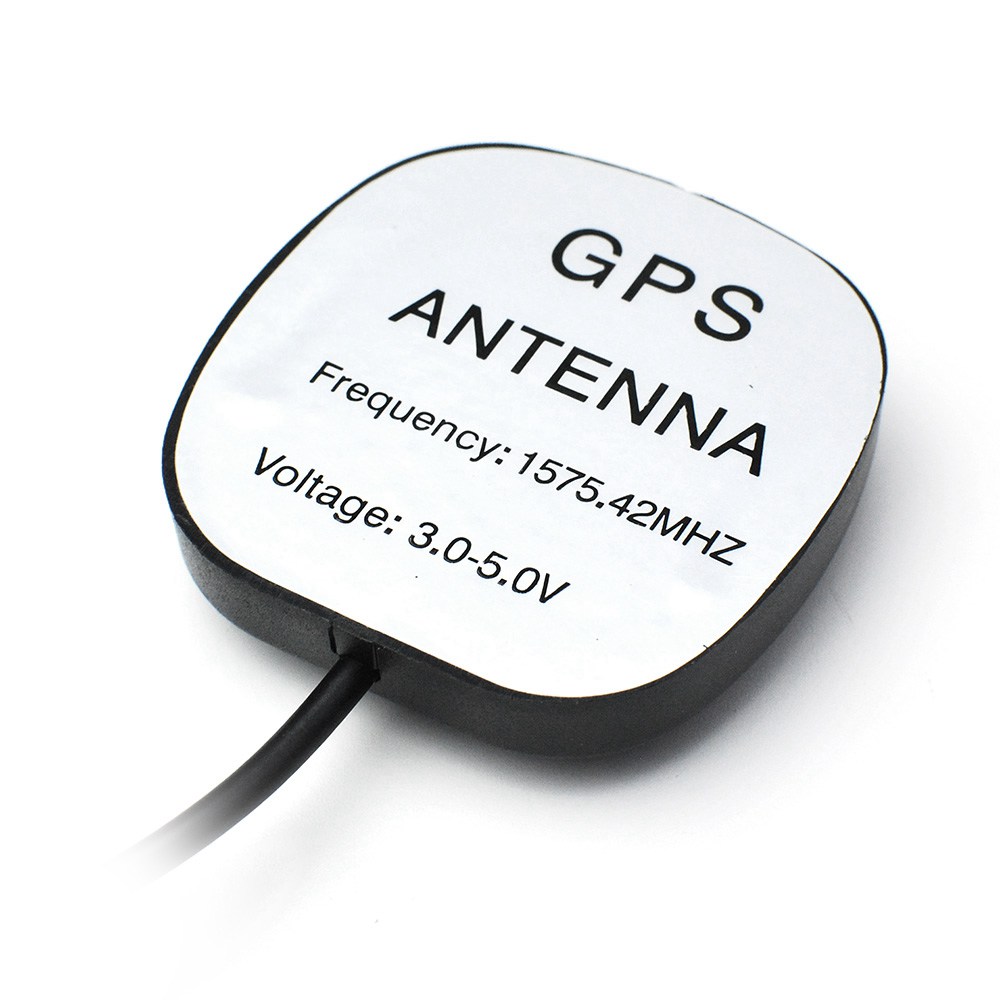

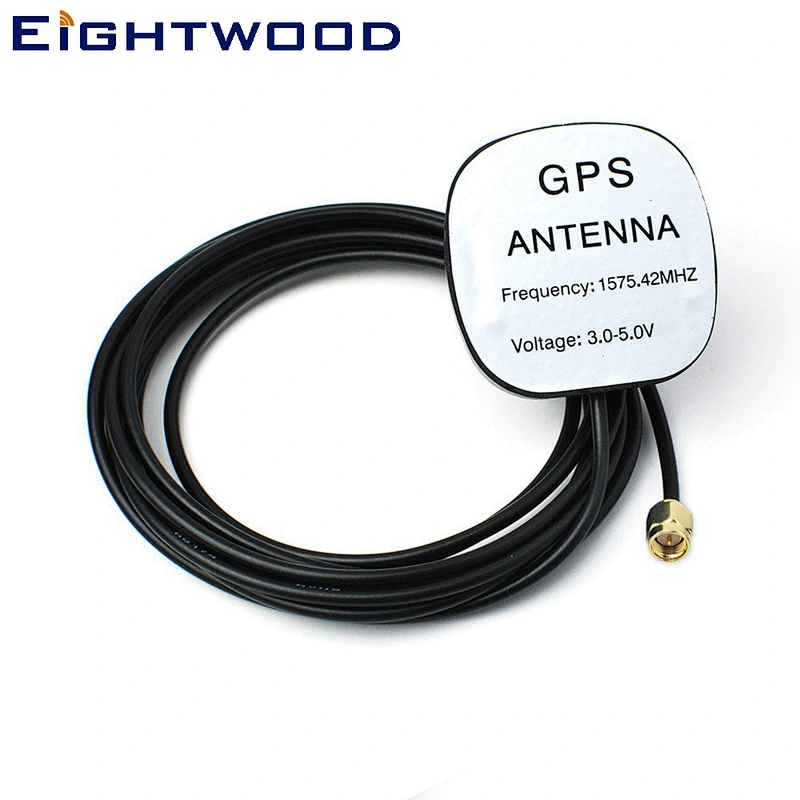

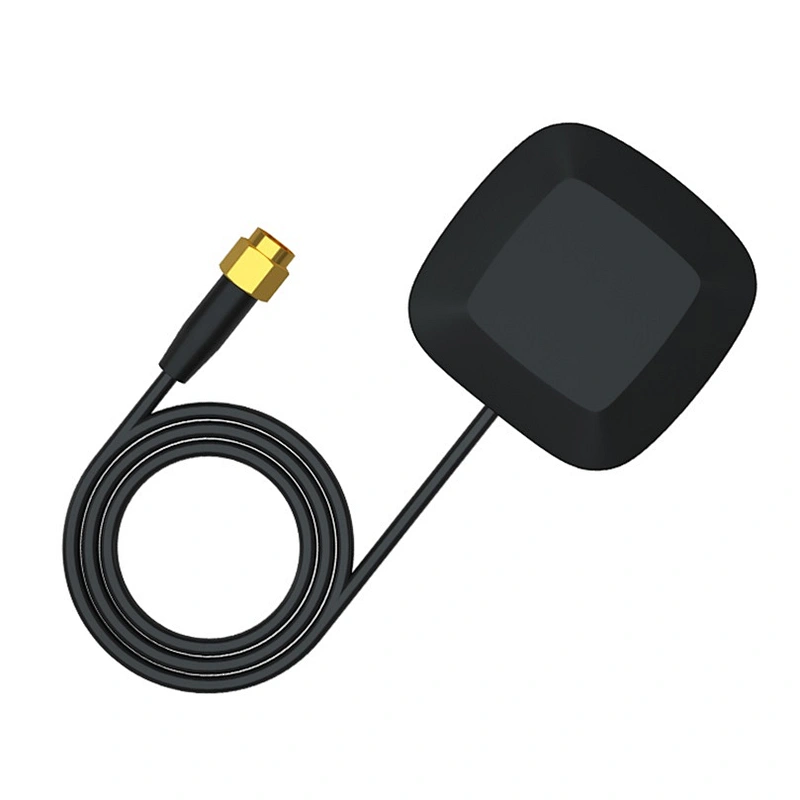

  • Product name:GPS Antenna
  • Connector:SMA or Customized
  • VSWR:Max 2
  • Gain:28dBi
  • Frequency Range:1575.42MHz
  • Cable Length:3M(Customizable)
  • Polarization:Vertical
  • Color:Black
  • Impedance:50 Ohm
  • Size:46.5mm846.5mm*12mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-GPSF
Product Details
Product Description
Mechanical
Model No.
HSA-GPSF
Center Frequency
1575.42MHz
Impendence
50Ω
Polarization
Vertical
Weight
62g

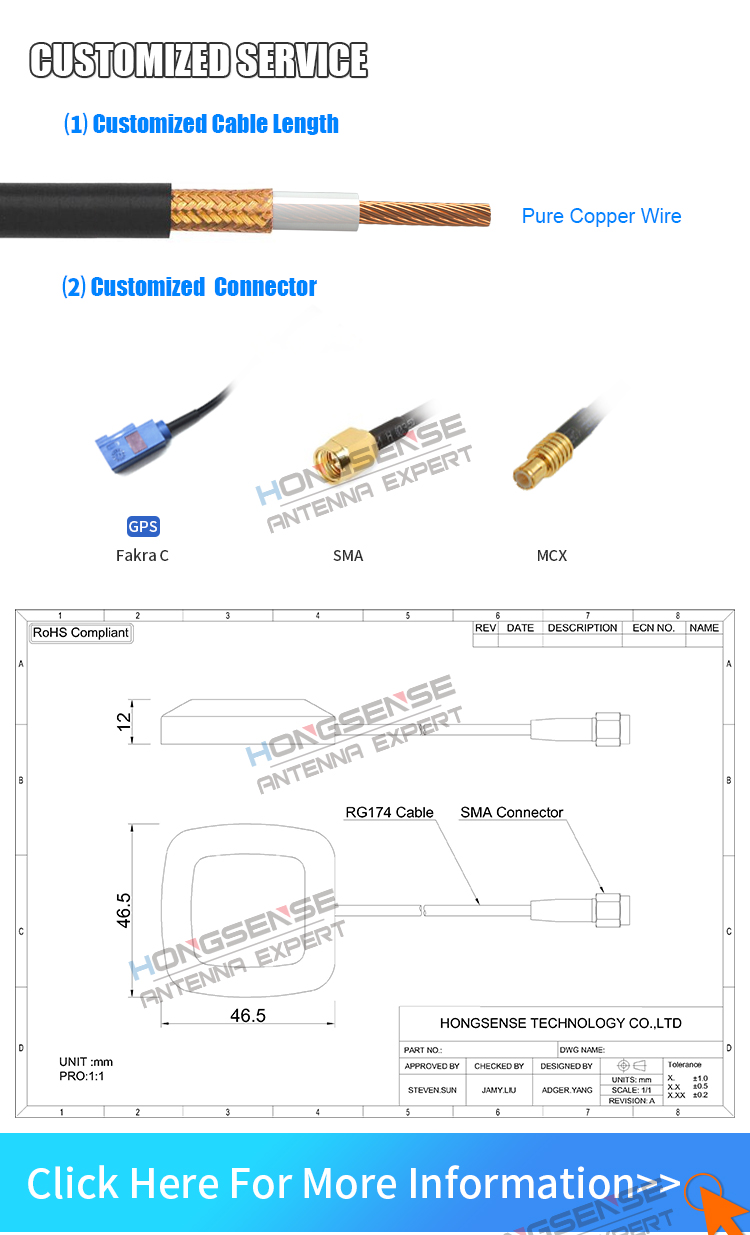

Size
46.5X46.5X12mm
Cable Type
RG174 Cable, 3 Meters (customized)
Connector
SMA Connector (SMB, MCX, MMCX,Fakra ect customized)
Mounting
Magnetic Mounting (Adhesive Mouting customized)
Housing
Black
LNA/Filter
LNA Gain Without Cable
28dBi
Noise Figure
2.0dB
Filter Out Band Attenuation
(f0=1575.42MHz)
Mechanical
7dB Min f0+/-20MHz;20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V.S.W.R
≤2.0
DC Voltage
3V to 5V
DC current
7-10MA
Environmental
Working Temp
-40℃~+105℃
Vibration
Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity
95%~100%
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your company MOQ?
A: The MOQ is 50PCS.

Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q: We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime. The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
