RF Coaxial Cable Adapter Jack Converter N Type to SMA Series Connector

RF Coaxial Cable Adapter Jack Converter N Type to SMA Series Connector

Model NO.: N/SMA-JK
Price:: USD 0.74-0.85 / pieces
Minimum order quantity: 50 pieces
Supply Ability: 10000.0 pieces / Day
Country of Origin: Shenzhen

Quantity:

Product Description

Interface Type:N to SMA
Color:Gold and Silver
Description:N type to SMA series
Way:2
Pin or Socket:Pin/Socket
Connector Usage:Telecom
Impedance:50Ohm
Mounting Type:Screw
Adapter End 1:N Male/N Female
Adapter End 2:(RP) SMA Male/ (RP) SMA Female
Type:ADAPTER
Application:RF
Gender:Male/Female
Pins:1P
Pins:2P
Place of Origin:CN
Brand Name:Hongsense
Model Number:N/SMA-JK

Specification

Technical Specifications
Temperature range	-55~+85°C
Vibration	ML-STD-202, Method 213
Impedance	50/75 ohm
Frequency Range	DC – 11G
Working Voltage	1000V max
Break-down Voltage	2500V rms @ sea level
Contact resistance	≤1 m ohm @ center contact ≤1 m ohm @ outer contact
Average power	3KW max
Insulation resistance	≥10000M ohm
VSWR	Straight≤1.15 Right angle≤ 1.25
Durability (mating)	≥500 (cycles)
Material&Plating			RG174
Shell	Brass	Nickel or gold plated
Contact pin	Brass	Gold plated
Socket	Beryllium	Gold plated
Elastic contact	Beryllium or tin brass	Gold plated
Insulator	PTFE
Crimping suite	Copper alloy	Nickel or gold plated
O-ring sealing	6146 silastic

Product Description

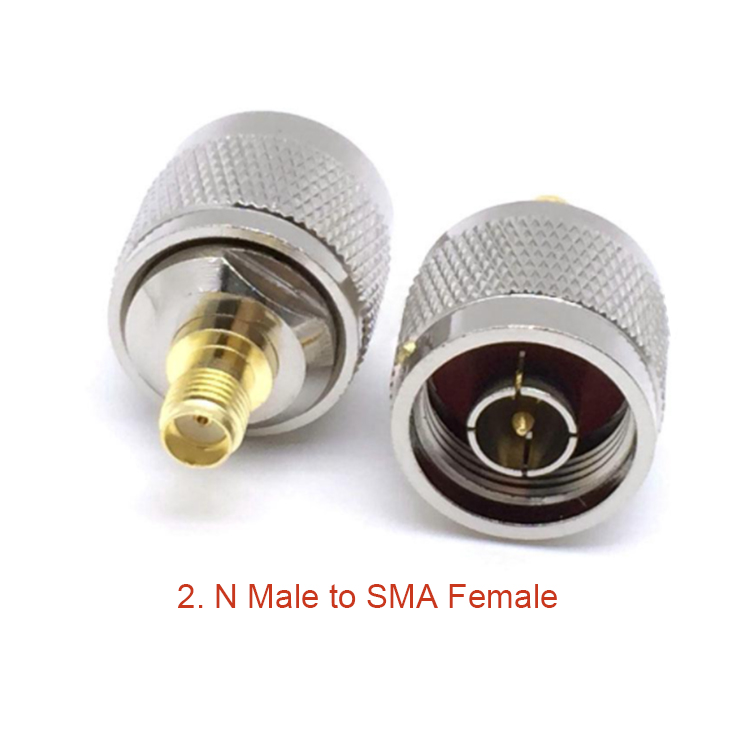

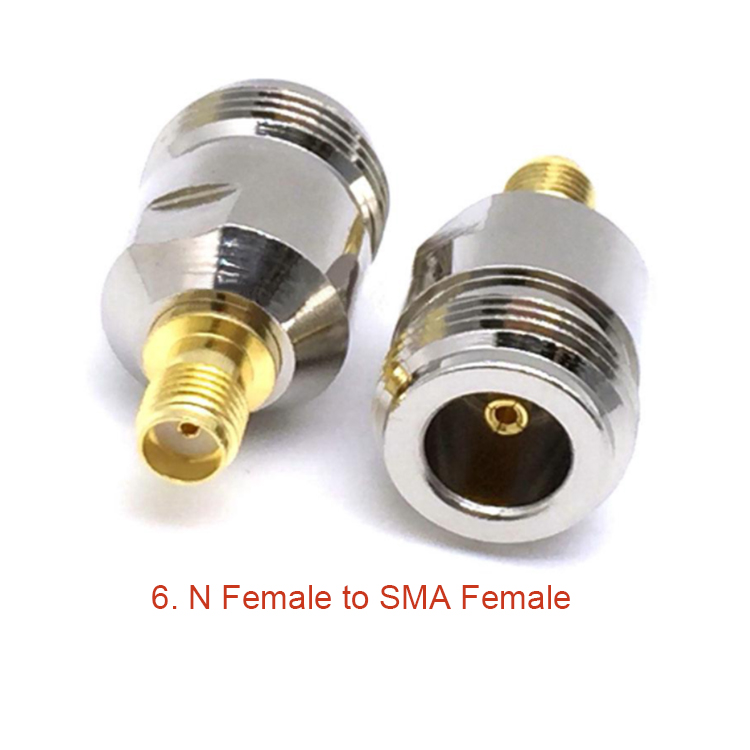

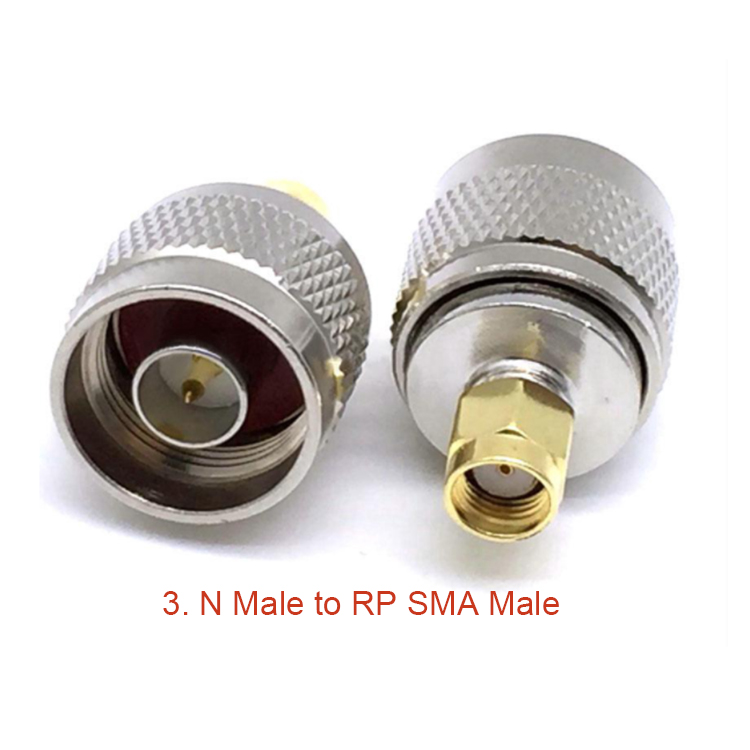

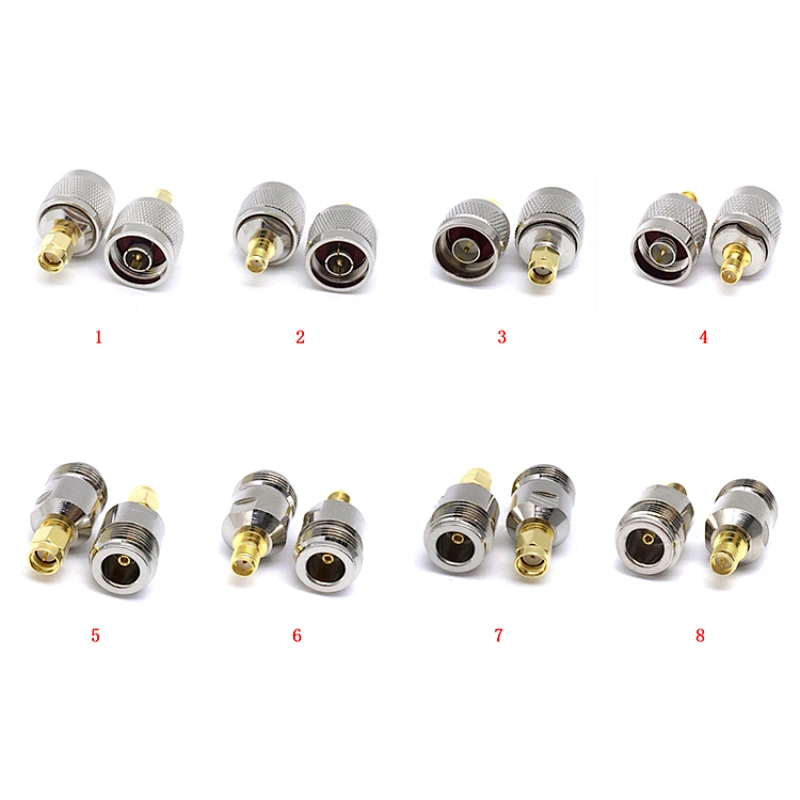

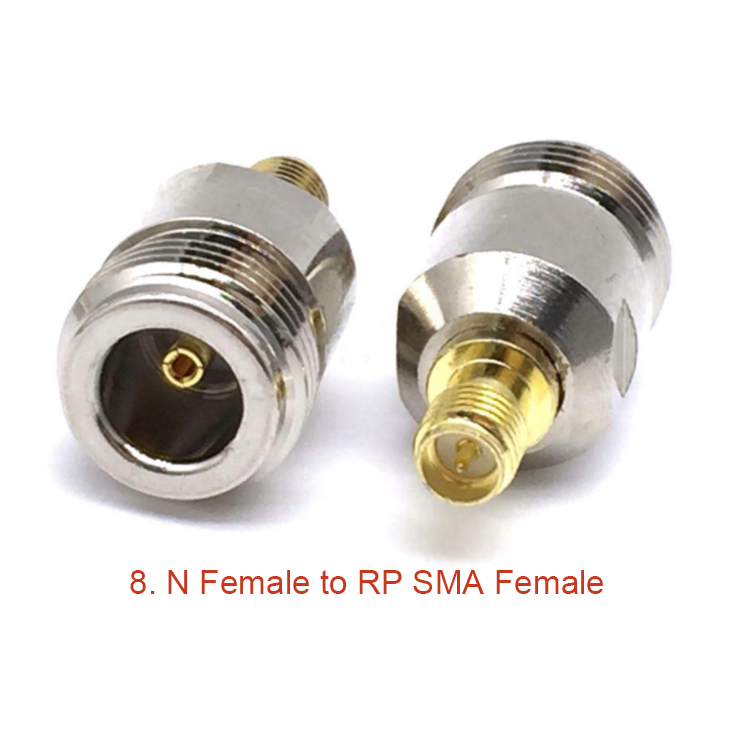

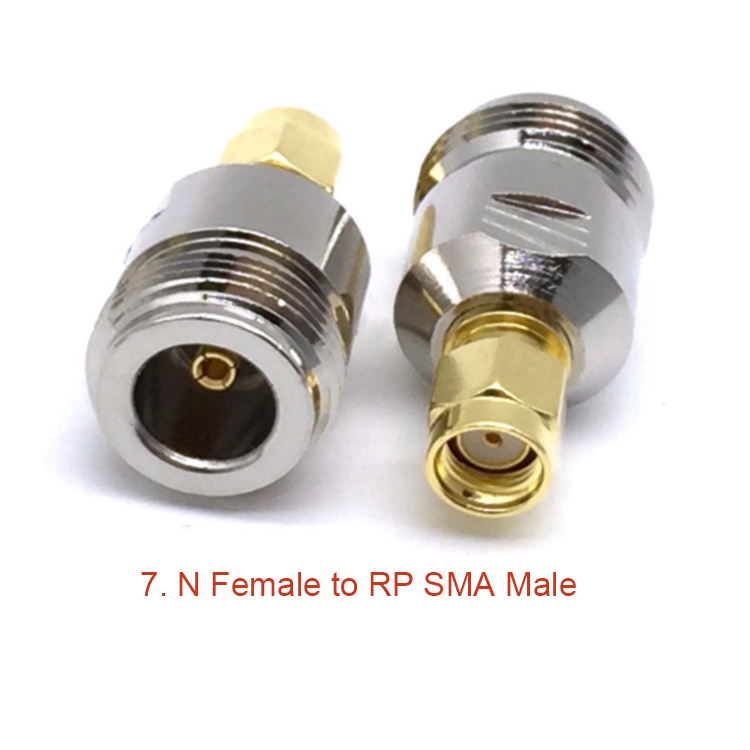

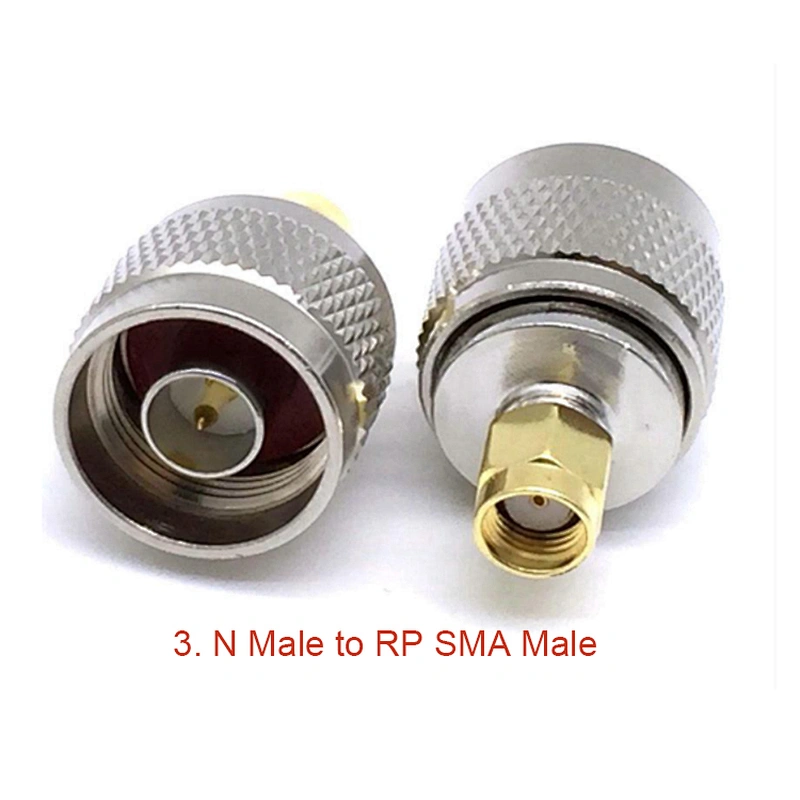

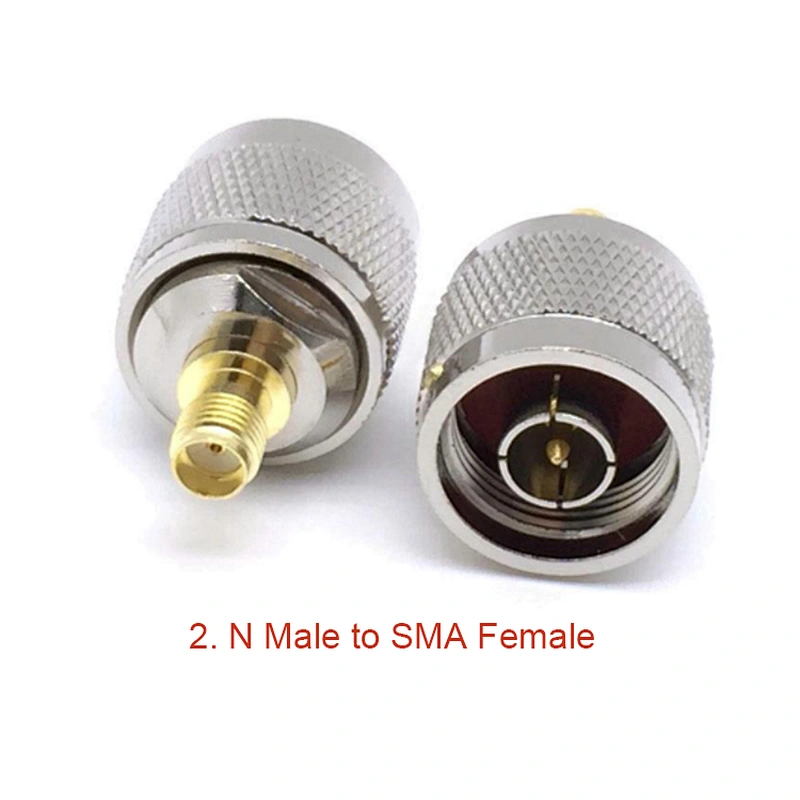

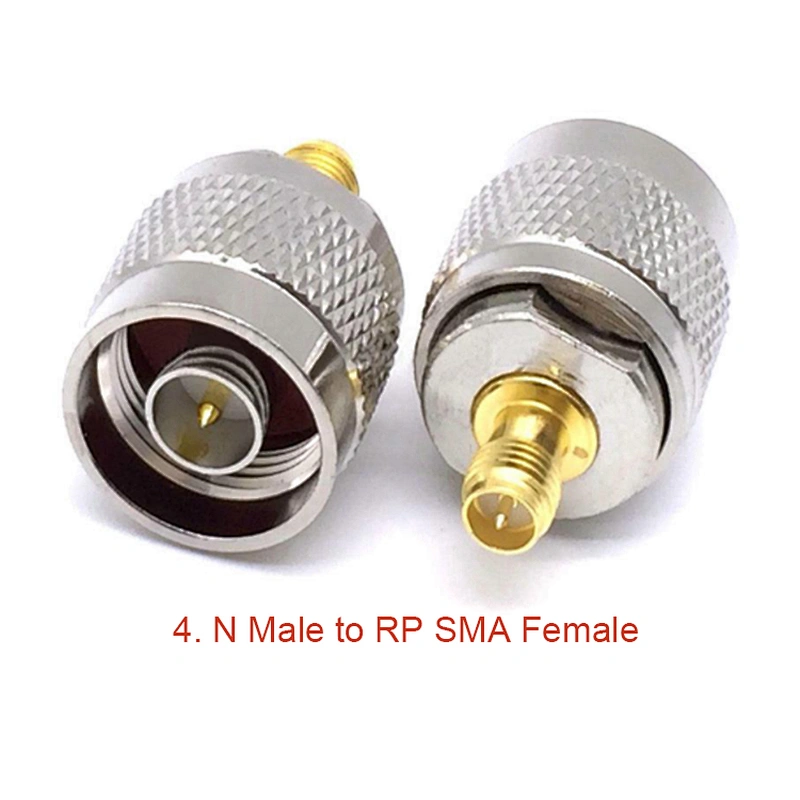

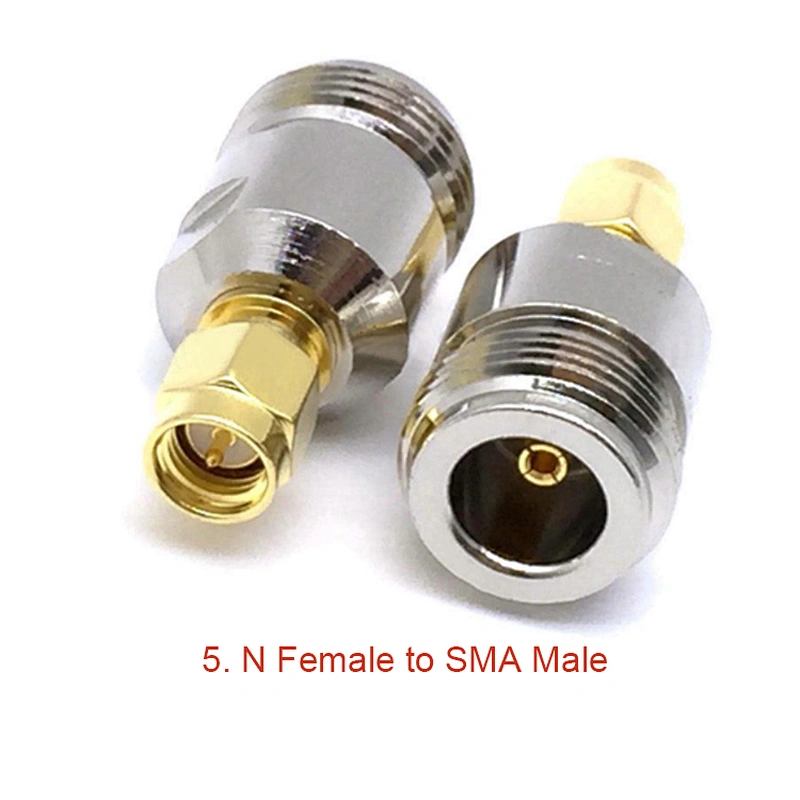

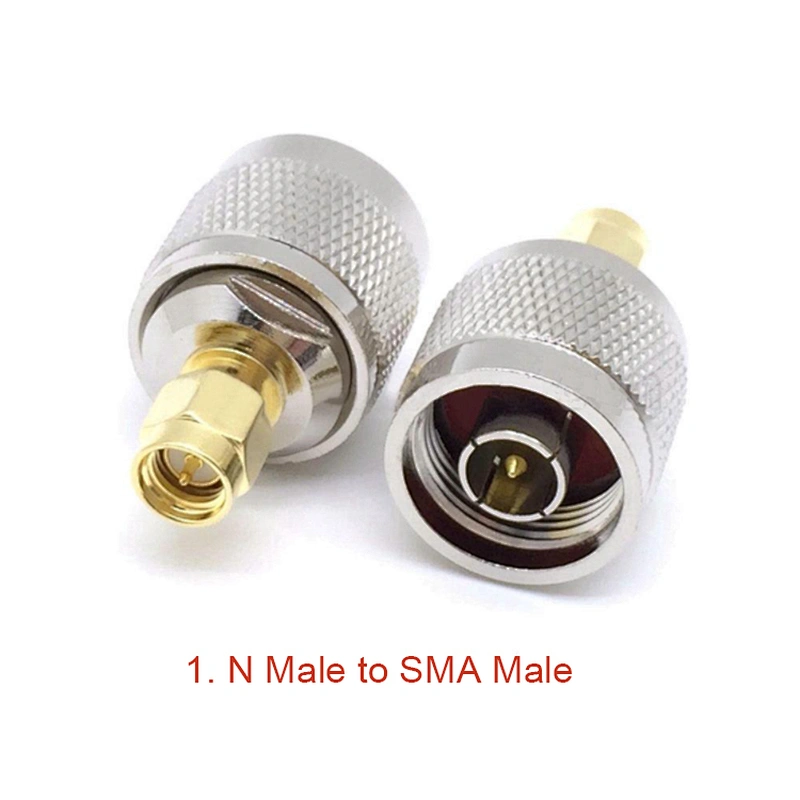

Types: 1. N male to SMA Male2. N male to SMA female3. N male to RP SMA male4. N male to RP SMA female5. N female to SMA male6. N female to SMA female7. N female to RP SMA male8. N female to RP SMA female

Payment & Shipment

Packing & Delivery

Company Profile

Why Choose Us

FAQ

Q: What type of antenna your company have?

A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...

Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...

Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?

A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?

A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?

A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?

A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?

A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
