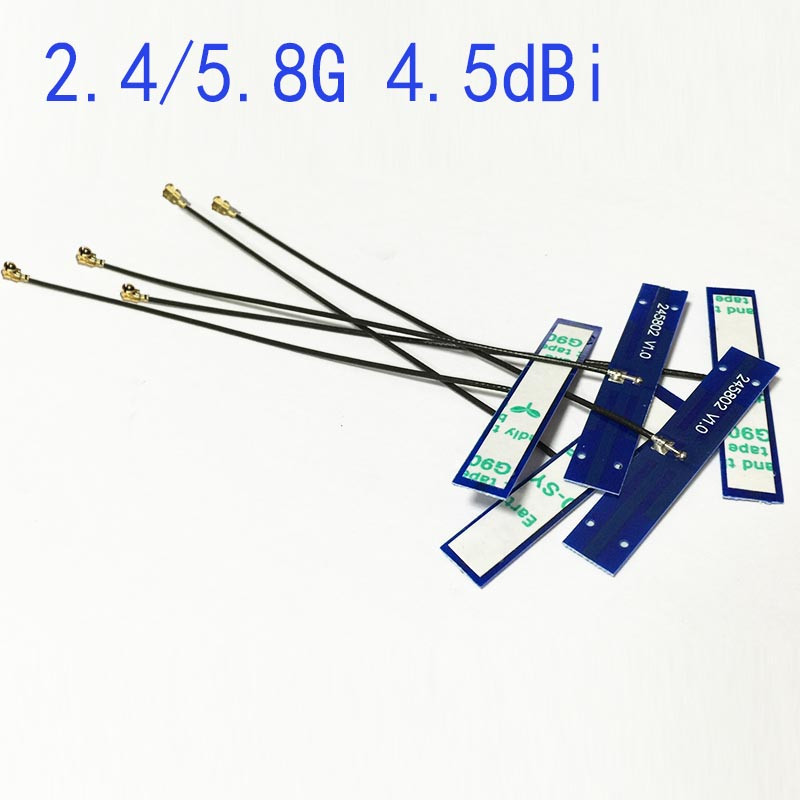

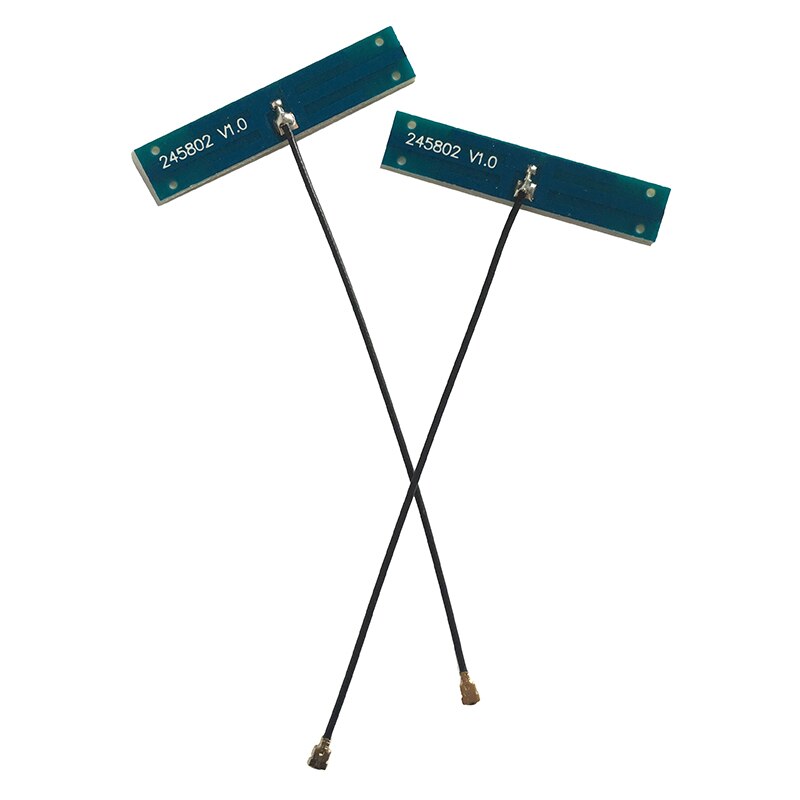

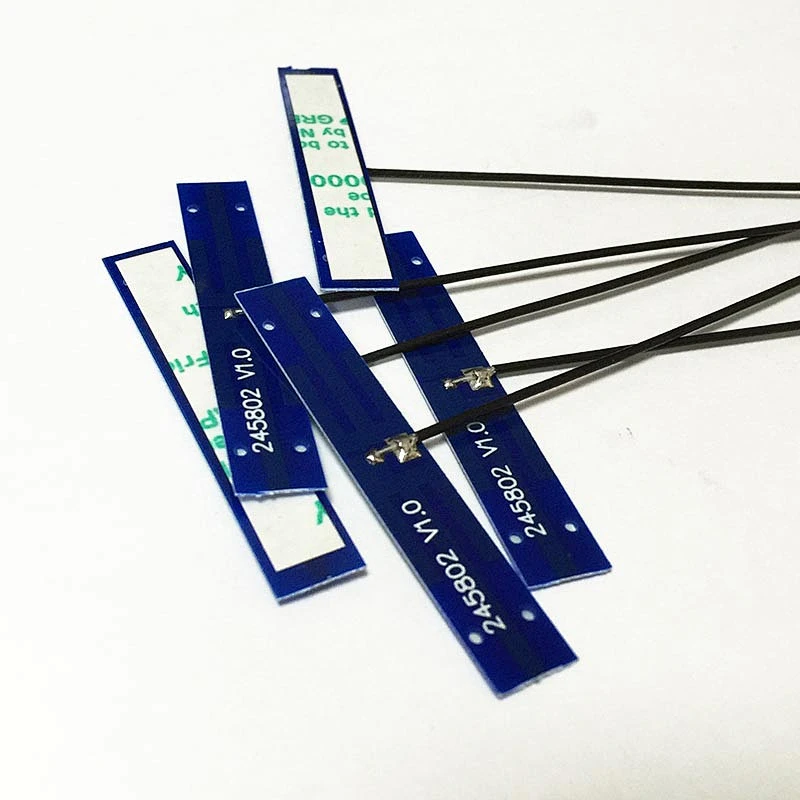

2.4G&5.8G Dual Band Antenna High Gain Internal PCB Aerial for WiFi Router with IPEX Connector

2.4G&5.8G Dual Band Antenna High Gain Internal PCB Aerial for WiFi Router with IPEX Connector

Model NO.: HSA-2458PCF
Price:: USD 0.45-0.79 / pieces
Minimum order quantity:: 100 pieces
Supply Ability:: 5000.0 pieces / Day
Country of Origin:: shenzhen

Quantity:

Product Description

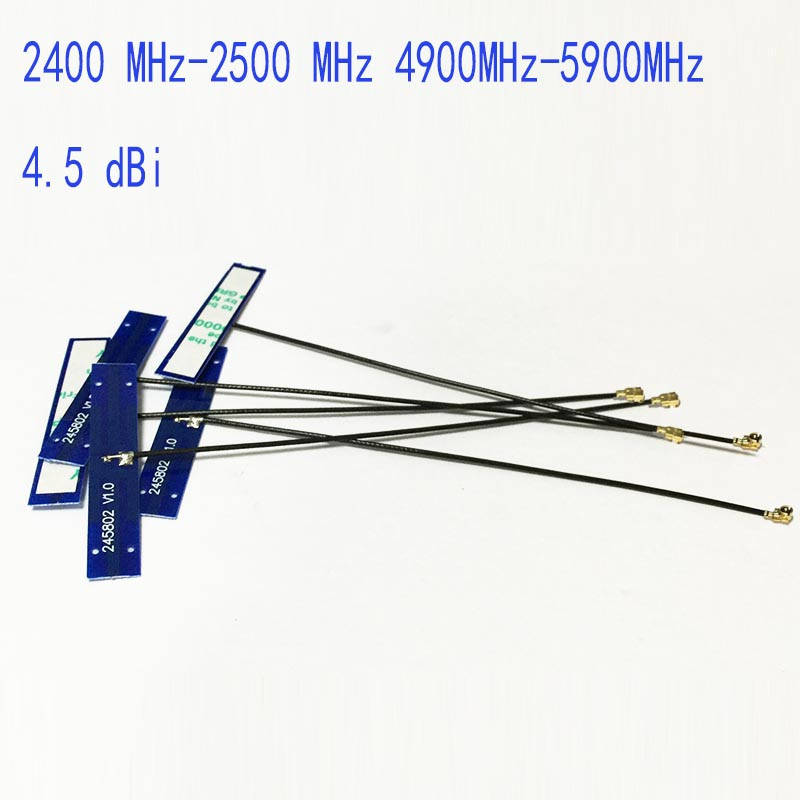

Frequency range:2400-2483MHz/5150-5850Mhz
Gain:4dBi
Max power:50 -W
VSWR:<2
Impedance:50 Ohm
Polarization:Vertical
Customization:available

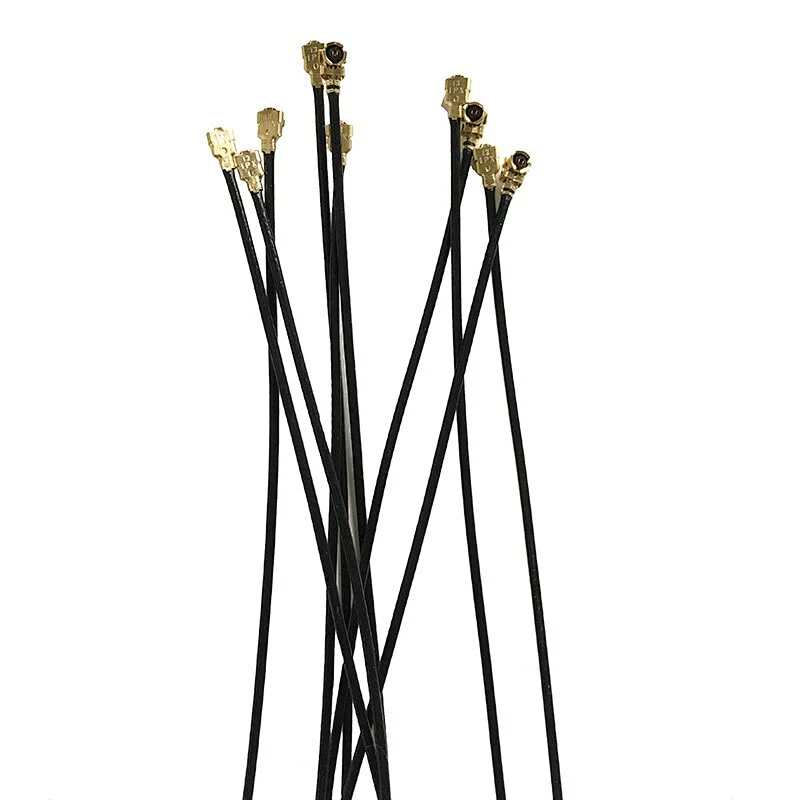

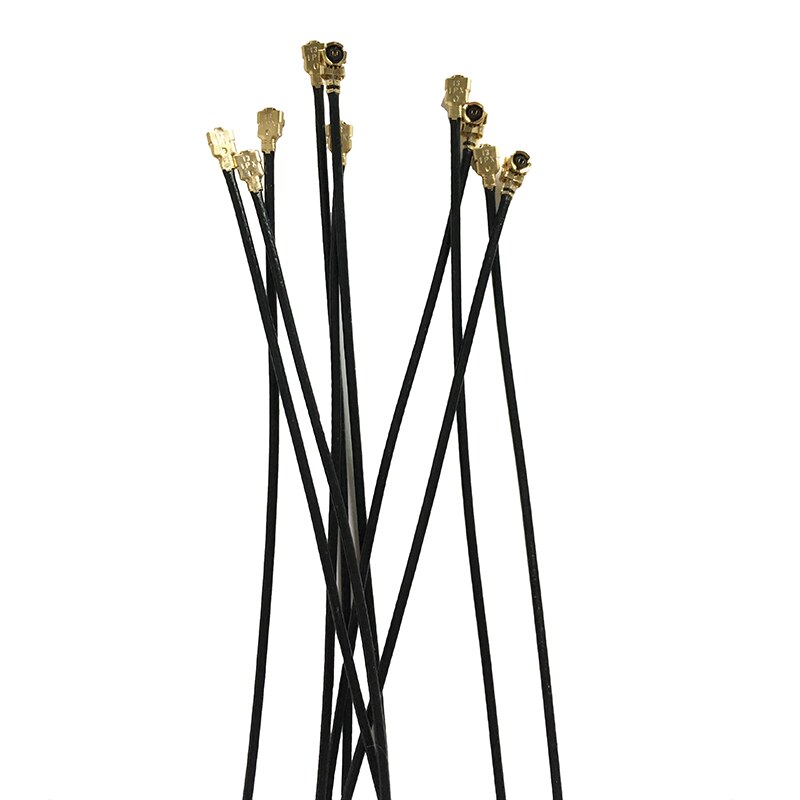

Connector type:IPEX
Dimension (mm):52*8mm
Cable type:RF1.13 Coaxial Cable
Place of Origin:CN;GUA
Brand Name:Hongsense
Model Number:HSA-2458PCF

Related Products

Specification

2.4G&5.8G Dual Band Antenna High Gain Internal PCB Aerial for WiFi Router with IPEX Connector

Place of Origin	Shenzhen China (Mainland)
Frequency Range -MHz	2400-2483/5150-5850MHz
Connector	IPEX or customize
Radiation	Omni directional
Gain-dBi	4Dbi
VSWR	<2
Impedance-Ω	50
Polarization	Vertical
Max. Power-W	50

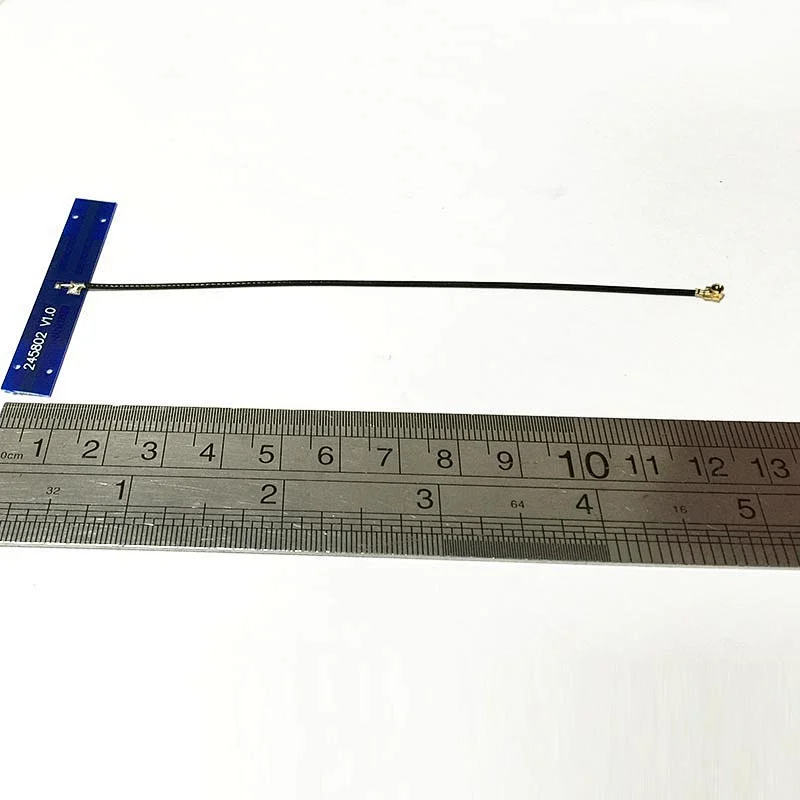

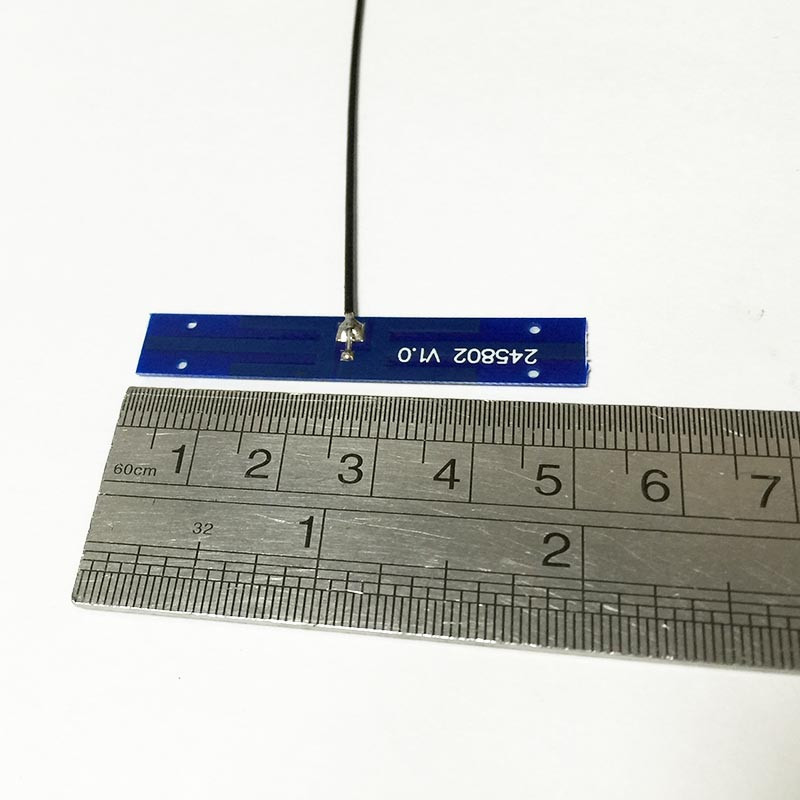

Size-mm	52*8mm

Details Images

Packing & Delivery

Package:
1.Each antenna has single PP bag,
2.20Pcs antenna in one carton,
3.Customize package for gps antenna available

Delivery:
1.Sample order will be send in 1-3days after payment
2.2-1000pcs, Lead time is 5-7 working days,
3.1000-2000pcs,Lead time is 10-15 working days,
4.Over 2000pcs,lead time is 15-25 working days,
Parcel will be sent by DHL/UPS/Fedex/EMS or customers own shipping agent.

Company Profile

Shenzhen Hongsense Technology Co., Ltd. is a company engaged in the communications antenna research and development, production, sales, professional services in one of the professional high-tech enterprises, Company Hongsense (Hong Kong) Co., Ltd. is a branch in the overseas markets. The company has the full import of the ISO9001:2000 international quality system certification, mainly products are GPS navigation antennas,Security Series antennas,3Gmobilecommunications antennas, microwave antennas, wireless antennas, car antennas, digital television antennas

Why Choose us?

FAQ

Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your company MOQ?
A: our company don't have MOQ. We also accept small quantity.

Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q: Can you send a sample for us to develop?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the
sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping

For all your inquiries, we will reply within 24 hours. Welcome OEM/ODM order.
