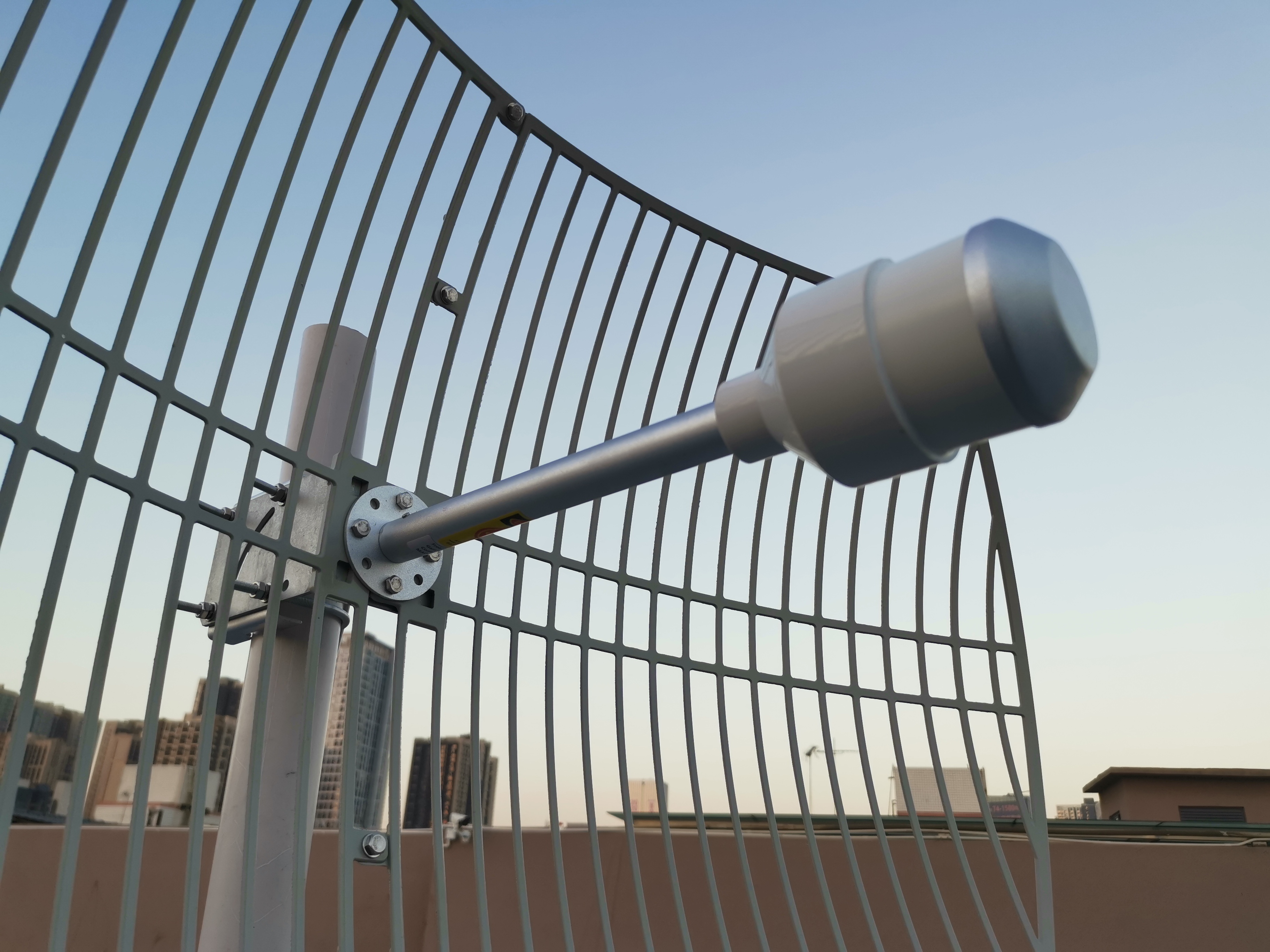

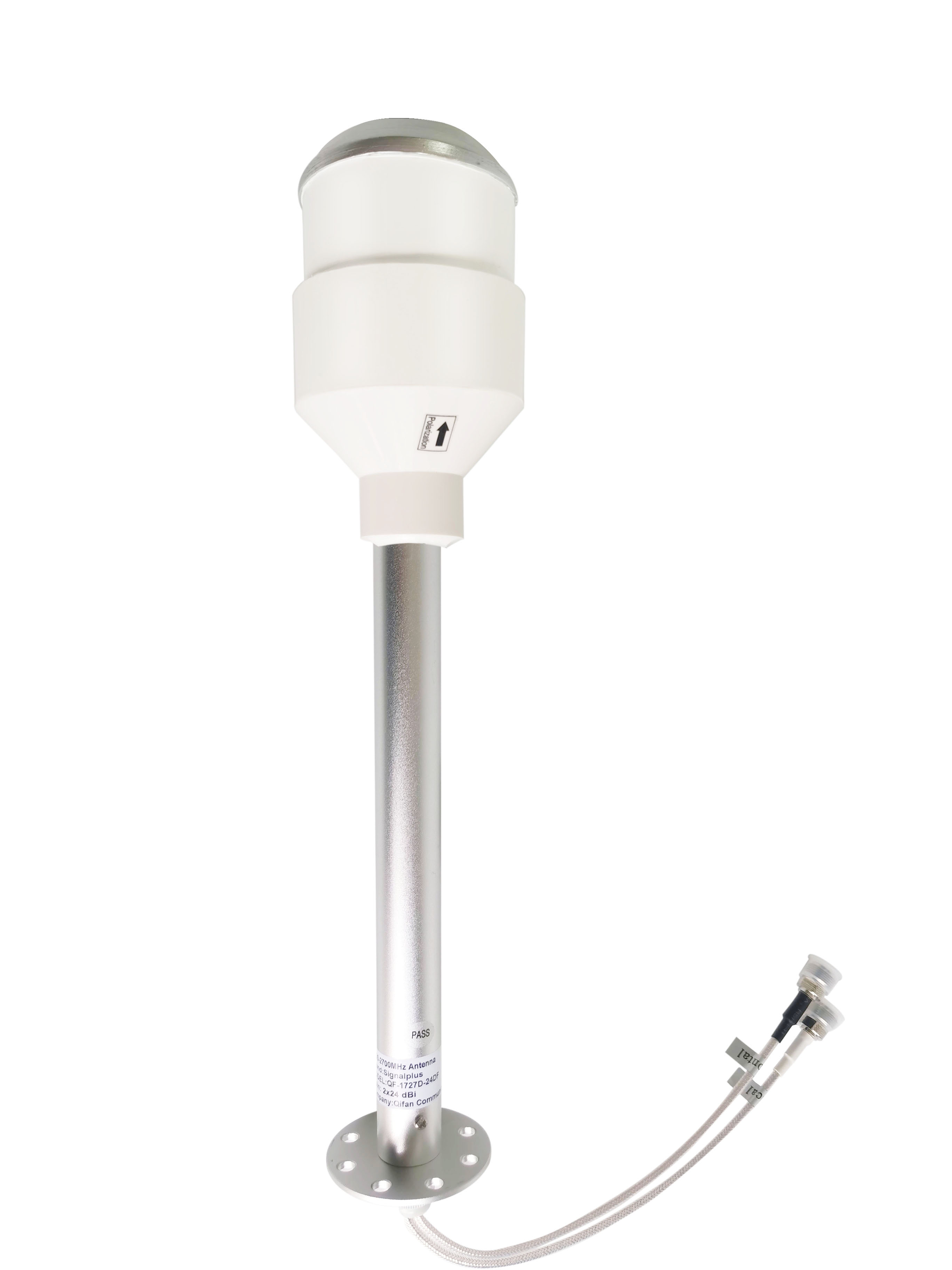

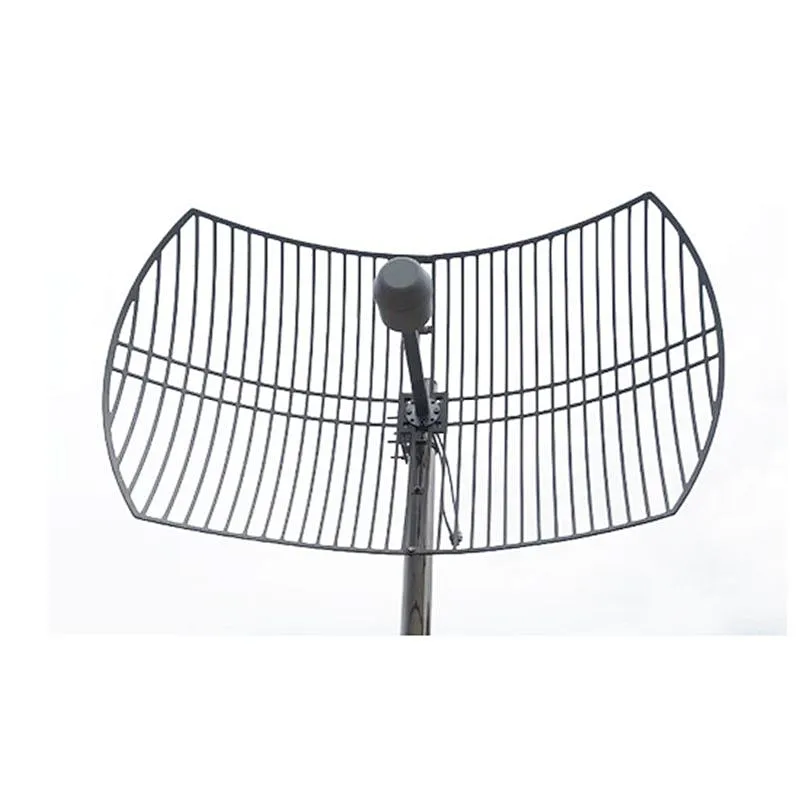

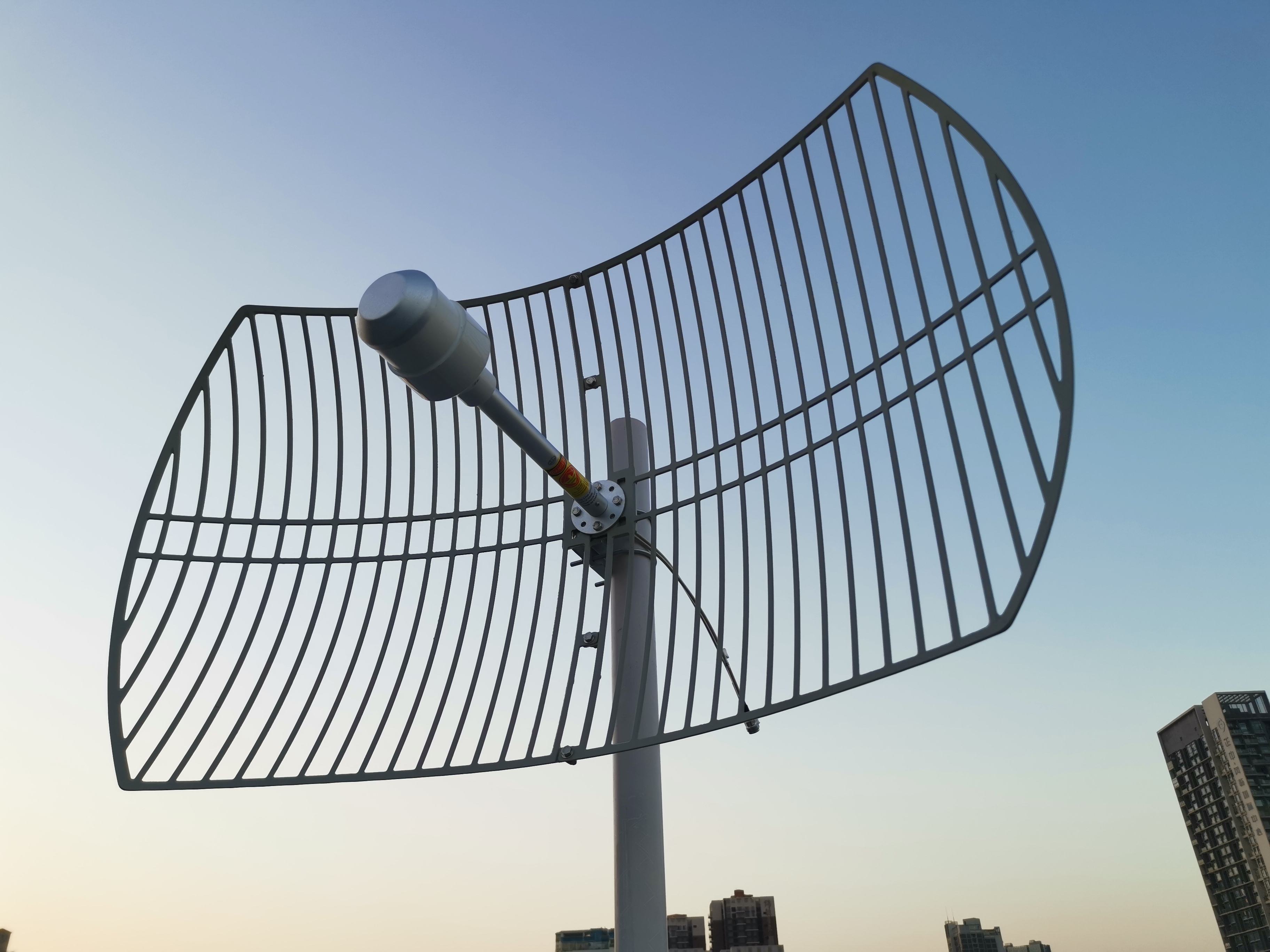

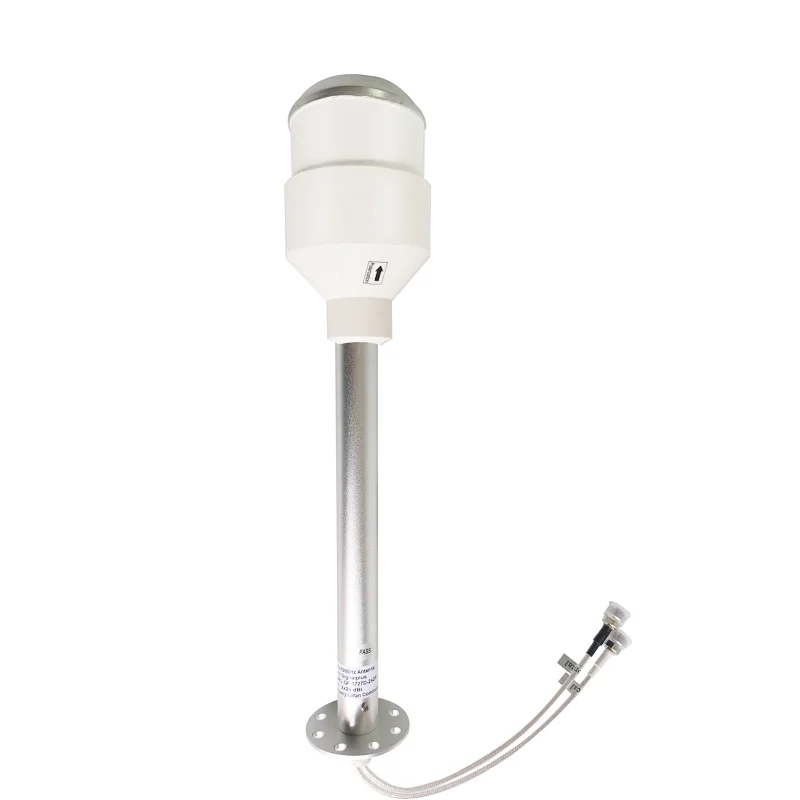

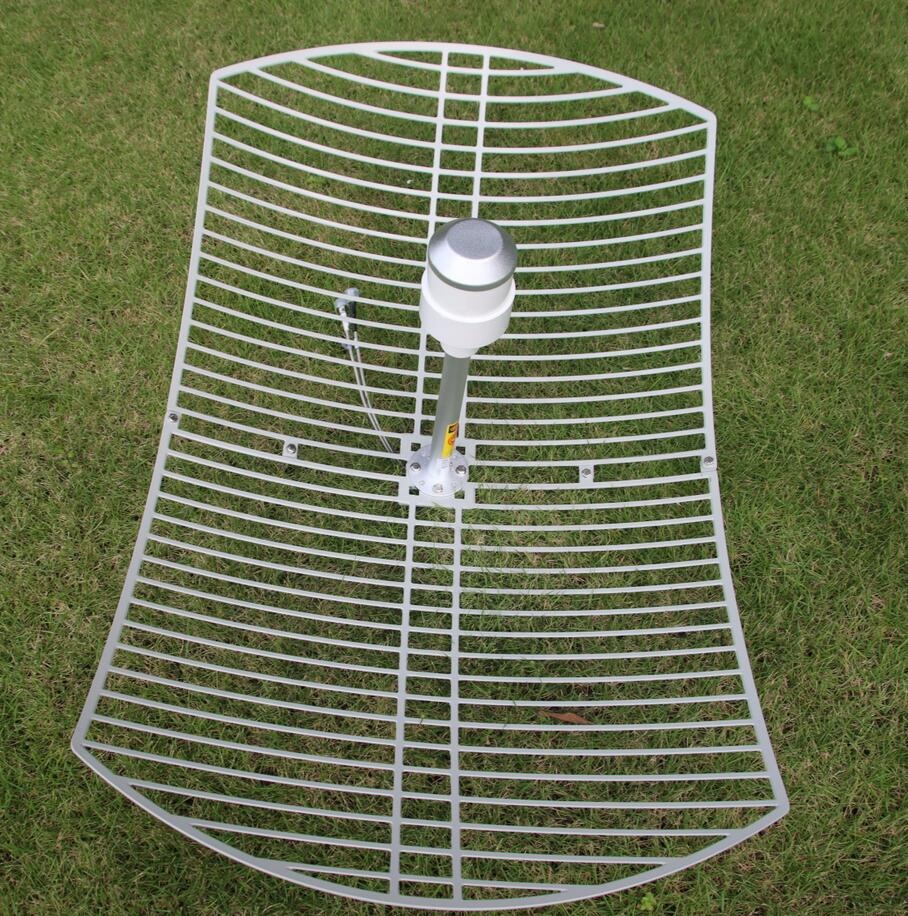

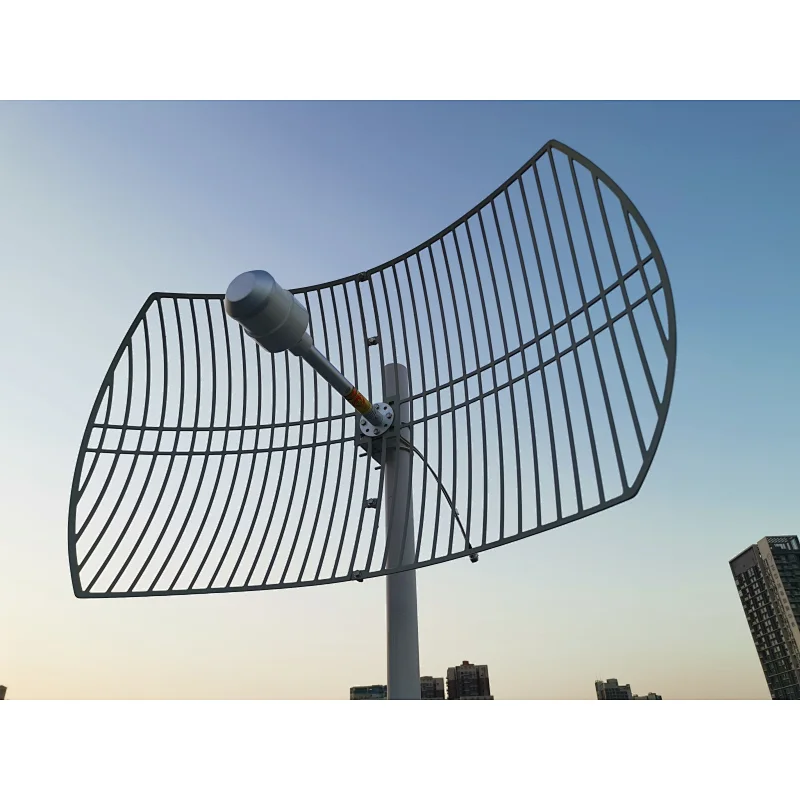

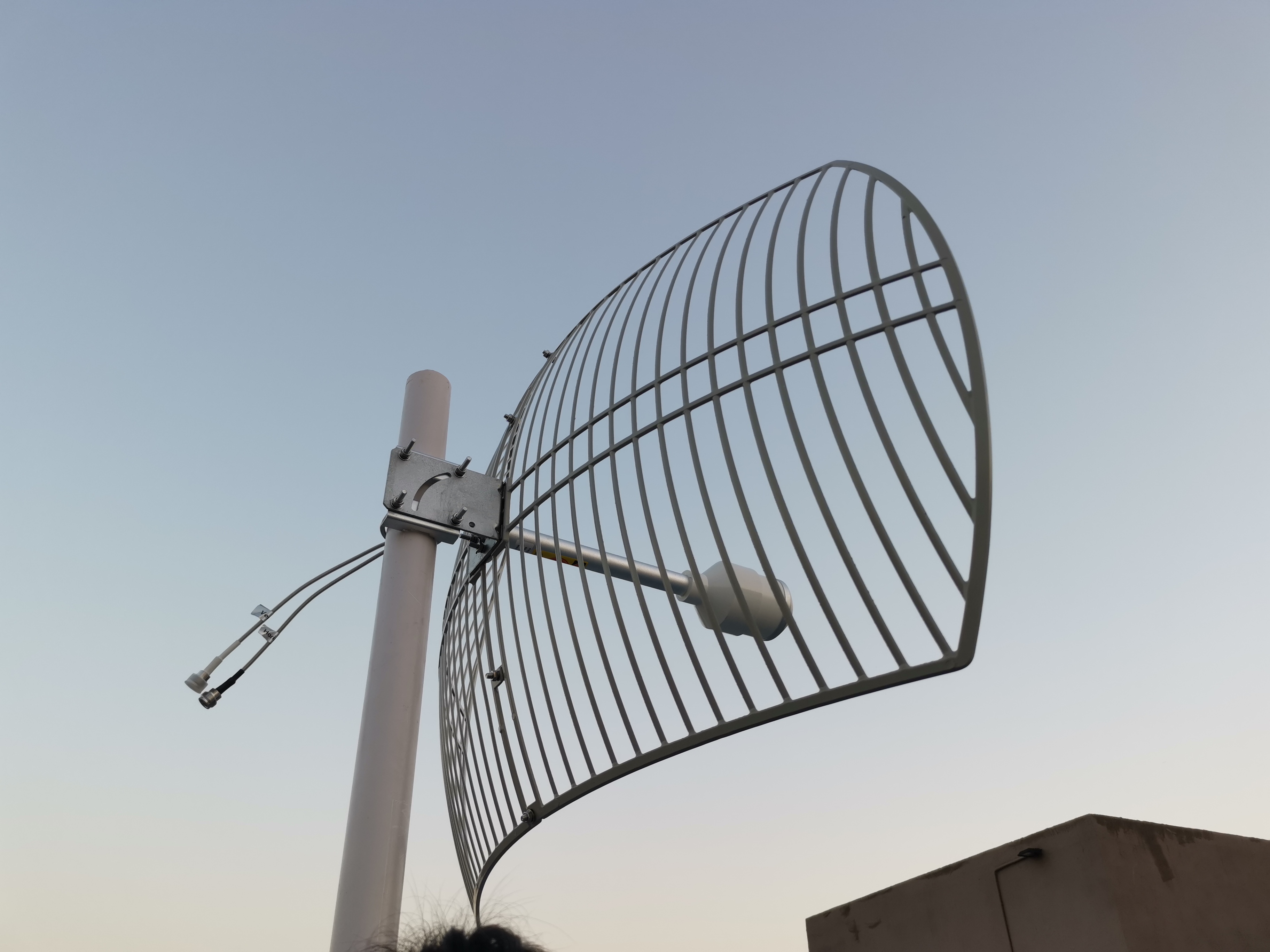

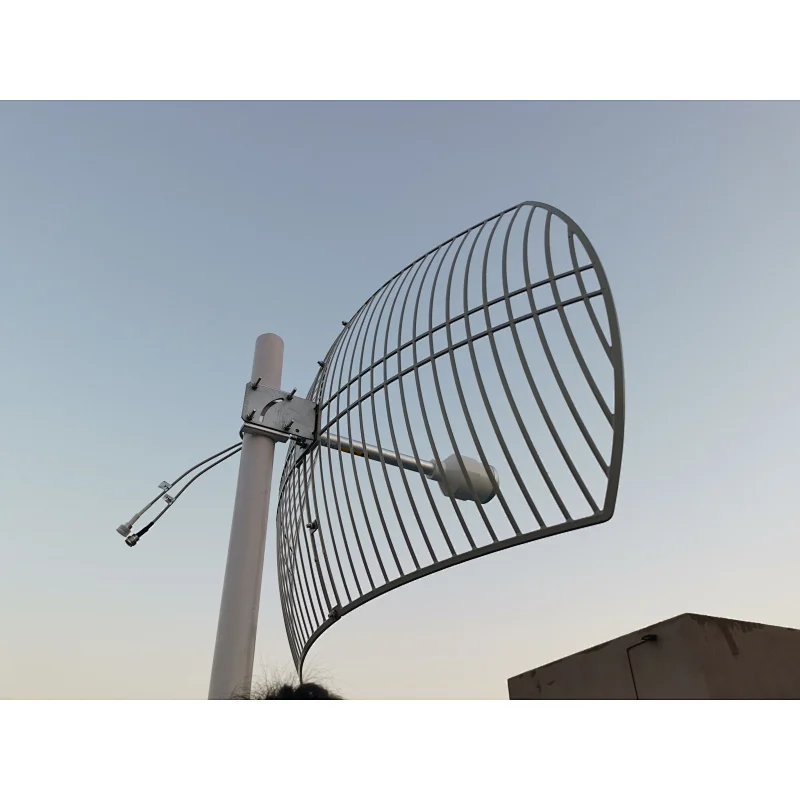

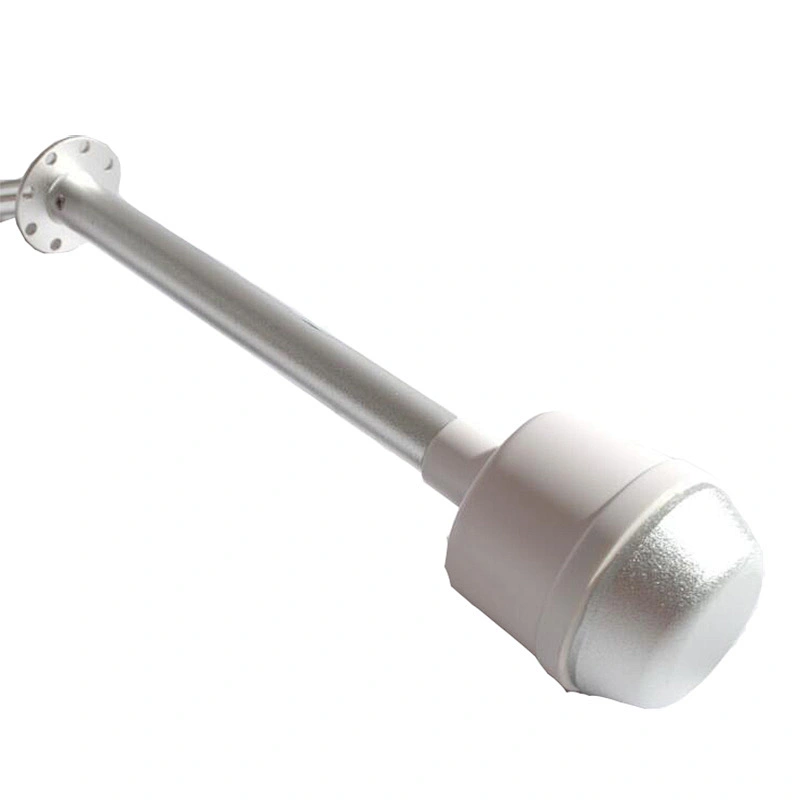

High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna
High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna

High Gain 24dBi Outdoor Directional 4G 5G 1700-3800MHz MIMO Parabolic Grid Antenna

Model NO.
HSA-1738PA1
Price:
USD 41.99-47.99 / pieces
Minimum order quantity
2 pieces
Supply Ability
5000.0 pieces / Day
Country of Origin
Shenzhen
Quantity:
  • Product Name:24dBi MIMO Parabolic Grid Antenna
  • Frequency Range:4G:1700-2690MHz&5G:3300-3800MHz
  • Gain:2*24dBi
  • Connector:Customized (SMA/N/TNC/BNC/...)
  • Impedance:50Ω

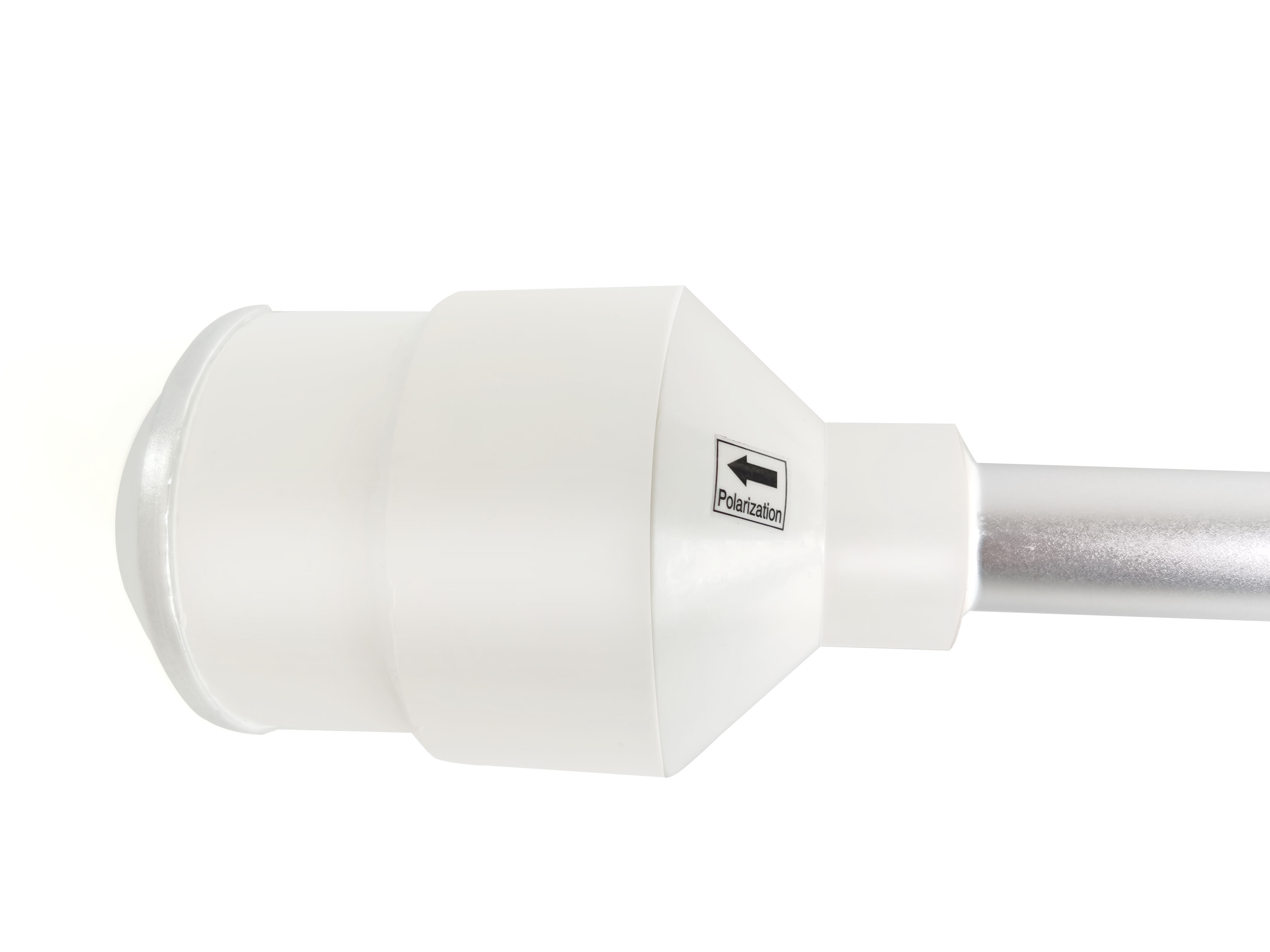

  • Polarization:Horizontal or Vertical
  • Cable Type:RG58
  • Cable Length:Customized(30cm by default)
  • Weight:2.6kg
  • Size:900mm*600mm
  • Place of Origin:CN;GUA
  • Brand Name:Hongsense
  • Model Number:HSA-1738PA1
Specification
Model
HSA-0727PA1
Product Name
24dBi MIMO Parabolic Grid Antenna
Frequency Range
4G:1700-2690MHz&5G:3300-3800MHz
Gain
2*24dBi
Impedance
50Ω
Connector
Customized (SMA/N/TNC/BNC/...)
VSWR
≤2.0
Polarization
Horizontal or Vertical
Radiation
Directional
Max. Power
50W
Lightning Protection
DC Ground

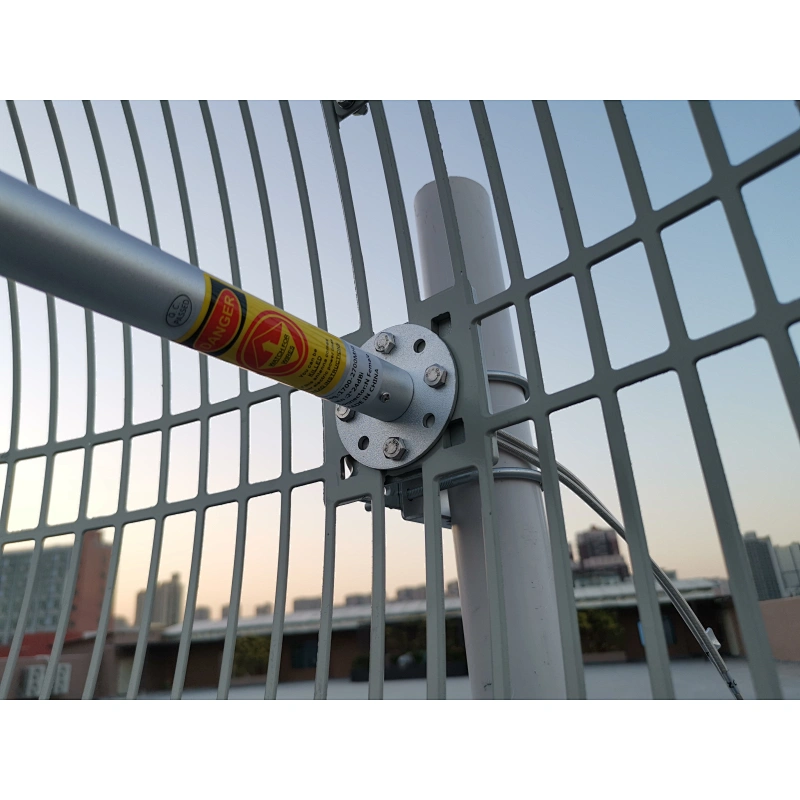

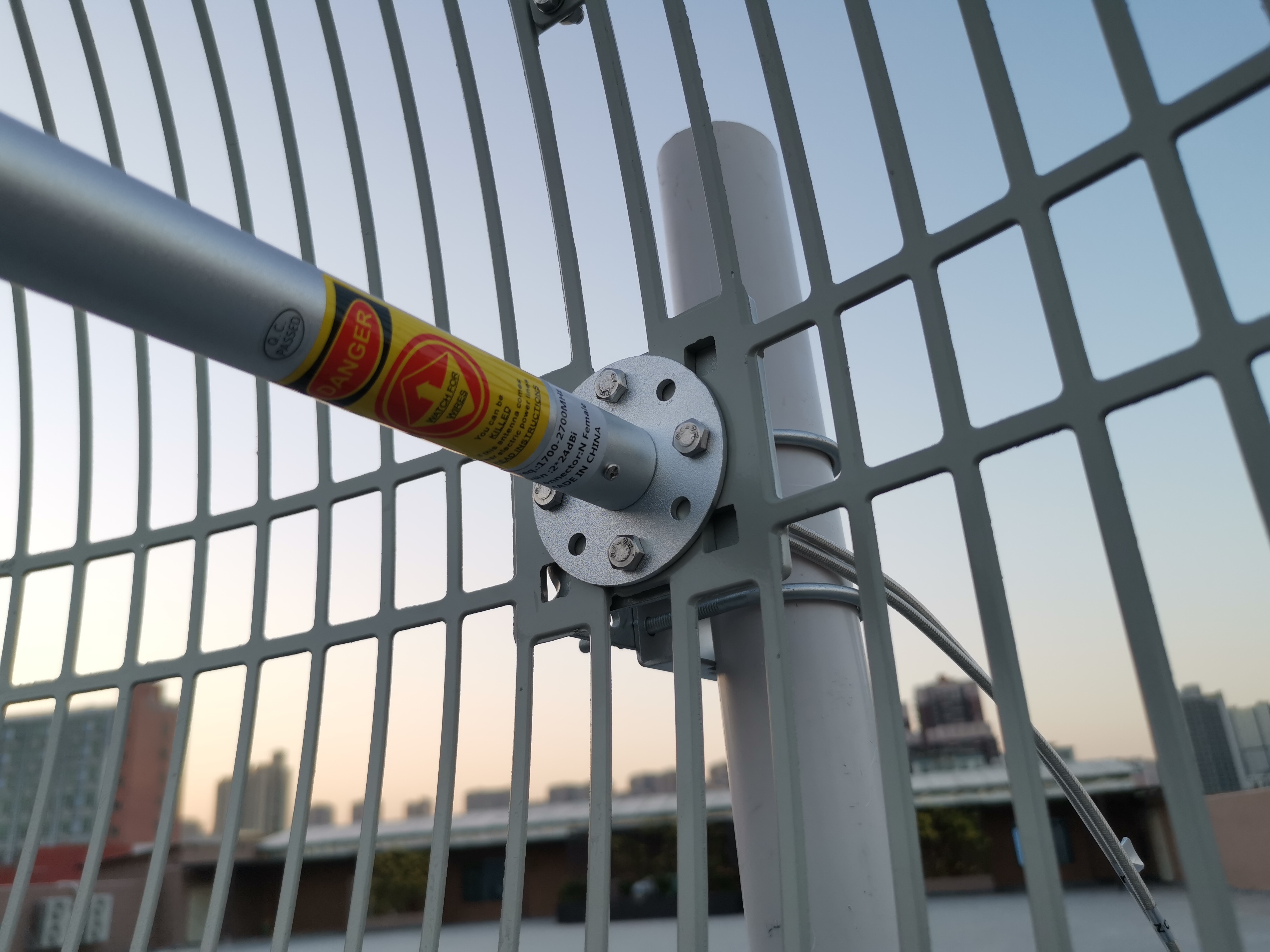

Pole Installation
40-50mm
Cable Type
RG58
Cable Length
Customized(30cm by default)
Operation Temperature
-40~+60℃
Weight
2.6kg
Size
600mm*9000mm
Product Description
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose Us
FAQ
Q: What type of antenna your company have?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...
Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?
A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?
A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?
A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?
A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?
A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
