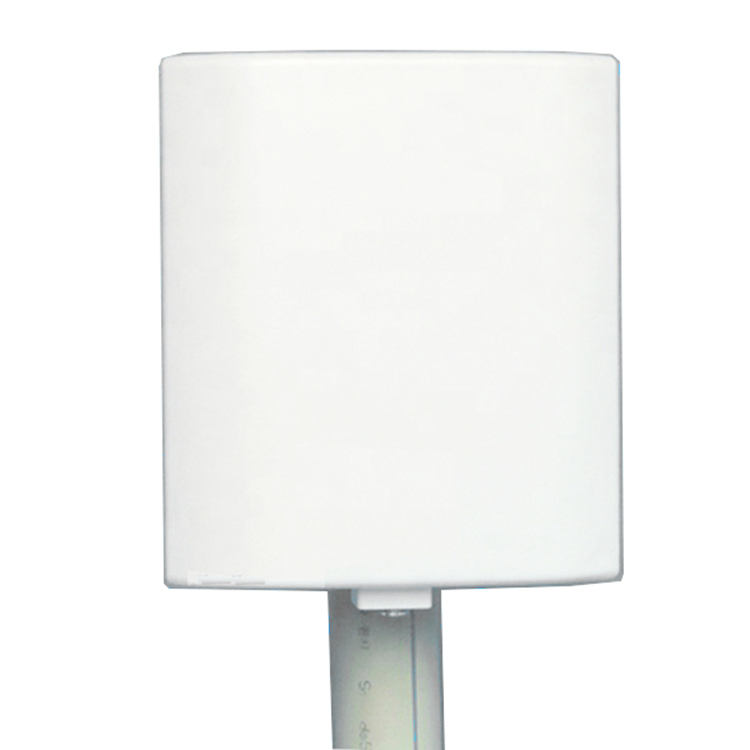

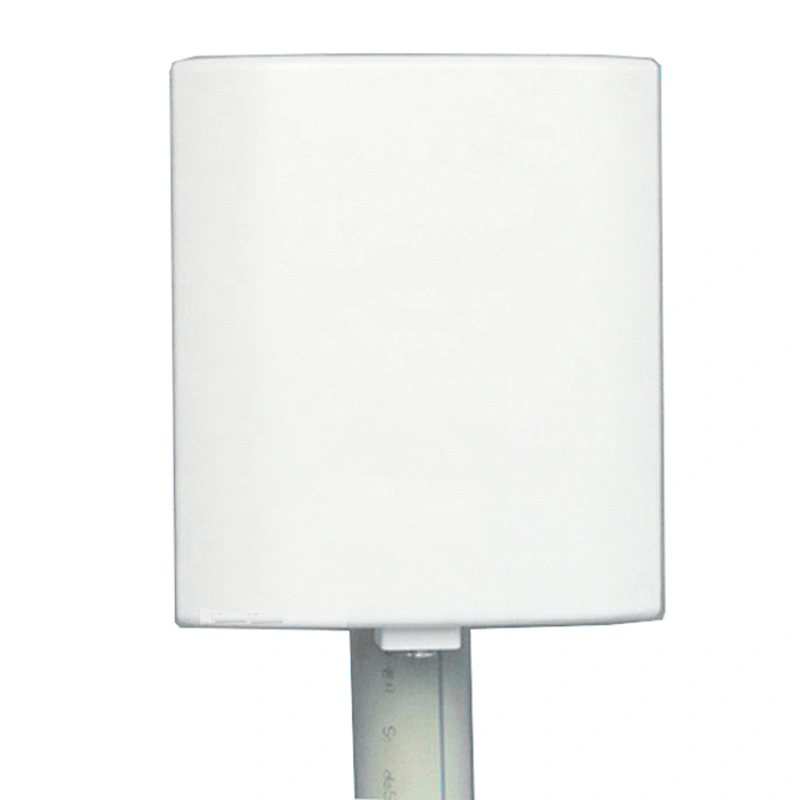

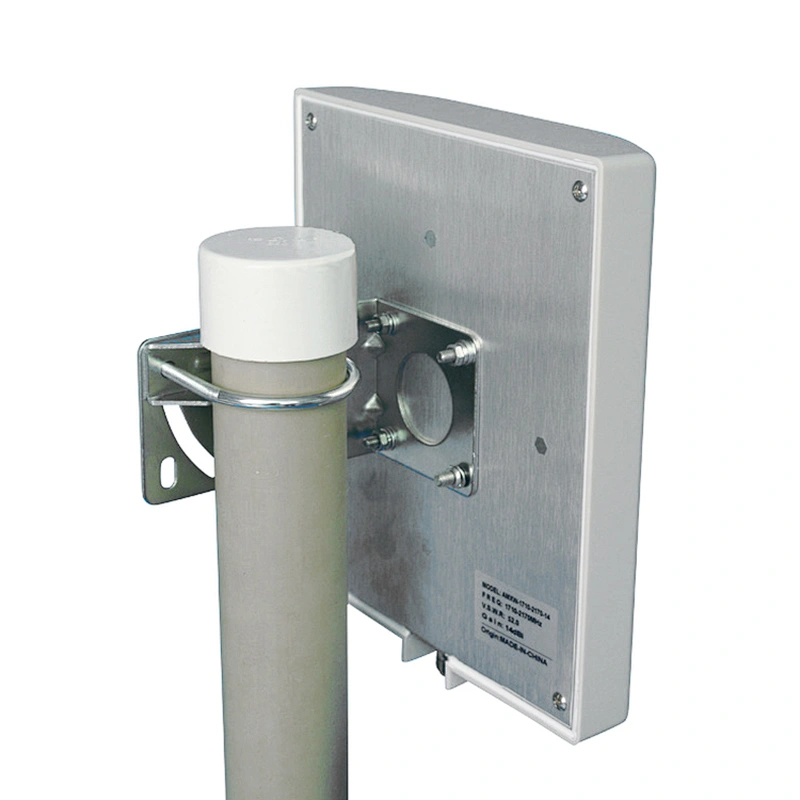

High Gain 12dBi Outdoor 860-960MHz UHF Directional RFID Panel Antenna for IOT Module

High Gain 12dBi Outdoor 860-960MHz UHF Directional RFID Panel Antenna for IOT Module

Model NO.: HSA-915WA9
Price:: USD 7.69-8.99 / pieces
Minimum order quantity: 10 pieces
Supply Ability: 5000.0 pieces / Day
Country of Origin: Shenzhen

Quantity:

Product Description

Product Name:UHF RFID Panel Antenna
Frequency Range:860-960MHz (or customized)
Gain:9dBi

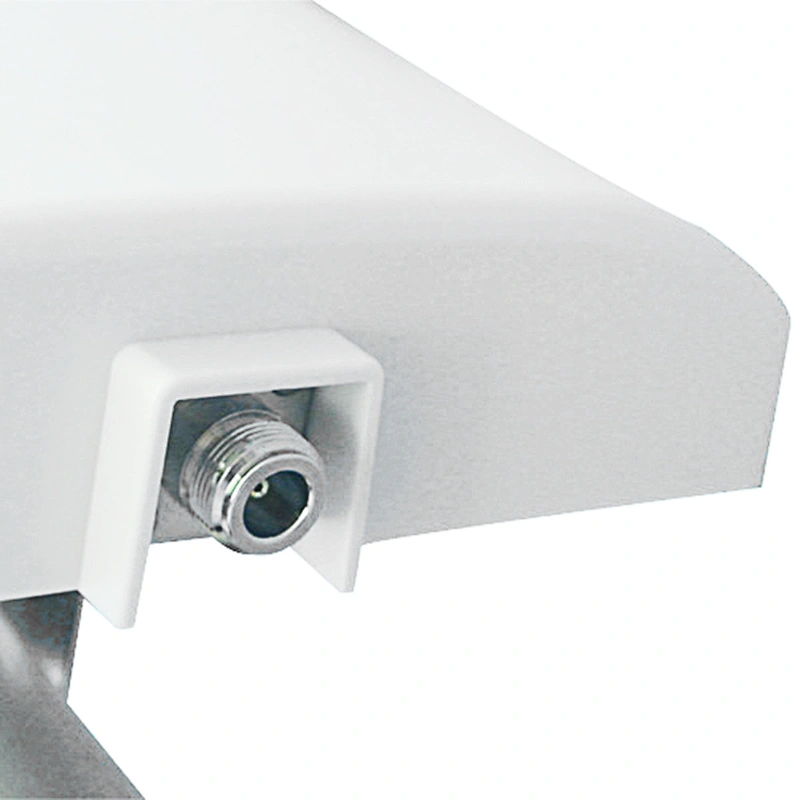

Connector:N FemaleC(or cutomized)
Impedance:50Ω
Polarization:Horizontal or Vertical
Cable Length:without extension cable by default
Radiation:Directional
Weight:500g

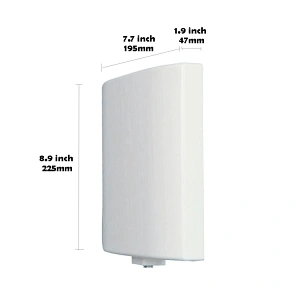

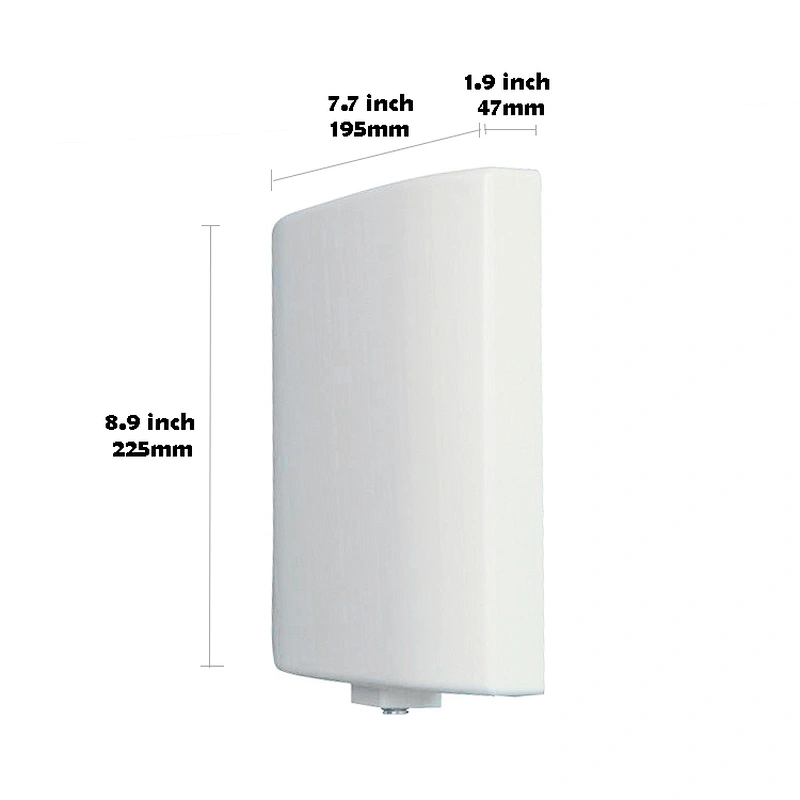

Size:225mm*195mm*47mm
Place of Origin:CN;GUA
Brand Name:Hongsense
Model Number:HSA-915WA9

Specification

High Gain 12dBi Outdoor 860-960MHz UHF Directional RFID Panel Antenna for IOT Module
Model	HSA-915WA9
Product Name	UHF RFID Panel Antenna
Frequency Range	860-960MHz (The frequency range can be customized)
Gain	9dBi
Impedance	50Ω
Connector	N Female(or cutomized)
VSWR	≤2.0
Polarization	Horizontal or Vertical
Radiation	Directional
Max. Power	50W
Lightning Protection	DC Ground

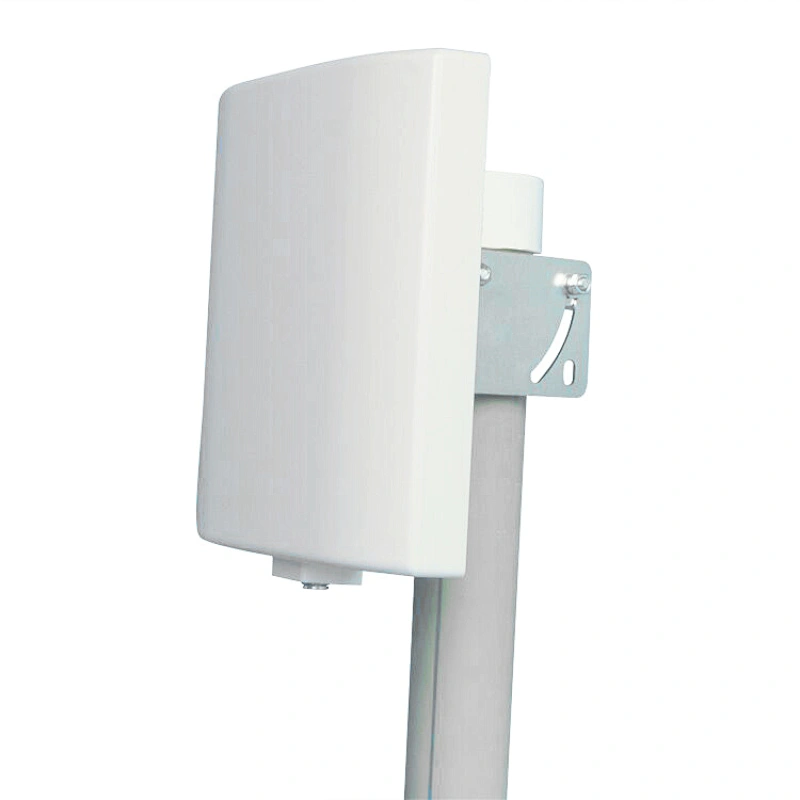

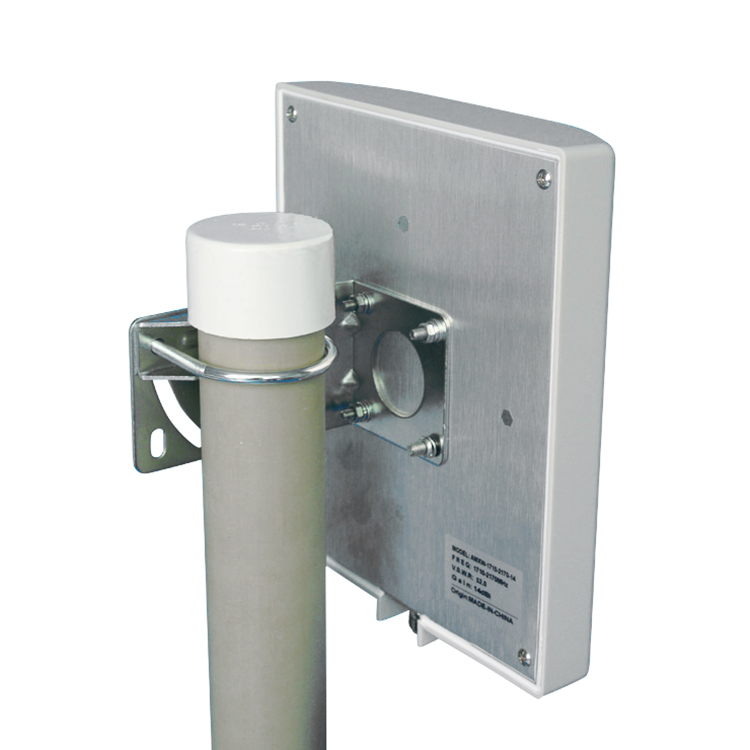

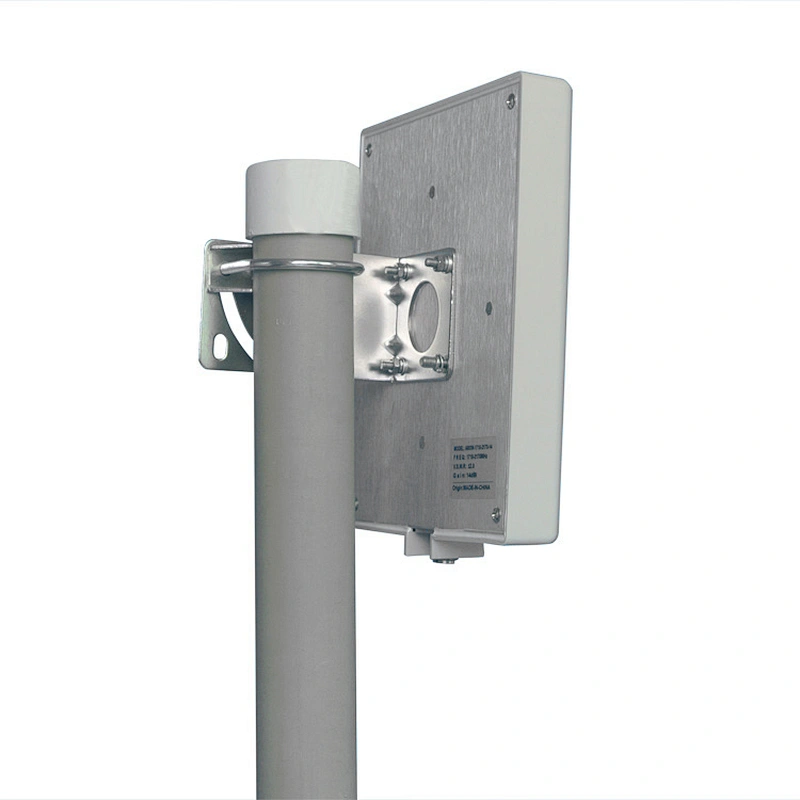

Pole Installation	40-50mm
Cable	without extension cable by default
Operation Temperature	-40~+60℃
Weight	500g
Size	225mm195mm47mm

Product Description

This directional panel antenna is for frequency range 860-960MHz, which is the main frequency for IOT RFID Module. EPC Gen2 Standard is the most important RFID standard of the EPC global. 860MHz~960MHz, as the communication frequency between the EPC Gen2 tag and the reader, is widely been allocated to UHF RFID by different regions of the world. RFID uses radio waves to transmit information, while the radio waves are transmit and received through an antenna. Therefore, the antenna is a vital part for the RFID system.Our panel antennas are designed and produced with extremely high quality standards and can work in the 860-960MHz frequency band. They can be used for medium and long-distance communication, widely used in: RFID logistics tracking, warehouse management, access control, parking lot management and other fields.

Don't be hesitate to send an inquiry or chat with us for more details if any interest or requirement!

Payment & Shipment

Packing & Delivery

Company Profile

Why Choose Us

FAQ

Q: What type of antenna your company have?

A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...

Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G, 5.8G, RFID, WIFI, GPS, GSM, 3G, 4G, ...

Outlook: Wall mount, Ceiling mount, Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your MOQ?

A: We don't have MOQ. Small quantity is also acceptable.

Q: Can you accept customize?

A: Yes. We can customize the product according to your requirements. For example, we can customize cable length(1M, 2M,3M...), connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) and frequencies(WIFI, GPS, GSM, 3G, 4G...) for you.

Q: Can the connector make with another type connector?

A: Yes, we can customize the connector for you, SMA serial, MCX, Fakra, TS9, CRC9 and so on.

Q: Could you offer samples for test first?

A: Yes. As for products with lower value, we could provide you free samples, but you may need to pay for the shipping. As for the product that cost is higher, we will ask for a sample fee, but the sample fee will be returned back in future bulk order.

Q: How is the cost?

A: We would quote you the EXW price, and we would also quote you the shipping cost if needed. Of course it is also no problem if you prefer to use your own courier account, such as DHL/UPS/TNT/FEDEX.
